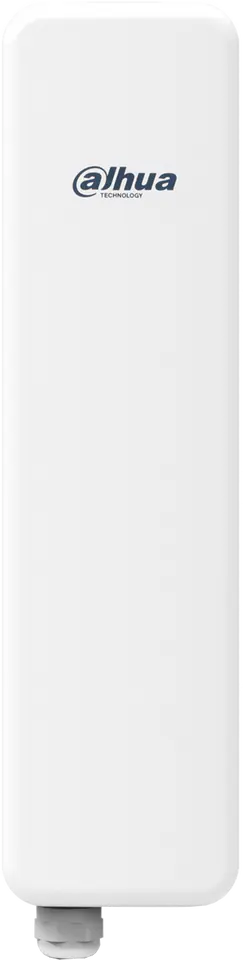

The PFWB5-90N is a complete outdoor solution designed for professional wireless solutions

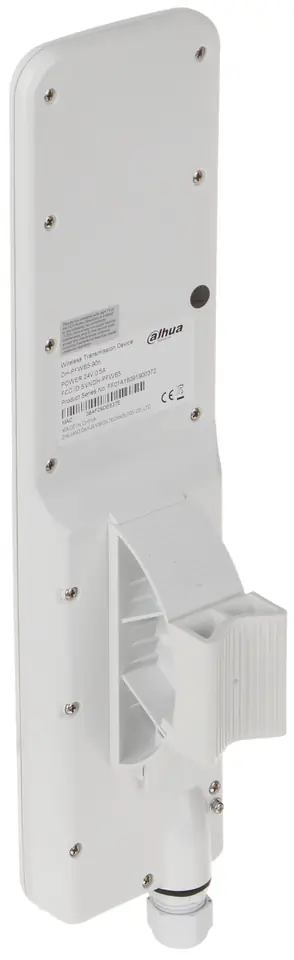

The housing made of UV-resistant plastic provides resistance to even the harshest weather conditions

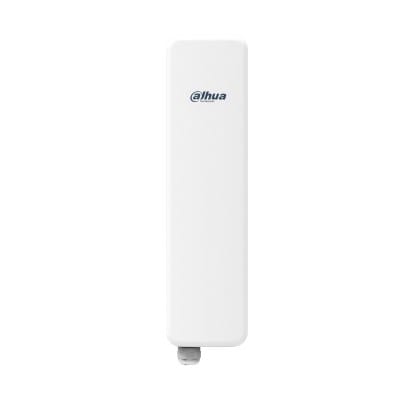

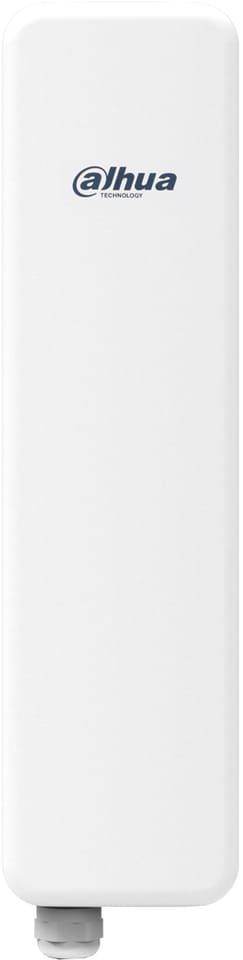

PFWB5-90N DAHUA CLIENT STATION
€214.87
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- PFWB5-90N / 6939554947544
Share this product:
Specification
| Ac input voltage: | 100 - 240 V |
|---|---|
| Antenna gain level (max): | 18 dBi |
| Antenna type: | 18 dBi, 2x2 MIMO - 5 GHz band |
| Baud: | .max. 300 Mbps |
| Connectivity technology: | Wired & Wireless |
| Dc input voltage: | 12 - 24 V |
| Depth: | 100 mm |
| Dimensions: | 383 x 100 x 98 mm |
| Ethernet lan: | Yes |

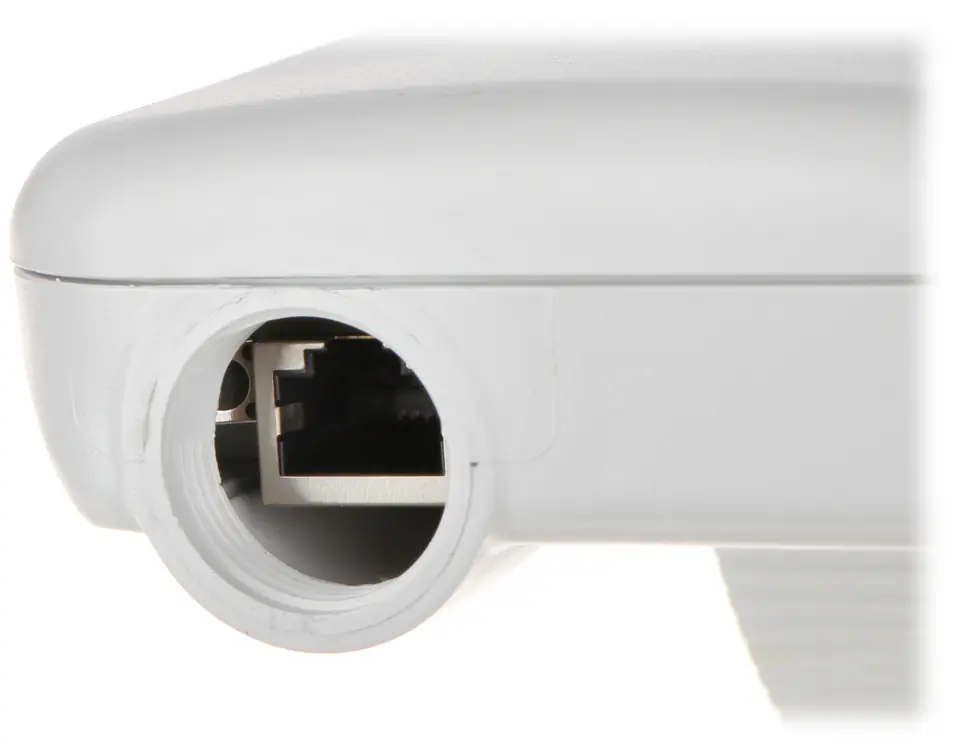

| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| Frequency band: | 5.1 - 5.9 GHz |
| Frequency range: | 5150 MHz ... 5850 MHz |
| Height: | 98 mm |
| Lan ports: | 1 x 10/100 Mbps |
| Main beam width in horizontal plane (h): | 90 ° |
| Main beam width in vertical plane (v): | 20 ° |
| Management protocols: | HTTP(S) GUI, SSH, SNMP read, Telnet |
| Networking standards: | IEEE 802.11n, IEEE 802.11a |
| Operating modes: | WDS Client, TDMA Client, WDS Base Station, TDMA Base Station, ARP NAT Base Station, Bridge, Router |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature: | -30 °C ... 70 °C |
| Operating temperature (t-t): | -30 - 70 °C |

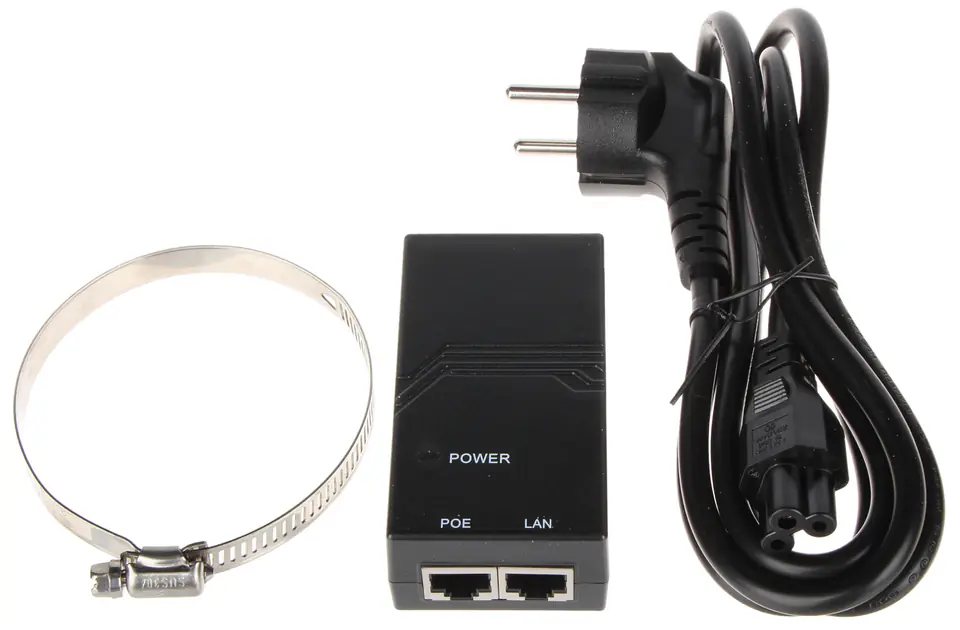

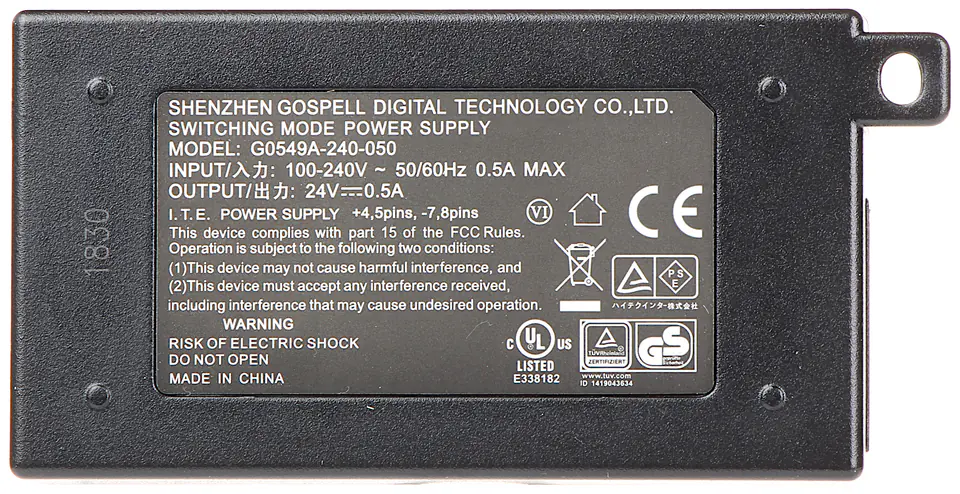

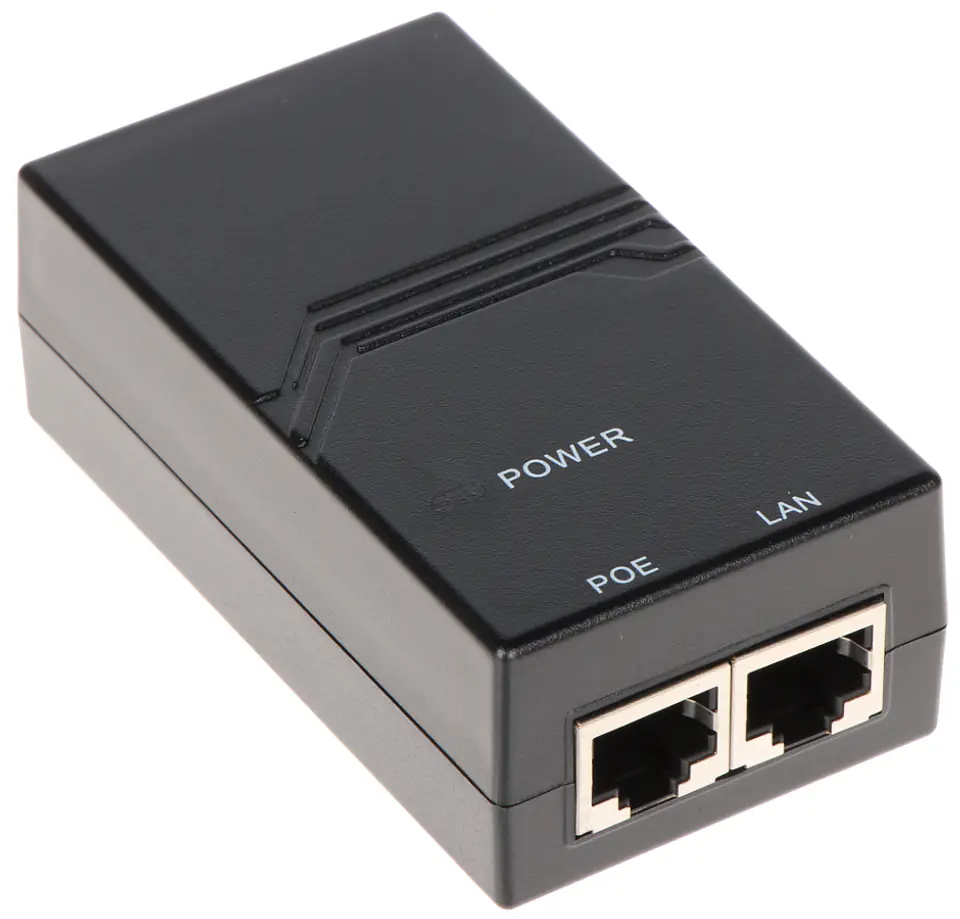

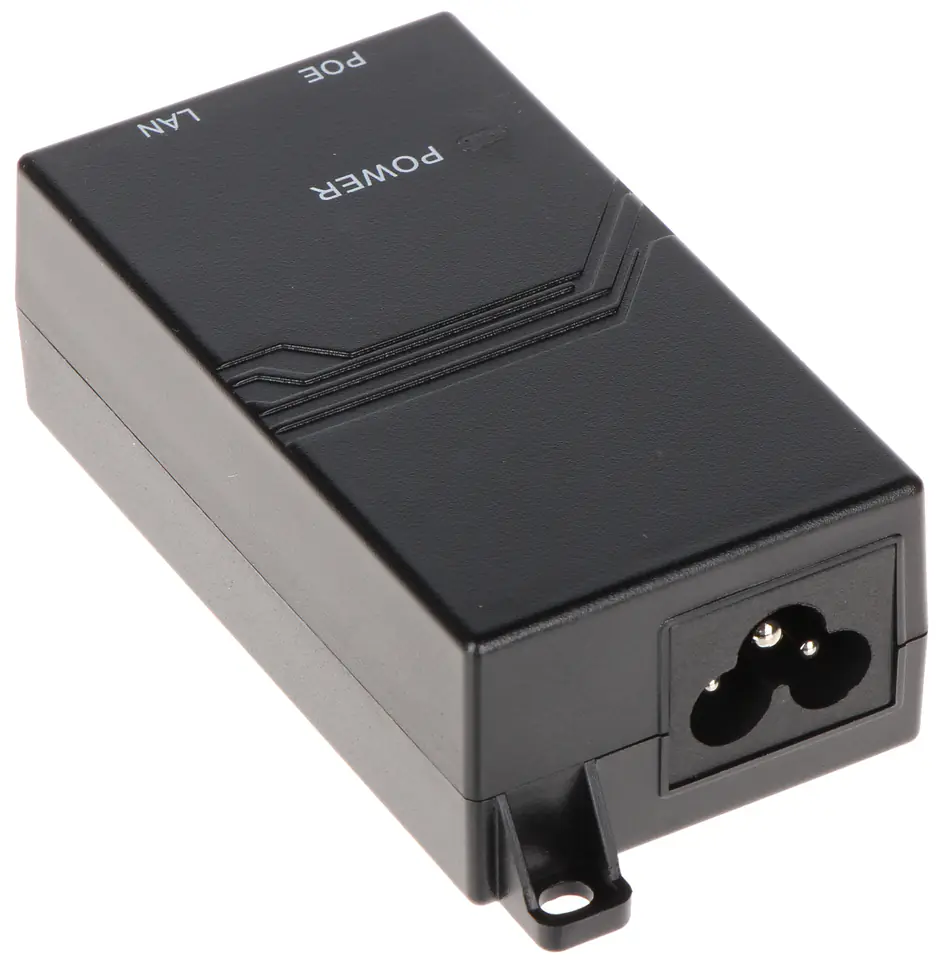

| Power: | 12 volts ... 24 V DC - Passive PoE (power supply included) |
| Power consumption: | 4.5 watts |
| Power consumption (max): | 4.5 W |
| Power source type: | DC |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Product type: | Network bridge |
| Quantity per pack: | 1 pc(s) |
| Scales: | 0.51 kg |
| Security: | Surge Protection |
| Standards: | 802.11 a/n |
| Transmitter power: | 29 dBm |
| Warranty: | 3 years |
| Weight: | 520 g |
| Width: | 383 mm |
| Wireless transmission range: | Recommended ≤ 5 km max. 7 km |
