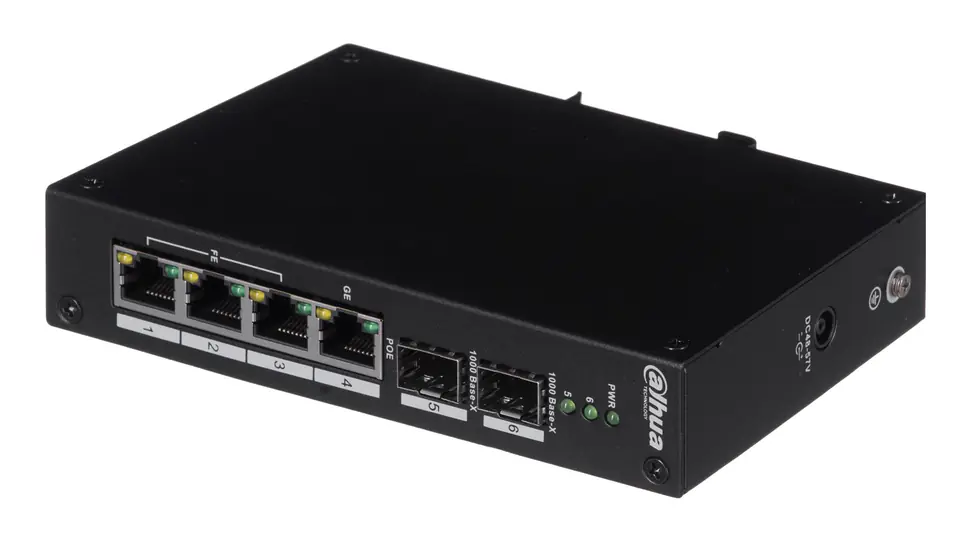

PFS3206-4P-96 switch 4 ports

Name: PFS3206-4P-96 switch 4 ports
Brand: Dahua
SKU: 410351
Price: 96.3 EUR
Availability: InStock

€96.30

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Sep 23 - Tue, Sep 24

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Dahua
Product code:: PFS3206-4P-96 / 6939554912764

Specification

10g support:	No
Basic switching rj-45 ethernet ports quantity:	4
Basic switching rj-45 ethernet ports type:	Fast Ethernet (10/100)
Copper ethernet cabling technology:	1000BASE-T, 100BASE-TX, 10BASE-T

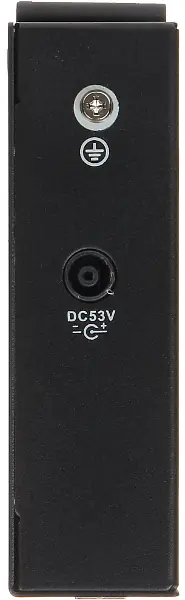

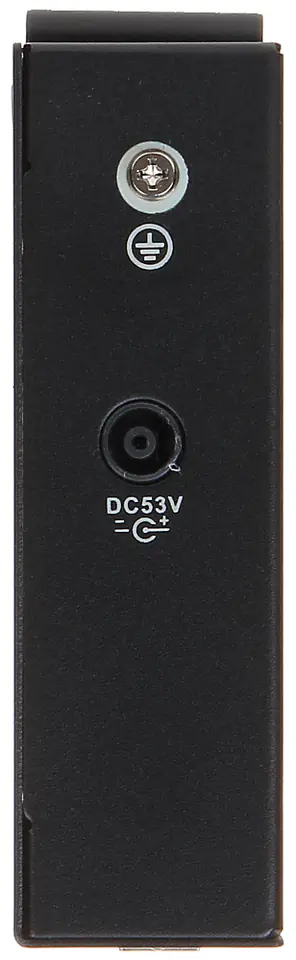

Dc input voltage:	48 - 57 V
Depth:	100 mm
Fast ethernet (copper) ports quantity:	3
Fiber ethernet cabling technology:	1000Base-X
Flow control support:	Yes
Forwarding rate:	4.91 Mpps
Gigabit ethernet (copper) ports quantity:	1
Height:	30 mm
Installed sfp modules quantity:	2
Led indicators:	Yes
Mac address auto-aging supported:	Yes
Mac address auto-learning supported:	Yes
Mac address table:	8000 entries
Networking standards:	IEEE 802.3x, IEEE 802.3af, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at
Operating temperature (t-t):	-30 - 65 °C
Power over ethernet (poe):	Yes
Power over ethernet plus (poe+) ports quantity:	4
Product colour:	Black
Rack mounting:	No
Sfp module slots quantity:	2
Stackable:	Yes
Switch layer:	L2
Switch type:	Managed
Switching capacity:	6.8 Gbit/s
Weight:	480 g
Width:	150 mm

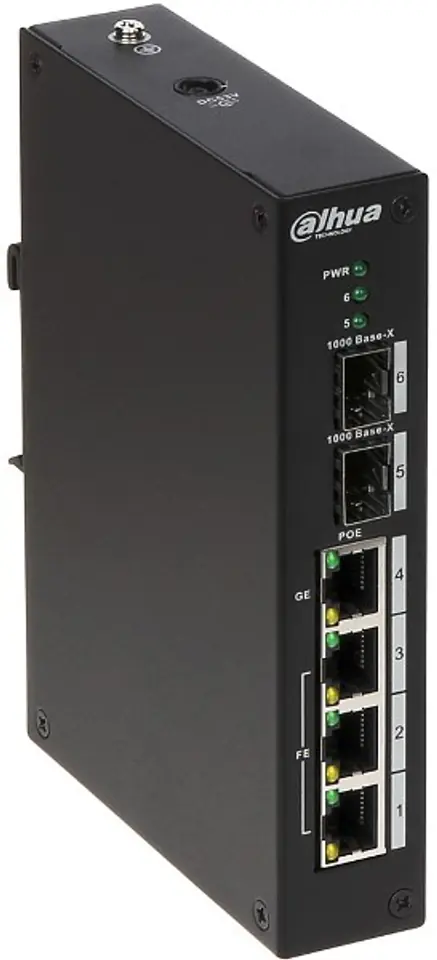

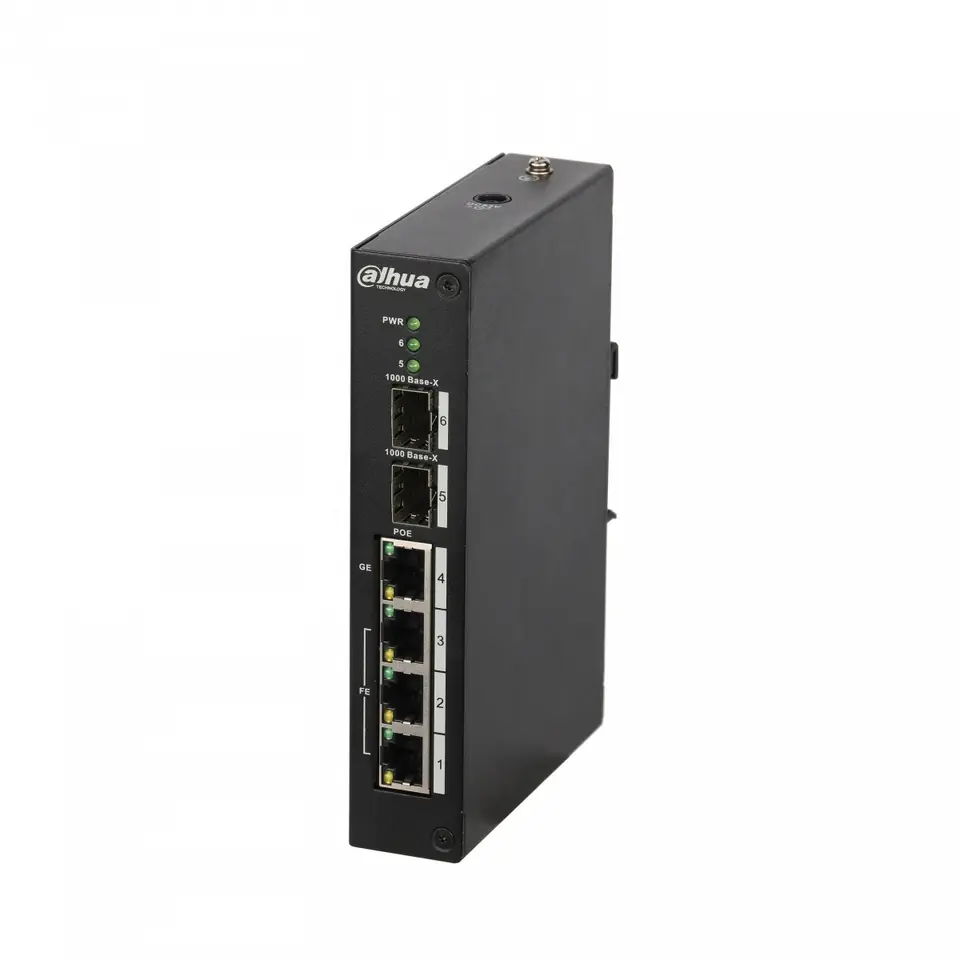

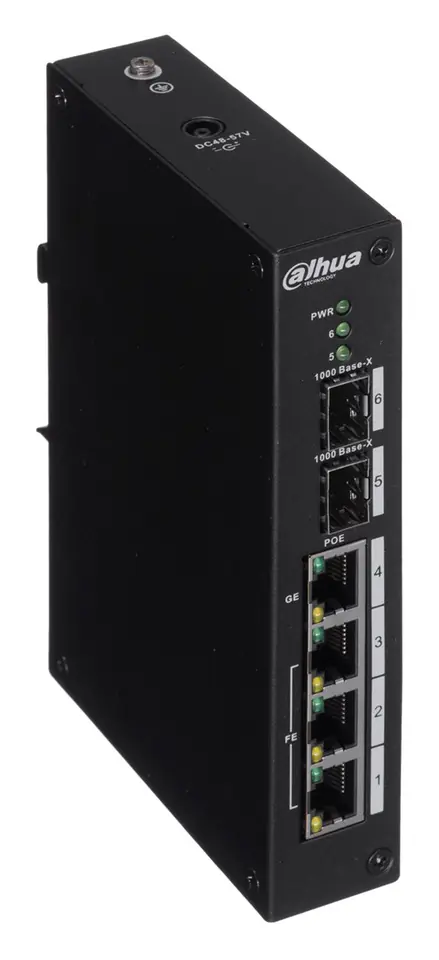

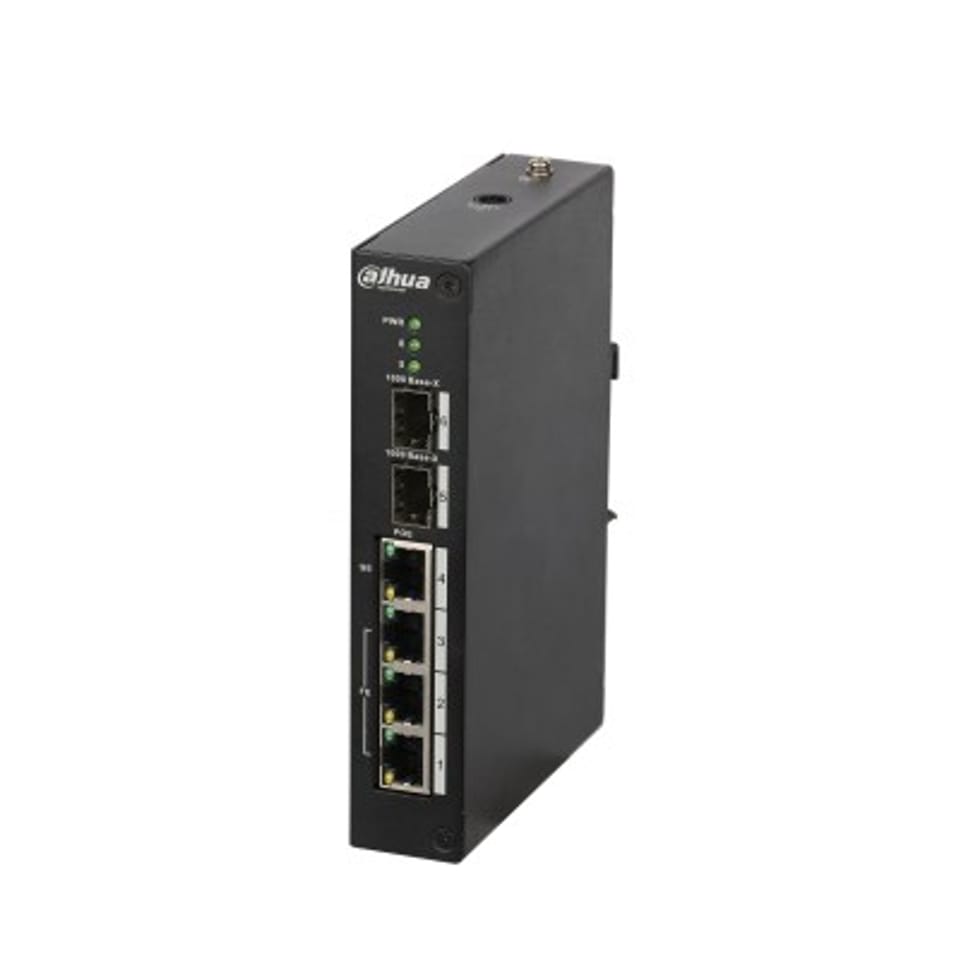

Dahua 4-Port PoE Switch PFS3206-4P-96

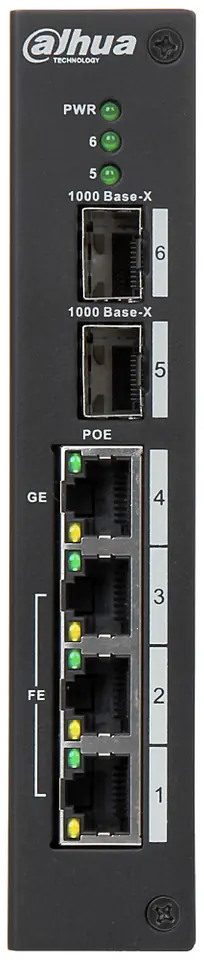

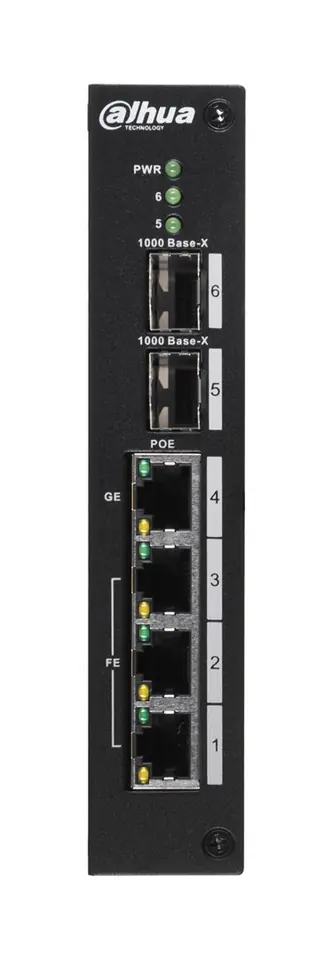

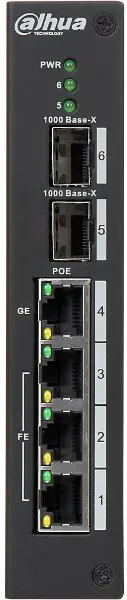

The Dahua PFS3206-4P-96 4-port PoE Switch is a dual-layer unmanaged PoE switch that is equipped with 2 1000 Base-X ports, 1 10/100/1000 Base-T port (Hi-PoE / PoE + / PoE) and 3 10/100 Base-T ports (PoE + / PoE). The device was developed as an industrial device, so it can operate in wide temperature ranges. It supports IEEE802.3af, IEEE802.3at, Hi-PoE standard and is compatible with IEEE802.3, IEEE802 .3u, IEEE802.3ab / z and IEEE802.3X.

PFS3206-4P-96 features:

Dual layer unmanaged PoE switch
Cascade can be implemented via SFP fibre port
Automatic MAC polling and aging, MAC address list capacity is 8K
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
Compatibility with IEEE802.3, IEEE802 .3u, IEEE802.3ab / z and IEEE802.3X
Industrial-strength wide temperature design

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
