| Dimensions: | 160 x 68 mm |
|---|---|
| Event memory: | 3584 |
| Grade: | 2 |
| Maximum number of supported inputs: | 32 pcs. -Programmable |
| Maximum number of supported outputs: | 12 pcs. -Programmable |
| Motherboard inputs: | 8 pcs. -Programmable |
| Motherboard outputs: | 4 pcs. -Programmable |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible relative ambient humidity: | 93 % |
| Power: | 18 V AC |
| Power supply current efficiency: | 2 A |
| Producer / brand: | SATEL |
| Scales: | 0.1 kg |
| Selected features: | Built-in dialer Built-in voice module (playback of voice messages for telephone notification) - 16 voice messages Built-in acoustic alarm verification module (listening for sounds) 3 surveillance modes in each zone Input can be assigned to two zones User or timer control Communication bus for connecting keypads (PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS) Edit names (users, zones, inputs, outputs and modules) facilitating system control and supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Support for vibration and roller shutter detectors Possibility of software updates |
| Supported keyboards: | .max. 4 pcs. |
| Supported languages: | Polish - no possibility to change the language |
| Timers: | 8 |
| Users + administrators: | 15 + 1 |
| Warranty: | 2 years |
| Zone: | 2 |

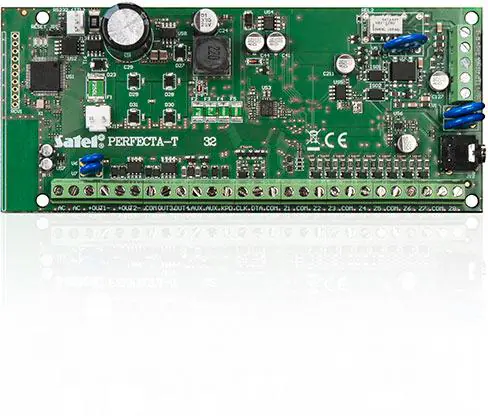

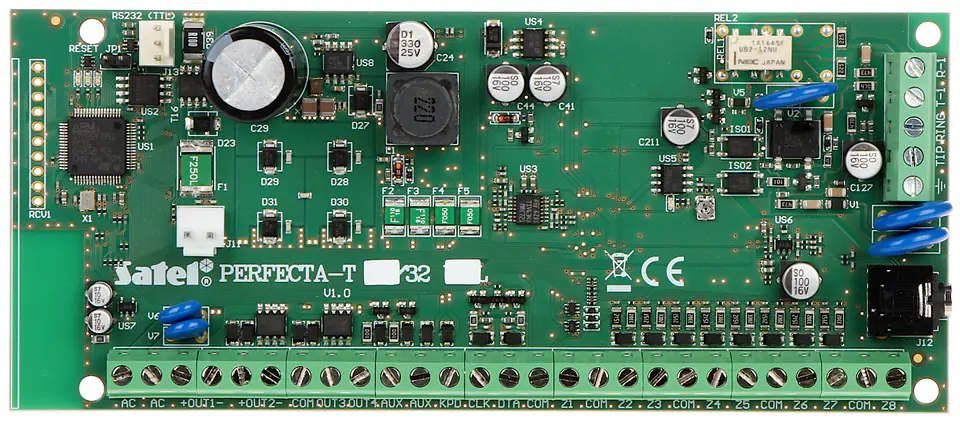

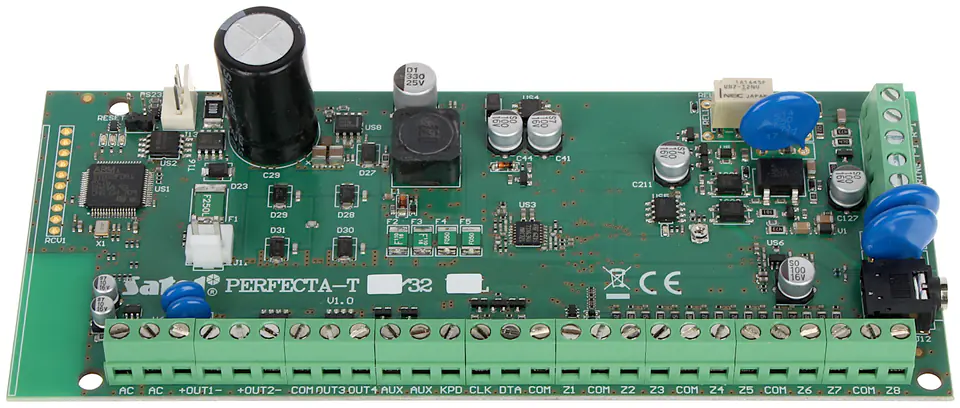

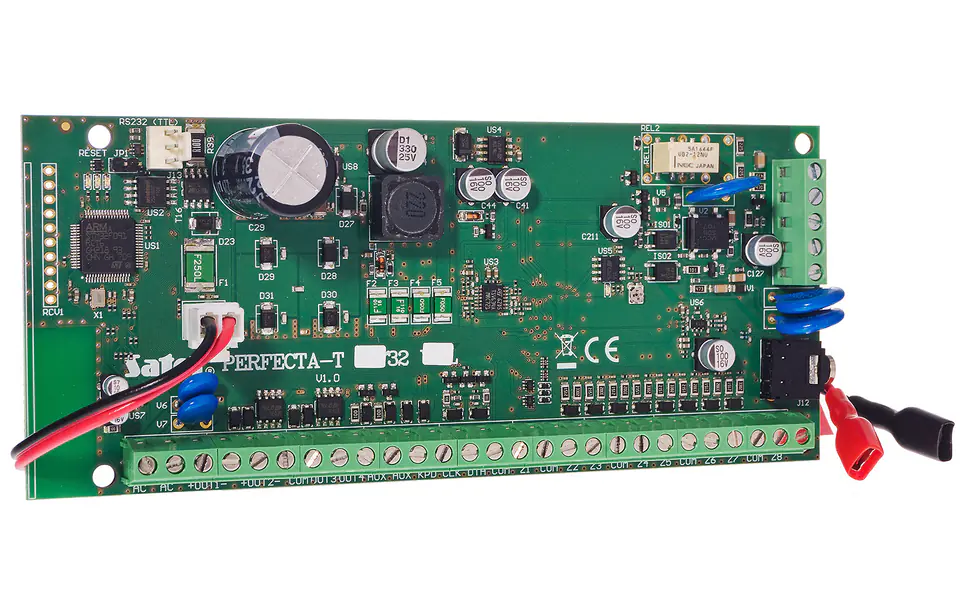

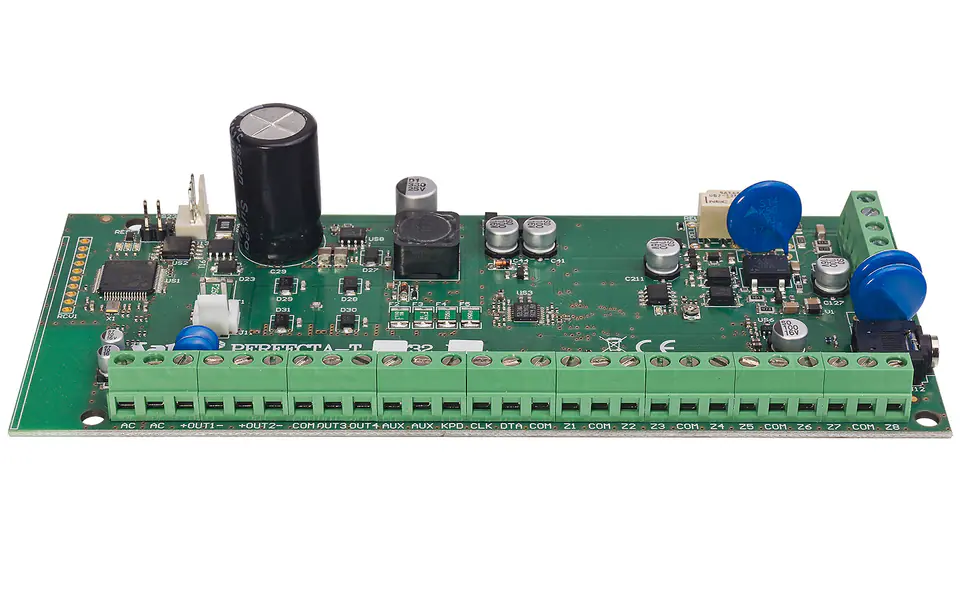

PERFECTA-T series control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with EN 50131 Grade 2 requirements

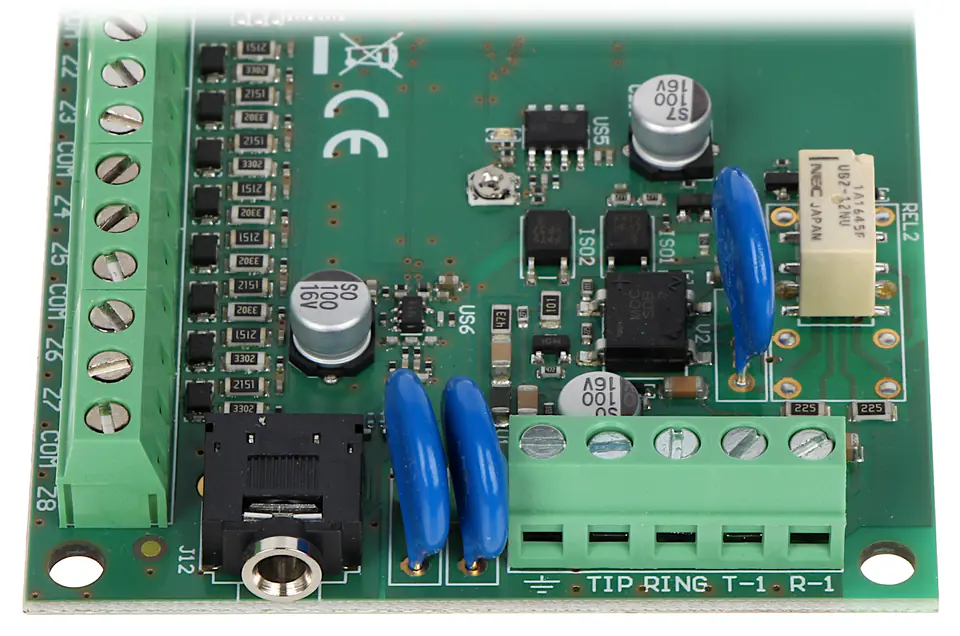

The built-in PSTN telephone dialer can be used to monitor events (e.g. to a security agency monitoring station) and voice notification, as well as audio verification (listening to sounds from a protected facility)
