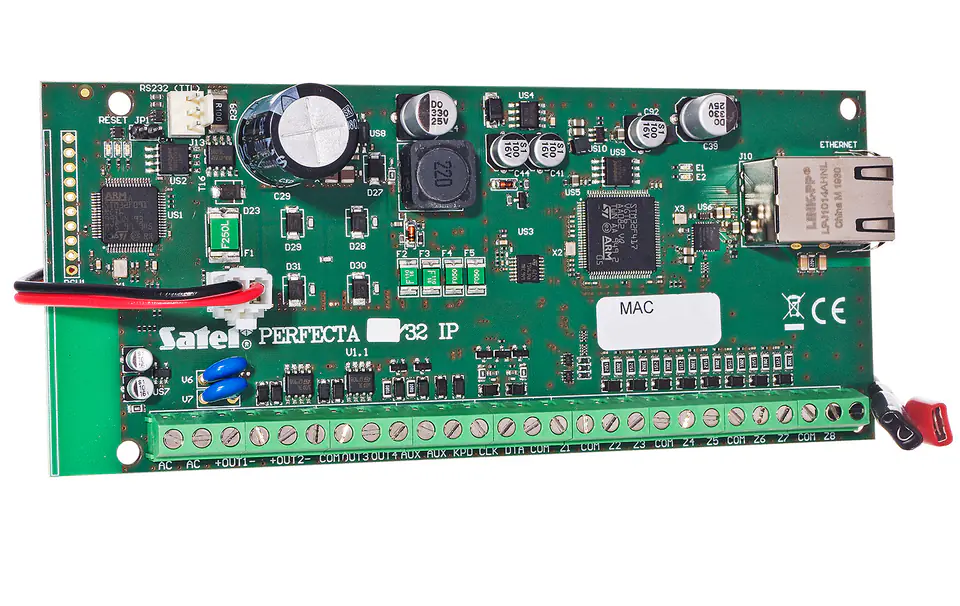

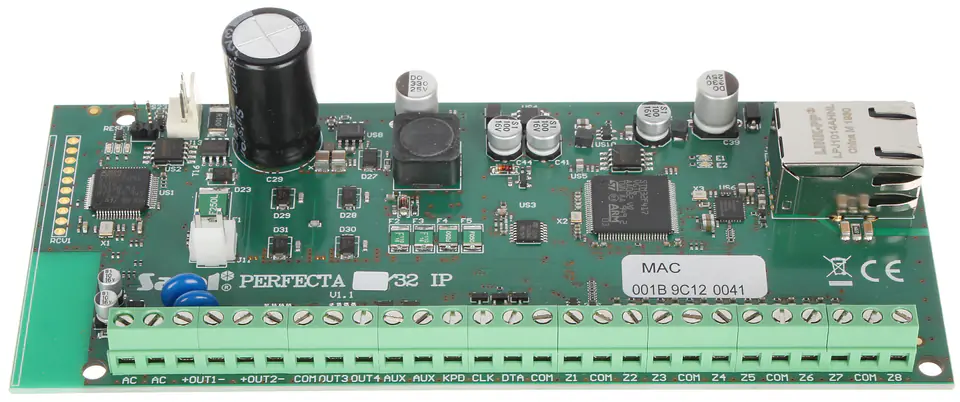

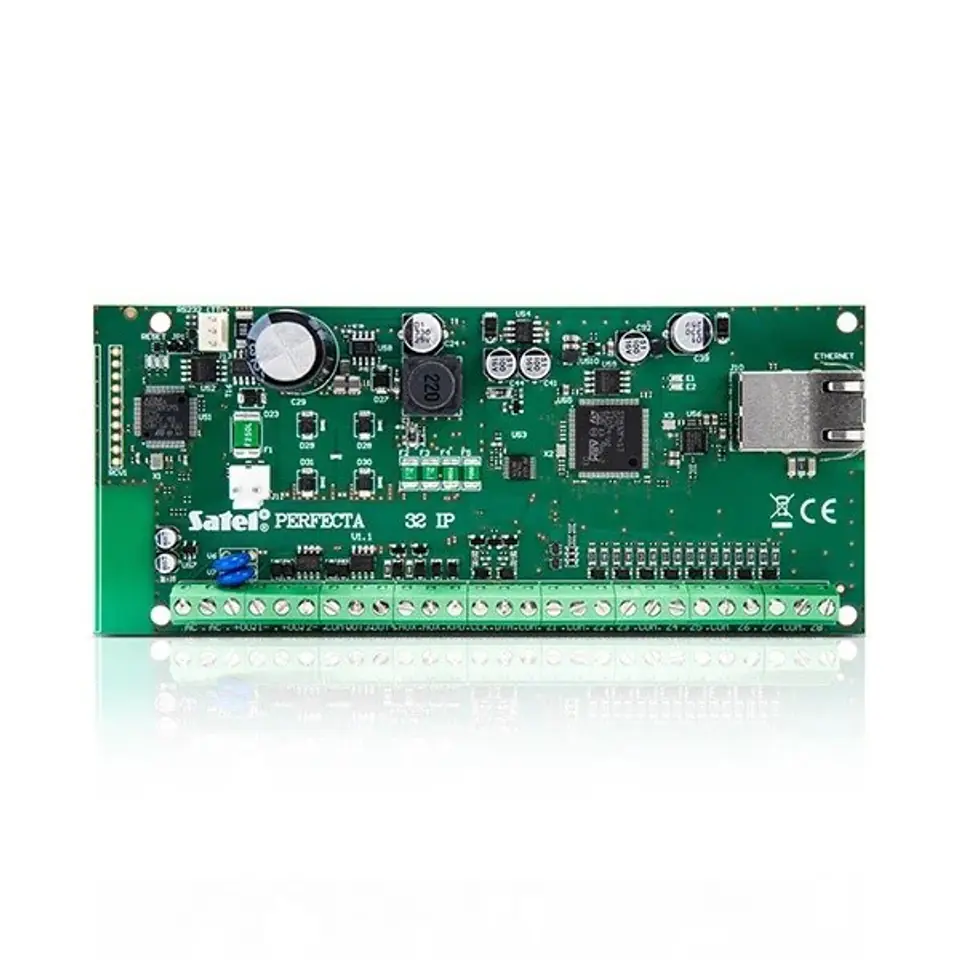

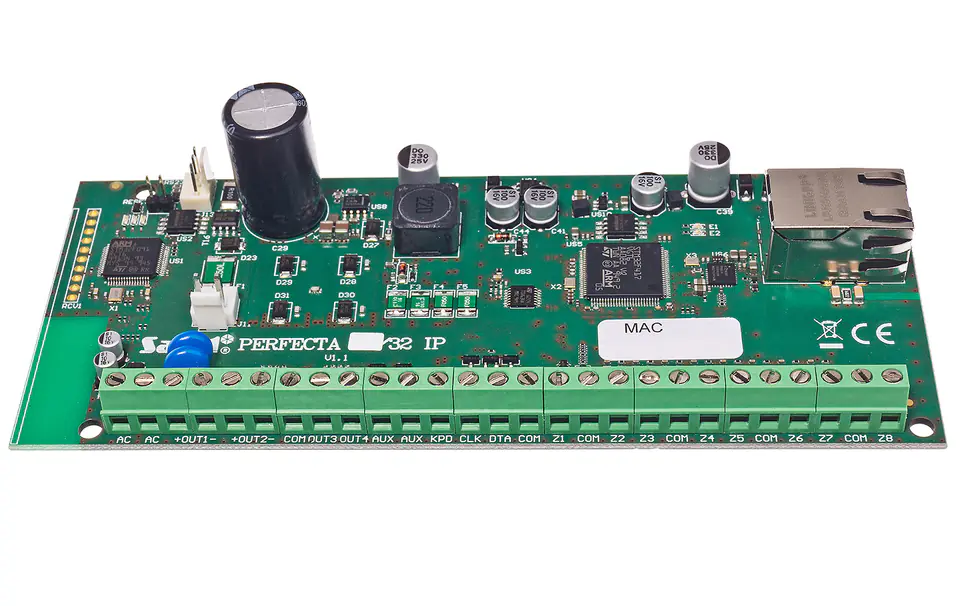

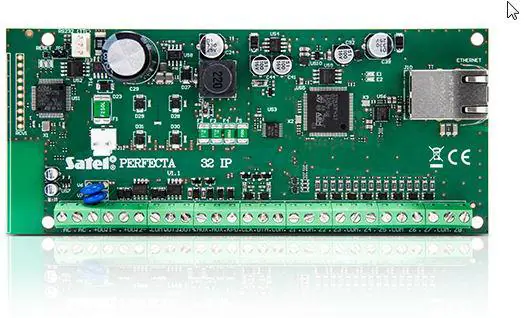

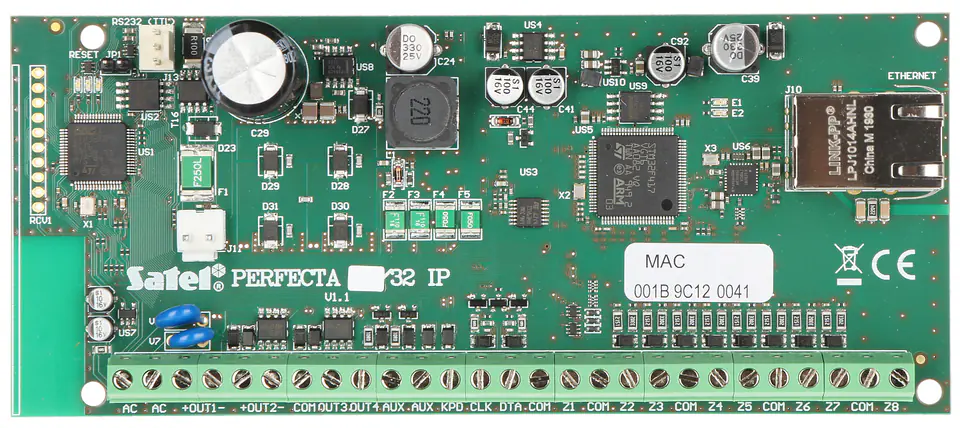

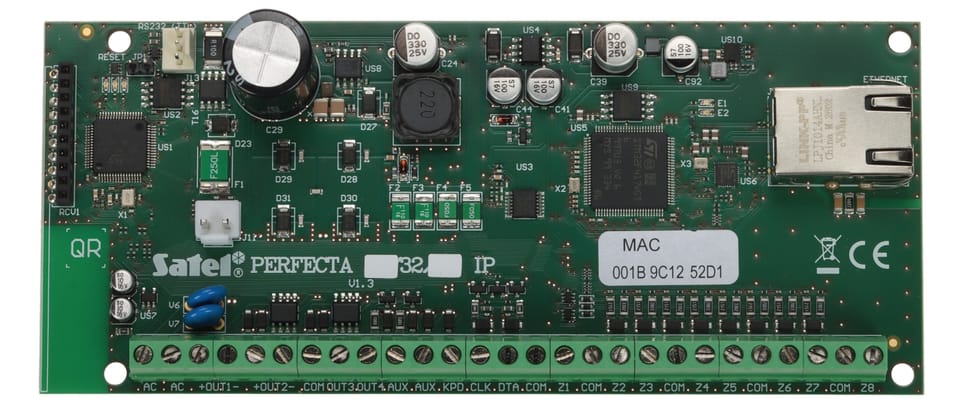

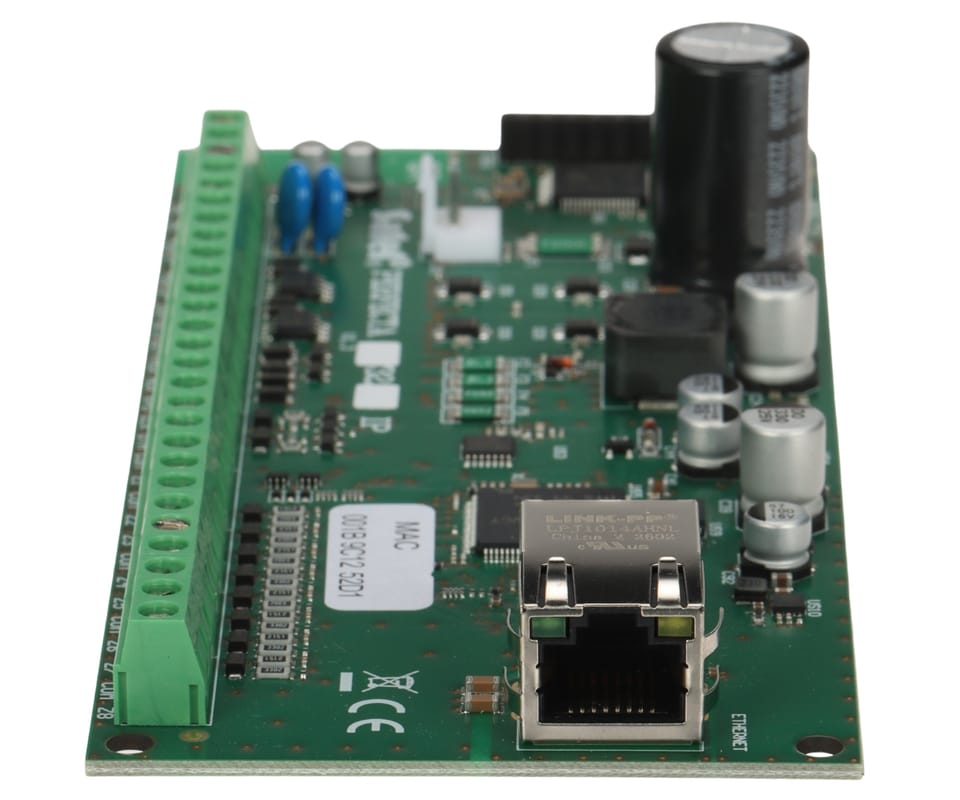

PERFECTA-IP-32 SATEL CONTROL PANEL BOARD

Name: PERFECTA-IP-32 SATEL CONTROL PANEL BOARD
Brand: Satel
SKU: 515416
Price: 189.26 EUR
Availability: InStock

€189.26

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: PERFECTA-IP-32 / 5905033337237

Specification

Aux out:	500 mA / 12 V DC
Countdown timer:	Yes
Current efficiency of the power supply::	2 A
Depth:	68 mm
Dimensions::	160 x 68 mm
Environmental class:	II
Event memory:	3584
Event memory::	3584
Grade::	2
High-current programmable outputs:	1000 mA / 12 V DC
Kpd output:	500 mA / 12 V DC
Low-current programmable outputs:	25 mA / 12 V DC
Manufacturer / brand::	SATEL
Maximum battery current draw:	110 mA
Maximum current consumption:	200 mA
Maximum number of programmable inputs:	32
Maximum number of programmable outputs:	12
Maximum number of supported inputs::	32 pcs. - programmable
Maximum number of supported outputs::	12 pcs. - programmable
Motherboard inputs::	8 pcs. - programmable
Motherboard outputs::	4 pcs. - programmable
Number of alarm zones:	2
Number of users:	15 user(s)
Operating temperature (t-t):	10 - 55 °C
Operating temperature::	10 °C ... 55 °C
Output current:	2 A
Output voltage:	12 V
Permissible relative humidity::	93 %
Power consumption (standby):	100 mA
Power supply voltage:	18 V
Power::	18 V AC
Product colour:	Green
Programmable wire inputs:	8
Programmable wire outputs:	4
Recommended transformer:	40 VA
Relative humidity:	0 - 93%
Scales::	0.1 kg
Selected features::	Built-in Ethernet module (monitoring to the station, mobile application, PUSH notifications) Communication bus for connecting PRF-LCD keypads, INT-E, INT-O, INT-ORS, INT-RX-S 3 surveillance modes in each zone Possibility of assigning input to two zones Control by the user or using timers Editing names (users, zones, inputs, outputs and modules) for easy system control and supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Support for vibration and roller shutter detectors Possibility of software update
Supply outputs:	2
Supported keyboards::	Max. 4 pcs.
Supported languages::	Polish - no possibility to change the language
Telephone numbers for notification:	8
Timers::	8
Users + administrators::	15 + 1
Voice prompts:	Yes
Warranty::	2 years
Weight:	108 g
Width:	160 mm
Zone::	2

PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with the requirements of Grade 2 EN 50131

In addition to the basic, traditional methods of system control, the control panel also offers, among others, a functional and intuitive application for mobile devices PERFECTA CONTROL

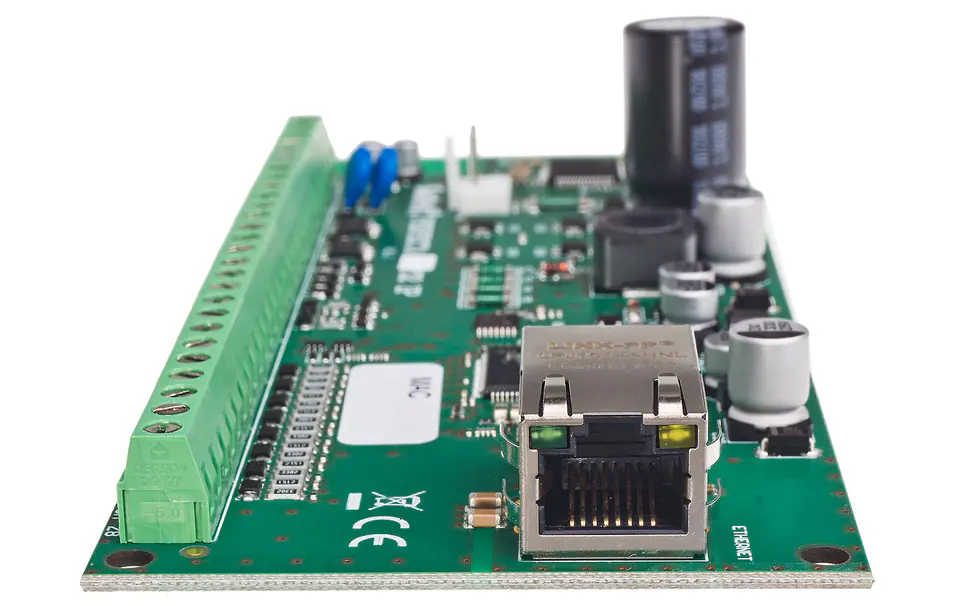

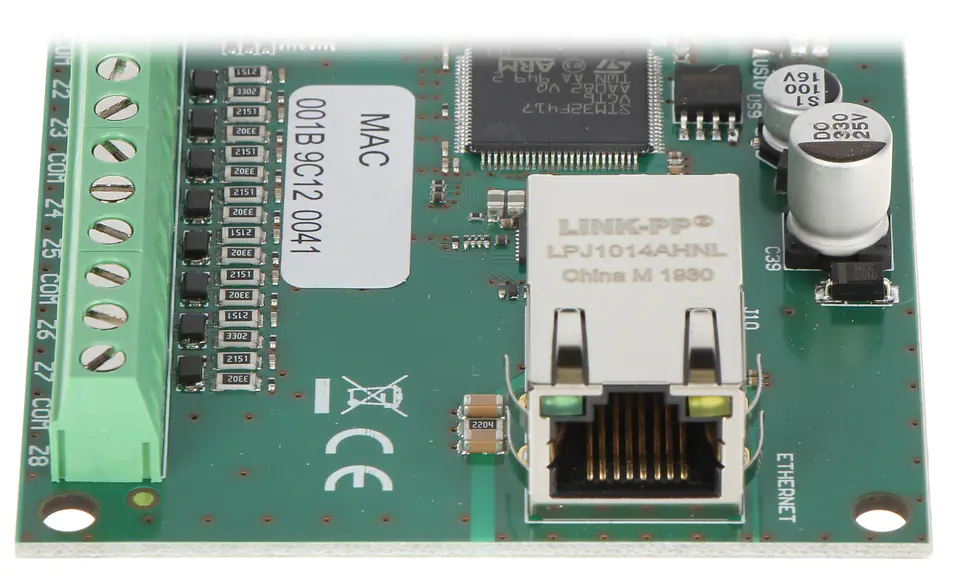

The PERFECTA-IP-32 model uses an Ethernet communicator that allows the use of a mobile application, remote configuration of the system using the PERFECTA Soft program and event monitoring (e.g. to the monitoring station of the security agency)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
