PERFECTA-32-WRL-LTE-SET-A SATEL ALARM CONTROL PANEL

€274.97
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
PERFECTA-32-WRL-LTE-SET-A / 5905033337176

Specification

Current efficiency of the power supply::2 A
Dimensions::160 x 68 mm - PCB283 x 263 x 94 mm - Enclosure
Event memory::3584
Grade::2
Manufacturer / brand::SATEL
Maximum number of supported inputs::32 pcs. - programmable
Maximum number of supported outputs::16 pcs. - programmable
Motherboard inputs::8 pcs. - programmable
Motherboard outputs::4 pcs. - programmable
Operating temperature::-10 °C ... 55 °C
Permissible relative humidity::93 %
Power::18 V AC
Scales::1.18 kg (with housing and accessories)
Selected features::Built-in mobile phone module with 2 nano-SIM sockets (SMS, monitoring to the station, mobile application, PUSH notifications) - data transmission in LTE / HSPA+ / EDGE / GPRS technology - depending on the capabilities of the mobile network Built-in voice module (playback of voice messages for phone notification) - 16 voice messages Built-in acoustic alarm verification module (listening for sounds) Two-way communication with wireless keypads PRF-LCD-WRL and MSP-300-R sirens are carried out in the 433 MHz band Wireless one-way communication with MICRA series detectors and MPT-350 remote controls in the 433 MHz band 3 surveillance modes in each zone Possibility of assigning input to two zones User control or using timers Communication bus for connecting keypads (PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS) Editing names (users, zones, inputs, outputs and modules) facilitating system control and supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Support for vibration and roller shutter detectors Possibility of software update
Supported keyboards::Max. 4 pcs.
Supported languages::Polish - no possibility to change the language
Timers::8
Users + administrators::15  + 1
Warranty::2 years
Zone::2

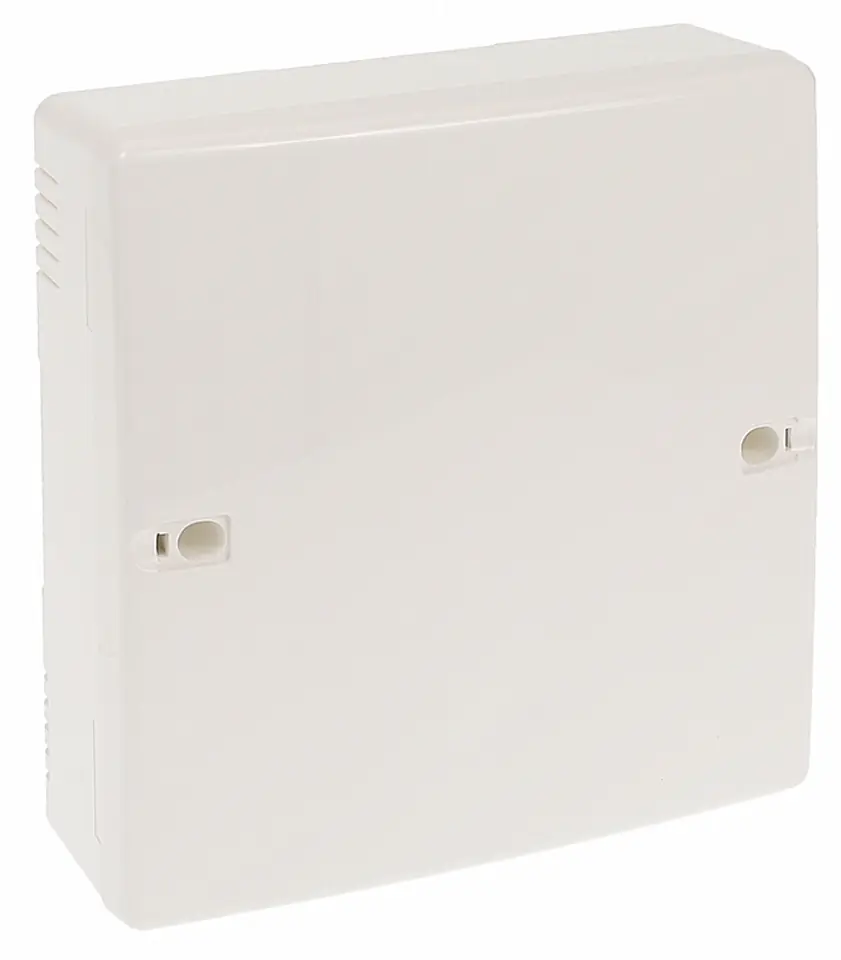

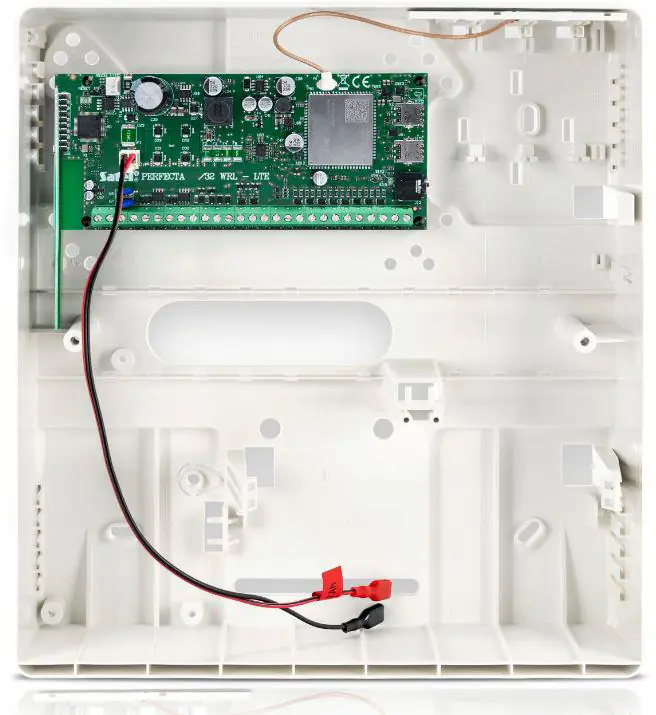

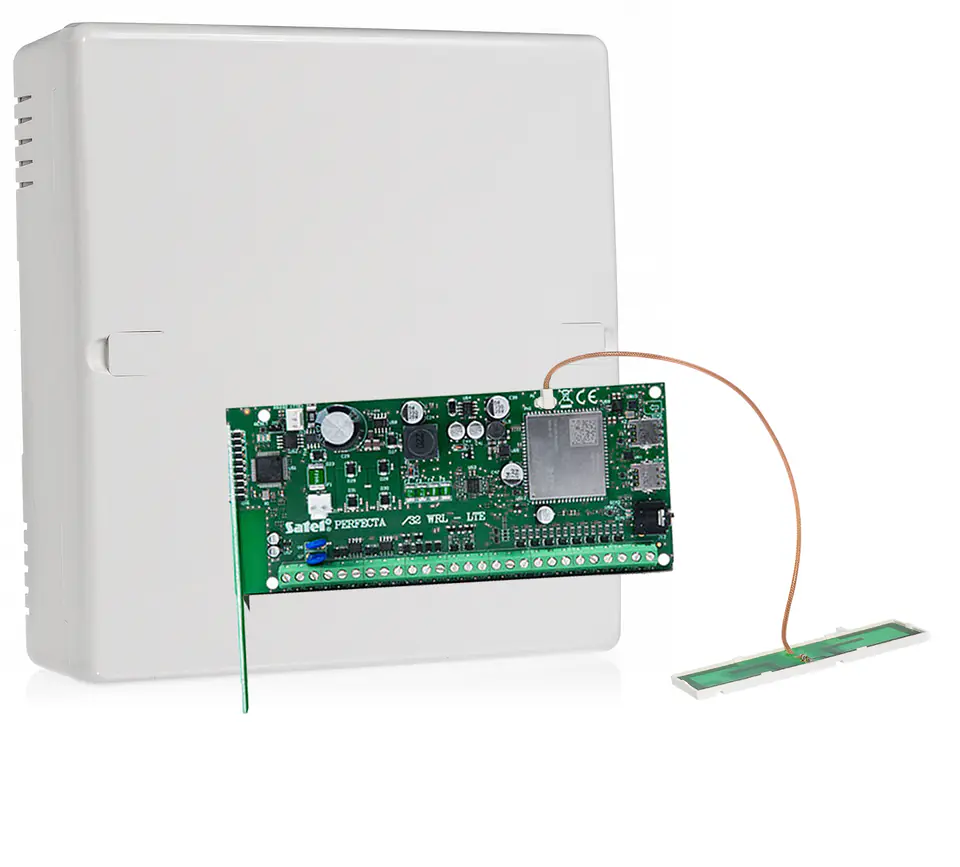

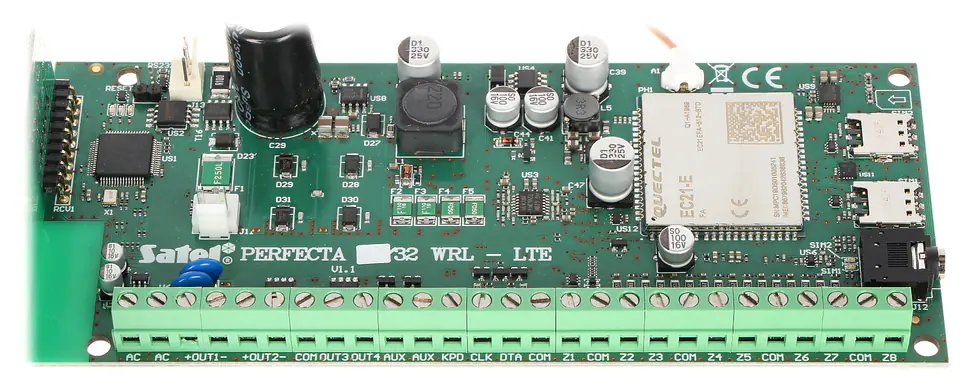

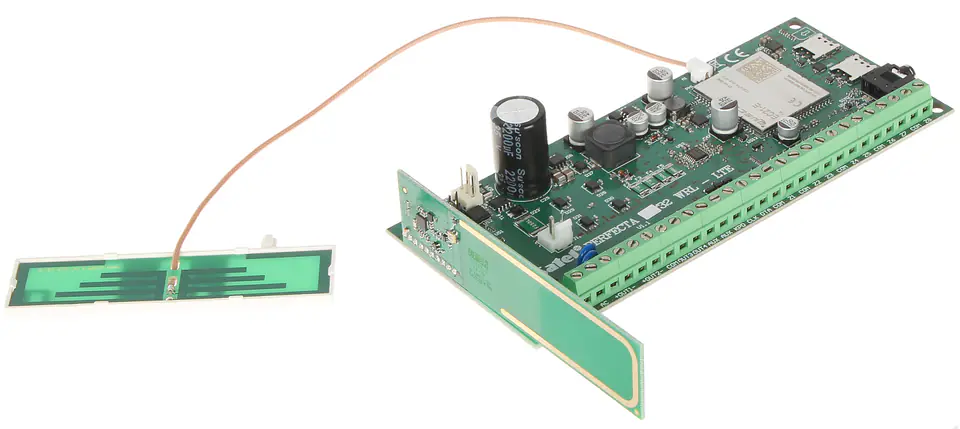

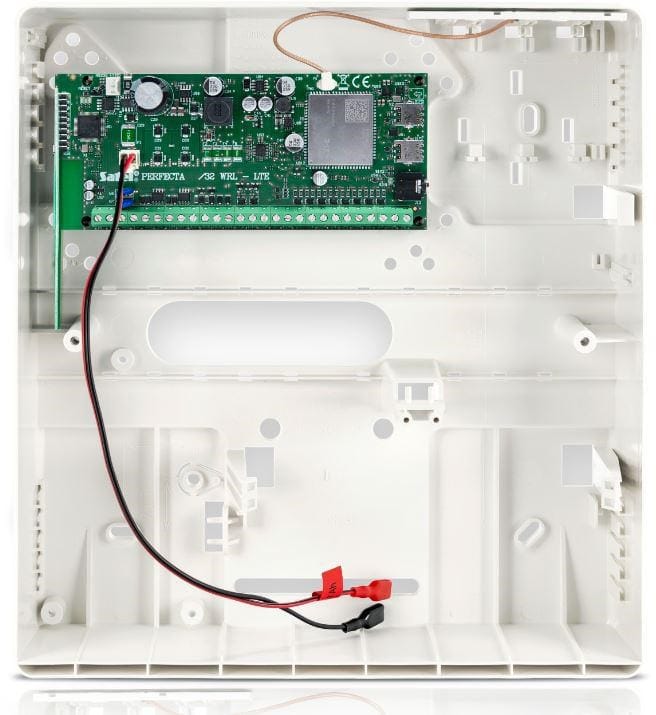

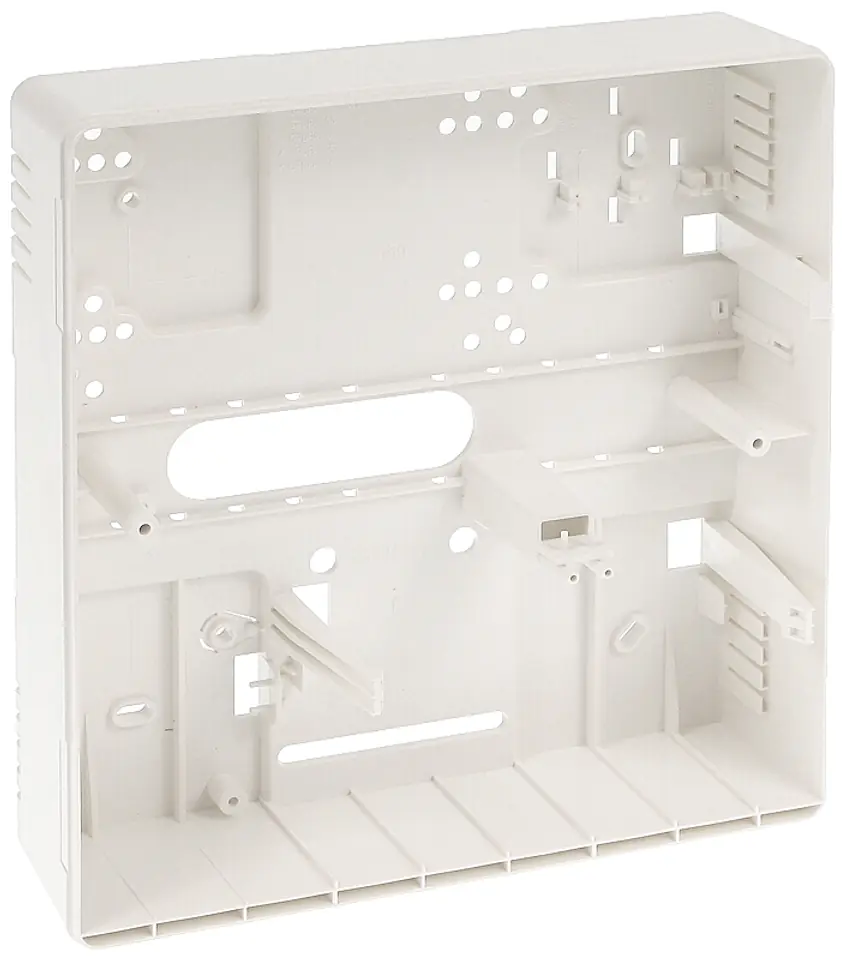

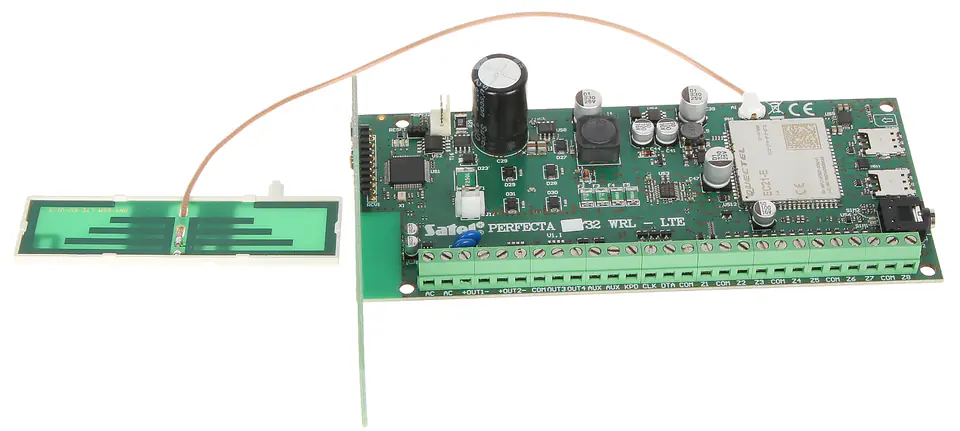

PERFECTA-32-WRL-LTE alarm control panel set - including control panel board, OPU-4-P housing and GSM antenna

PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with the requirements of Grade 2 EN 50131

PERFECTA-32-WRL-LTE control panel - allows you to create a wireless and hybrid installation (connection with a traditional wired system)Two-way communication with PRF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHzW band of the wireless installation, MICRA series detectors and new MPT-350 remote controls are also usedIt is a possibility of easy expansion of the existing system, without the need to lay additional cable tracks

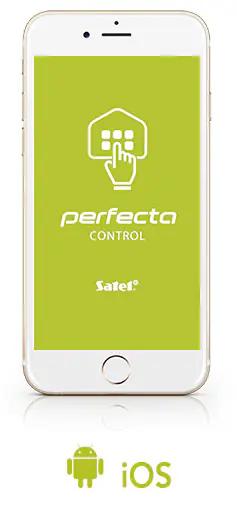

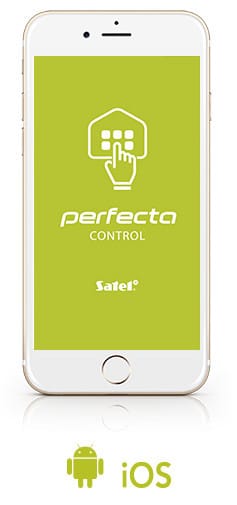

In addition to the basic, traditional methods of system control, the control panel also offers, among others, a functional and intuitive application for mobile devices PERFECTA CONTROL

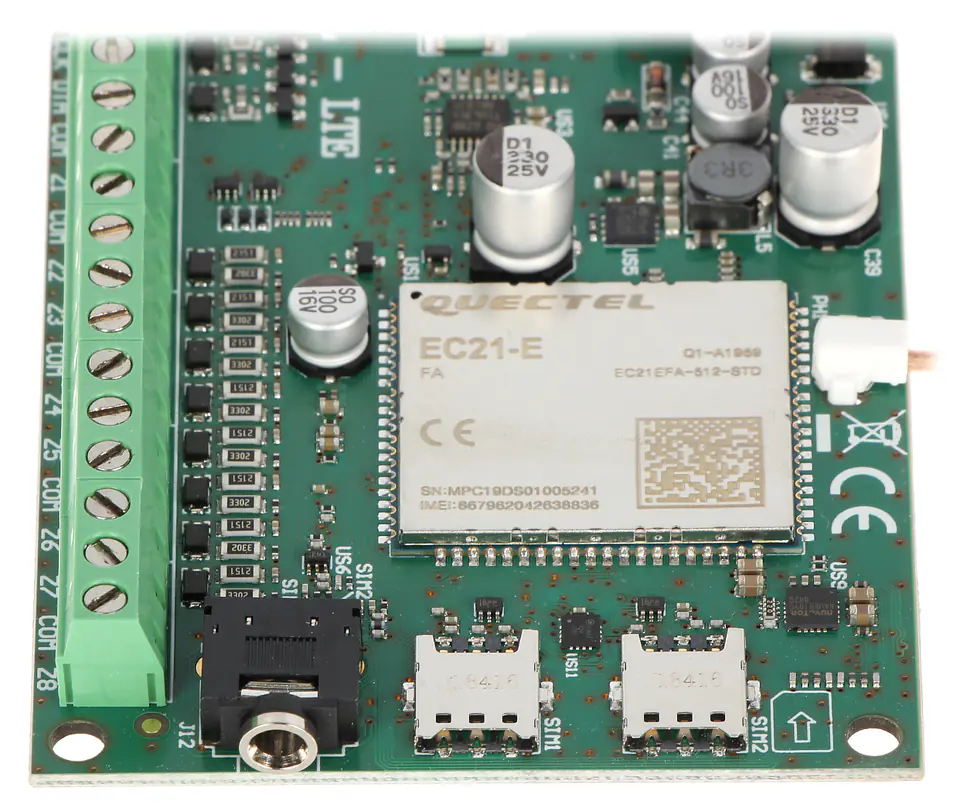

The built-in mobile phone module (supporting data transmission in LTE / HSPA+ / EDGE / GPRS technology - depending on the mobile network) gives a wide range of possibilities: it allows cooperation with a mobile application, with PUSH messaging, remote configuration using the PERFECTA Soft program, event monitoring (e.g. to the monitoring station of the security agency), voice notification, control via SMS and audio verification (listening for sounds from the protected object)Two cards are supported nano-SIM, which ensures continuity of communication: when there are problems with the range of the first operator, a second card is automatically selected

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
