PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. They provide protection in accordance with the requirements of Grade 2 EN 50131.
The system based on the PERFECTA 32 control panel is characterized by quick assembly, simple configuration and easy and intuitive operation. In addition to the basic, traditional methods of system control, the control panel also offers more modern ones: using the functional and intuitive application for mobile devices PERFECTA CONTROL and remote controls operating in the 433 MHz frequency band (after connecting the INT-RX-S module).
The built-in GSM/GPRS module gives a wide range of possibilities: it enables cooperation with a mobile application, with PUSH messaging, remote configuration using the PERFECTA Soft program, event monitoring (e.g. to the monitoring station of the security agency), voice notification, control via SMS and audio verification (listening for sounds from the protected facility). Two nano-SIM cards are supported, which ensures continuity of communication: when there are problems with the range of the first operator, the second card is automatically selected.

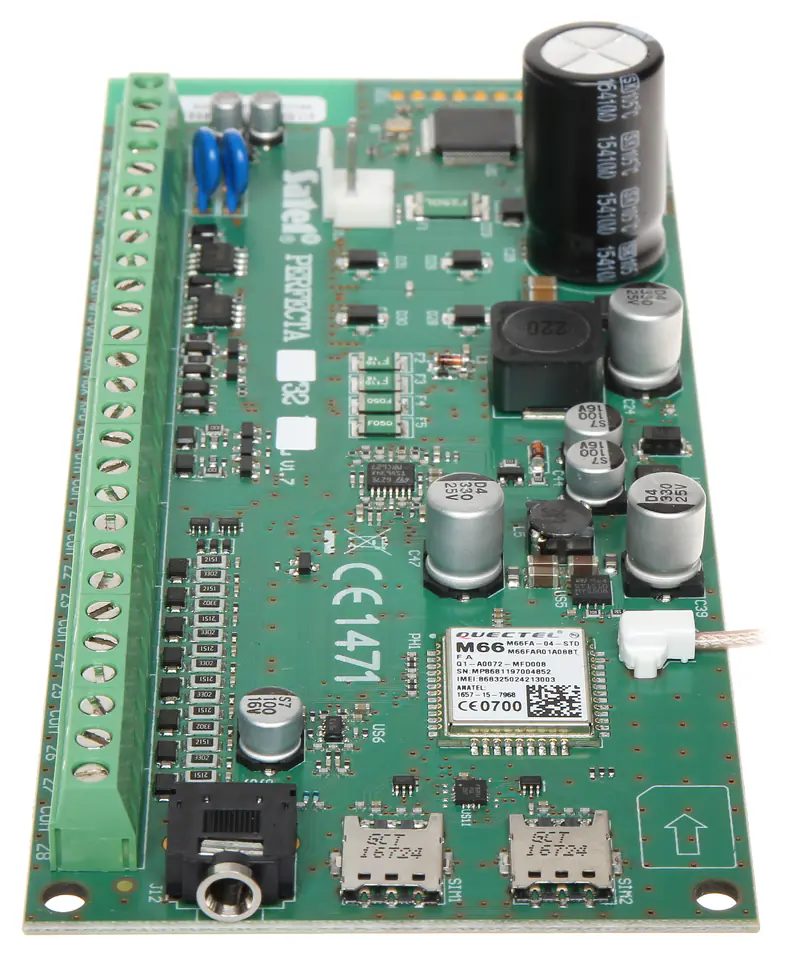

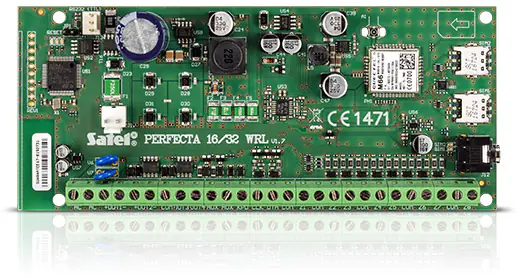

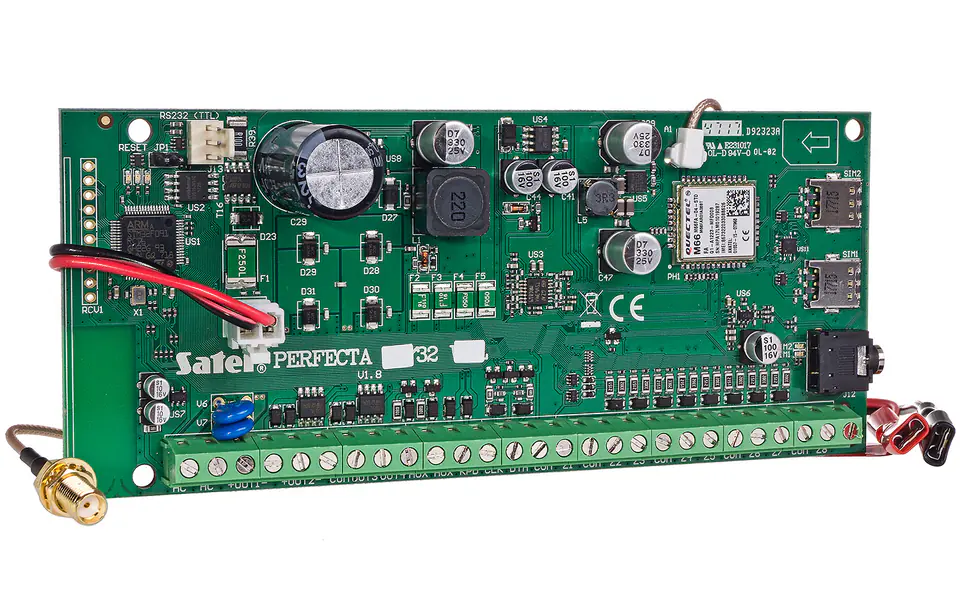

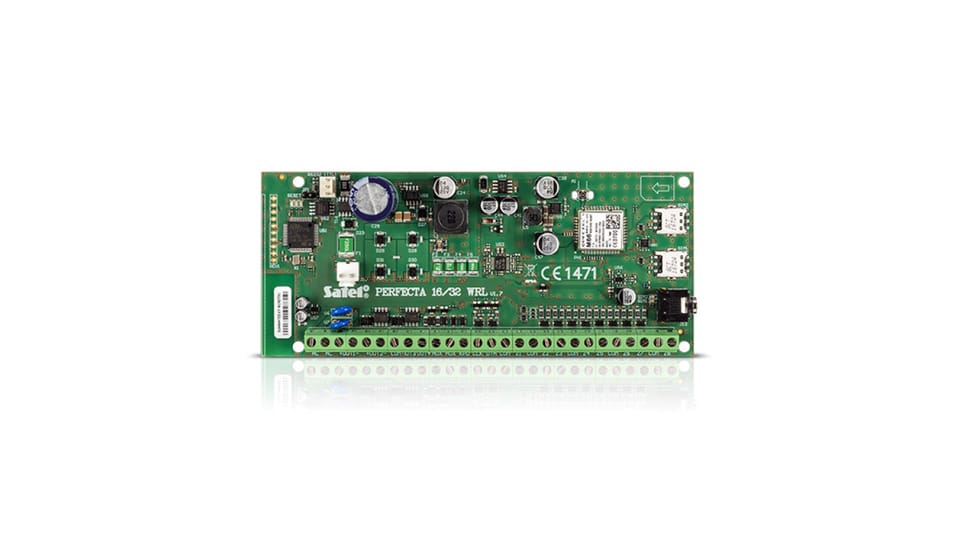

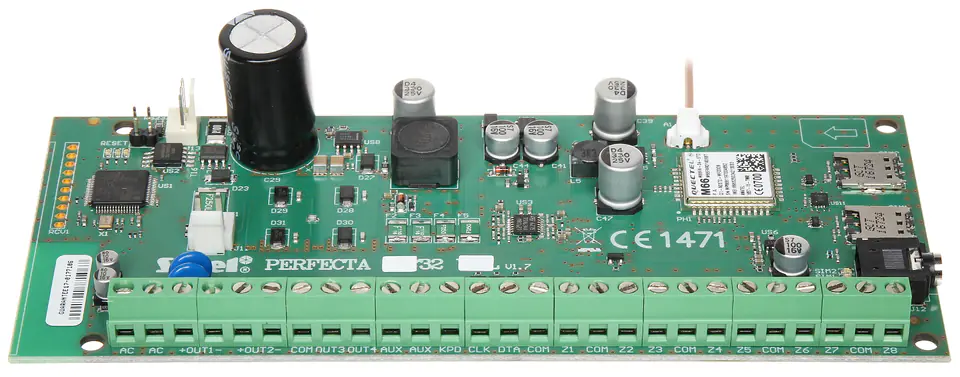

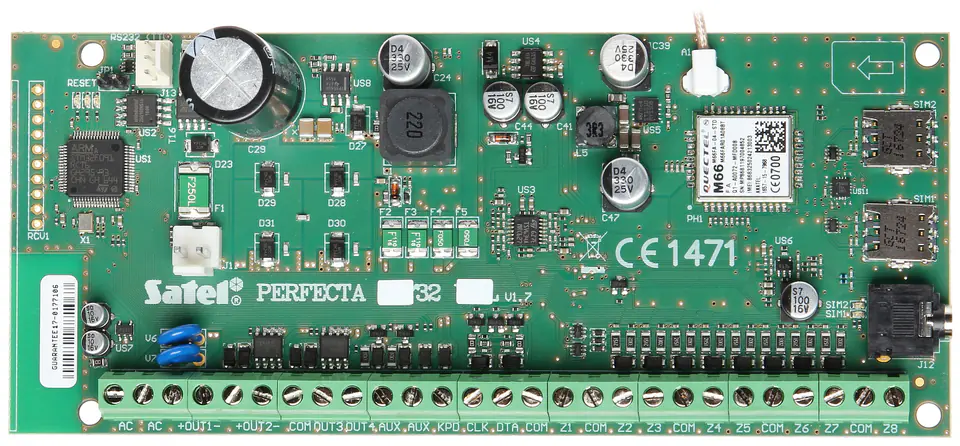

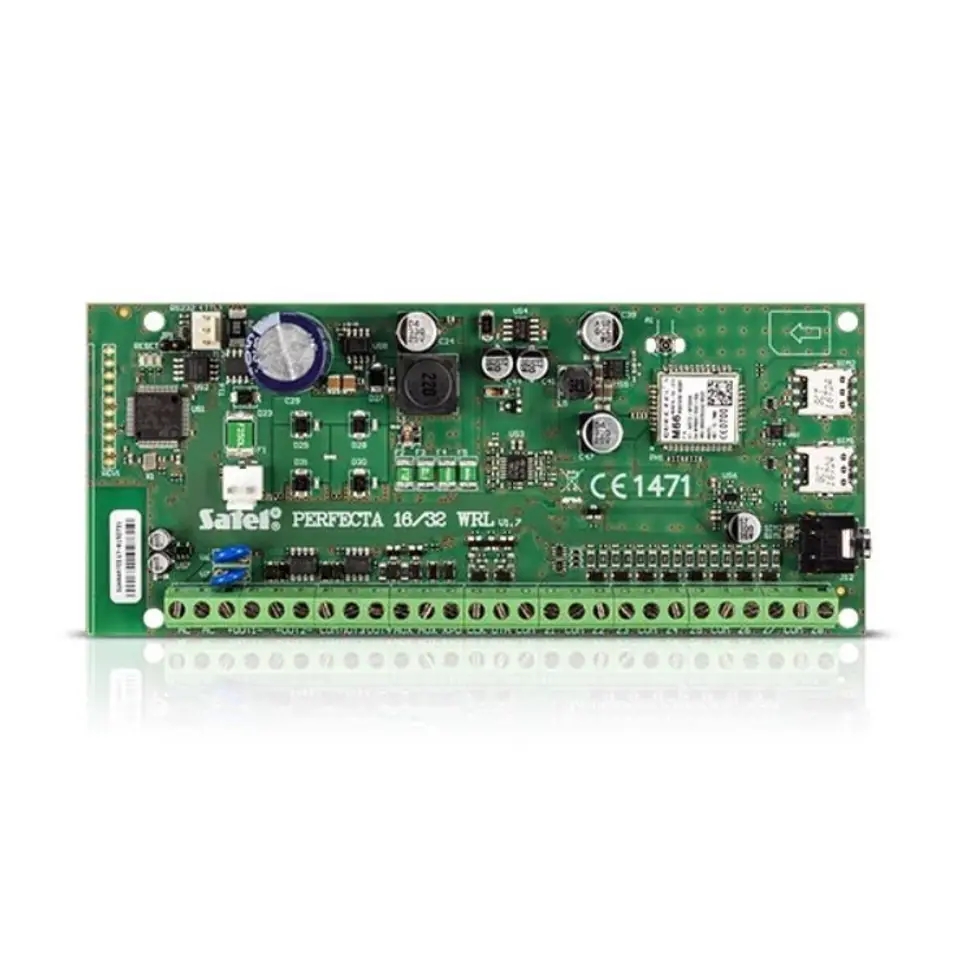

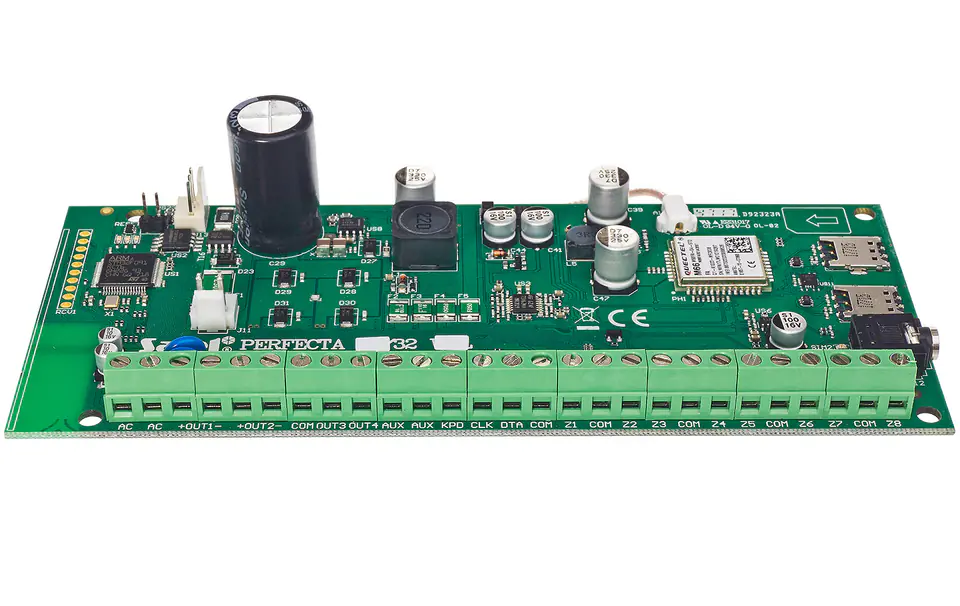

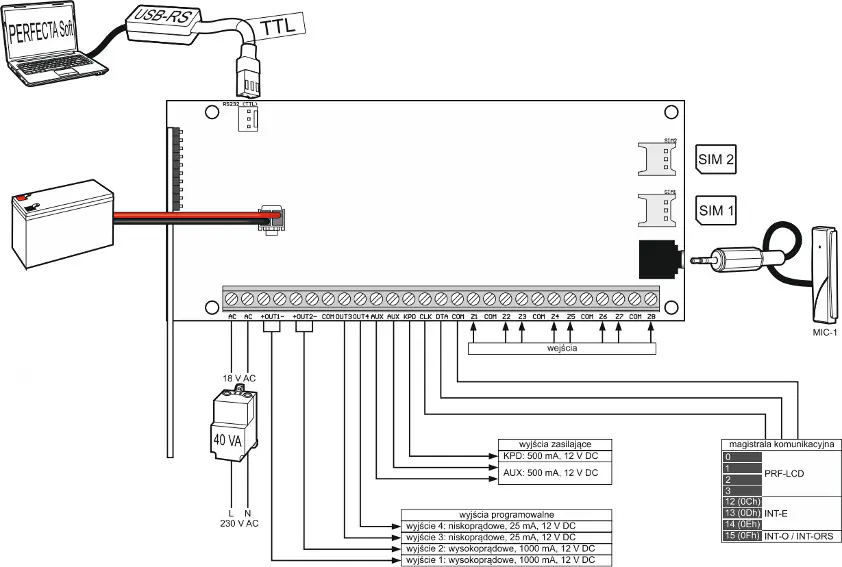

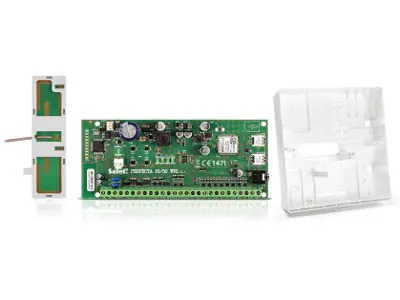

The electronics board of the control panel is equipped with 8 inputs and 4 wired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS outputs. This allows you to expand the system, attaching more detectors, sirens and even executive devices (to control the garage door, roller shutters, garden sprinklers).
The control panel allows you to divide the facility into two zones, with the choice of three standby modes (day, night, full). Each input can be assigned to one or both supervised areas.
The system can be configured in two ways: using the intuitive PERFECTA Soft program (from a computer connected with an RS-232 (TTL) cable or remotely) and from the keypad, using short key sequences in the service menu.
Complies with EN 50131 Grade 2
From 8 to 32 programmable wired inputs:
- Configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- Possibility to operate roller shutter and vibration detectors
4 to 12 wired programmable outputs
2 power outputs on the motherboard
Built-in modules:

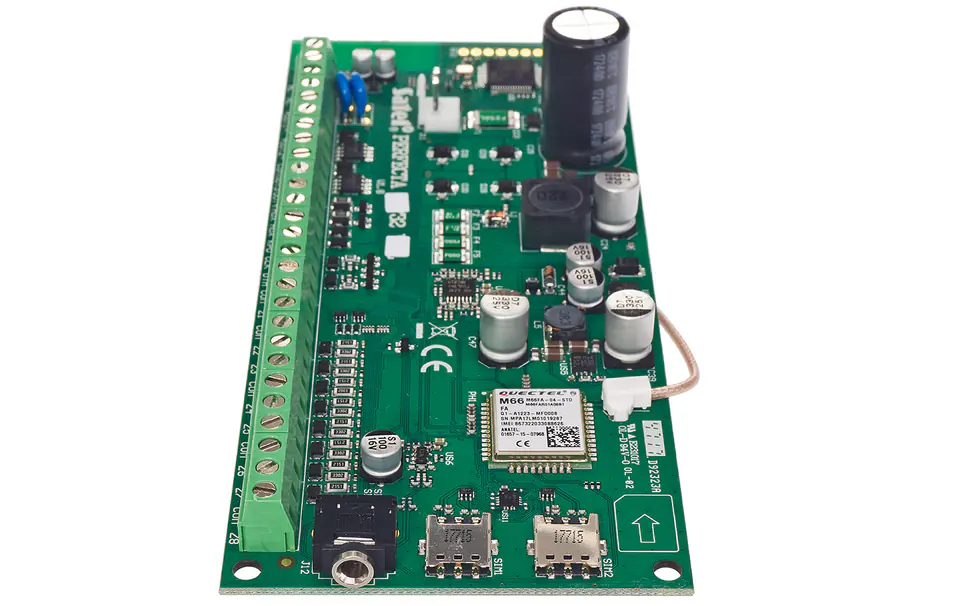

- GSM/GPRS with 2 SIM slots (SMS, monitoring to the station, mobile application, PUSH notifications)
- Voice (playback of voice messages for telephone notification)
- Acoustic alarm verification (listening for sounds)
Division of the system into 2 zones:
- 3 surveillance modes in each zone
- Possibility to assign an entrance to two zones
- User or timer control

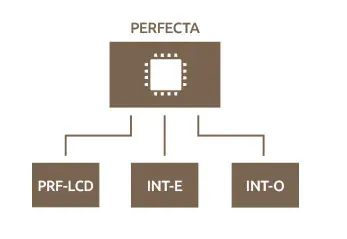

Communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS) and 433 MHz remote control expander (INT-RX-S)
System control with:
- PRF-LCD keypads (up to 4)
- PERFECTA CONTROL mobile application
- Remote controls operating in the 433 MHz band (up to 15) require cooperation with the INT-RX-S module (PERFECTA 32 Firmware v1.02 or later)
Firmware updateable
Password:
- 15 user passwords
- 1 service password
Editing names (users, zones, inputs, outputs and modules) for easy system control and supervision
Timers:
- 8 timers with the possibility of setting exceptions
Memory of 3584 events
Automatic diagnostics of basic system components
Built-in switching power supply:
- Overload protection
- Protection against complete discharge of the battery
- Adjusting the battery charging current
Programming of control panel settings:
- Local keypad, computer with PERFECTA Soft program installed, connected to the RS232 (TTL) port of the control panel

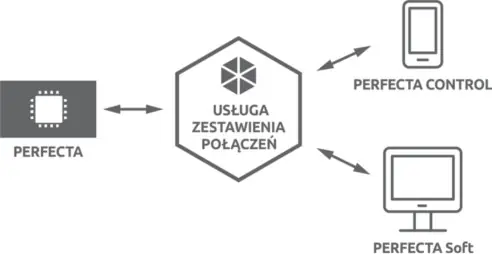

- Remotely a computer with perfecta Soft installed, connecting to the control panel via GPRS
