PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. They provide protection in accordance with the requirements of Grade 2 EN 50131. The control panels are characterized by simple configuration and easy and intuitive operation with the use of keypads. The functions of the alarm system can also be controlled remotely using the PERFECTA CONTROL application for mobile devices and remote controls operating in the 433 MHz frequency band (after connecting the INT-RX-S module).
The PERFECTA 32 LTE uses a mobile phone that supports LTE data transmission*. It enables cooperation with a mobile application with PUSH messaging support, remote configuration of the system using the PERFECTA Soft program, event monitoring (e.g. to the monitoring station of the security agency), voice notification, control via SMS and audio verification (listening to sounds from the protected facility). It supports two nano-SIM cards, which ensures continuity of communication: in the absence of communication with the network of the first operator, the second card is automatically selected.

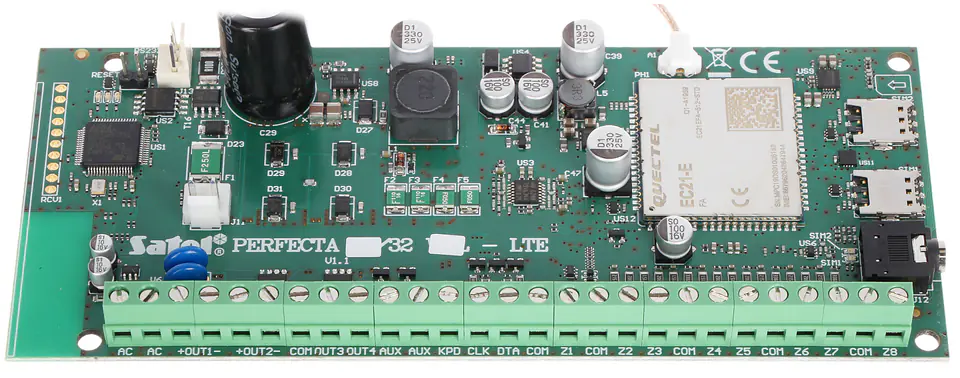

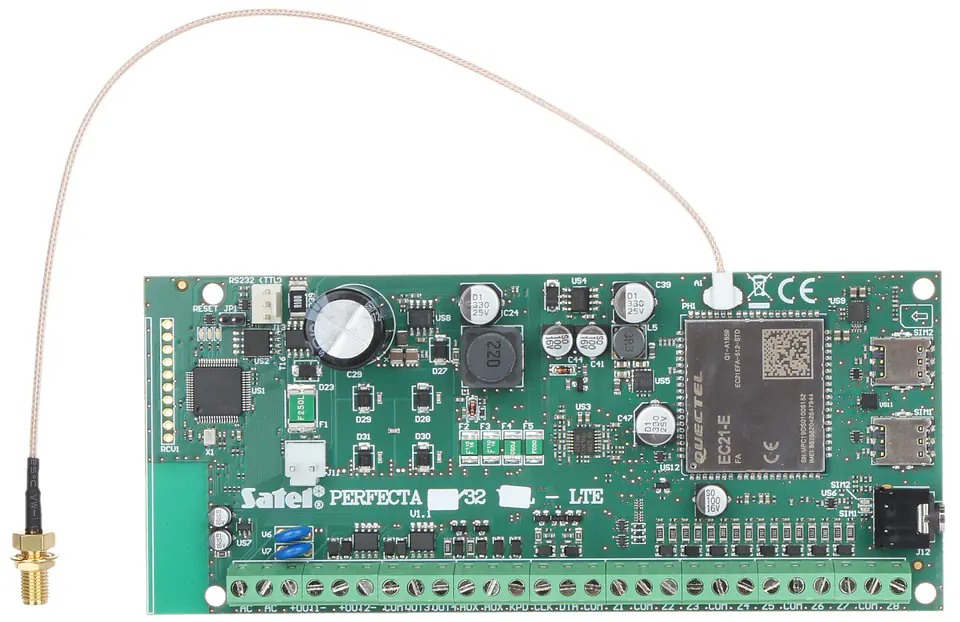

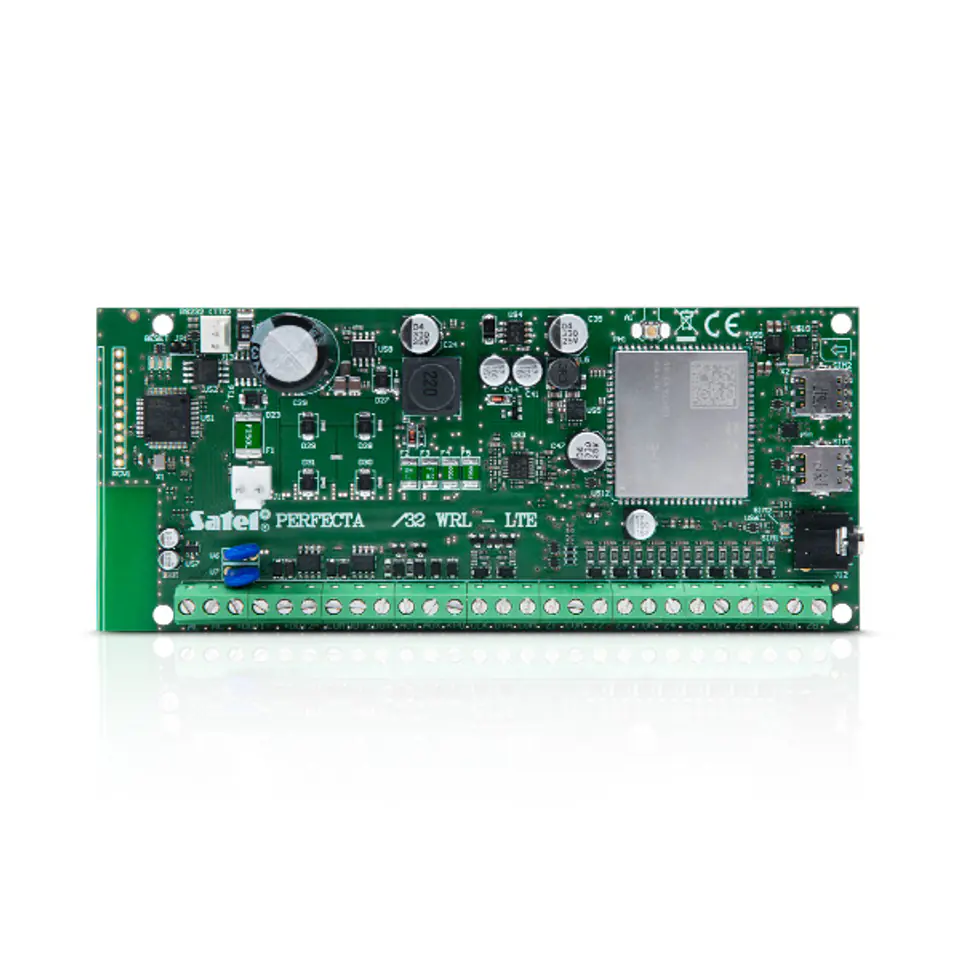

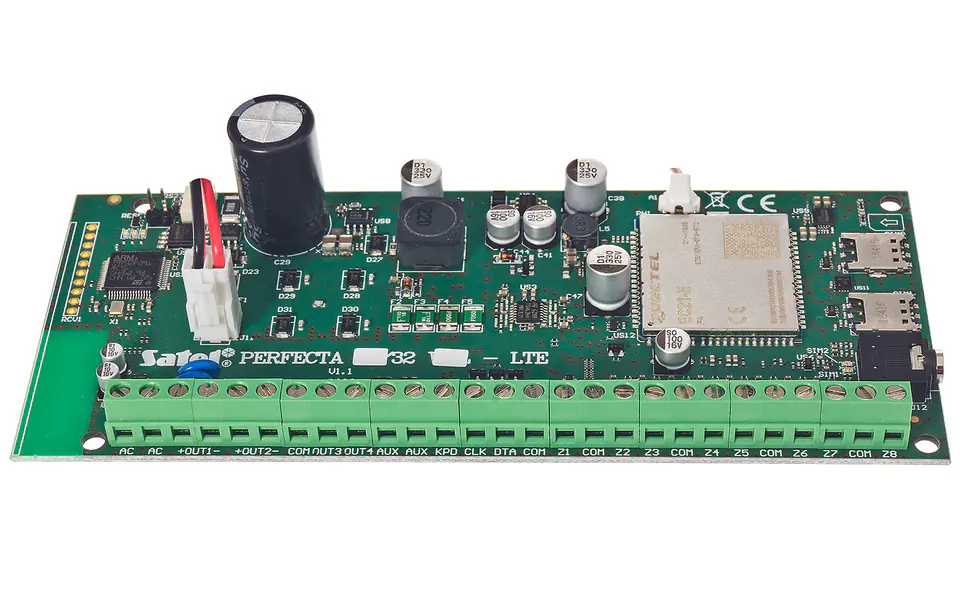

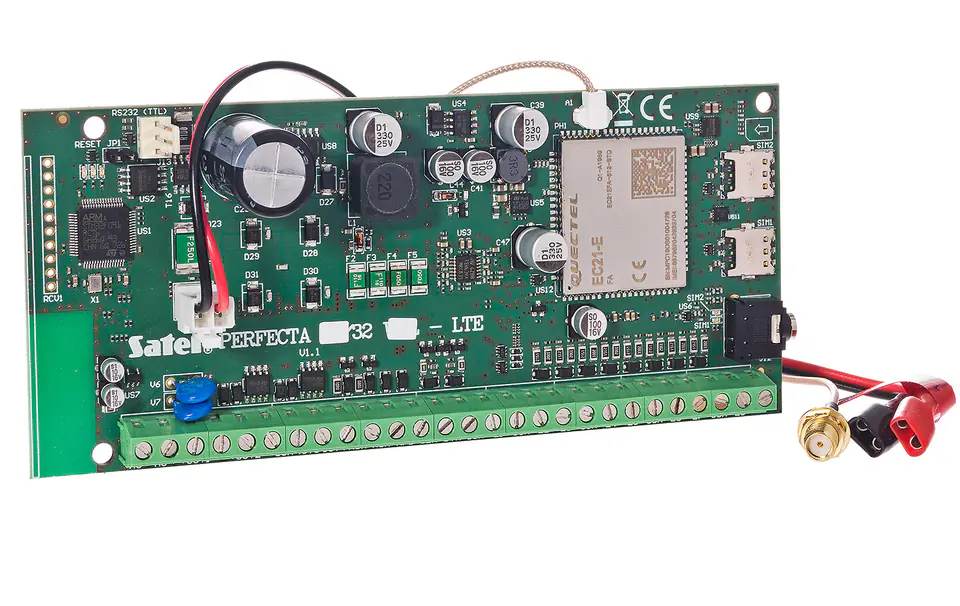

The electronics board of the control panel is equipped with 8 inputs and 4 wired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS outputs. This allows you to expand the system, attaching more detectors, sirens and even executive devices (to control the garage door, roller shutters, garden sprinklers).
The control panel allows you to divide the system into two zones, with the choice of three standby modes (day, night, full). Each input can be assigned to one or both supervised areas.
The system can be configured in two ways: from a computer with the PERFECTA Soft program installed (locally - connection via RS-232 (TTL), remotely - using data transmission in the cellular network*) and using a keypad, using key sequences in the service menu.
Complies with EN 50131 Grade 2
From 8 to 32 programmable wired inputs:
- Configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- Possibility to operate roller shutter and vibration detectors
4 to 12 wired programmable outputs
2 power outputs on the motherboard
Built-in modules:

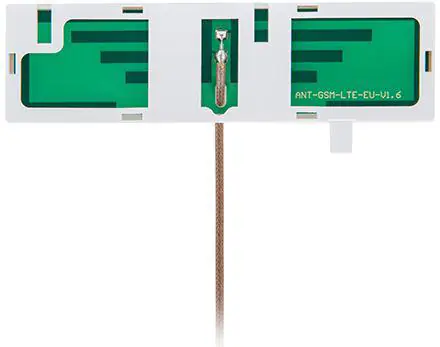

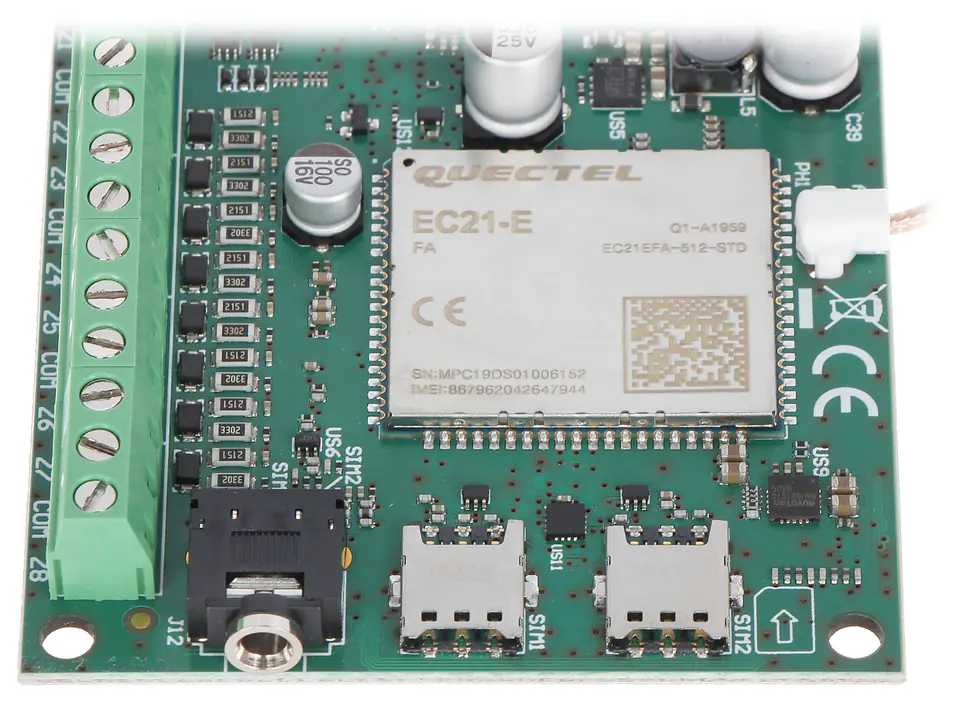

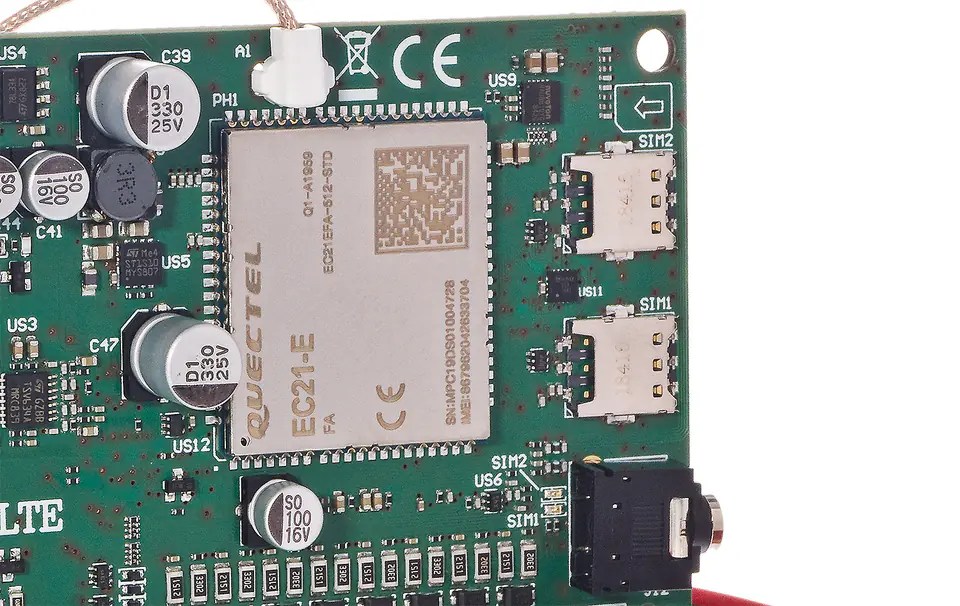

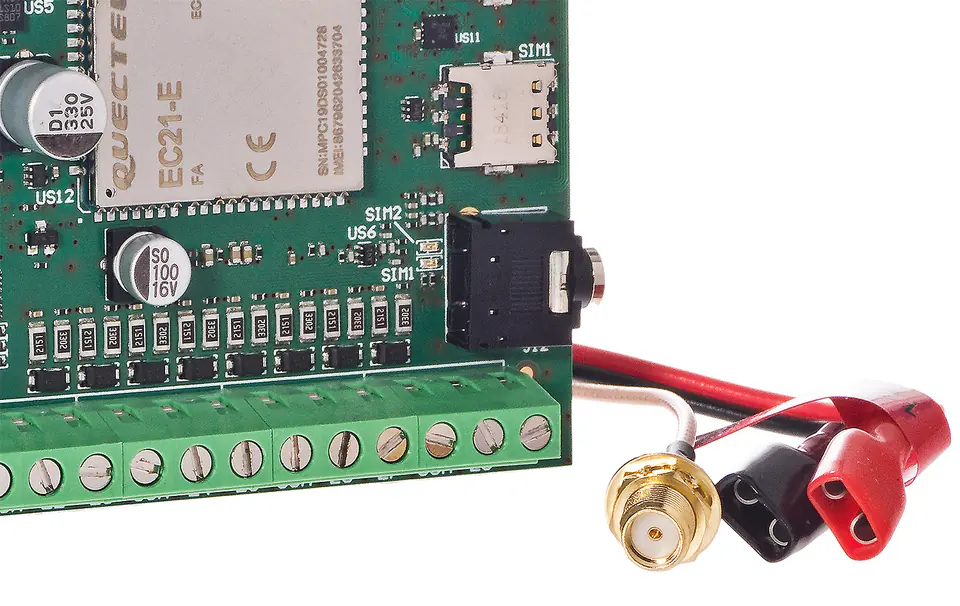

- Mobile phone* with 2 nano-SIM slots (SMS, monitoring to the station, mobile application, PUSH notifications)
- Voice (playback of voice messages for telephone notification)
- Acoustic alarm verification (listening for sounds)
Division of the system into 2 zones:
- 3 surveillance modes in each zone
- Possibility to assign an entrance to two zones
- User or timer control
Communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS) and 433 MHz remote control expander (INT-RX-S)
System control with:
- PRF-LCD keypads (up to 4)
- PERFECTA CONTROL mobile application
- Remote controls operating in the 433 MHz band (up to 15) require cooperation with the INT-RX-S module
Firmware updateable
Password:
- 15 user passwords
- 1 service password
Editing names (users, zones, inputs, outputs and modules) for easy system control and supervision
8 timers with the possibility of setting exceptions
Memory of 3584 events
Automatic diagnostics of basic system components
Built-in switching power supply:
- Overload protection
- Protection against complete discharge of the battery
- Adjusting the battery charging current
Programming of control panel settings:
- Locally manipulator or computer with PERFECTA Soft installed, connected to the RS232 (TTL) port of the control panel
- Remotely, a computer with perfecta Soft installed, connecting to the control panel using data transmission in the cellular network - support for data transmission in LTE/HSPA+/EDGE/GPRS technology - depending on the capabilities of the mobile network
