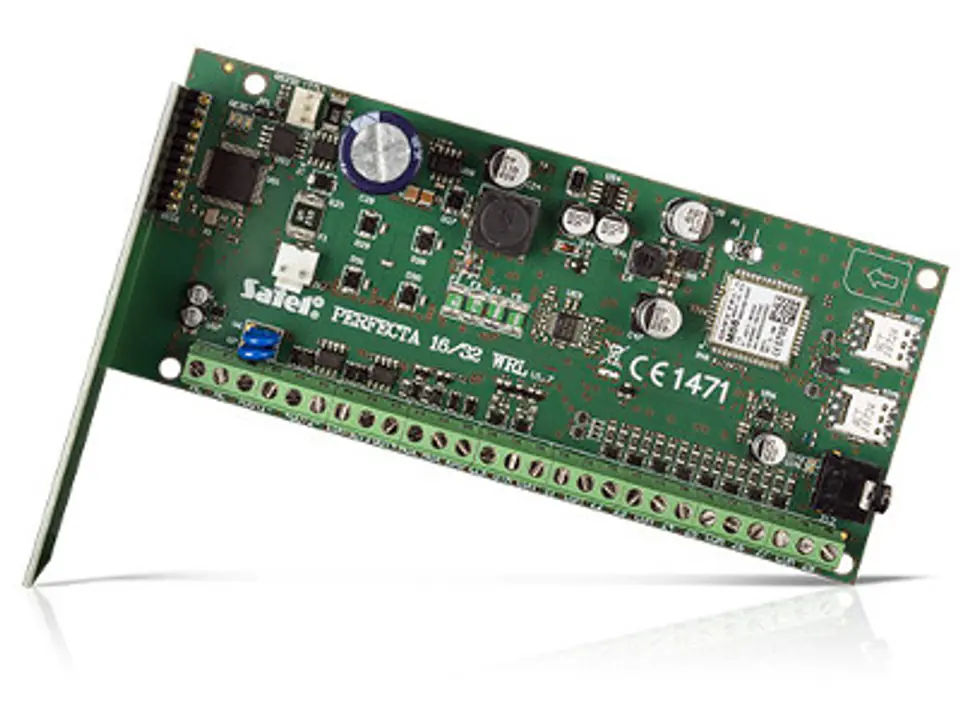

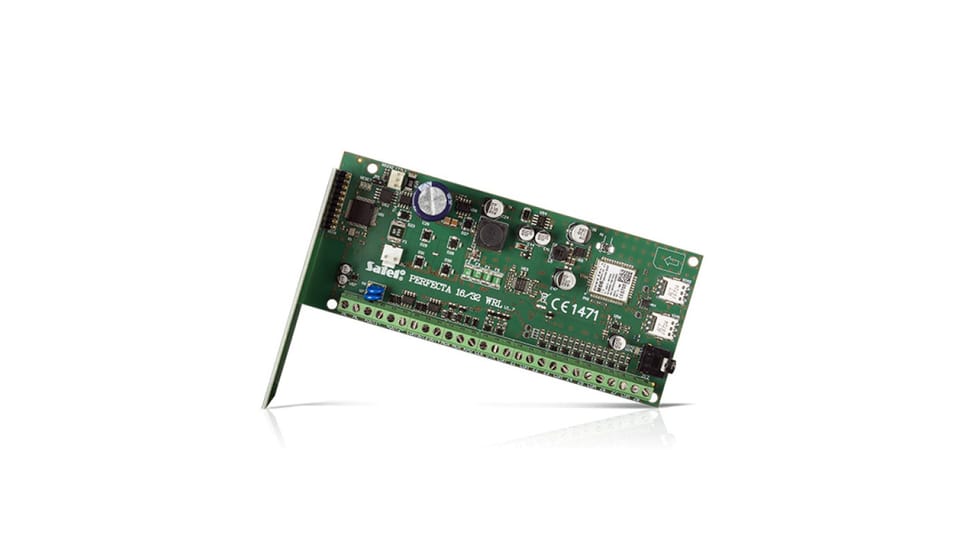

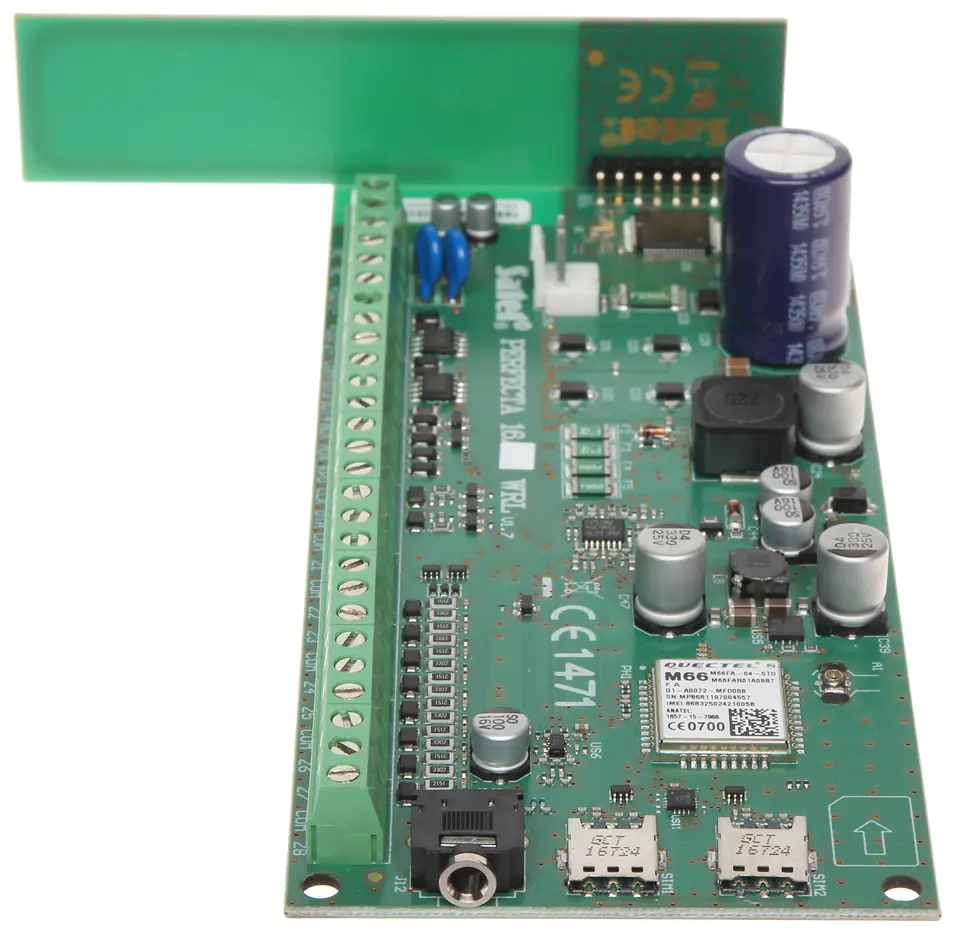

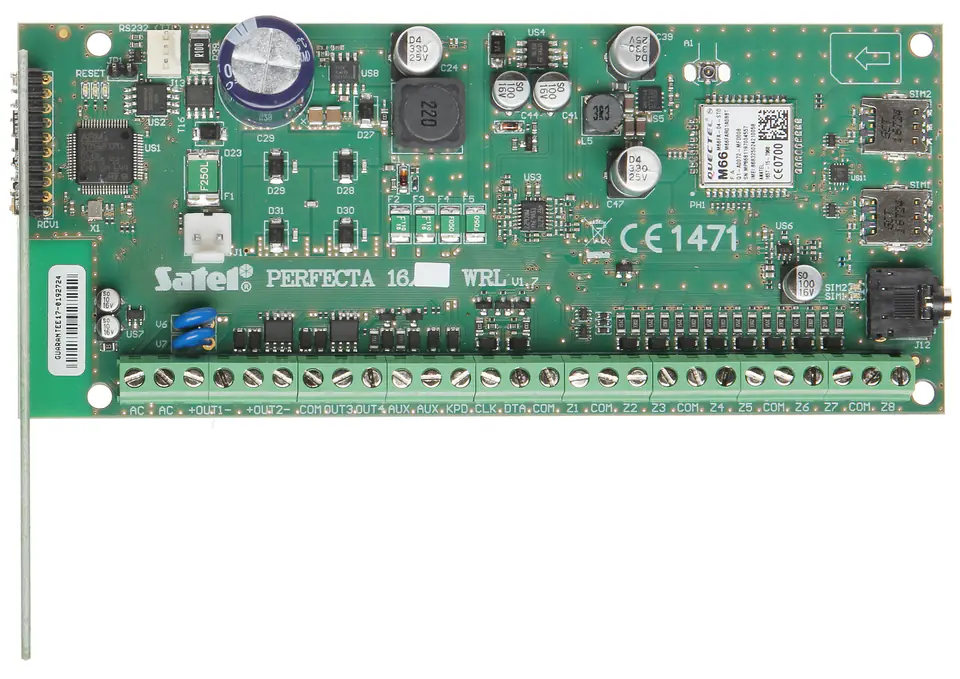

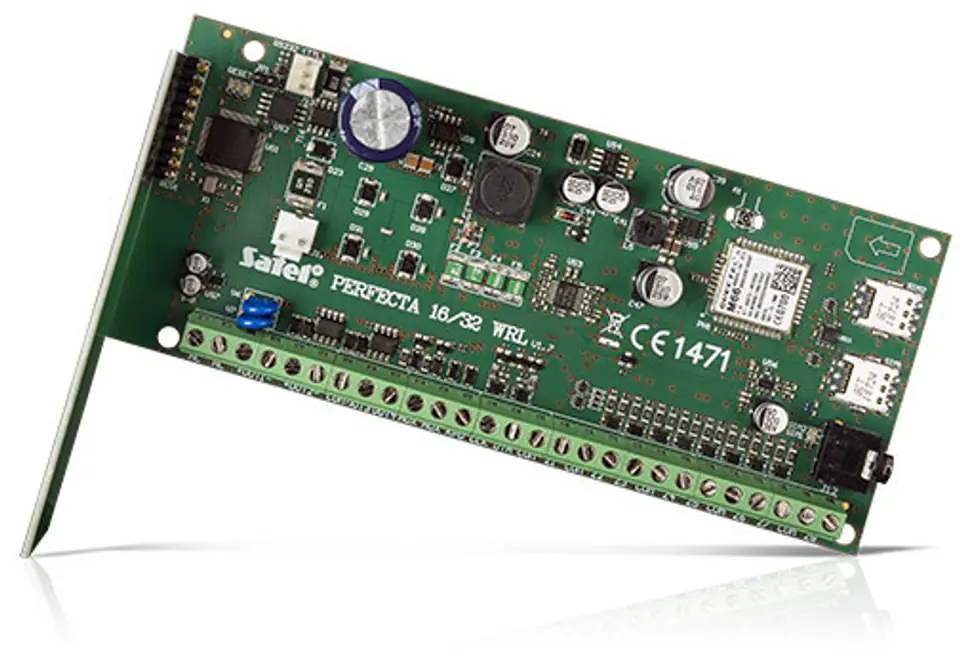

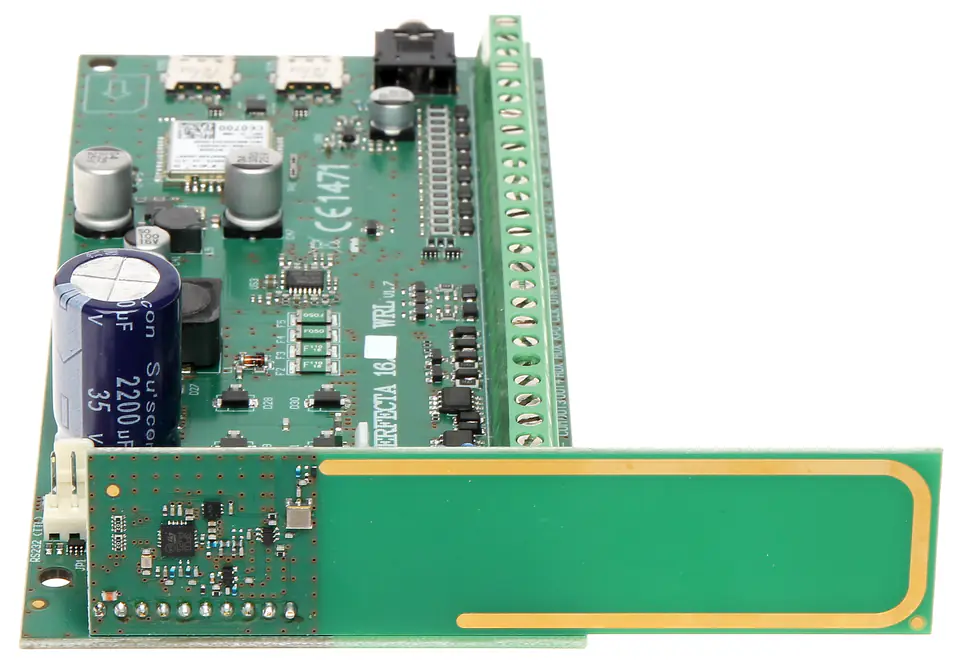

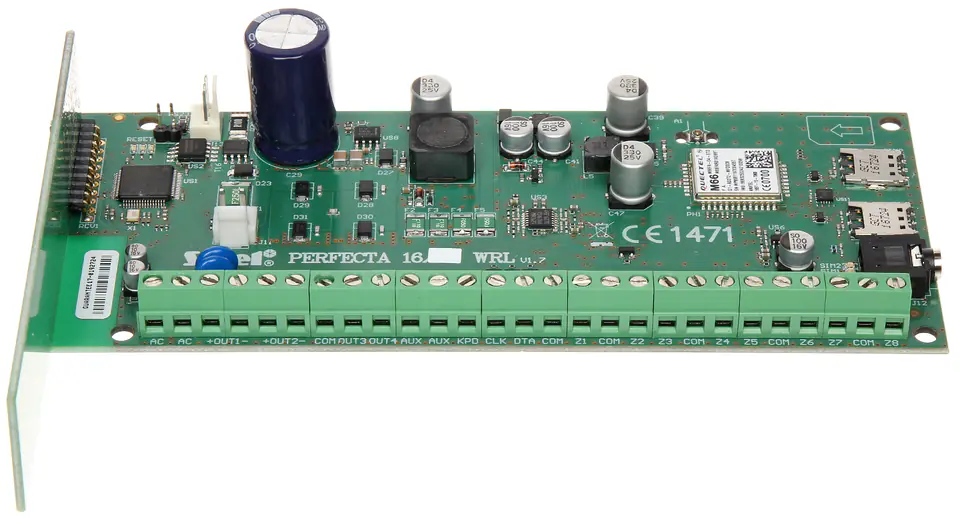

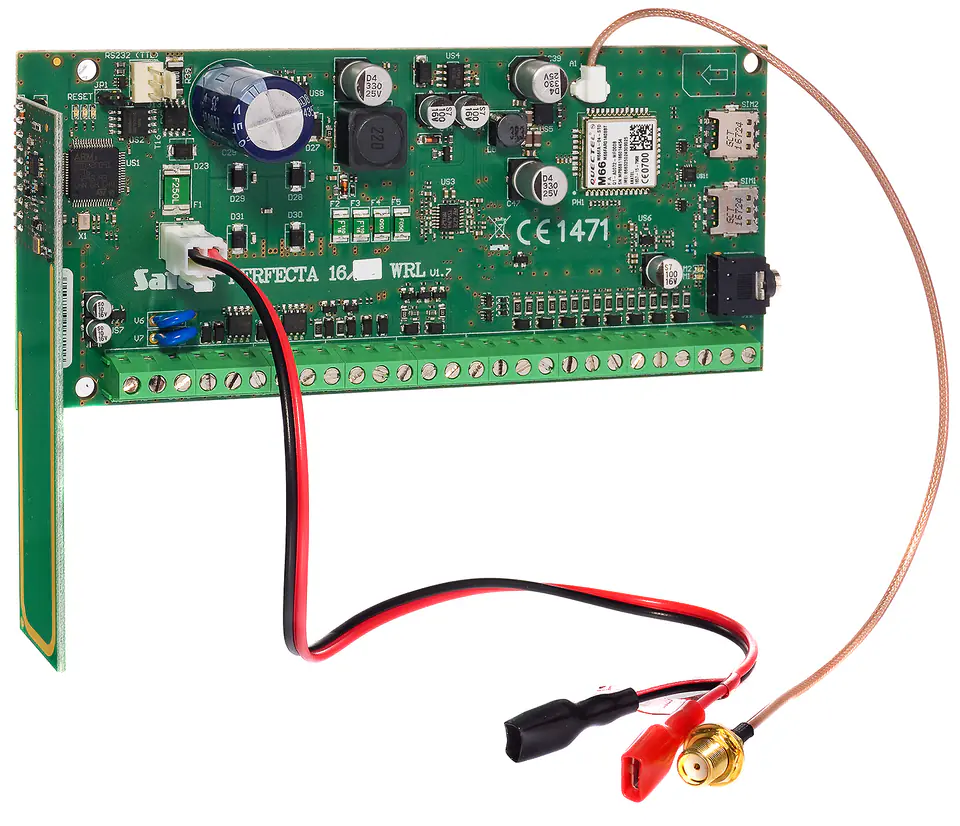

PERFECTA-16-WRL SATEL CONTROL PANEL BOARD

€195.41
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
PERFECTA 16-WRL / 5905033332966

Specification

Current efficiency of the power supply::2 A
Dimensions::160 x 110 mm
Event memory::3584
Grade::2
Manufacturer / brand::SATEL
Maximum number of supported outputs::16 pcs. - programmable
Motherboard inputs::8 pcs. - programmable
Motherboard outputs::4 pcs. - programmable
Operating temperature::-10 °C ... 55 °C
Permissible relative humidity::93 %
Power::18 V AC
Scales::0.110 kg
Selected features::Built-in GSM/GPRS module with 2 SIM slots (SMS, monitoring to the station, mobile application, PUSH notifications) Built-in voice module (playback of voice messages for phone notification) - 16 voice messages Built-in acoustic alarm verification module (listening for sounds) Two-way communication with PRF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHz band Wireless one-way communication with detectors with MICRA series and MPT-350 remote controls in the 433 MHz band 3 surveillance modes in each zone Possibility of assigning the input to two zones Control by the user or using timers Communication bus for connecting keypads (PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS) Editing names (users, zones, inputs, outputs and modules) for easy system control and its supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Support for detectors vibrating and roller shutters Possibility of software updates
Supported keyboards::Max. 4 pcs.
Supported languages::Polish - no possibility to change the language
Timers::8
Users + administrators::15  + 1
Warranty::2 years
Zone::2

PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with the requirements of Grade 2 EN 50131

The PERFECTA-16-WRL control panel allows you to create a wireless and hybrid installation (connection with a traditional wired system)Two-way communication with PRF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHz bandW wireless installation, MICRA series detectors and new MPT-350 remote controls are also usedIt is a possibility of easy expansion of the existing system, without the need to lay additional cable tracks.

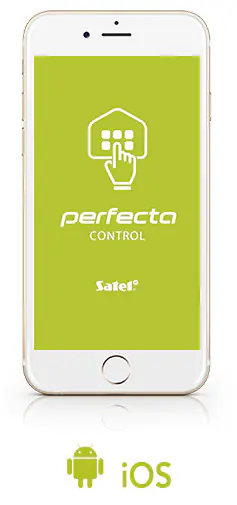

In addition to the basic, traditional methods of system control, the control panel also offers, among others, a functional and intuitive application for mobile devices PERFECTA CONTROL

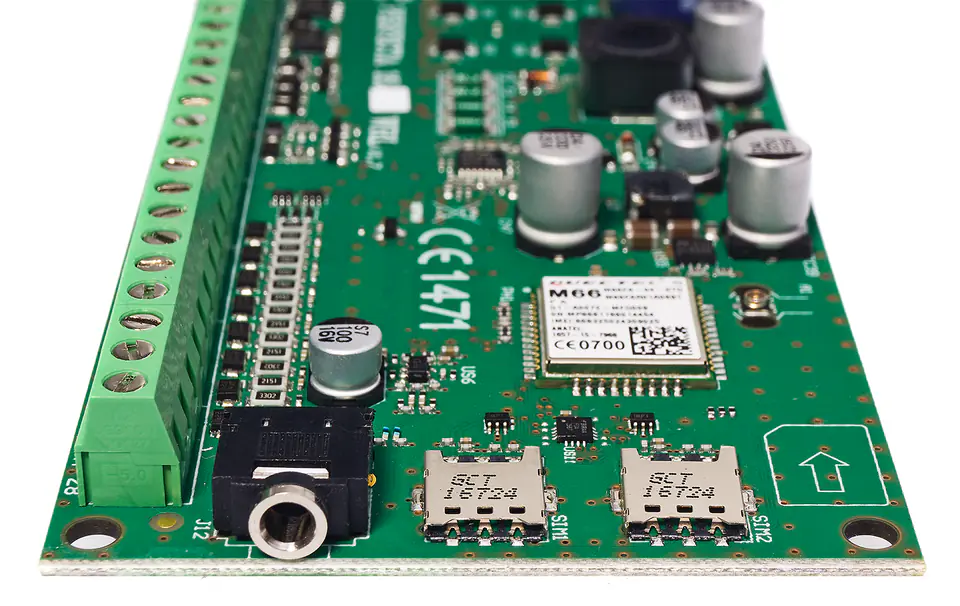

The built-in GSM/GPRS module gives a wide range of possibilities: it enables cooperation with a mobile application, with PUSH messaging, remote configuration using the PERFECTA Soft program, event monitoring (e.g. to the monitoring station of the security agency), voice notification, control via SMS and audio verification (listening for sounds from the protected object)Two nano-SIM cards are supported, which ensures continuity of communication: when there are problems with the range of the first operator, a second tab is automatically selected
