Manufacturer no: 10280149
The matrix for the Wiesenfield pelleting machine will work well for the production and formation of pellets. The die is made of durable steel alloy, easily withstands intensive production, retains its shape and reliably produces granules with a diameter of 8 mm. The matrix fits the WIE-PM-2000 pelleting machine of the same brand. With a diameter of 229.5 mm and a height of 28 mm, it is precisely placed under the pressure roller. When mounting, make sure that there is a clearance of 0.1 to 0.3 mm between the die and the roller. Granulate, depending on the composition, can be used as fuel, feed or fertilizer.
Product features:
- - Fits WIE-PM-2000 (10280042) pelleting machine from Wiesenfield,
- - Die hole size for granules with a diameter of 8 mm,
- - Dimensions 28 x Ø229,5 mm correspond exactly to the WIE-PM-2000 blening machine,
- - Made of alloy steel
- - Model - WIE-PMA-20
- - Catalogue number - 10280149
- - Article status - New
- - Material - Alloy steel

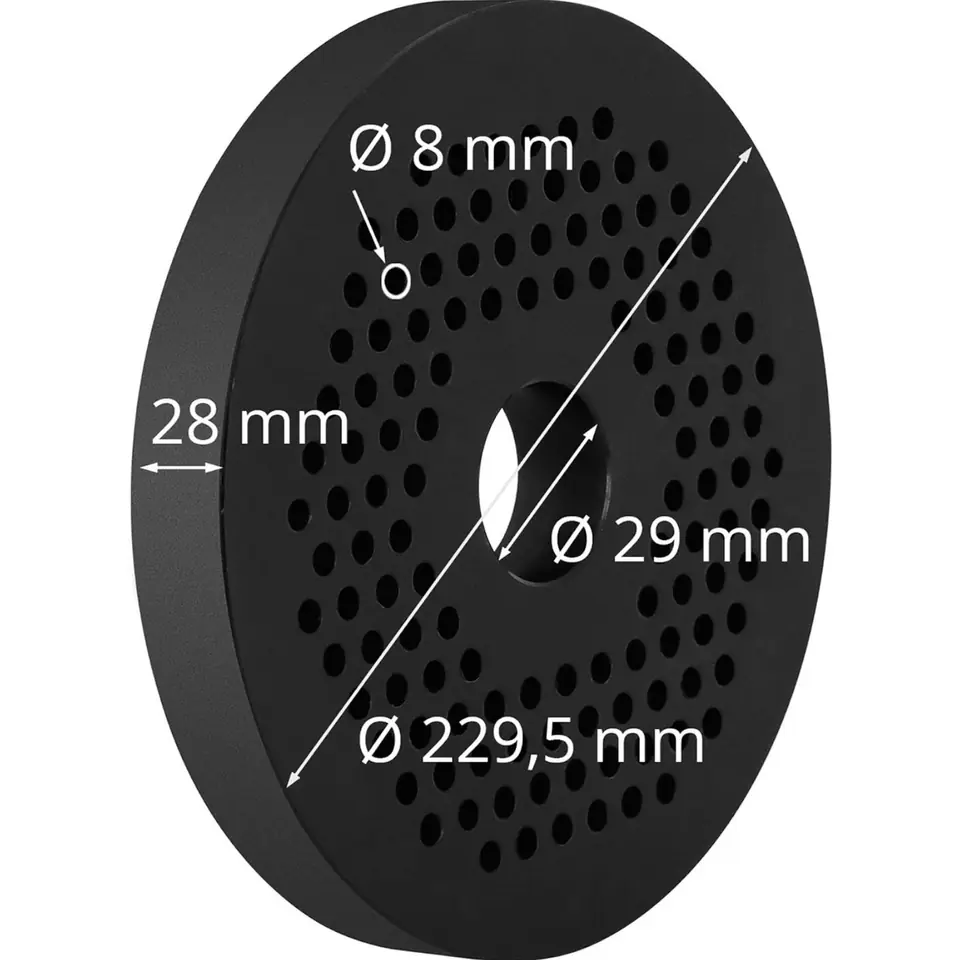

- - Size [mm] - 28 x Ø229,5
- - Size of matrix holes [mm] - 8
- - Dimensions (LxWxH) [cm] - 23 x 23 x 3
- - Weight [kg] - 7,3
- - Shipping dimensions (LxWxH) [cm] - 25 x 25 x 14
- - Shipping weight [kg] - 7,5
- - Matrix for pelleting machine
