Manufacturer no: 10280045

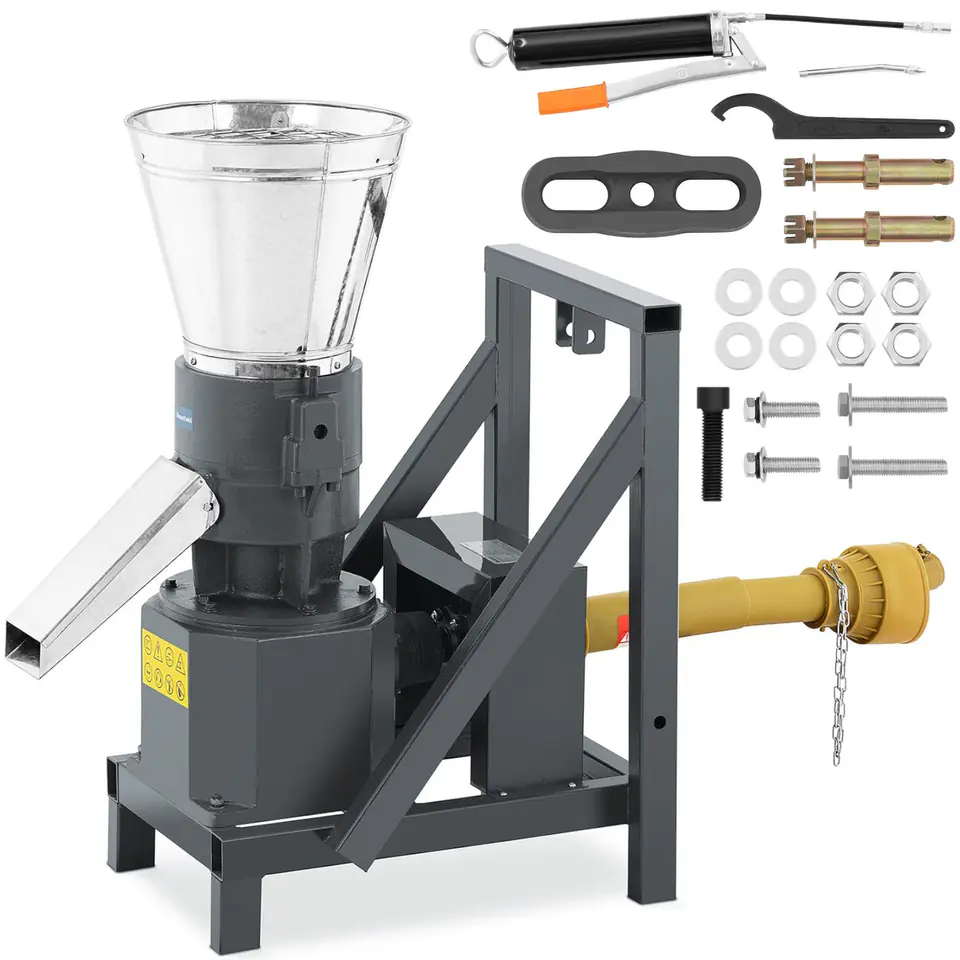

The professional industrial pellet mill of the Wiesenfield brand is used to produce pellets, animal feed and granules from various organic materials. The granulator gives the opportunity to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes with a diameter of 6 mm, where they are subjected to high pressure and temperature (60-80C).. Some materials require the use of special binders. The pellet mill is able to produce 300-400 kg of feed and 130-180 kg of pellets from sawdust in an hour. The efficiency of the device was achieved thanks to the power take-off shaft connected to the tractor with a capacity of 15-28 hp.
Product features:
- - Production of pellets for heating and fertilization,
- - Production of feed for feeding animals,
- - Powered by a power take-off shaft connected to the tractor,
- - Matrix with a diameter of 230 mm,
- - Pellet diameter 6 mm,
- - Operating temperature from 60 to 80C,
- - Compact, mobile and easy to use,
- - Cast iron and alloy steel.
- - Catalog No. - 10280045
- - Article status - New
- - Producer - Wiesenfield
- - User Manual - Yes
- - Emergency stop - No
- - Housing material - Cast iron
- - Matrix diameter [mm] - 230
- - The size of the matrix holes [mm] - 6
- - Production capacity from sawdust [kg/h] - 130-180
- - Feed production capacity [kg/h] - 300-400
- - Power take-off shaft [HP] - 15 - 28
- - Dimensions (LxWxH) [cm] - 88 x 64 x 110
- - Weight [kg] - 149
- - Shipping dimensions (LxWxH) [cm] - 77 x 55 x 108
- - Shipping weight [kg] - 180
- - Peleciarka,
- - Allen wrench 10 mm,
- - Screw M12 x 45 mm,
- - Flat washers mid. 10 mm - 7 pcs.,
- - Springy washers dia. 10 mm - 5 pcs.,
- - Hook,
- - Screws M10 x 40 mm - 7 pcs.,
- - Instruction manual.
