Pellet mill granulator machine for pellet sawdust fodder mobile 7.5 kW 400 V 300 kg/h avg. 200 mm

€1,944.00
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
WIESENFIELD
Product code:
10280041 / 4062859008466

Specification

Sku:1013801

Manufacturer no: 10280041

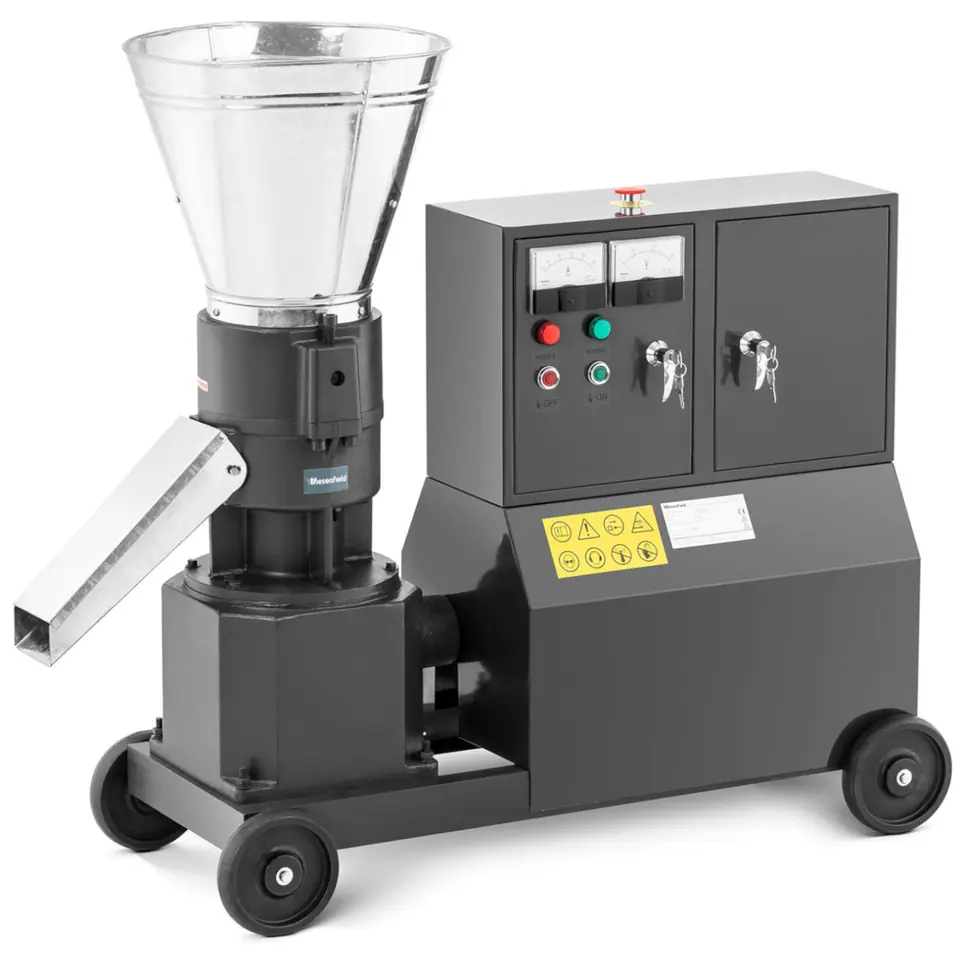

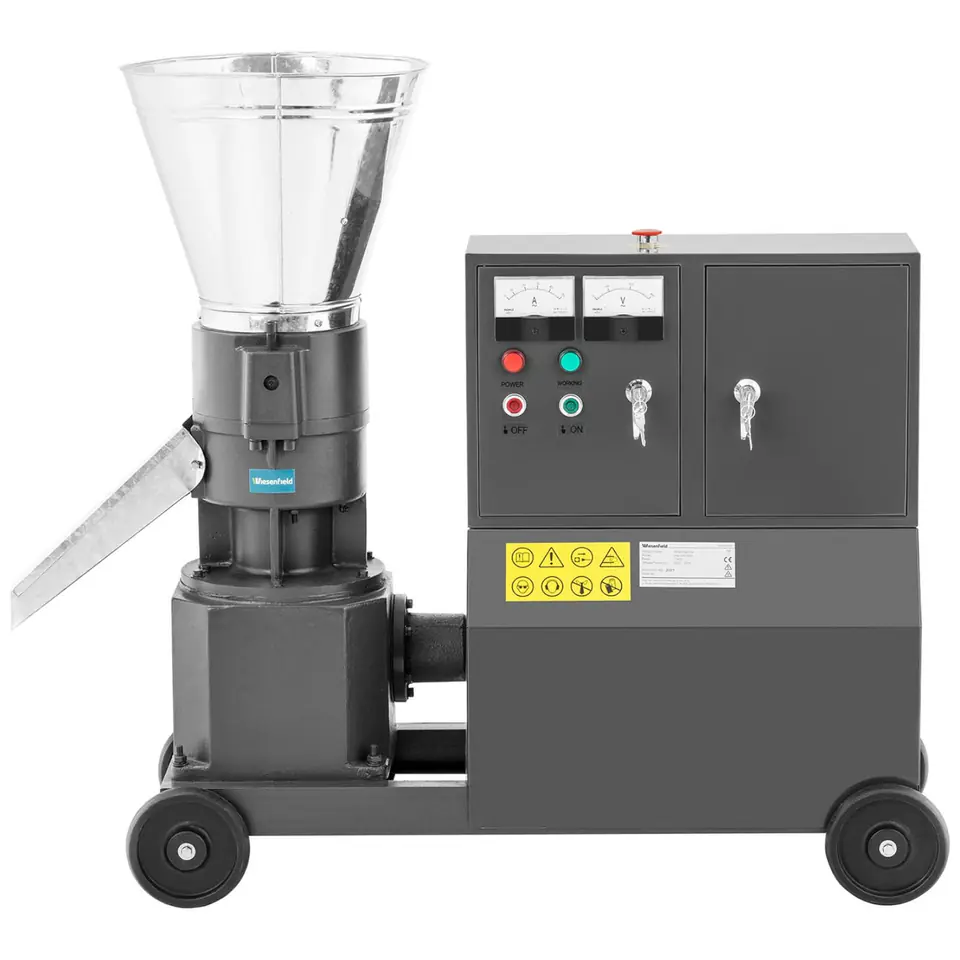

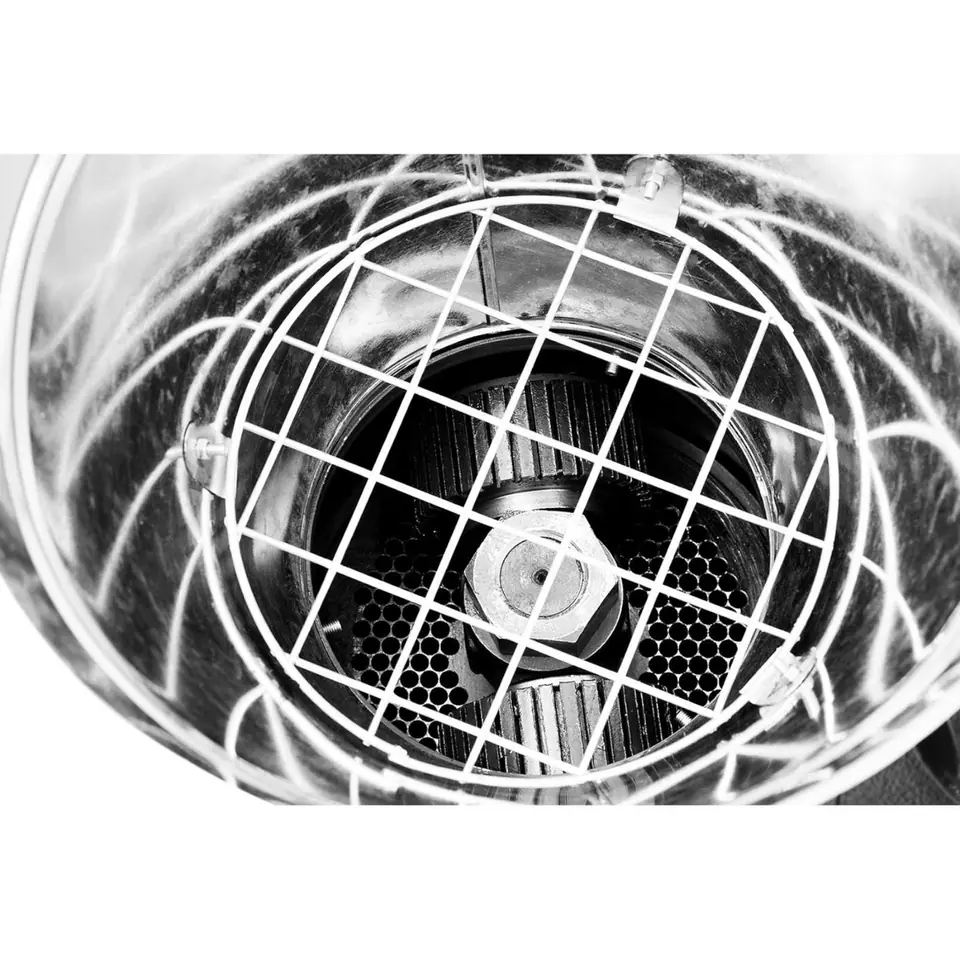

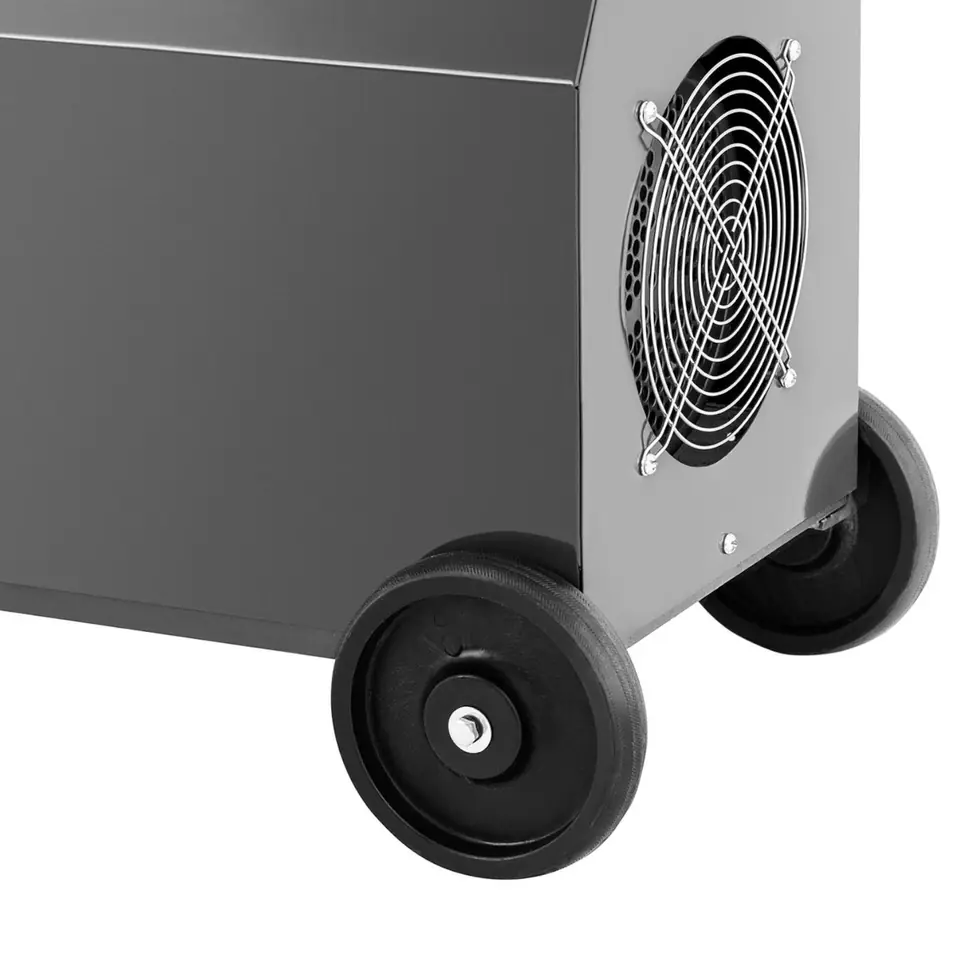

The professional industrial pellet mill of the Wiesenfield brand is used to produce pellets, animal feed and granules from various organic materials. The granulator gives the opportunity to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes with a diameter of 6 mm, where they are subjected to high pressure and temperature (60-80C).. Some materials require the use of special binders. The pellet mill is able to produce 200-300 kg of feed and 110-140 kg of pellets from sawdust in an hour. The user is protected by a special safety brake. 4 wheels ensure the mobility of the machine and facilitate transport.
Product features:

  • - Production of pellets for heating and fertilization,
  • - Production of feed for feeding animals,
  • - Engine power 7500 W,
  • - Matrix with a diameter of 200 mm,
  • - Pellet diameter 6 mm,
  • - Operating temperature from 60 to 80C,
  • - Compact, mobile and easy to use,
  • - Cast iron and alloy steel.
Technical data:
  • - Model - WIE-PM-1000
  • - Catalog no. - 10280041
  • - Article status - New
  • - Producer - Wiesenfield
  • - Voltage [V] - 400
  • - User Manual - Yes

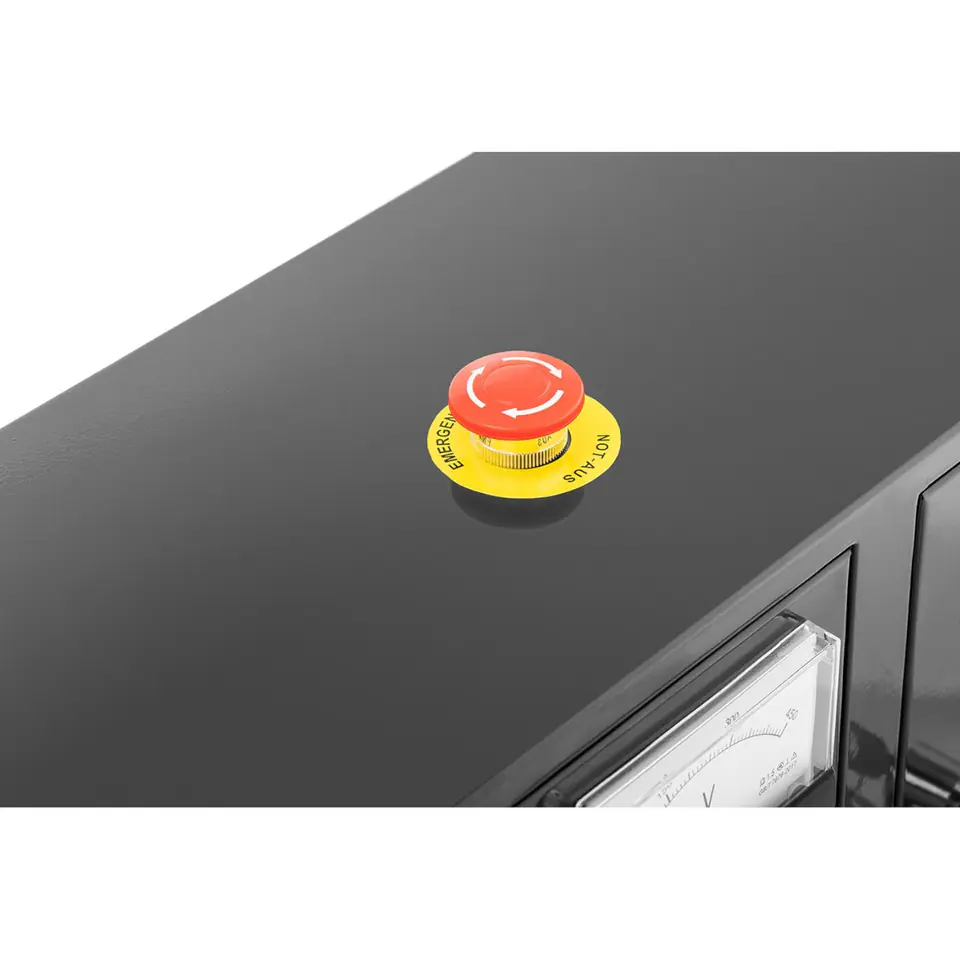

  • - Emergency stop - Yes
  • - Rotational speed [rpm] - 1140
  • - Housing material - Cast iron
  • - Power [W] - 7500
  • - Degree of protection IP - 55
  • - Frequency [Hz] - 50
  • - Matrix diameter [mm] - 200
  • - The size of the matrix holes [mm] - 6
  • - Production capacity from sawdust [kg/h] - 110-140
  • - Feed production efficiency [kg/h] - 200-300
  • - Continuous operation time [h] - 24
  • - Dimensions (LxWxH) [cm] - 123 x 42 x 105
  • - Weight [kg] - 185
  • - Shipping dimensions (LxWxH) [cm] - 100 x 46 x 95
  • - Shipping weight [kg] - 207

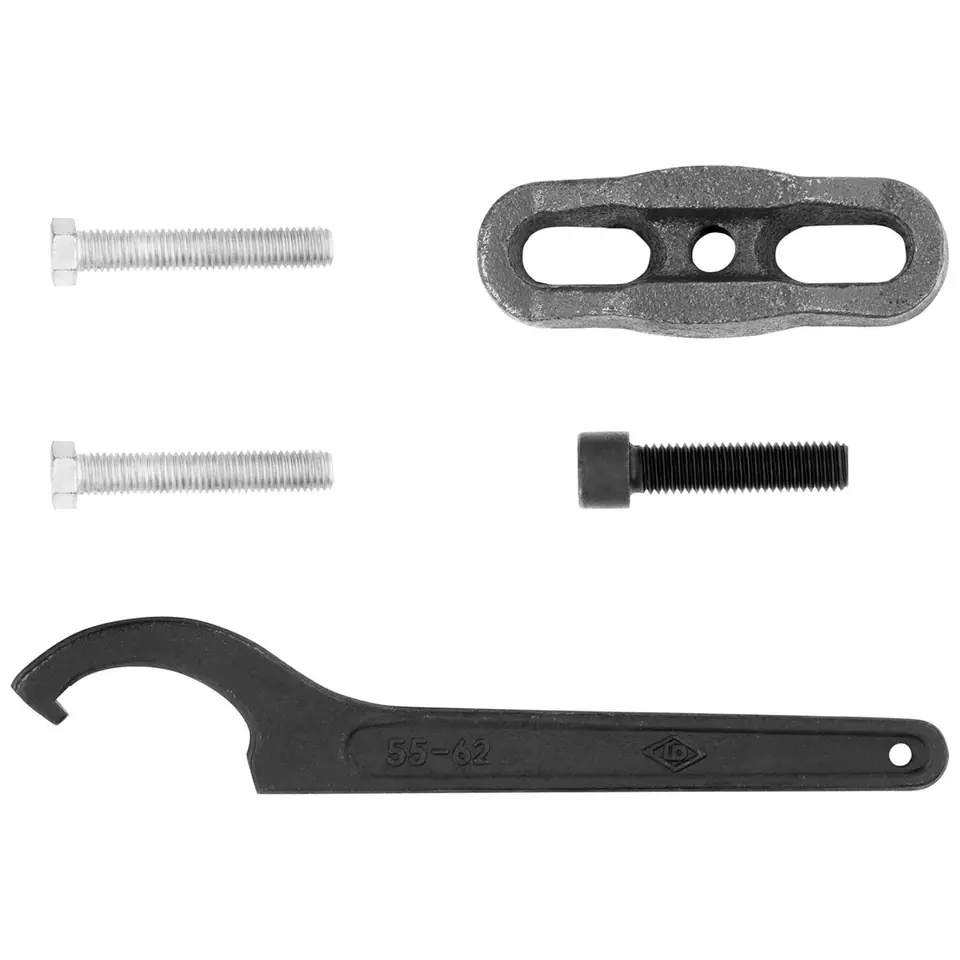

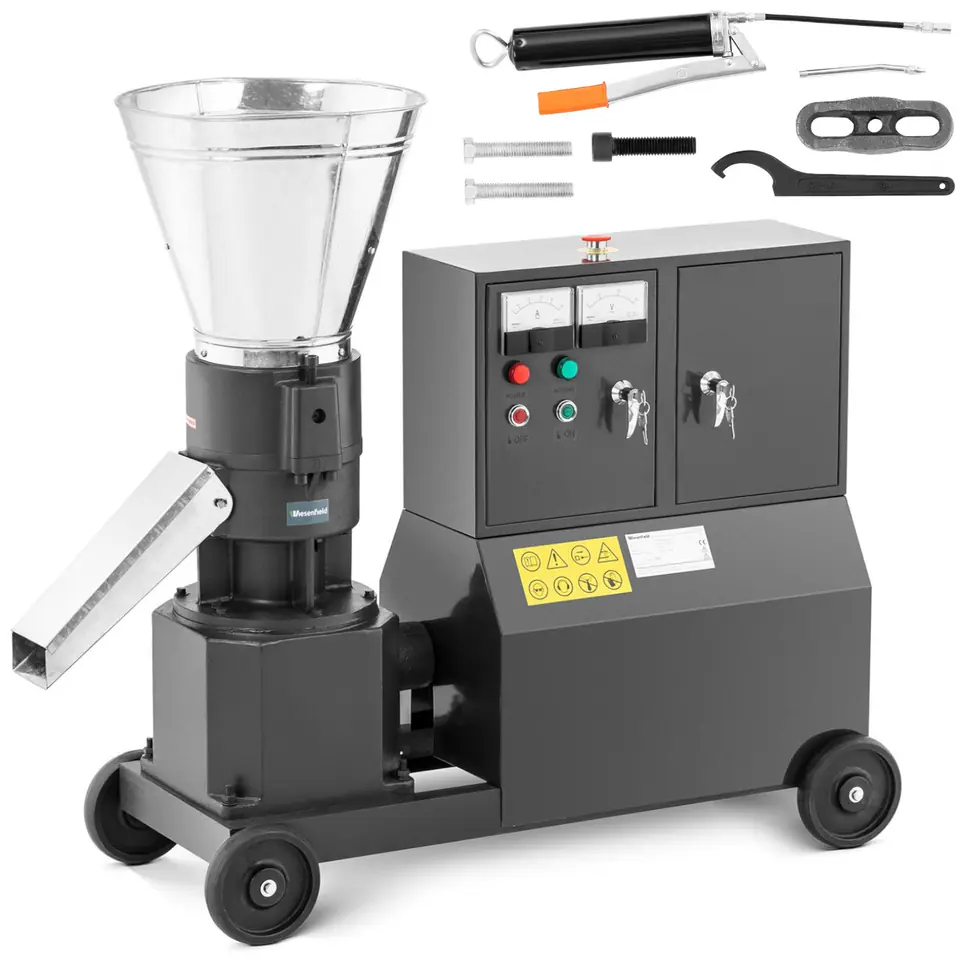

Included:
  • - Peleciarka,
  • - Wheels avg. 160 x 33 mm - 4 pcs.,
  • - Allen wrench 10 mm,
  • -Ribbing
  • - Screws M8 x 16 mm - 5 pcs.,
  • - Flat washers mid. 8 mm - 5 pcs.,
  • - Springy washers dia. 8 mm - 5 pcs.,
  • - Wheel holders - 4 pcs.,
  • - Screws M10 x 45 mm - 2 pcs.,
  • - Flat washers mid. 10 mm - 2 pcs.,
  • - Screw M12 x 45 mm,

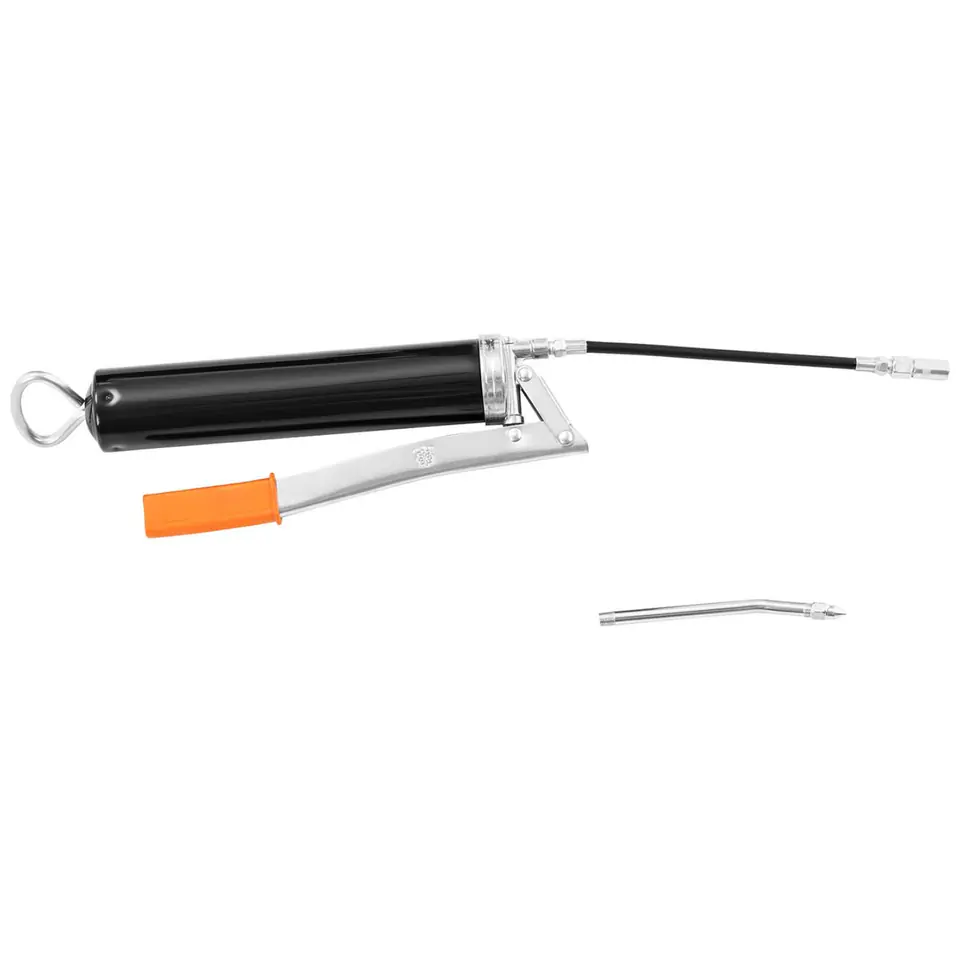

  • -Lubricator
  • -Manual.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
