Manufacturer no: 10280042

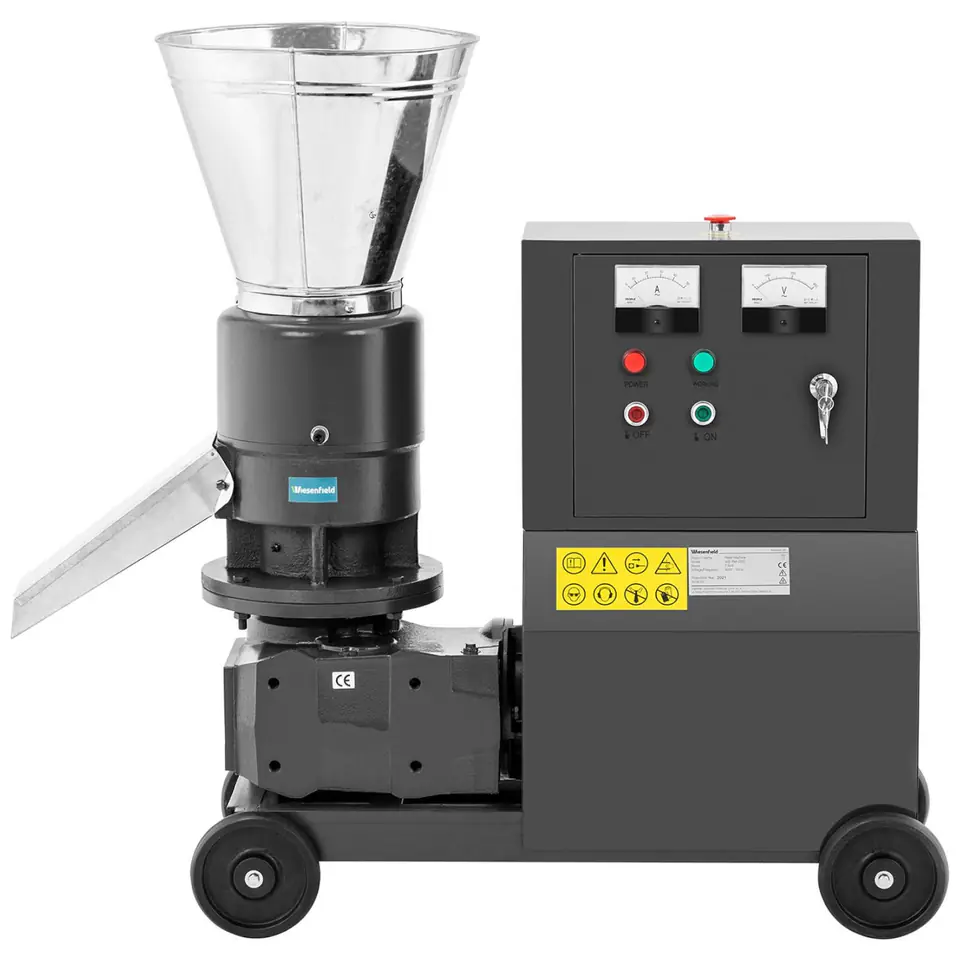

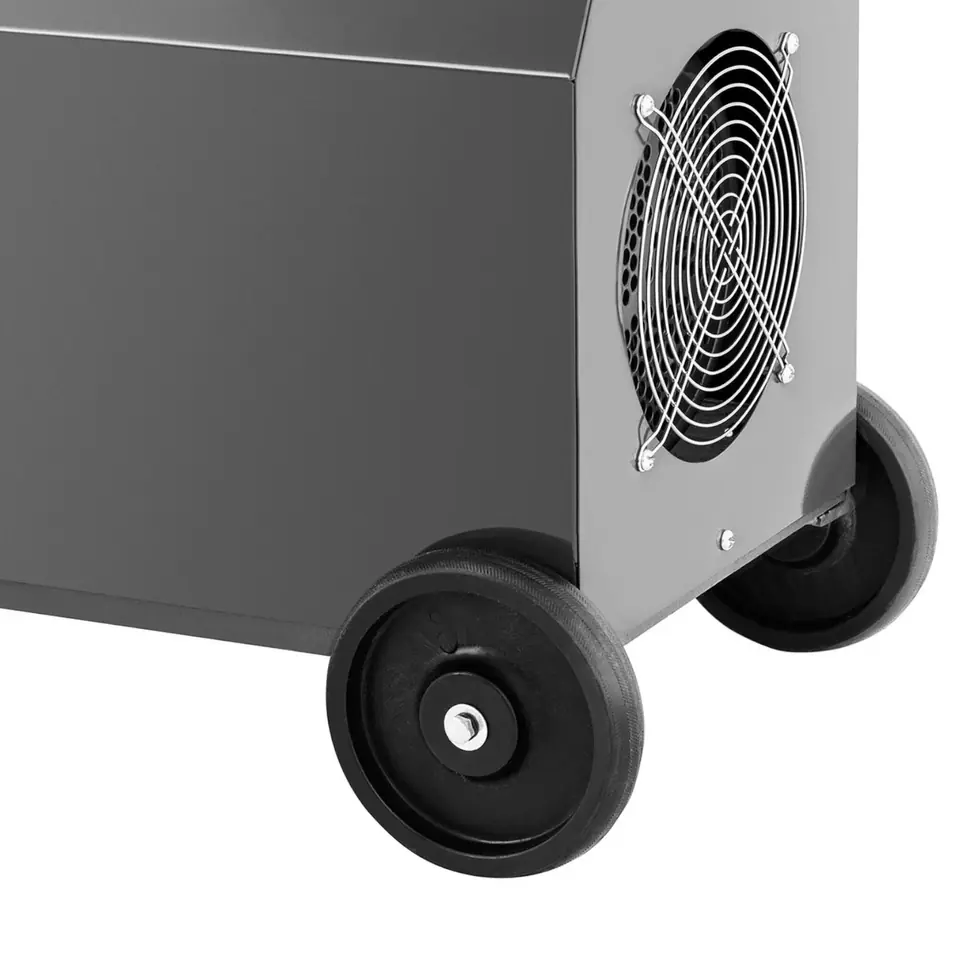

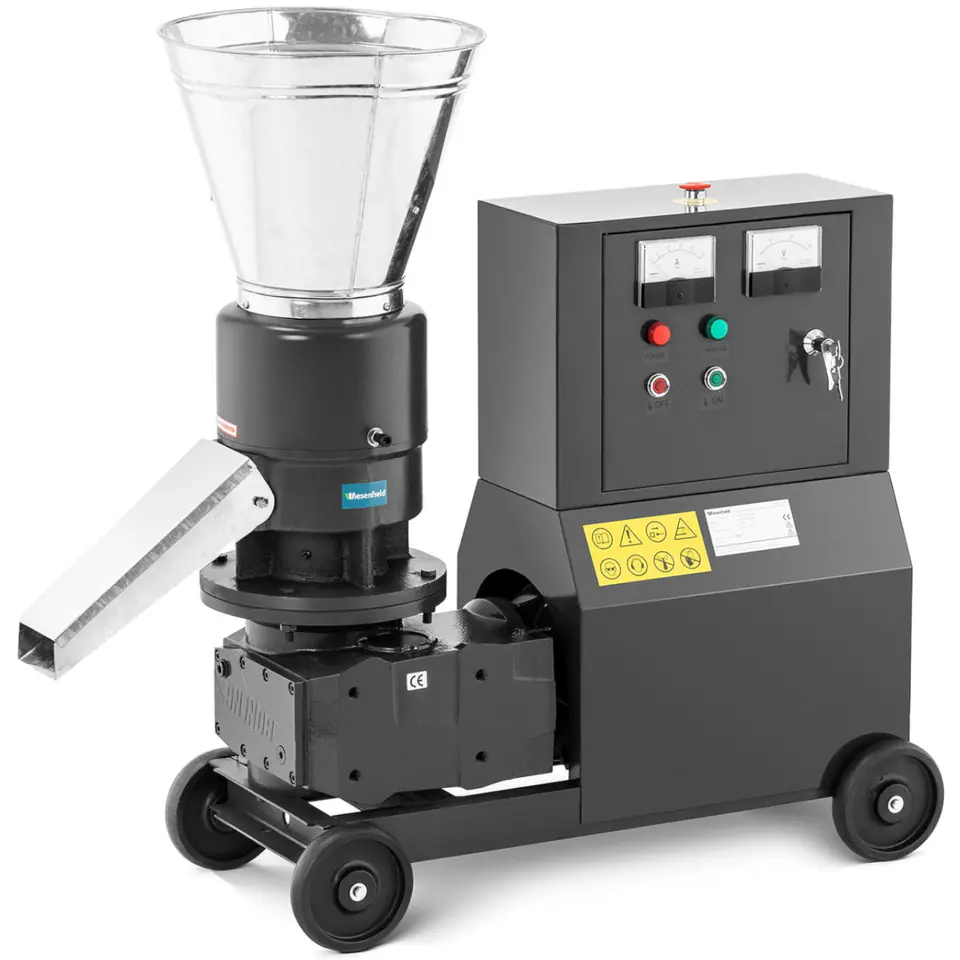

The professional industrial pellet mill of the Wiesenfield brand is used to produce pellets, animal feed and granules from various organic materials. The granulator gives the opportunity to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes with a diameter of 6 mm, where they are subjected to high pressure and temperature (60-80C).. Some materials require the use of special binders. The pellet mill is able to produce 200 kg of feed and 120-200 kg of pellets from sawdust in an hour. The user is protected by a special safety brake. 4 wheels ensure the mobility of the machine and facilitate transport.
Product features:
- - Production of pellets for heating and fertilization,
- - Production of feed for feeding animals,
- - Engine power 7500 W,
- - Matrix with a diameter of 229 mm,
- - Pellet diameter 6 mm,
- - Operating temperature from 60 to 80C,
- - Compact, mobile and easy to use,
- - Cast iron and alloy steel.
- - Catalog no. - 10280042
- - Article status - New
- - Producer - Wiesenfield
- - Voltage [V] - 400
- - User Manual - No

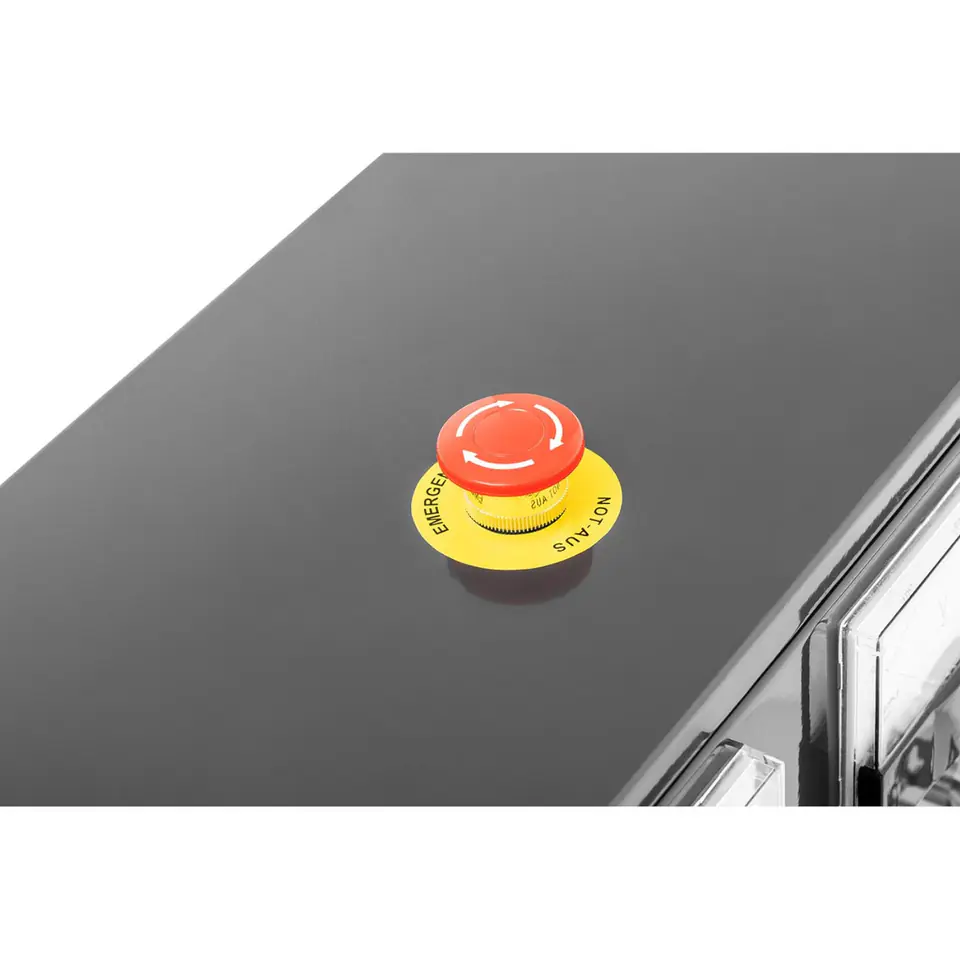

- - Emergency stop - Yes
- - Rotational speed [rpm] - 1450
- - Housing material - Cast iron
- - Power [W] - 7500
- - Frequency [Hz] - 50
- - Matrix diameter [mm] - 229
- - The size of the matrix holes [mm] - 6
- - Production capacity from sawdust [kg/h] - 120-200
- - Feed production capacity [kg/h] - 200
- - Continuous operation time [h] - 24
- - Dimensions (LxWxH) [cm] - 121 x 40 x 117
- - Weight [kg] - 214
- - Shipping dimensions (LxWxH) [cm] - 100 x 44 x 99
- - Shipping weight [kg] - 234

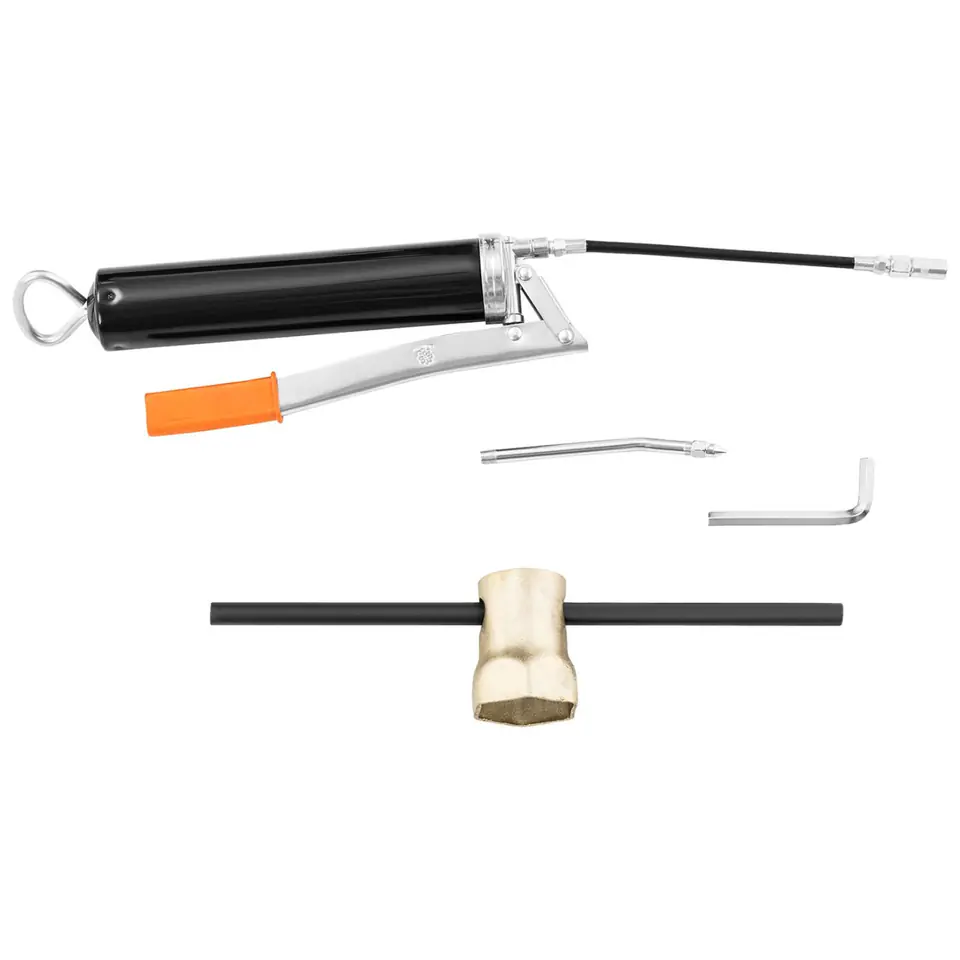

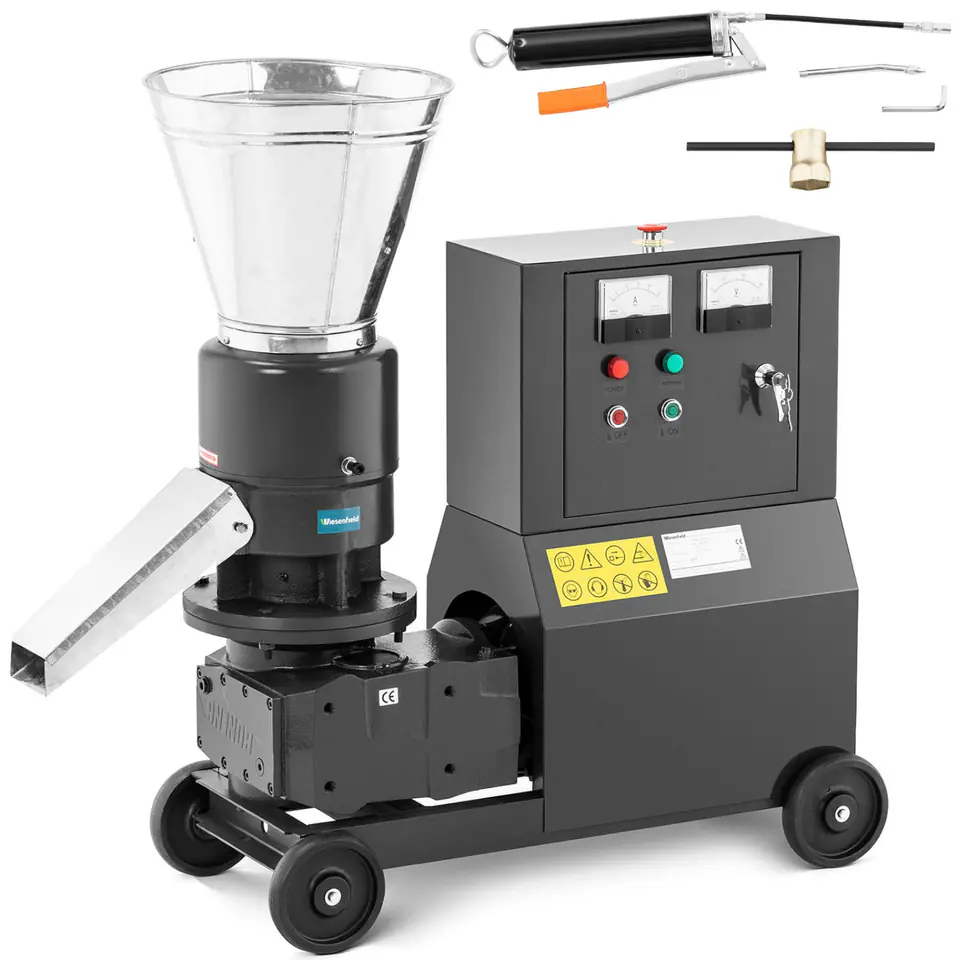

- - Peleciarka,
- - Allen wrench 8 mm,
- - Screws M8 x 16 mm - 5 pcs.,
- - Flat washers mid. 8 mm - 5 pcs.,
- - Springy washers dia. 8 mm - 5 pcs.,
- - Lubricator,
- - Instruction manual.
