Manufacturer no: 10280046

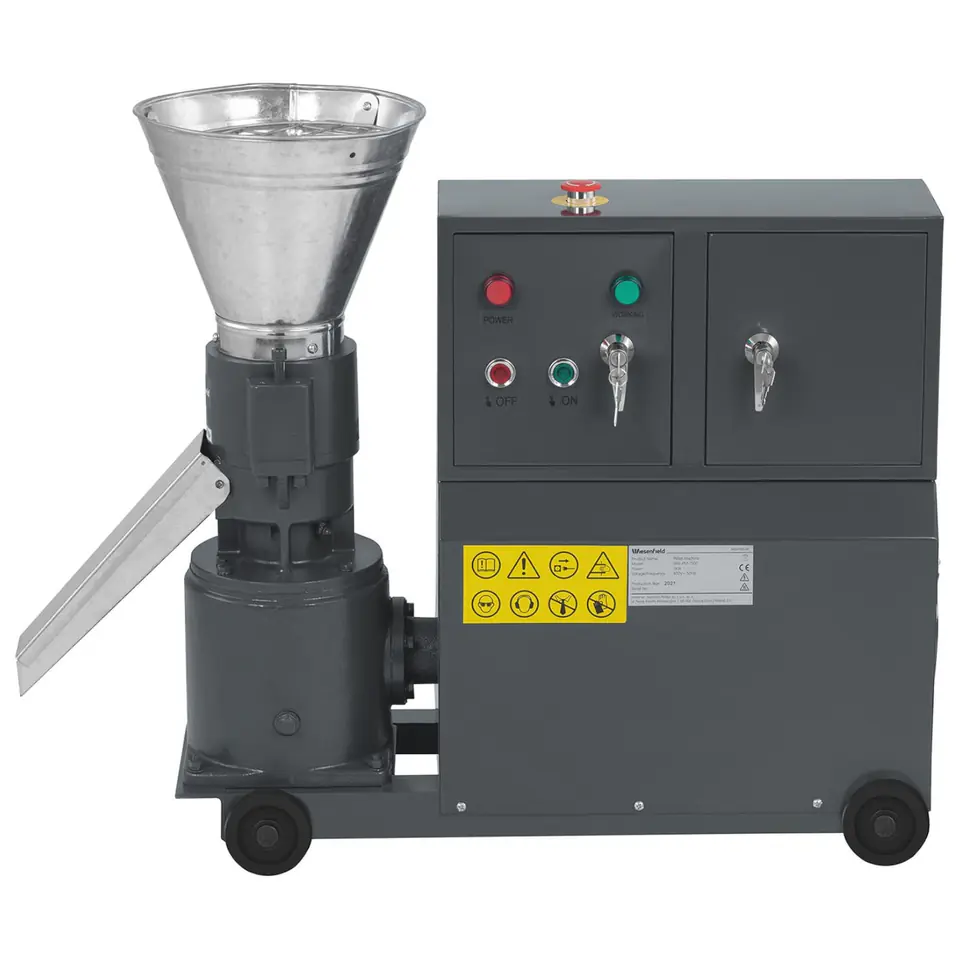

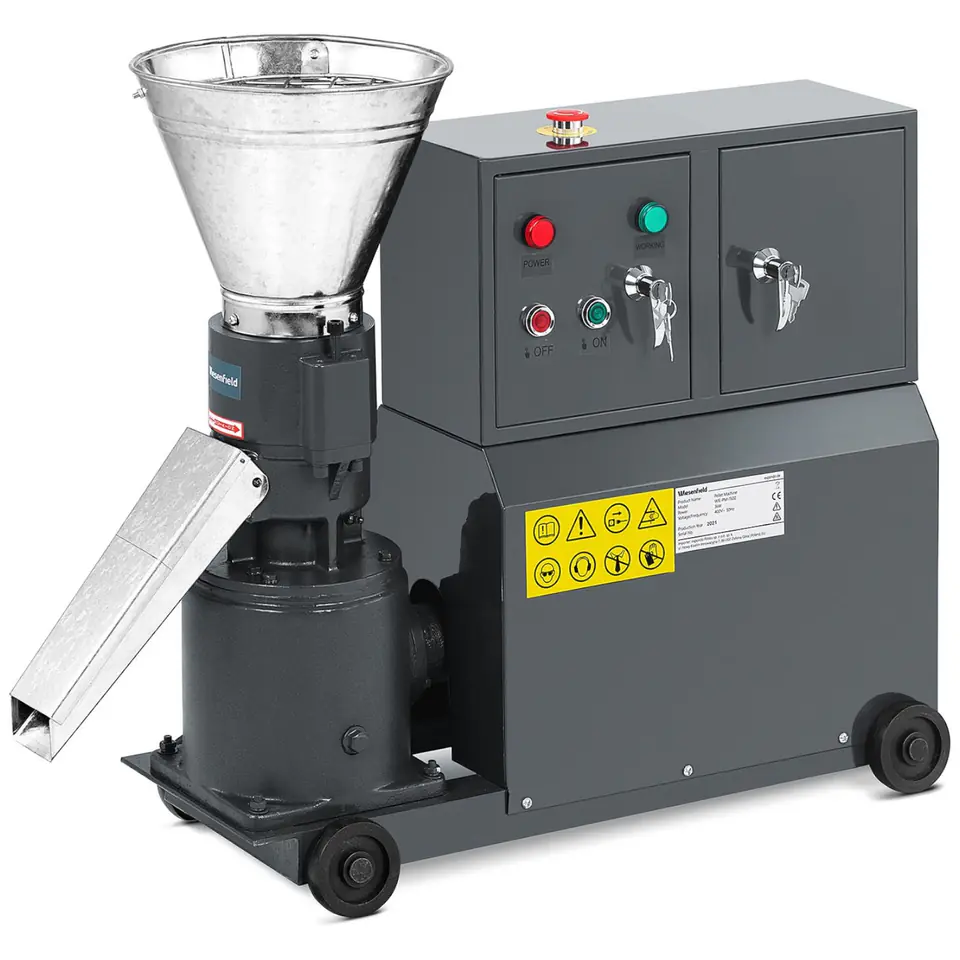

The professional industrial pellet mill of the Wiesenfield brand is used to produce pellets, animal feed and granules from various organic materials. The granulator gives the opportunity to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes with a diameter of 6 mm, where they are subjected to high pressure and temperature (60-80C).. Some materials require the use of special binders. The pellet mill is able to produce 60-100 kg of feed and 40-60 kg of pellets from sawdust in an hour. The user is protected by a special safety brake. 4 wheels ensure the mobility of the machine and facilitate transport.
Product features:
- - Production of pellets for heating and fertilization,
- - Production of feed for feeding animals,
- - Motor power 3000 W,
- - Matrix with a diameter of 120 mm,
- - Pellet diameter 6 mm,
- - Operating temperature from 60 to 80C,
- - Compact, mobile and easy to use,
- - Cast iron and alloy steel.
- - Catalogue number - 10280046
- - Article status - New
- - Producer - Wiesenfield
- - Voltage [V] - 400
- - User Manual - Yes

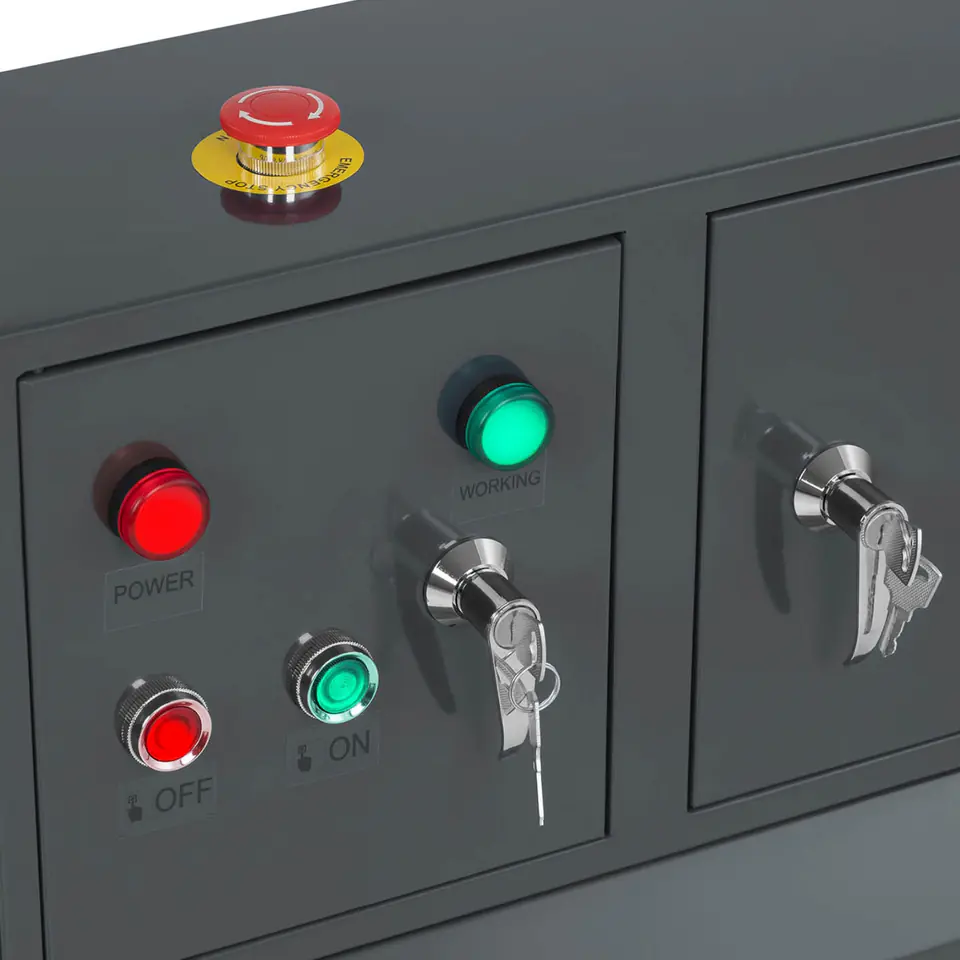

- - Emergency stop - Yes
- - Rotational speed [rpm] - 1430
- - Housing material - Cast iron
- - Power [W] - 3000
- - Degree of protection IP - 55
- - Frequency [Hz] - 50
- - Matrix diameter [mm] - 120
- - The size of the matrix holes [mm] - 6
- - Production capacity from sawdust [kg/h] - 40-60
- - Feed production capacity [kg/h] - 60-100
- - Continuous operation time [h] - 24
- - Dimensions (LxWxH) [cm] - 90 x 30 x 73
- - Weight [kg] - 84.6
- - Shipping dimensions (LxWxH) [cm] - 82 x 32 x 78
- - Shipping weight [kg] - 98

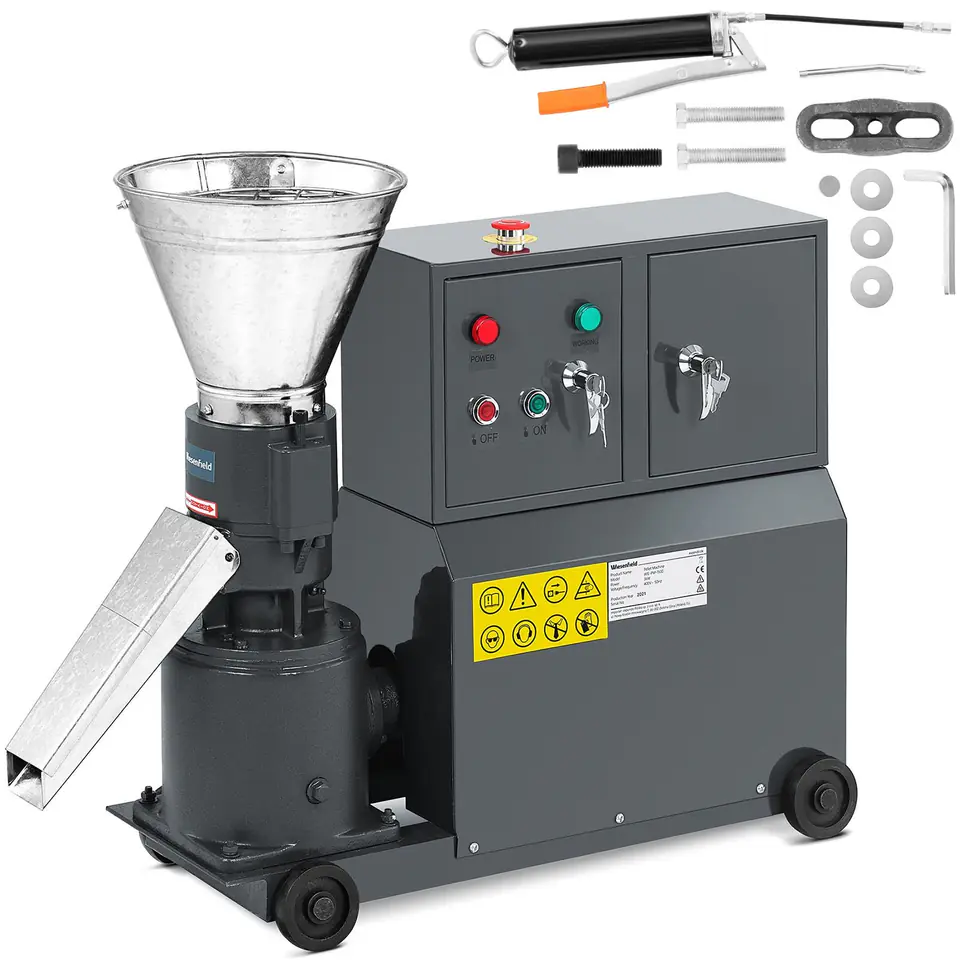

- - Peleciarka,
- - Wheels avg. 81 x 22 mm - 4 pcs.,

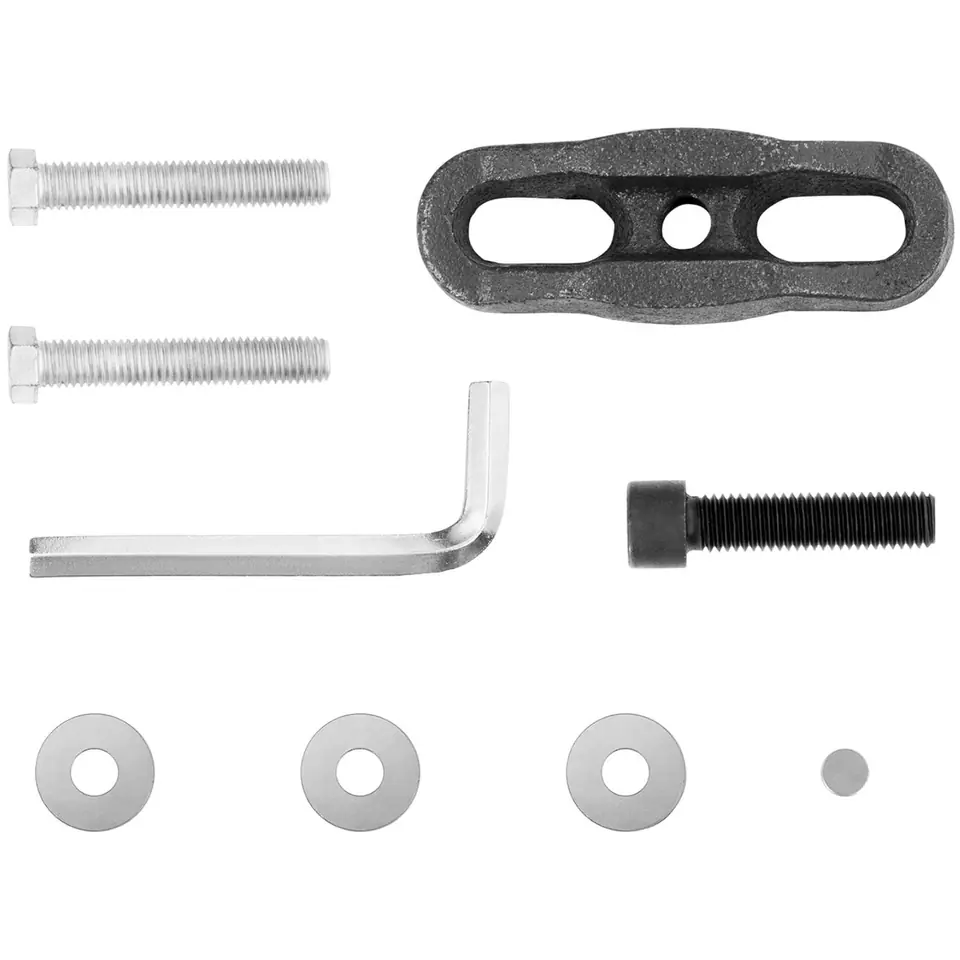

- - Allen wrench 8 mm,
- - Puller,
- - Screws M10 - 5 pcs.,
- - Flat washers mid. 10 mm - 5 pcs.,
- - Springy washers dia. 10 mm - 7 pcs.,
- - Wheel holders - 4 pcs.,
- - Instruction manual.
