Manufacturer no: 10280043

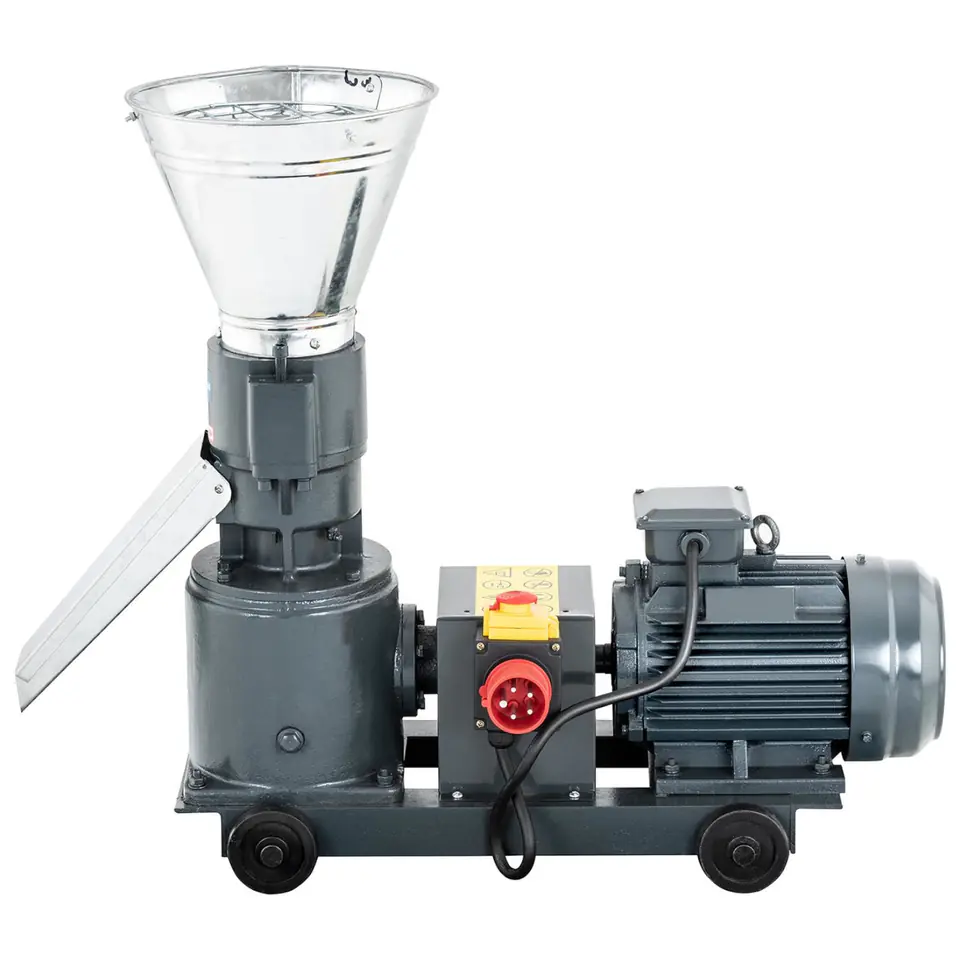

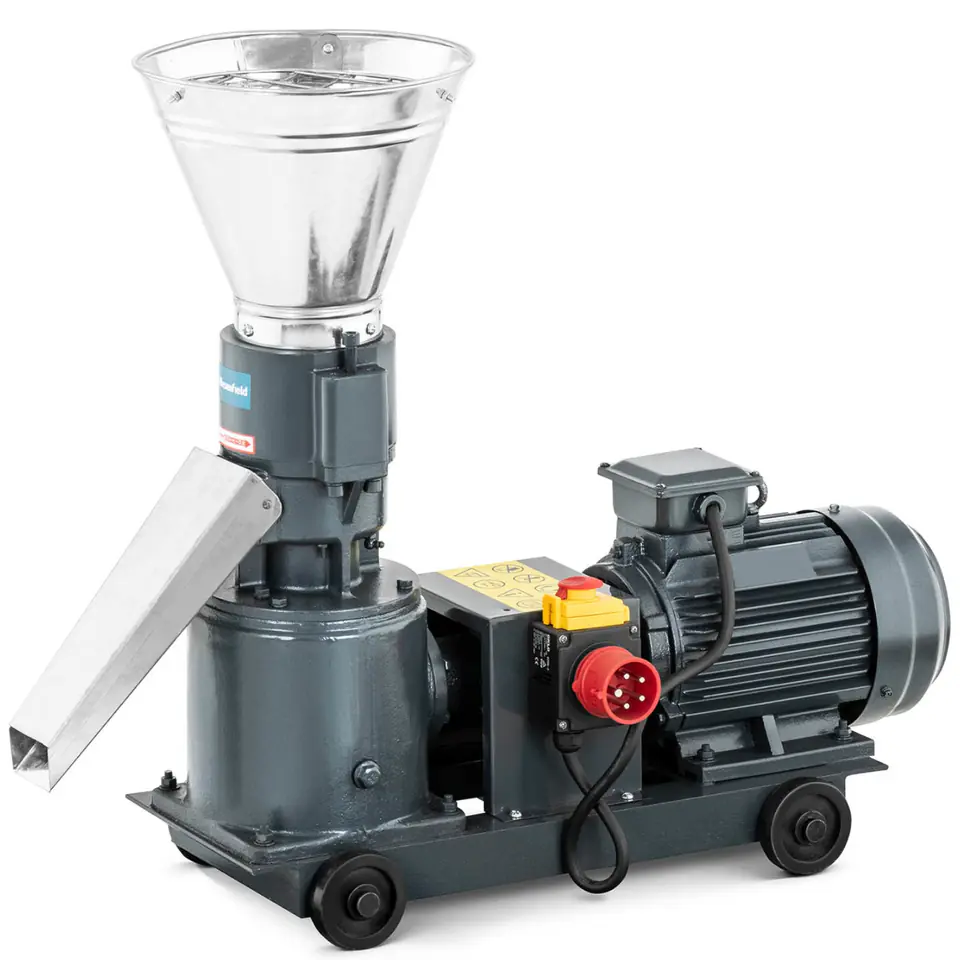

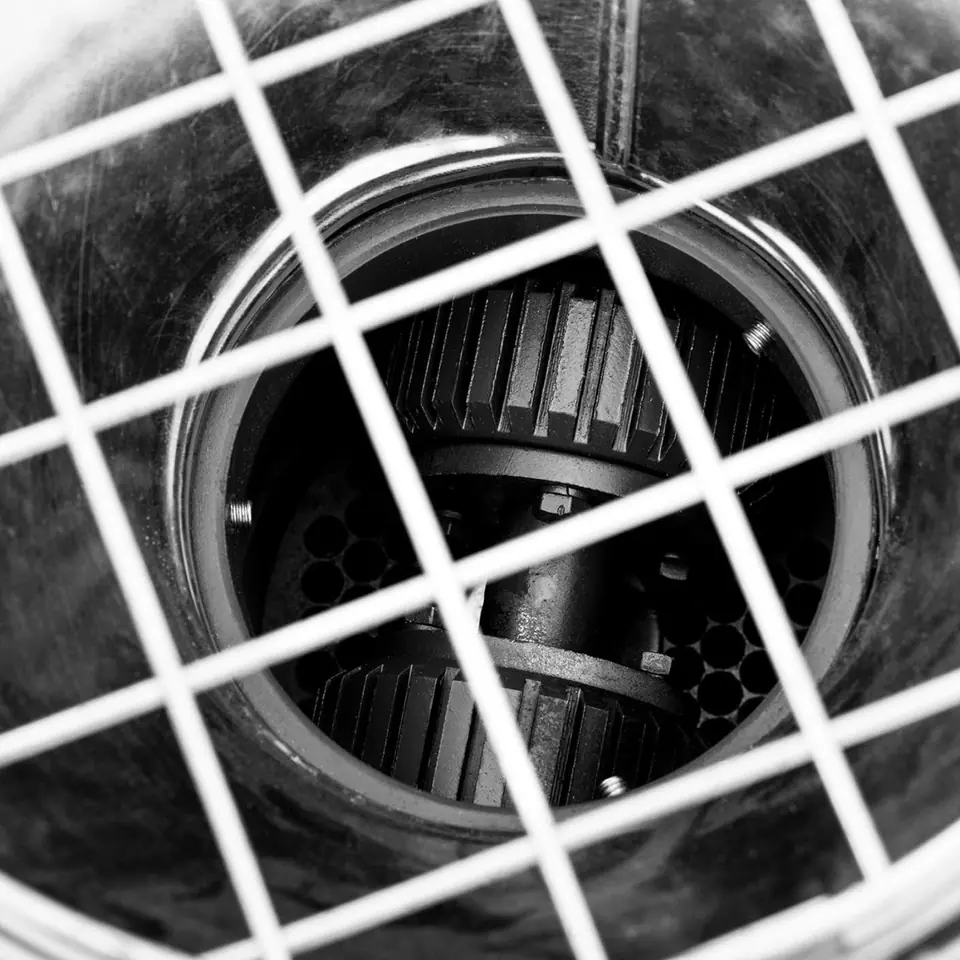

The professional industrial pellet machine from Wiesenfield is used to produce pellets, animal feed and granules from various organic materials. The granulator gives the possibility of using wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes with a diameter of 6 mm, where they are subjected to high pressure and temperature (60-80C). Some materials require the use of special binders. The pellet mill is able to produce 60-100 kg of feed and 40-60 kg of pellets from sawdust per hour. A special safety brake protects the user. 4 wheels ensure the mobility of the machine and facilitate transport.
Product features:
- - Production of pellets for heating and fertilization,
- - Production of feed for animal feeding,
- - 3000 W motor,
- - Matrix with a diameter of 120 mm,
- - Pellet diameter 6 mm,
- - Operating temperature from 60 to 80C,
- - Compact, mobile and easy to use,
- - Cast iron and alloy steel.
- - Model - WIE-PM-500
- - Catalogue number - 10280043
- - Article status - New
- - Producer - Wiesenfield
- - Voltage [V] - 400
- - User manual - Yes

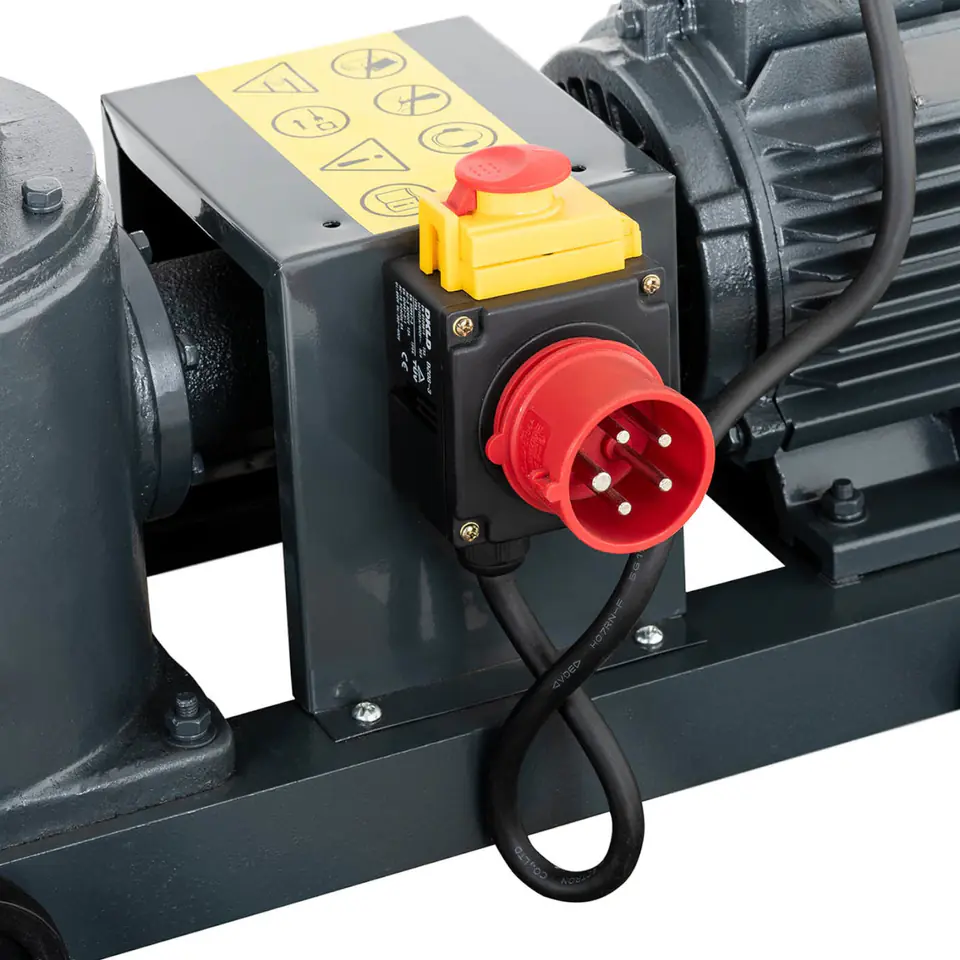

- - Emergency stop switch - Yes
- - Rotational speed [rpm] - 1430
- - Housing material - Cast iron
- - Power [W] - 3000
- - IP rating - 55
- - Frequency [Hz] - 50
- - Matrix diameter [mm] - 120
- - Size of matrix holes [mm] - 6
- - Production efficiency from sawdust [kg/h] - 40-60
- - Feed production efficiency [kg/h] - 60-100
- - Continuous operation time [h] - 24
- - Dimensions (LxWxH) [cm] - 88.5 x 35.5 x 73
- - Weight [kg] - 77
- - Shipping dimensions (LxWxH) [cm] - 82 x 35 x 75
- - Shipping weight [kg] - 87

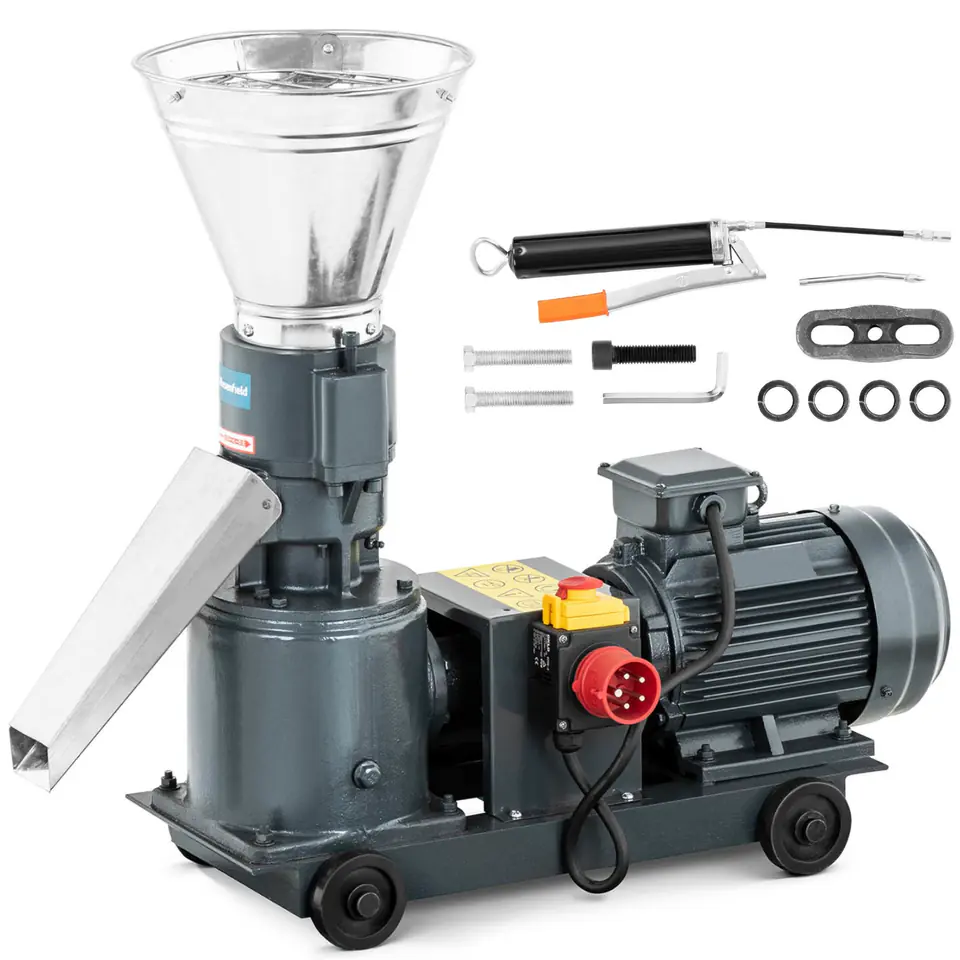

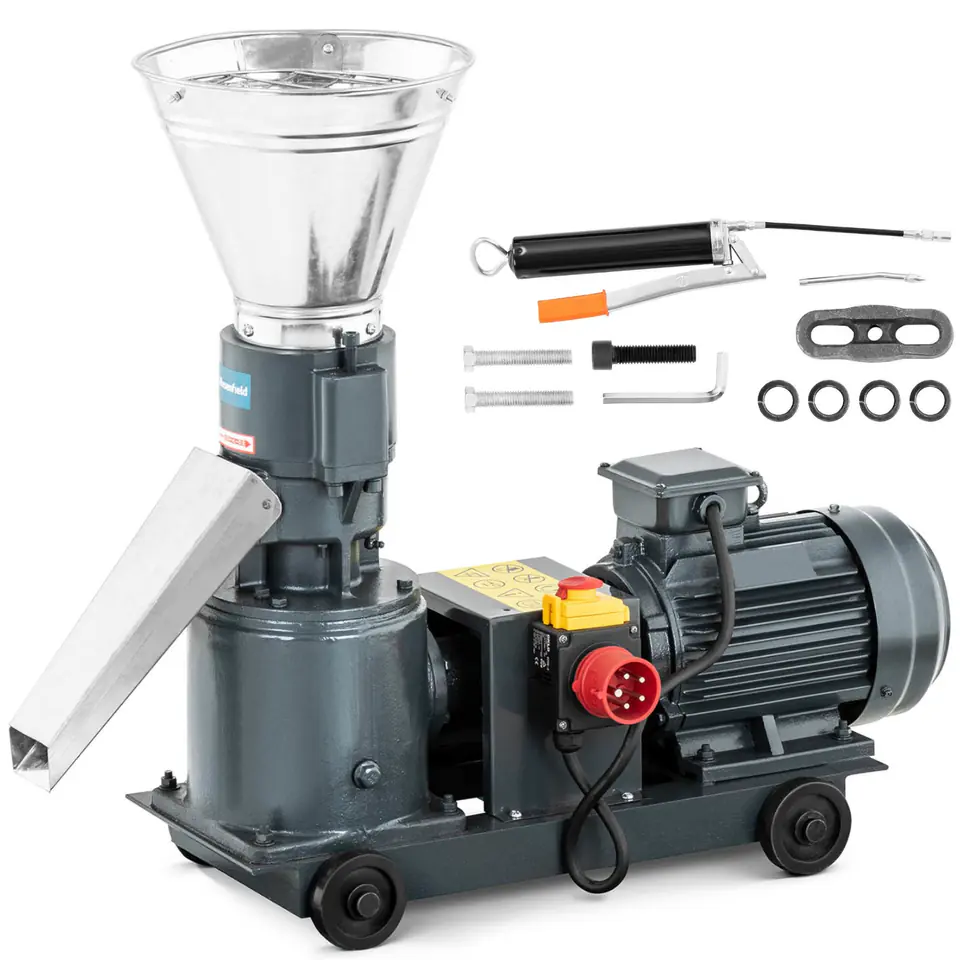

- - pellet mill,

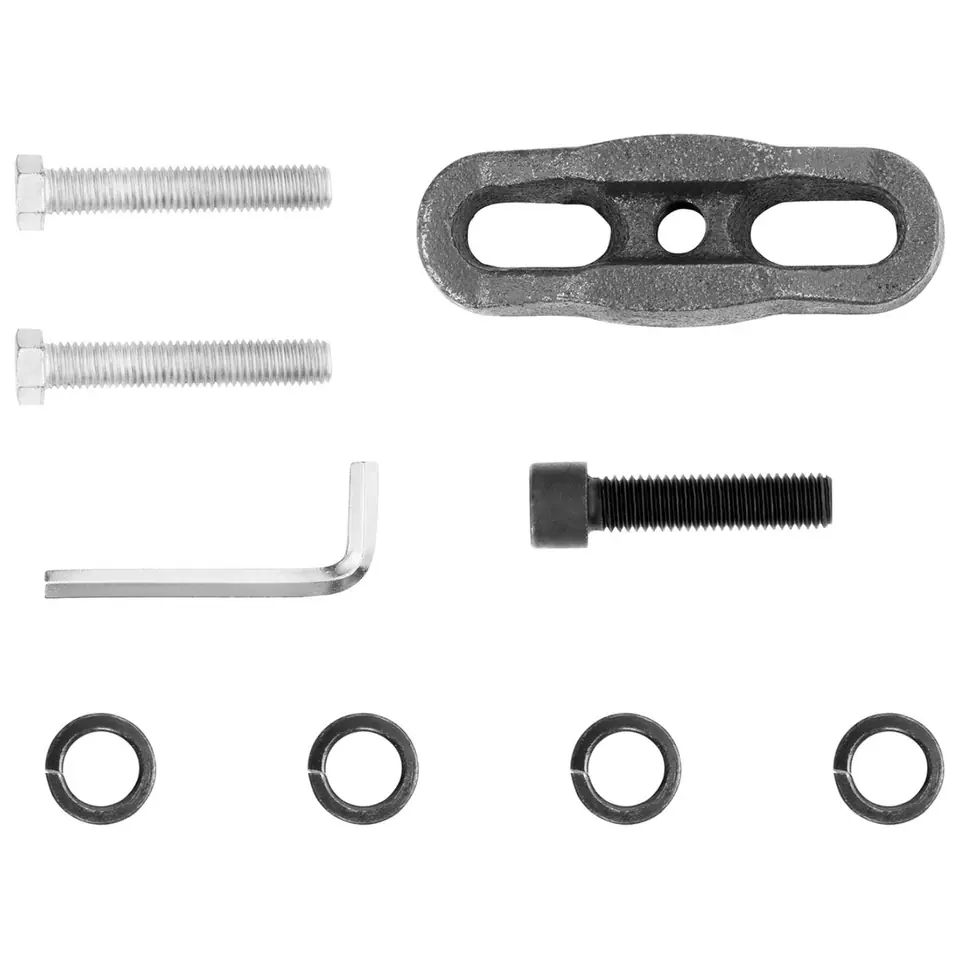

- - Circles avg. 81 x 22 mm - 4 pcs.,
- - Allen key 8 mm,
- -Ribbing
- - Screws M10 - 5 pcs.,
- - Flat pads avg. 10 mm - 5 pcs.,
- - Elastic pads avg. 10 mm - 7 pcs.,
- - Wheel holders - 4 pcs.,
- -Manual.
