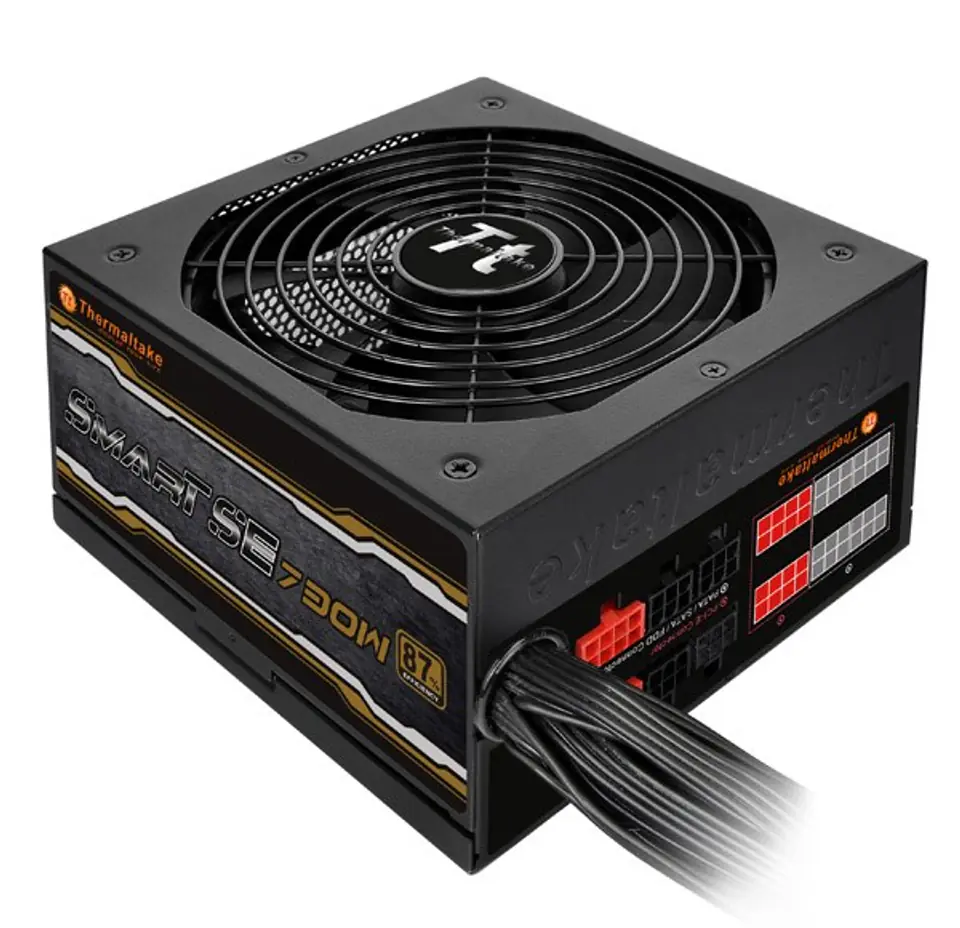

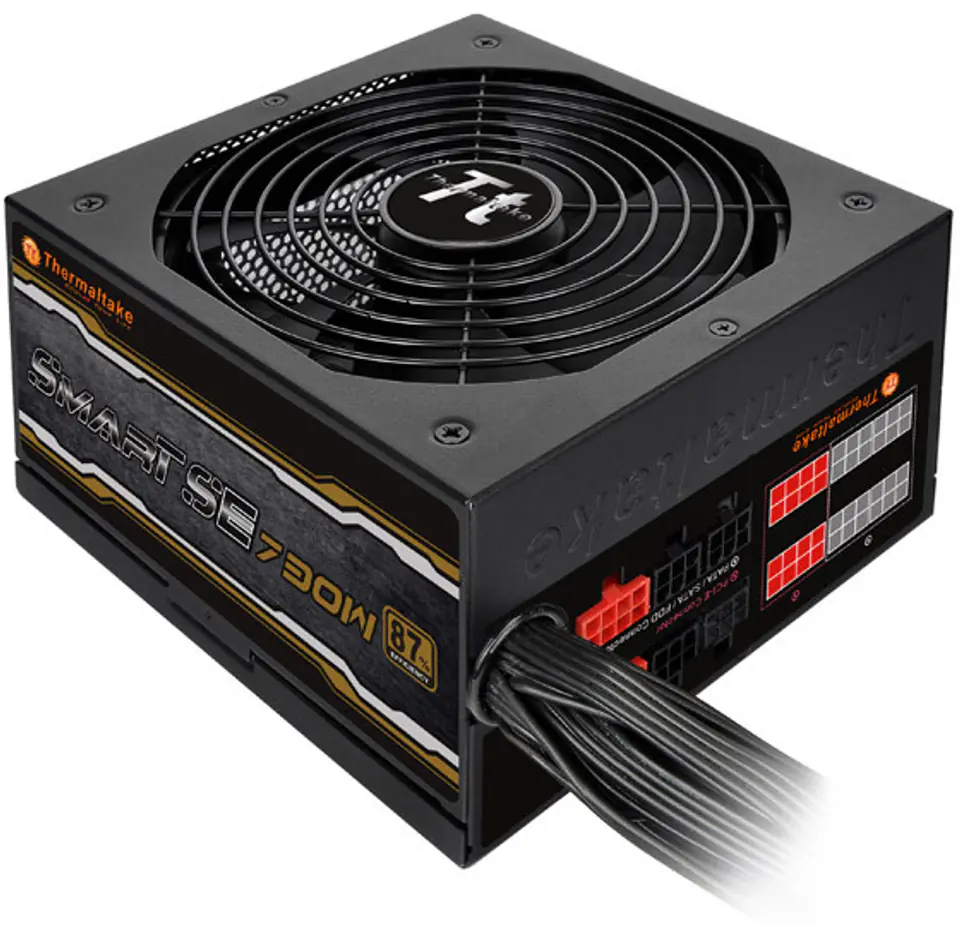

Smart SE is a Thermaltake power supply with a power of 730W from the Smart Series, efficient power supplies designed for ATX computer cases. The power supply is compatible with the latest PC technologies. It supports the latest ATX 12V V2.3 and EPS 12V 2.92 specifications, so it can be used with current and next generation platforms with multi-core processors. It is equipped with an active PFC system and is characterized by an extremely high efficiency of up to 87% effectiveness. The fan with a diameter of 140 mm with automatic speed control ensures proper cooling for the unit, while maintaining high operating culture and durability. The average time of trouble-free operation of the power supply is estimated at about 100000h. The power supply has OVP, OPP, SCP protections.
PC Power Supply THERMALTAKE 730W SPS-730MPCBEU
€96.72
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Thermaltake
- Product code:
- SPS-730MPCBEU / 4713157529916
Share this product:
Specification
| Ac input frequency: | 47 - 63 Hz |
|---|---|
| Ac input voltage: | 200 - 240 V |
| Applied backlight: | No |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.3 |
| Atx version: | 2.3 |
| Backlight: | No |
| Built-in switch: | Yes |
| Compliant standards: | ATX 12V V2.3, EPS12V 2.92 |
| Cooling type: | Active |
| Depth: | 160 mm |
| Depth (mm): | 160 |
| Diameter of fan canopy: | 14 cm |
| Efficiency: | 87% |
| Eps version: | 2.92 |
| Equipment: | Modular cable set |

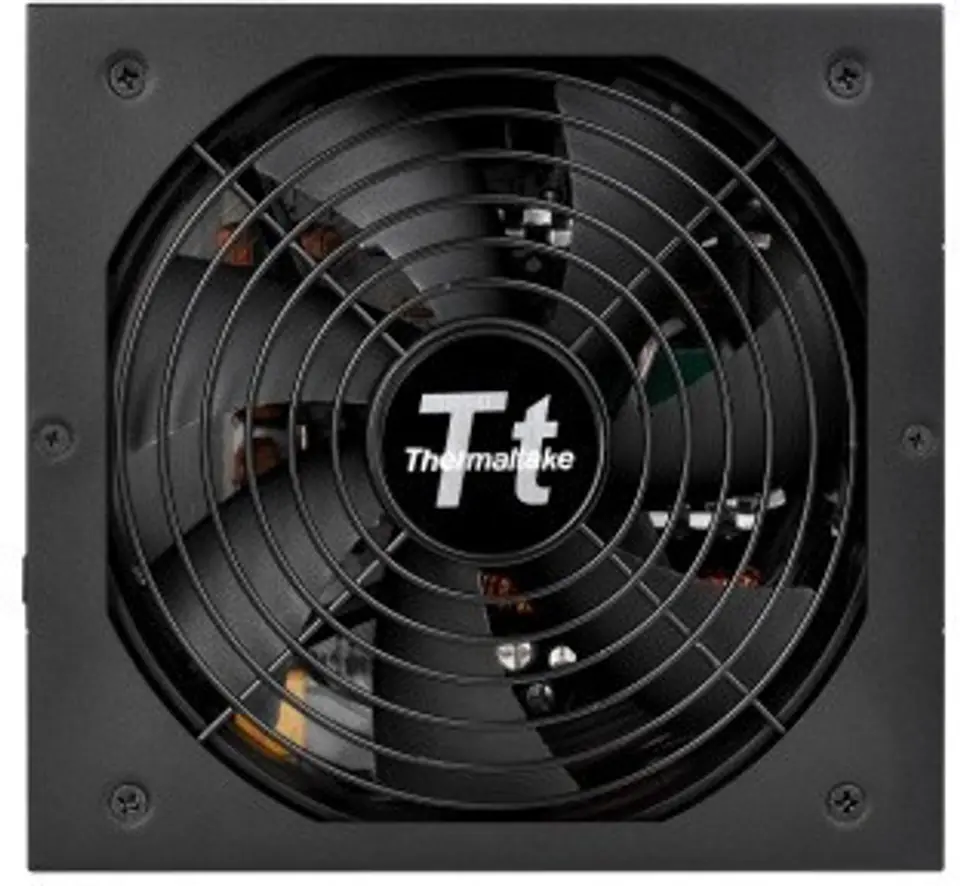

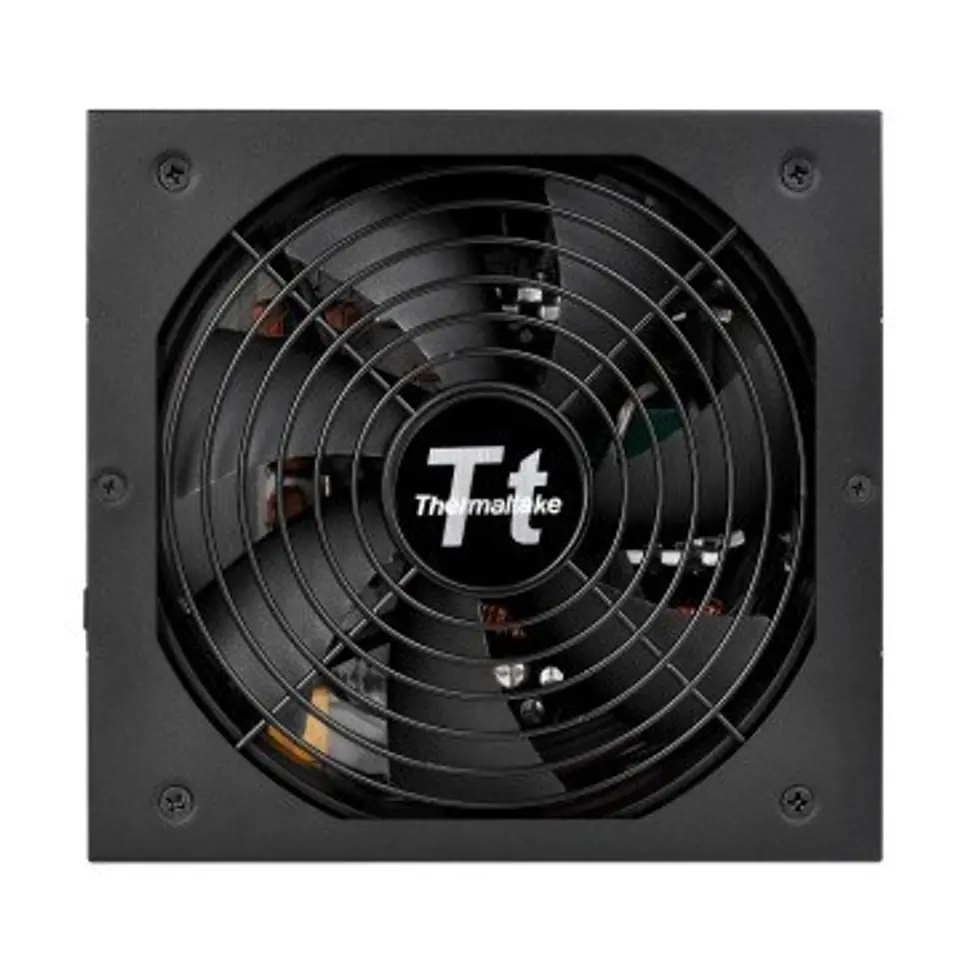

| Fan diameter: | 14 cm |
| Fan location: | Top |
| Fan speed: | 1900 |
| Floppy plugins: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Hold time: | 16 ms |
| Illumination: | No |
| Input current: | 5.5 A |
| Led indicators: | No |
| Leds: | No |
| Line: | Smart |

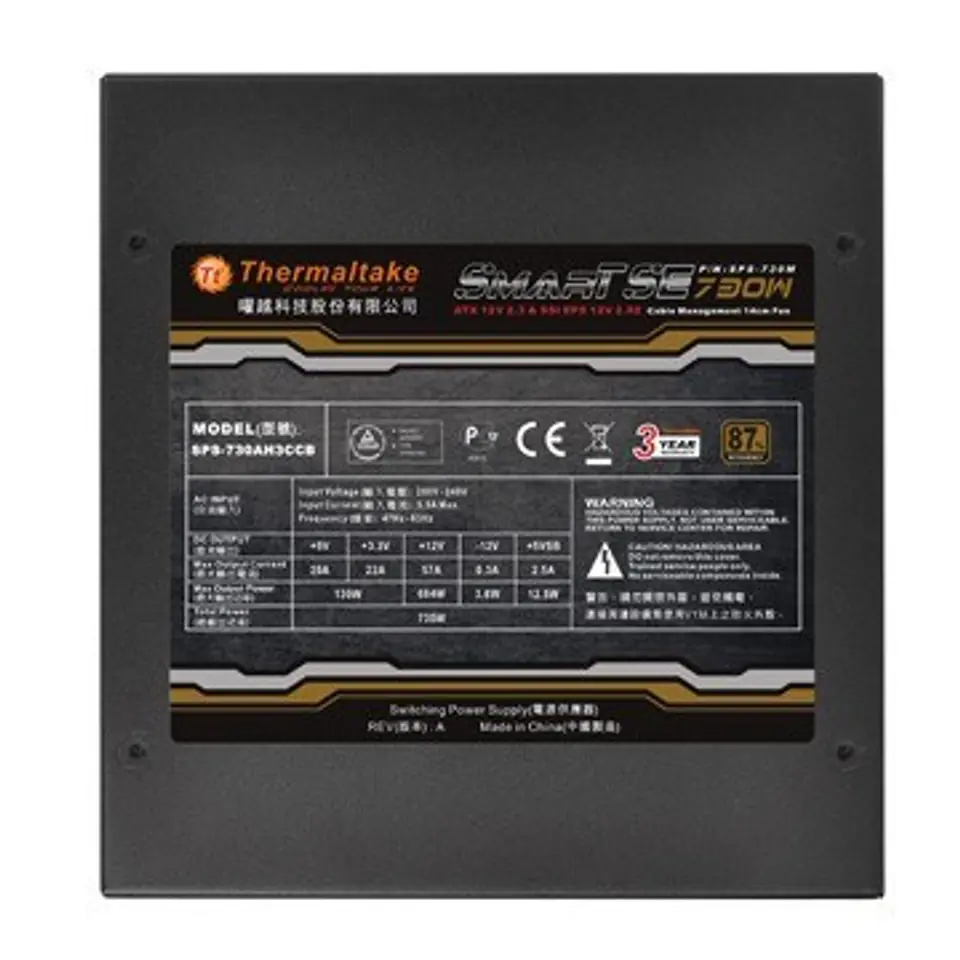

| Line current: | -12V - 0.3A, +12V - 57A, +3.3V - 22A, +5Vsb - 2.5A, +5V - 20A |
| Line load: | -12V - 3.6W, +12V - 684W, +3.3V/+5V - 130W, +5Vsb - 12.5W |
| Manufacturer's warranty: | 3 years |
| Mean time between failures (mtbf): | 100000 h |
| Modular wiring type: | Yes |
| Molex plugins: | 3 |

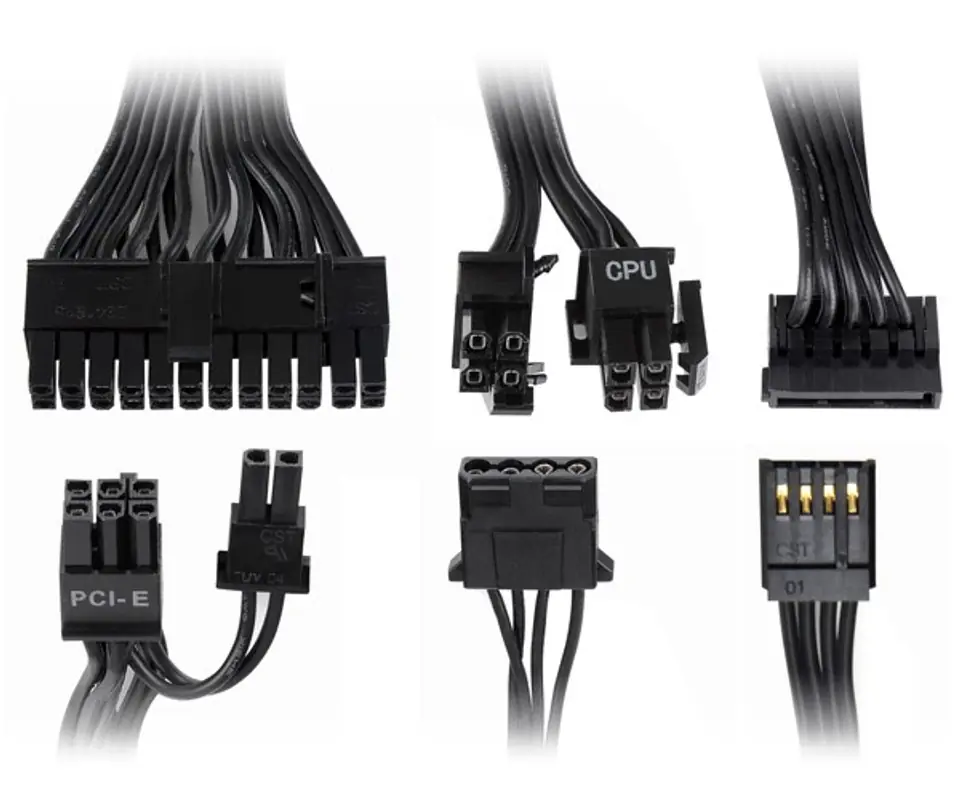

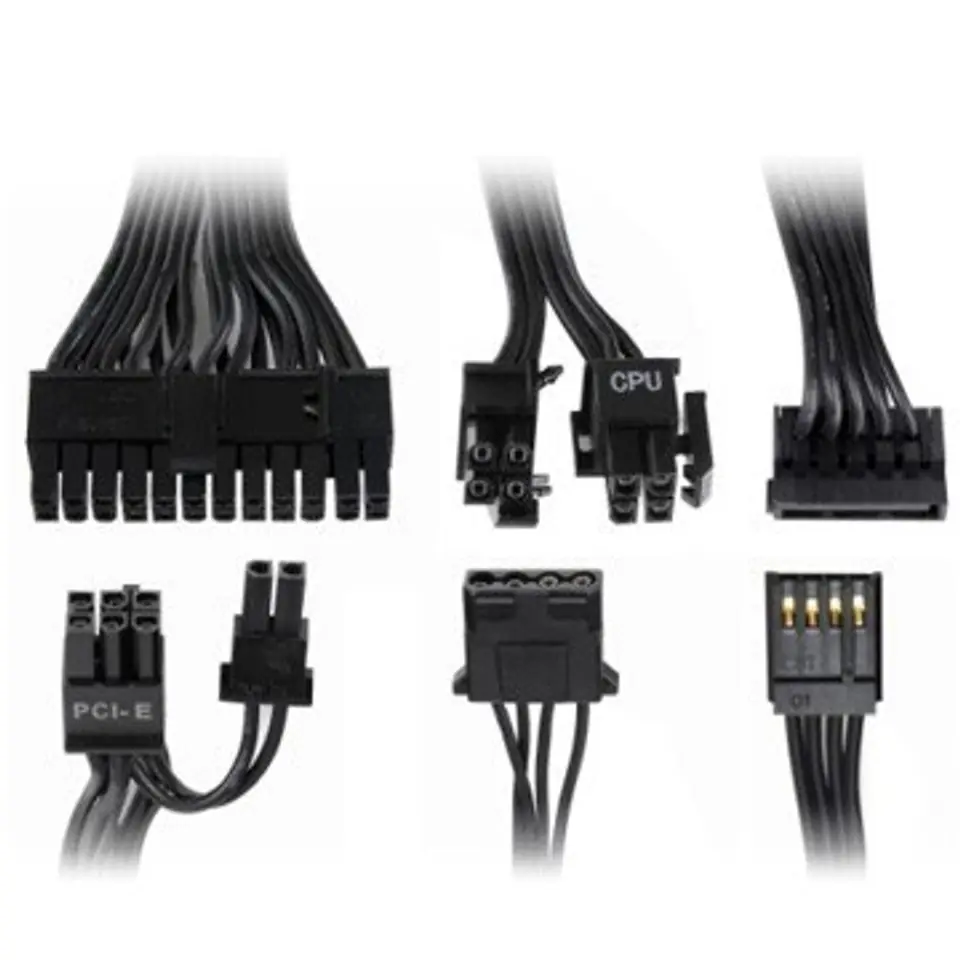

| Motherboard power connector: | 20+4 pin ATX |
| Mtbf (mean time between failures): | 100000 h |
| Number of fans: | 1 fan(s) |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 35 °C |
| Other connectors: | 1x 4+4-pin (8-pin) 12V |
| Other parameters: | Trouble-free operation 100000 MTBF |
| Pause time: | 16 ms |
| Pci express connector: | Yes |
| Pci express power connectors (6+2 pin): | 4 |
| Pci express power connectors (6+2 pin): | 4 |
| Pci express slot: | Yes |
| Pci-e 6-pin slots: | No |
| Pci-e 8-pin plugs (6+2): | 4 |
| Peak power: | 830 W |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Peripheral power connectors (molex) (4-pin): | 3 |
| Permissible relative humidity: | 5 - 95% |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor correction (pfc) type: | Active |
| Power supply (w): | 730 |
| Power supply efficiency (%): | 87 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Product depth: | 160 mm |
| Product height: | 86 mm |
| Product width: | 150 mm |
| Purpose: | PC |
| Relative humidity range: | 20 - 90% |
| Safety: | CE, TUV, GOST |
| Sata plugs: | 6 |
| Security measures applied: | OVP, SCP, OPP/OLP |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Temperature range (operation): | 0 - 35 °C |
| Temperature range (storage): | -20 - 70 °C |
| Total power: | 730 W |
| Type of cooling: | Fan 140 mm |
| Type of power supply (psu): | ATX |
| Width: | 150 mm |
| Width (mm): | 150 |
