Warranty:
150 x 140 x 86 mm

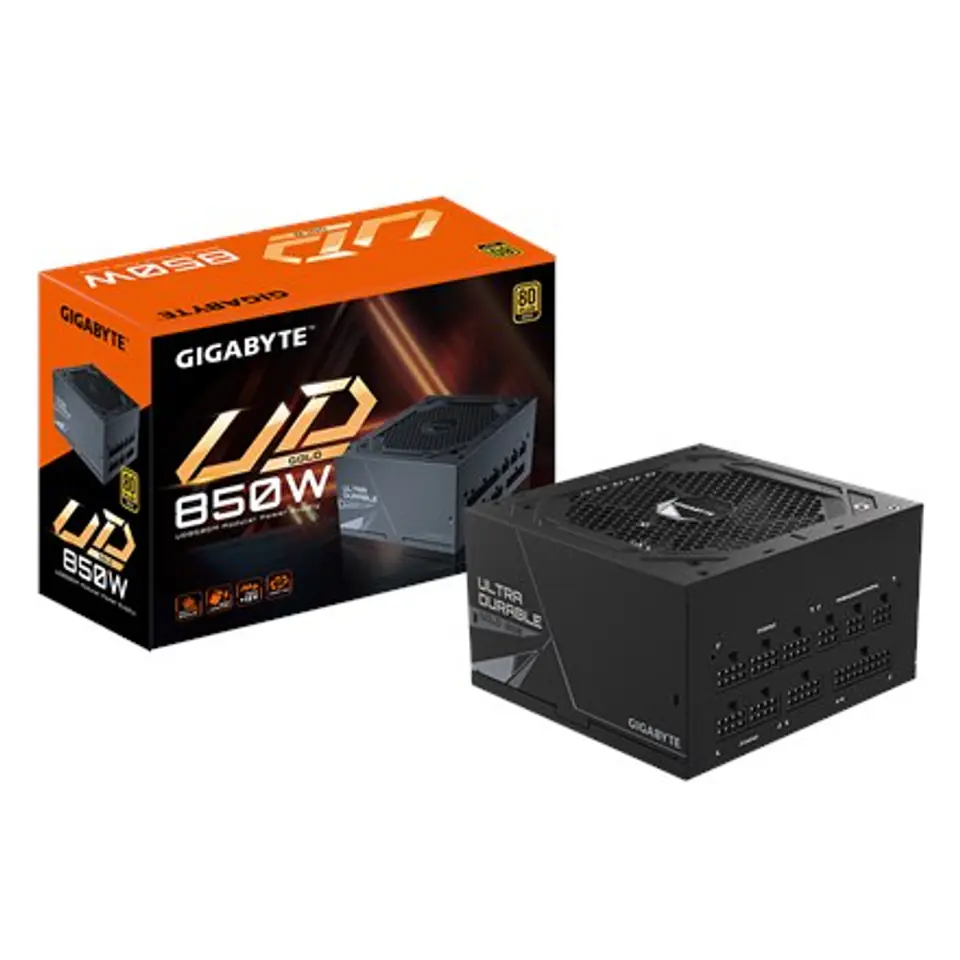

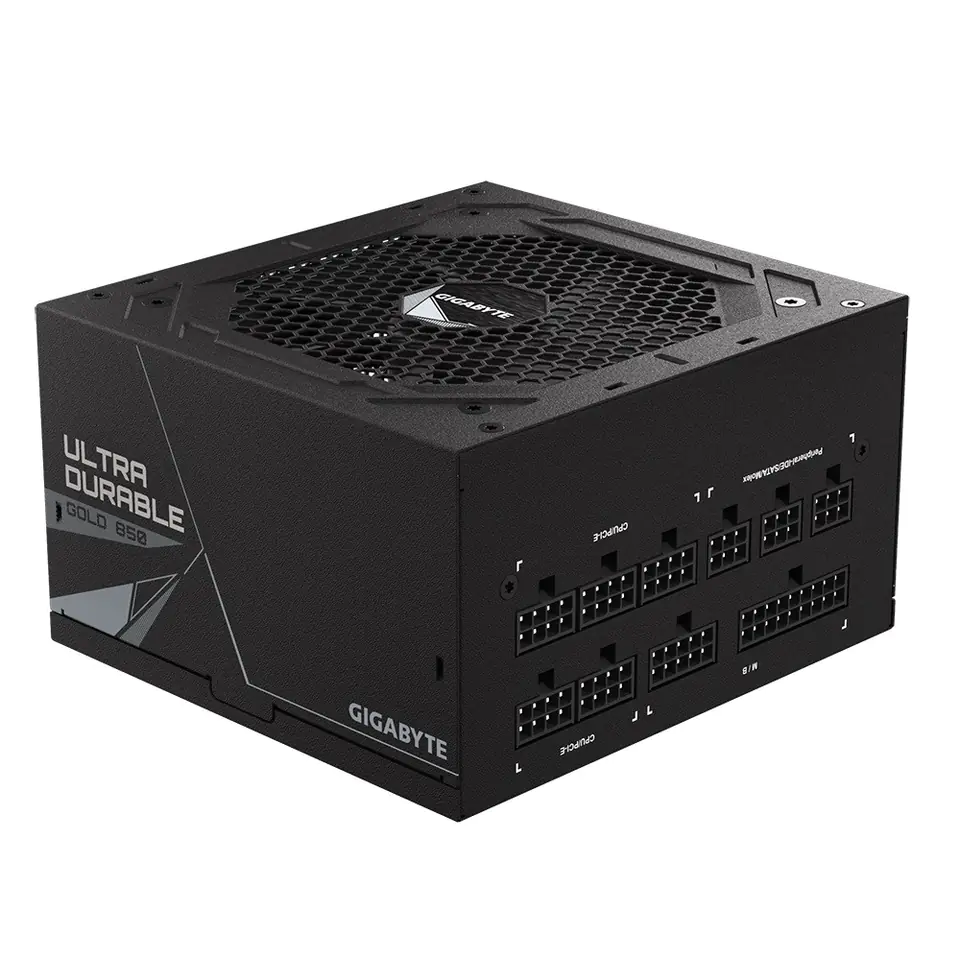

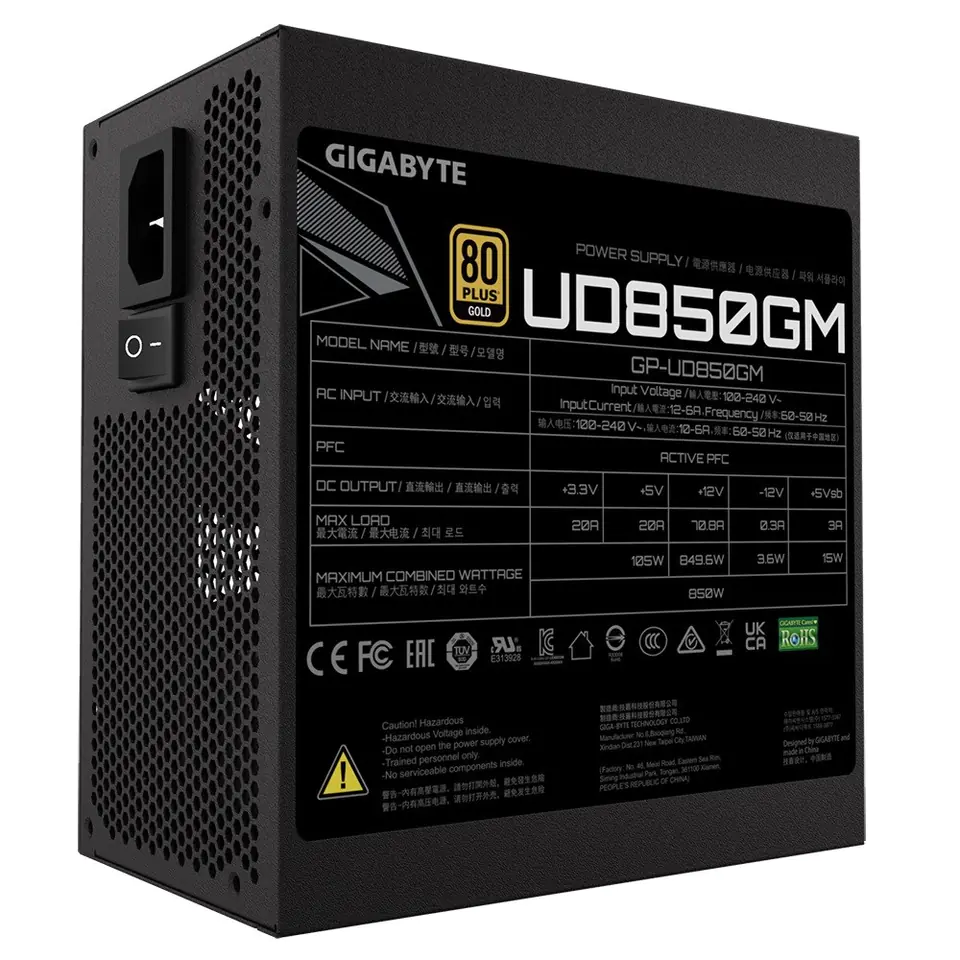

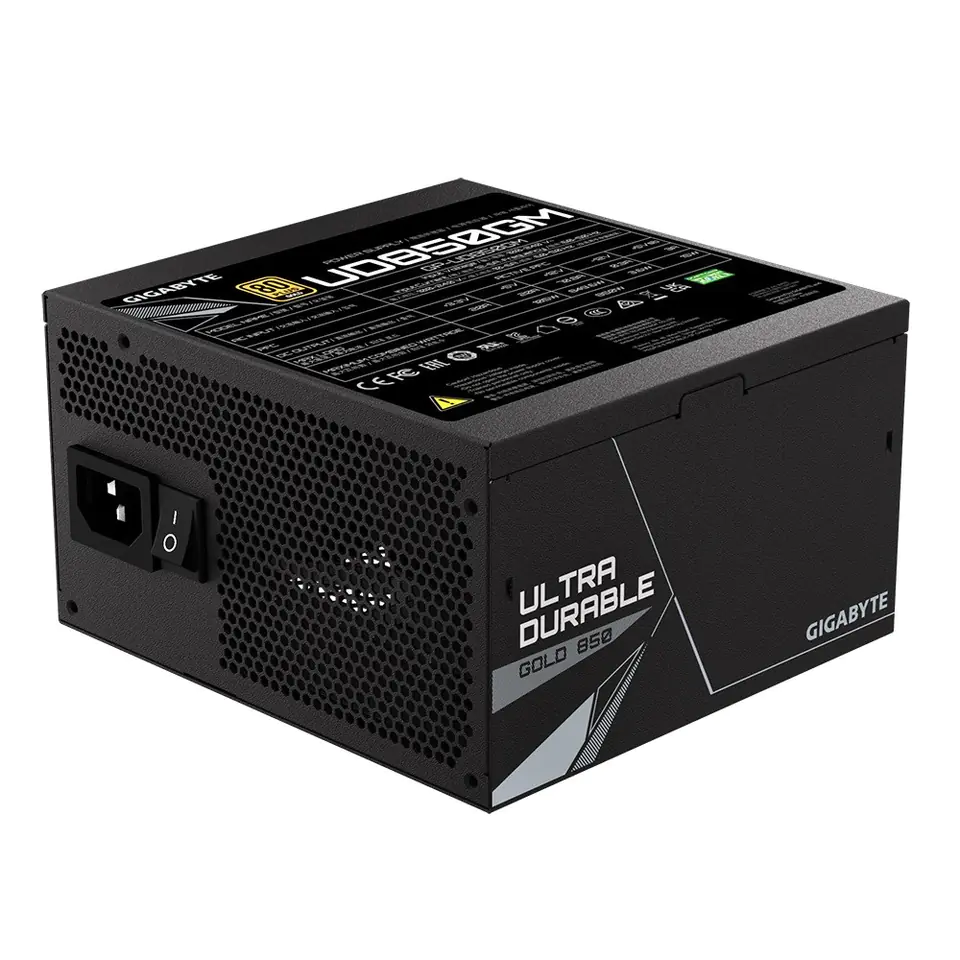

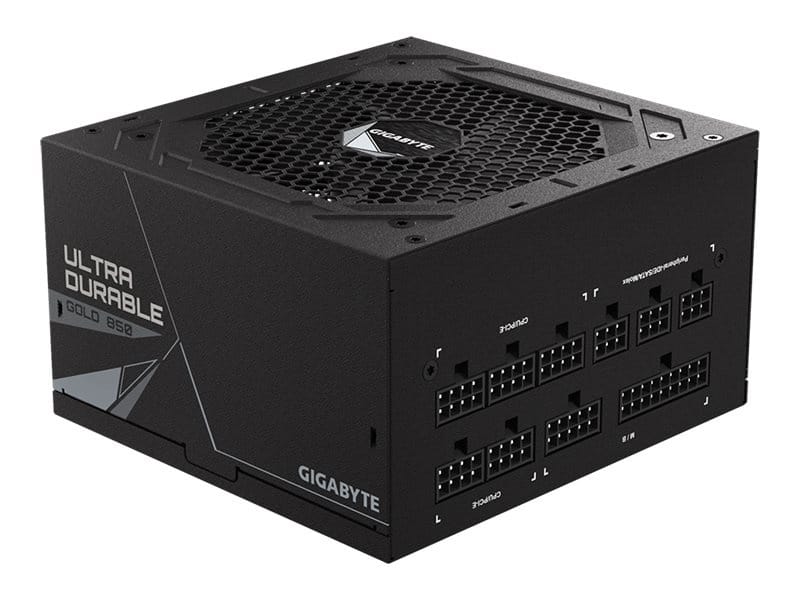

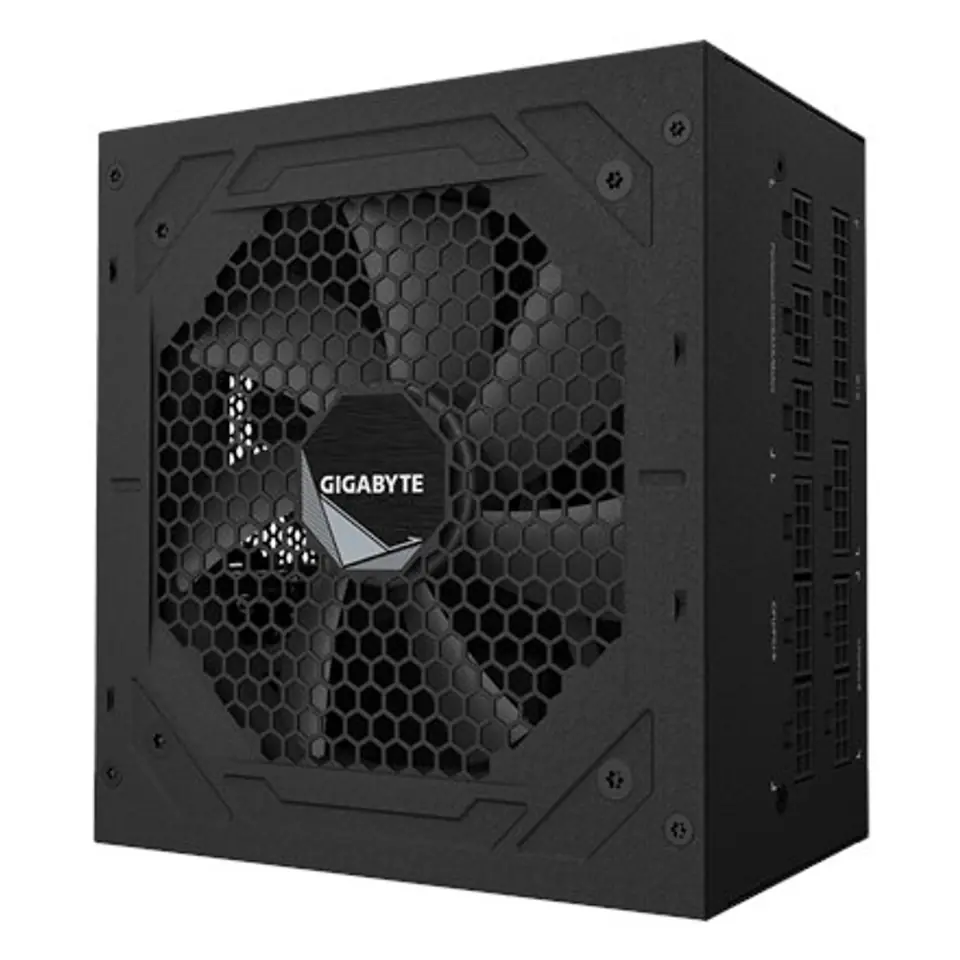

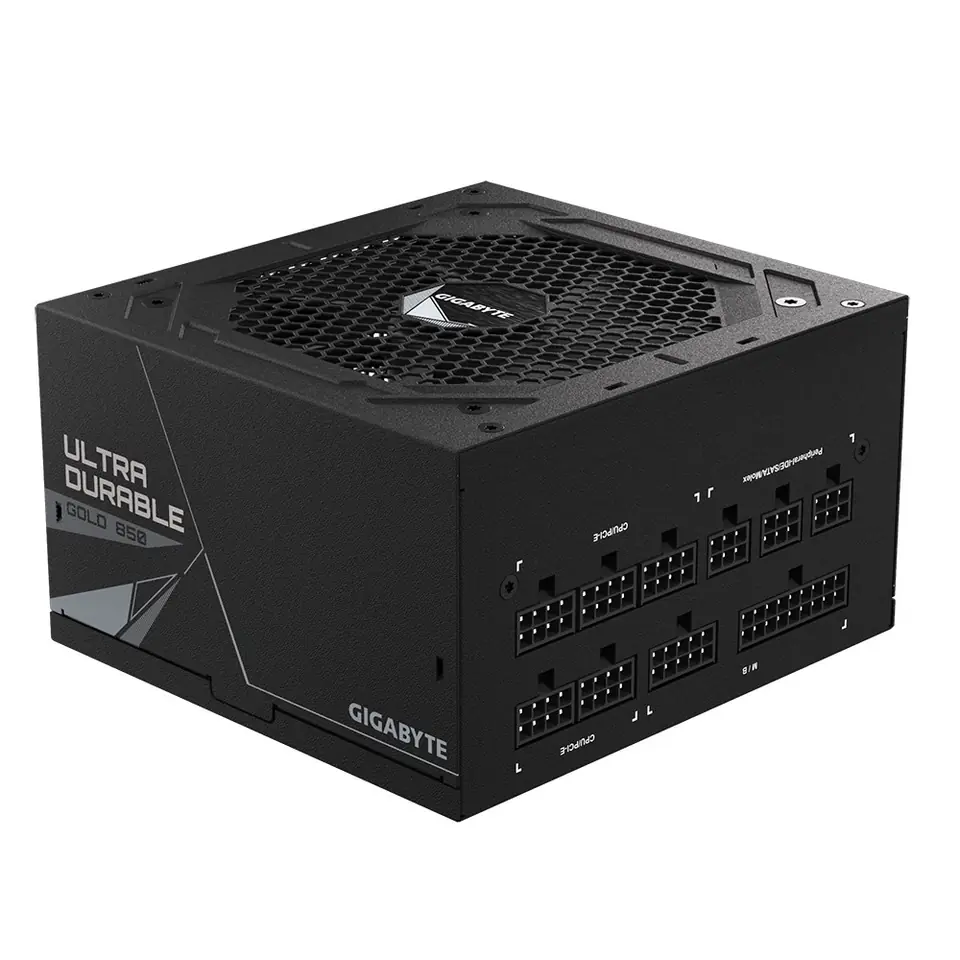

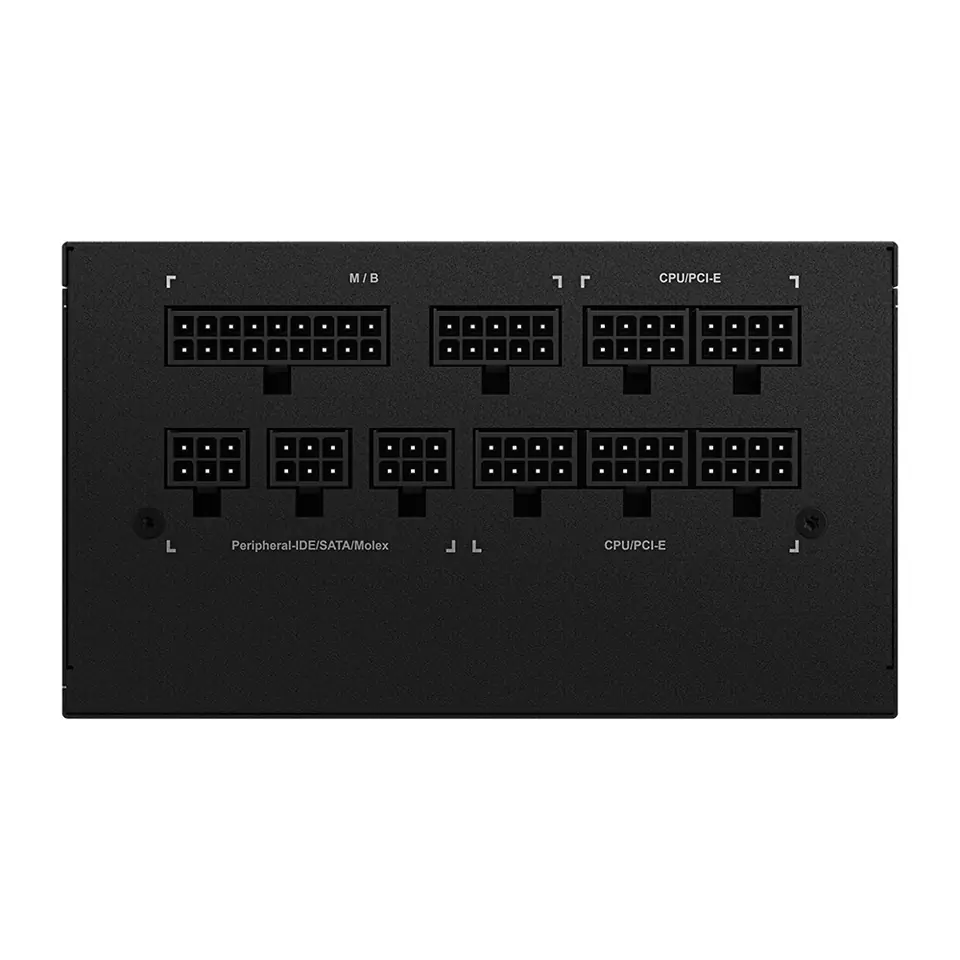

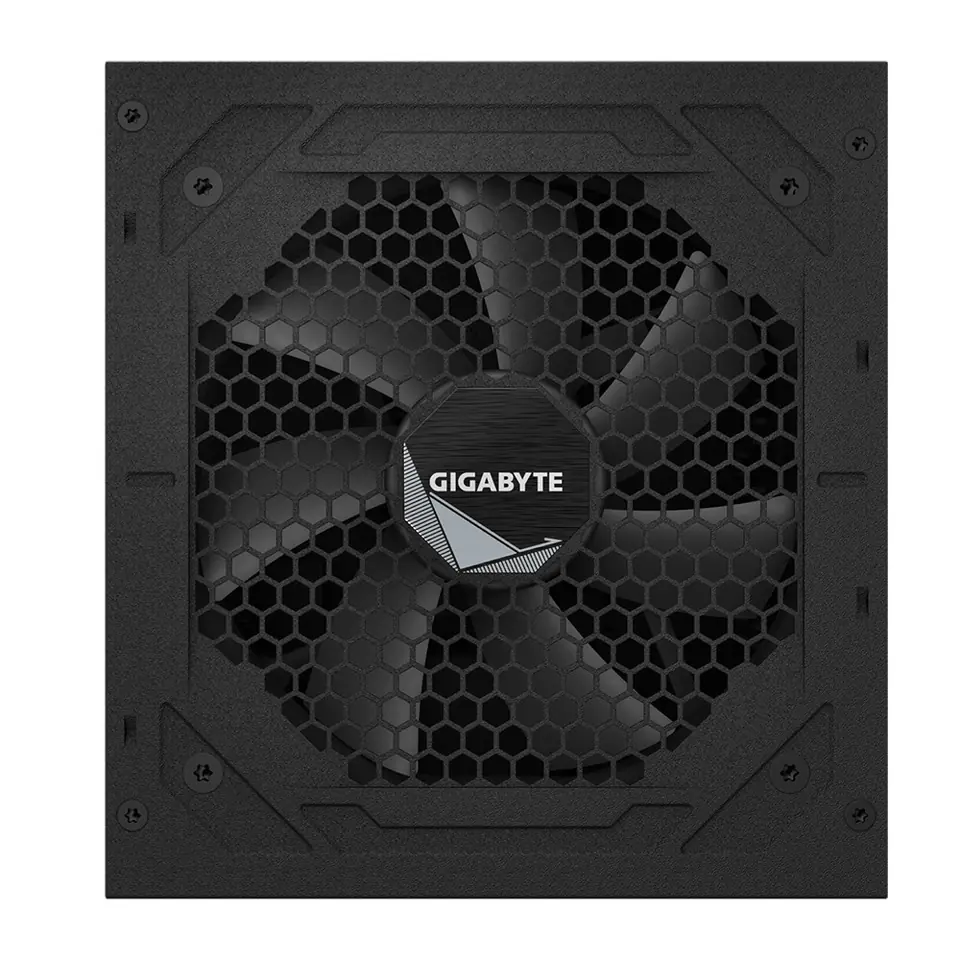

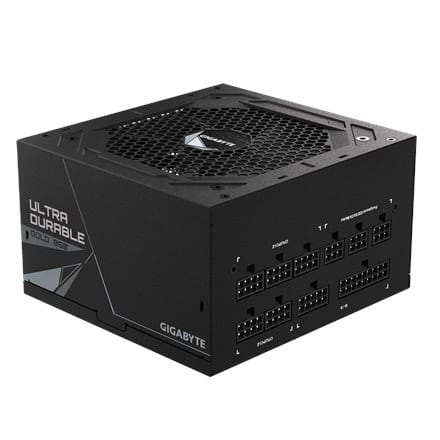

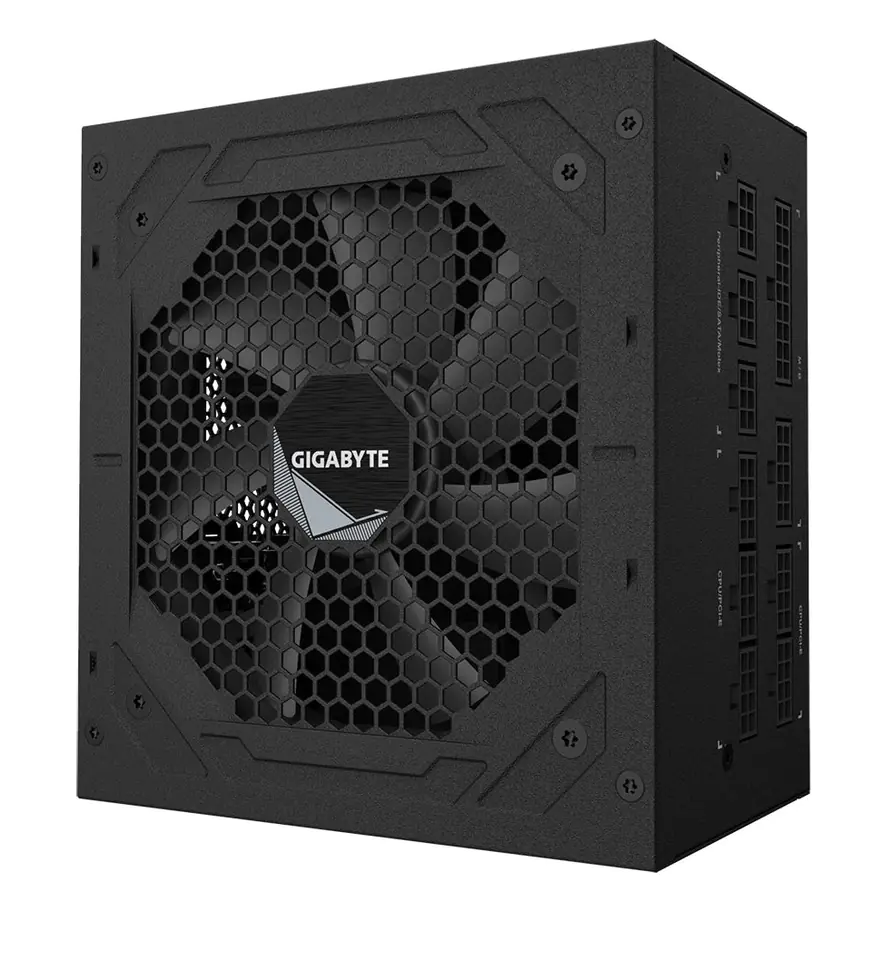

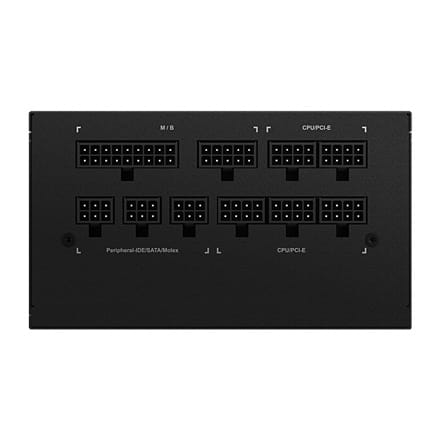

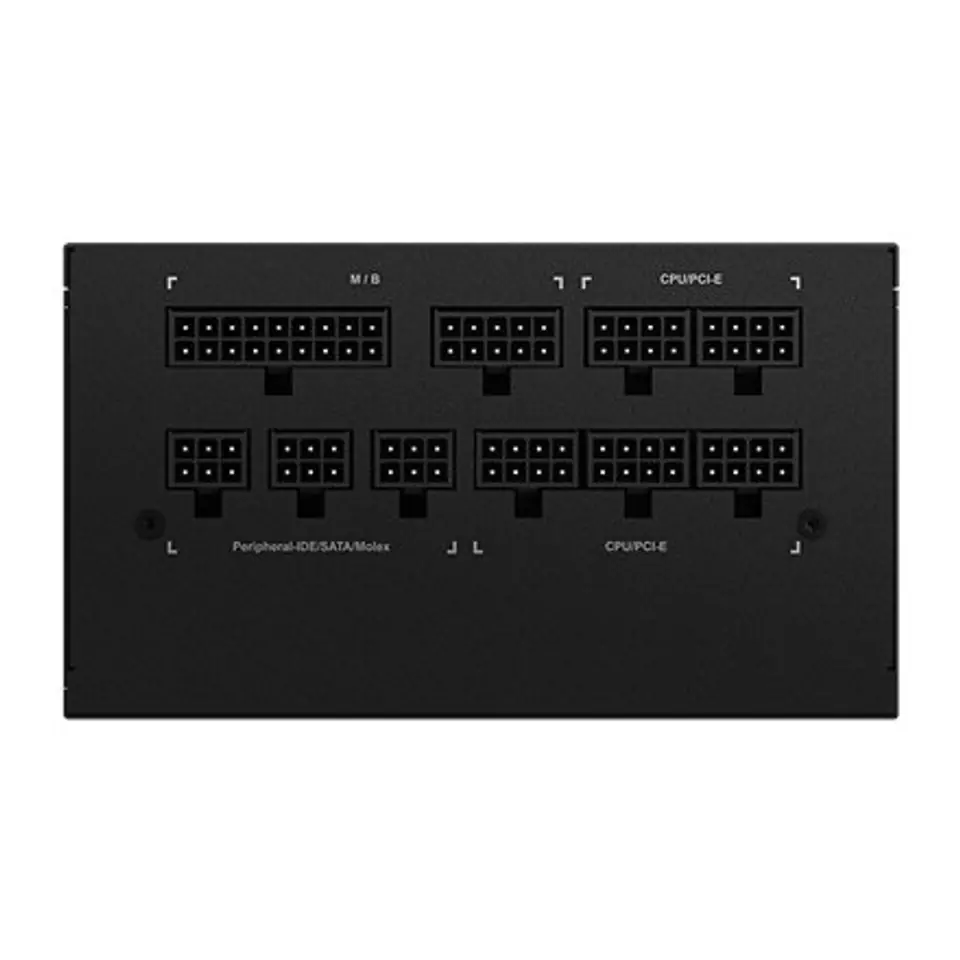

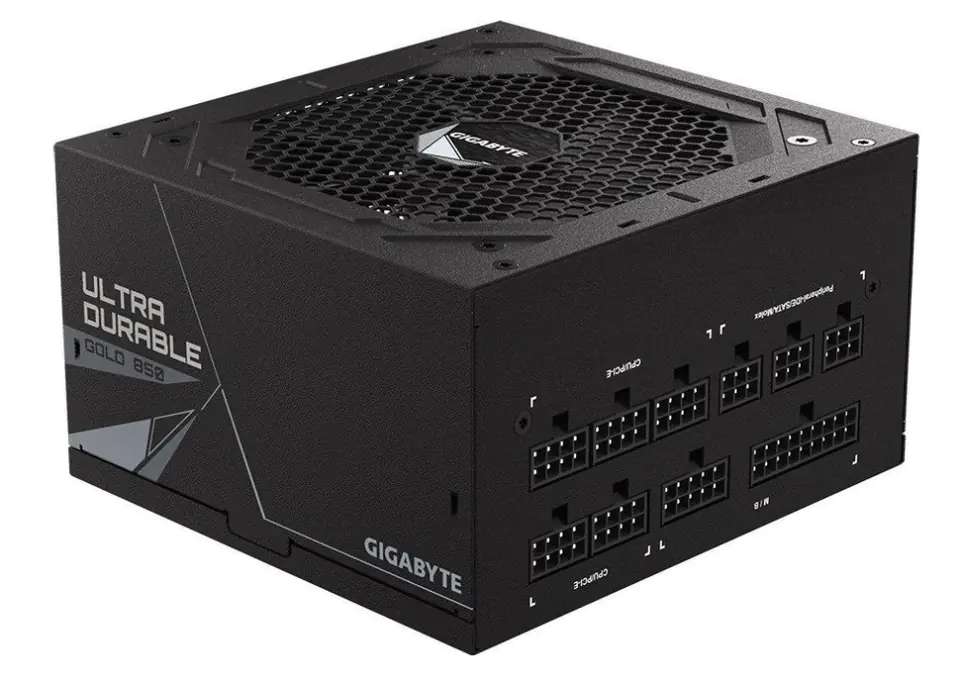

PC Power Supply GIGABYTE 850W GP-UD850GM
€134.10
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Gigabyte
- Product code:
- GP-UD850GM / 4719331552541
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.31 |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 849.6 W |
| Combined power (+3.3v): | 105 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Efficiency: | 90% |

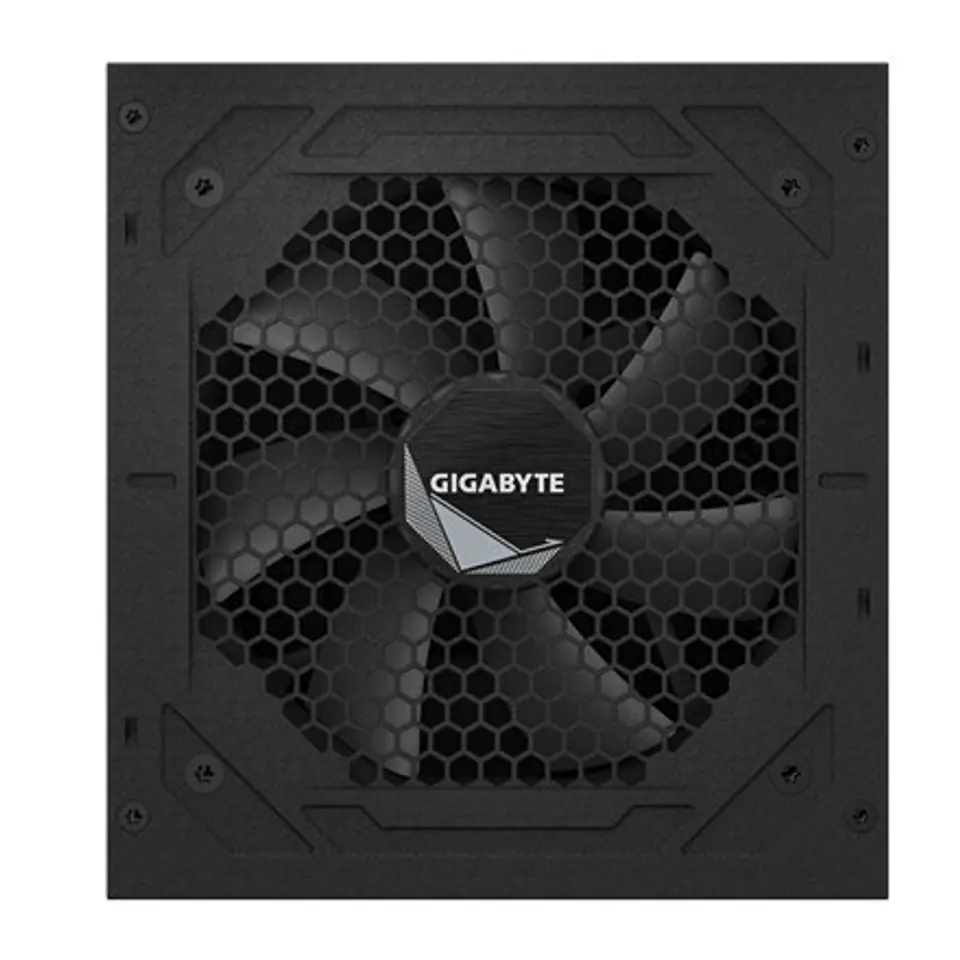

| Fan diameter: | 12 cm |
| Fan location: | Top |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 2 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 70.8 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Maximum input current (@ 220v): | 6 A |
| Maximum input current (@110v): | 12 A |
| Maximum input current (@220v): | 6 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 61 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 8 |
| On/off switch: | Yes |
| Package type: | Box |
| Pci express power connectors (6+2 pin): | 4 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 850 W |
| Width: | 150 mm |
