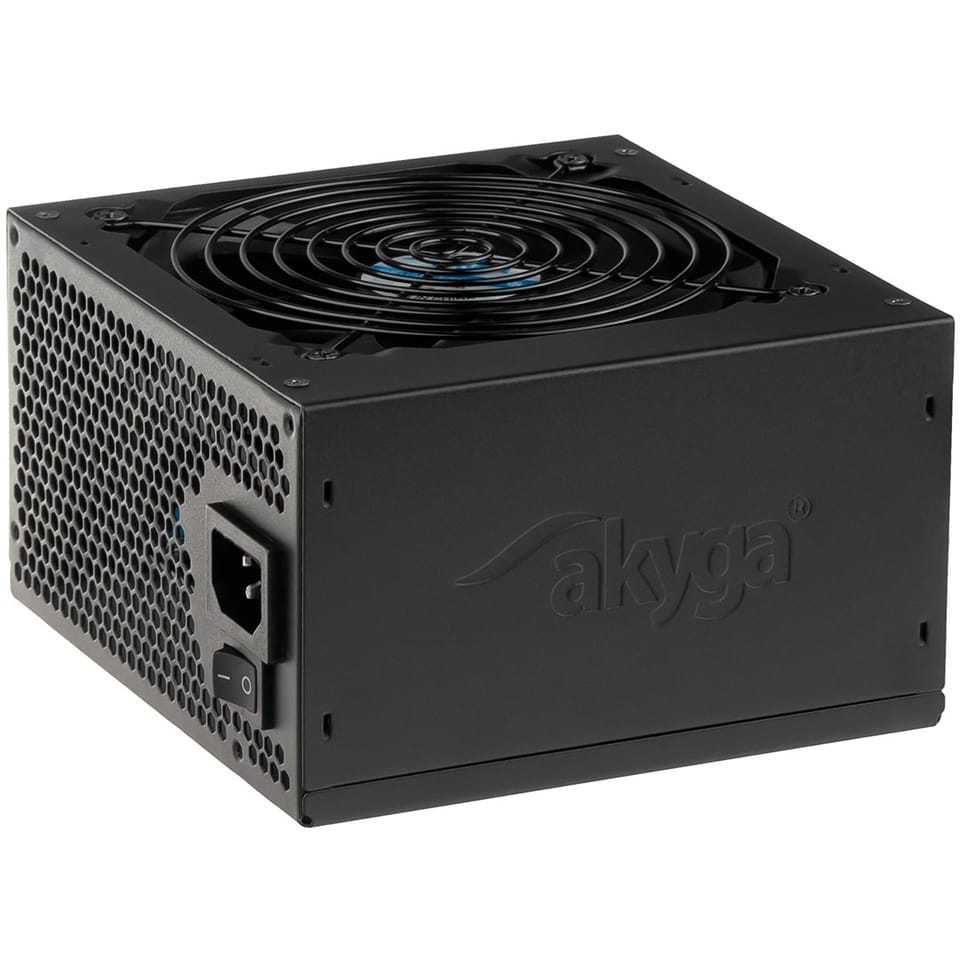

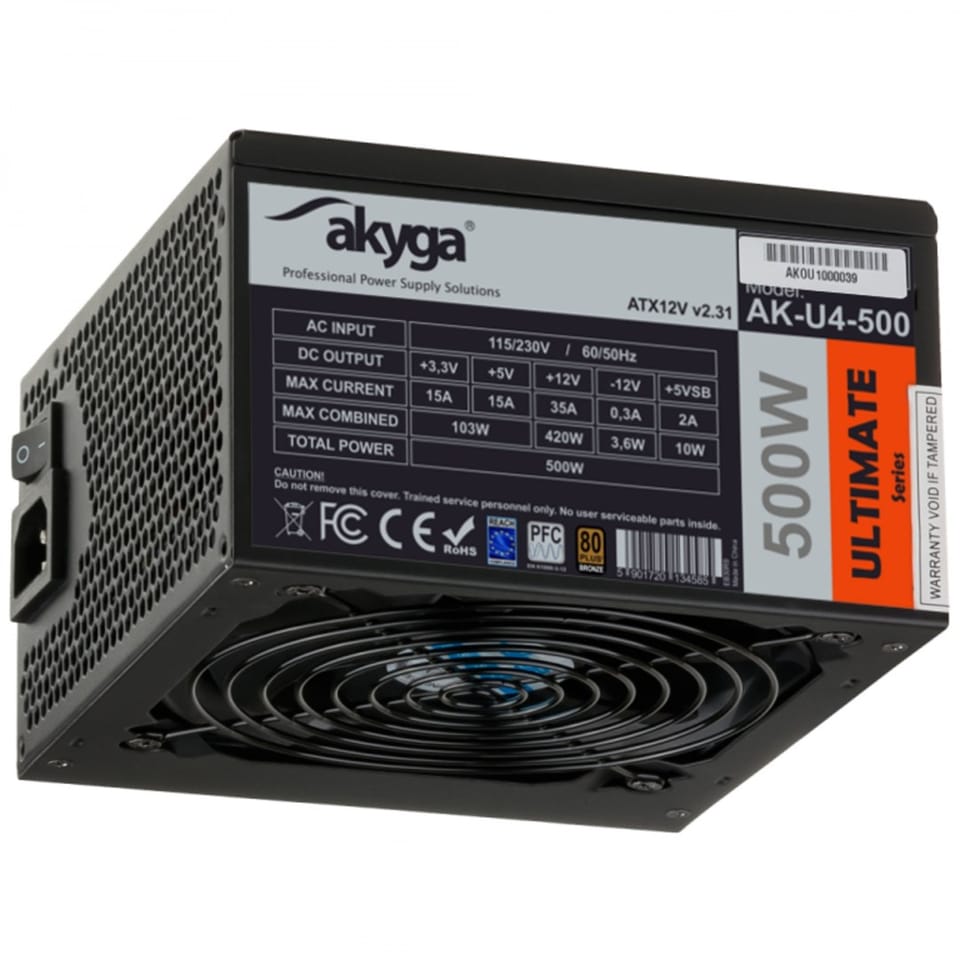

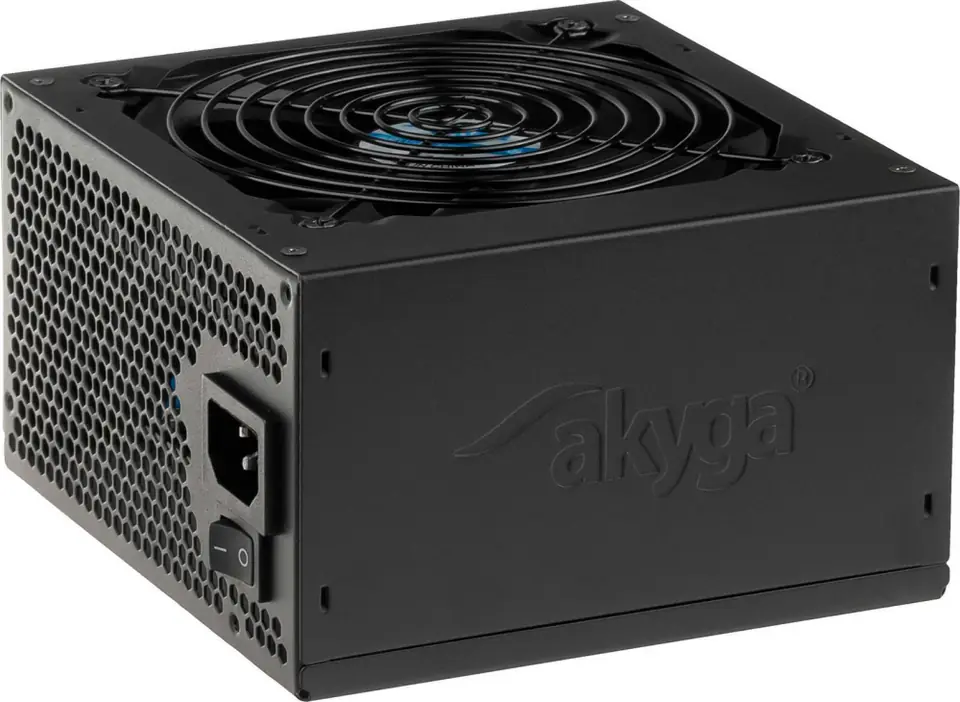

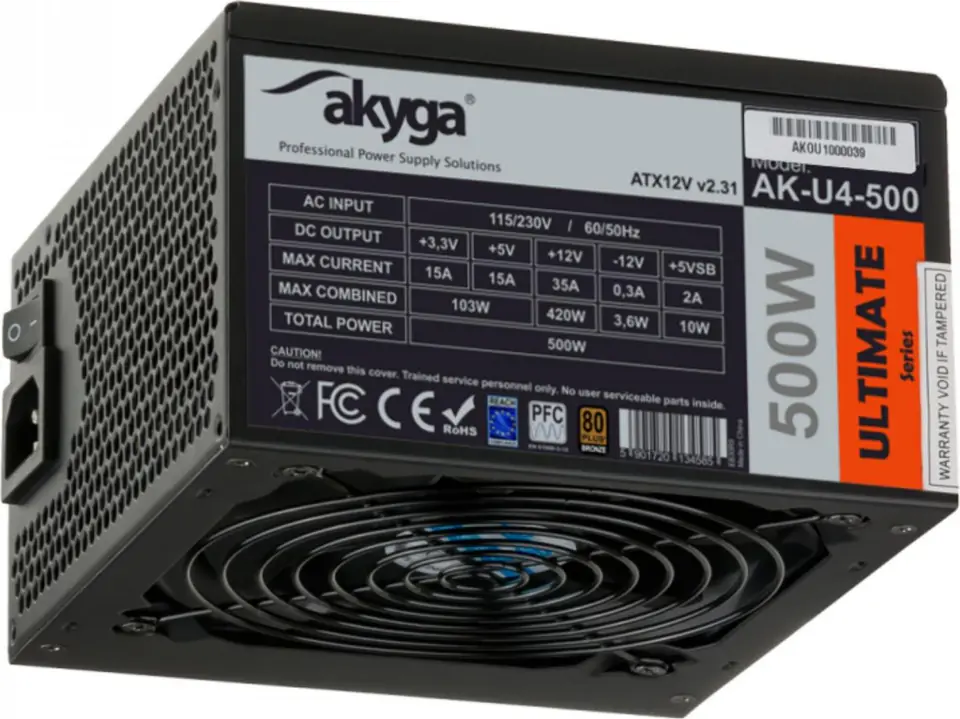

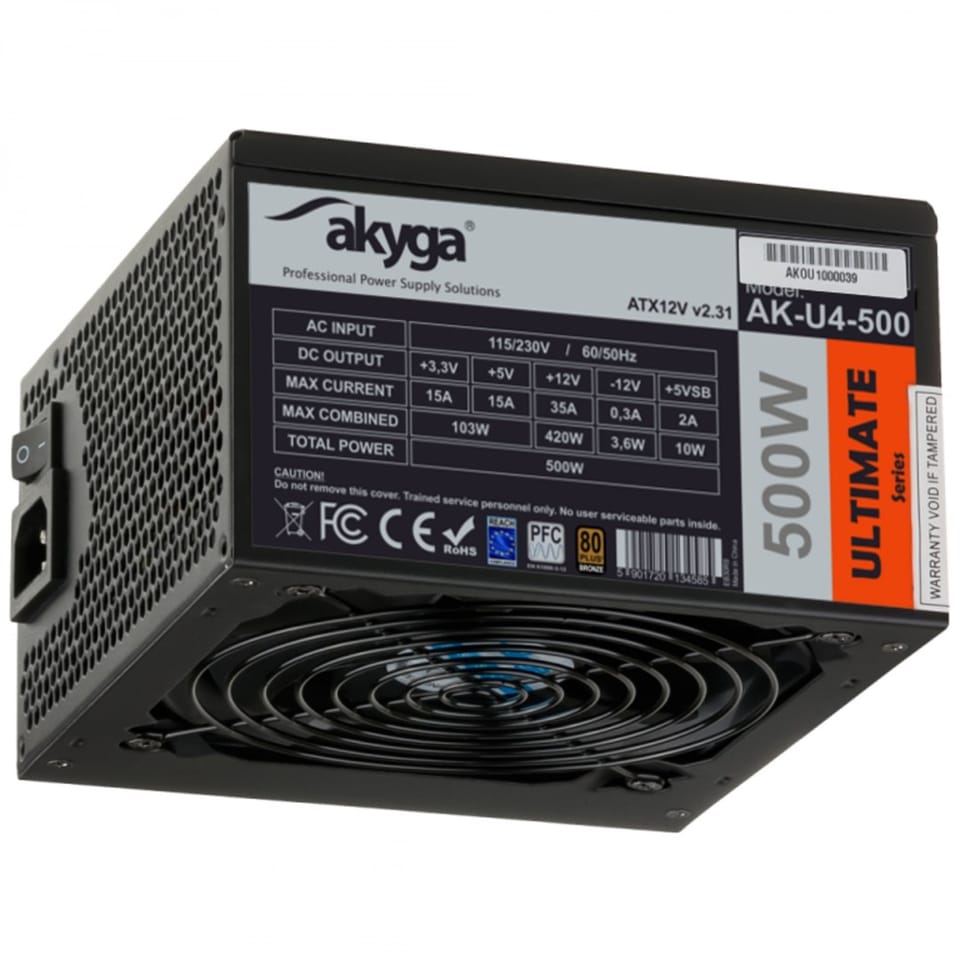

PC Power Supply AKYGA 500W AK-U4-500
€50.03
Shipping from warehouse: M7
Estimated shipping: Wed, Jan 22 - Mon, Jan 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- AK-U4-500 / 5901720134585
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input voltage: | 230 V |
| Applied backlight: | no |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.31 |
| Combined power (+12v): | 420 W |
| Combined power (+3.3v): | 103 W |
| Combined power (+5v): | 103 W |
| Compliant standards: | ATX |
| Depth: | 140 mm |
| Depth (mm): | 140 |
| Efficiency: | 80% |
| Eps power connector (8-pin): | Yes |
| Fan diameter: | 12 cm |
| Floppy plugins: | no |
| Height: | 85 mm |
| Height (mm): | 85 |
| Input current: | 5 A |
| Line: | Ultimate |
| Max output current (+5v): | 15 A |
| Mean time between failures (mtbf): | 100000 h |
| Modular wiring type: | no |
| Molex plugins: | 2 |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| Operating temperature (t-t): | 5 - 50 °C |
| Other connectors: | 1x CPU 4+4 (8) pin |
| Other parameters: | Certificate: 80 Plus Bronze |
| Package depth: | 222 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package weight: | 1.33 kg |
| Package width: | 155 mm |
| Pci express power connectors (6-pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Pci-e 6-pin slots: | 1 |
| Pci-e 8-pin plugs (6+2): | 1 |
| Pci-e 8-pin slots: | no |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Pfc: | Active |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Under voltage, Short circuit, Over voltage |
| Power supply (w): | 500 |
| Power supply efficiency (%): | 80 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata plugs: | 6 |
| Security measures applied: | OCP, OVP, OTP, OPP |
| Sustainability certificates: | RoHS |
| Total power: | 500 W |
| Type of cooling: | Fan 120 mm |
| Warranty: | 2 years |
| Weight: | 1.26 kg |
| Weight (g): | 1470 |
| Width: | 150 mm |
| Width (mm): | 150 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
