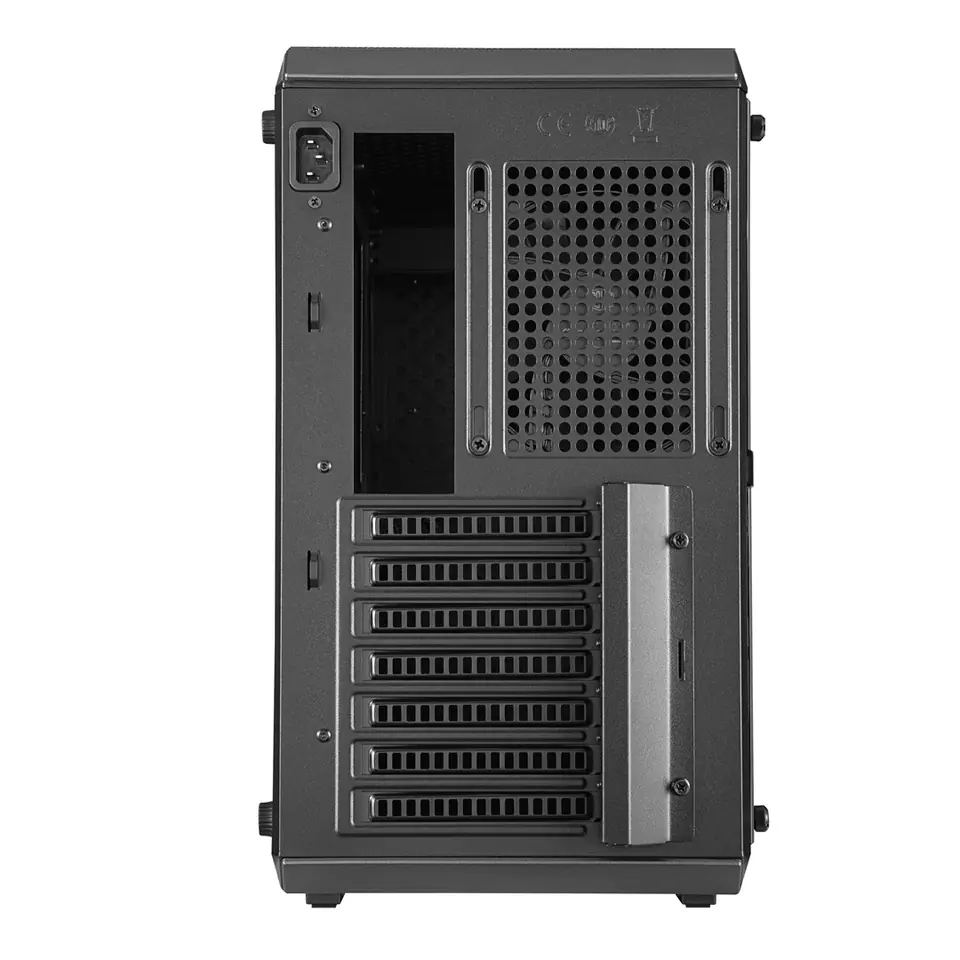

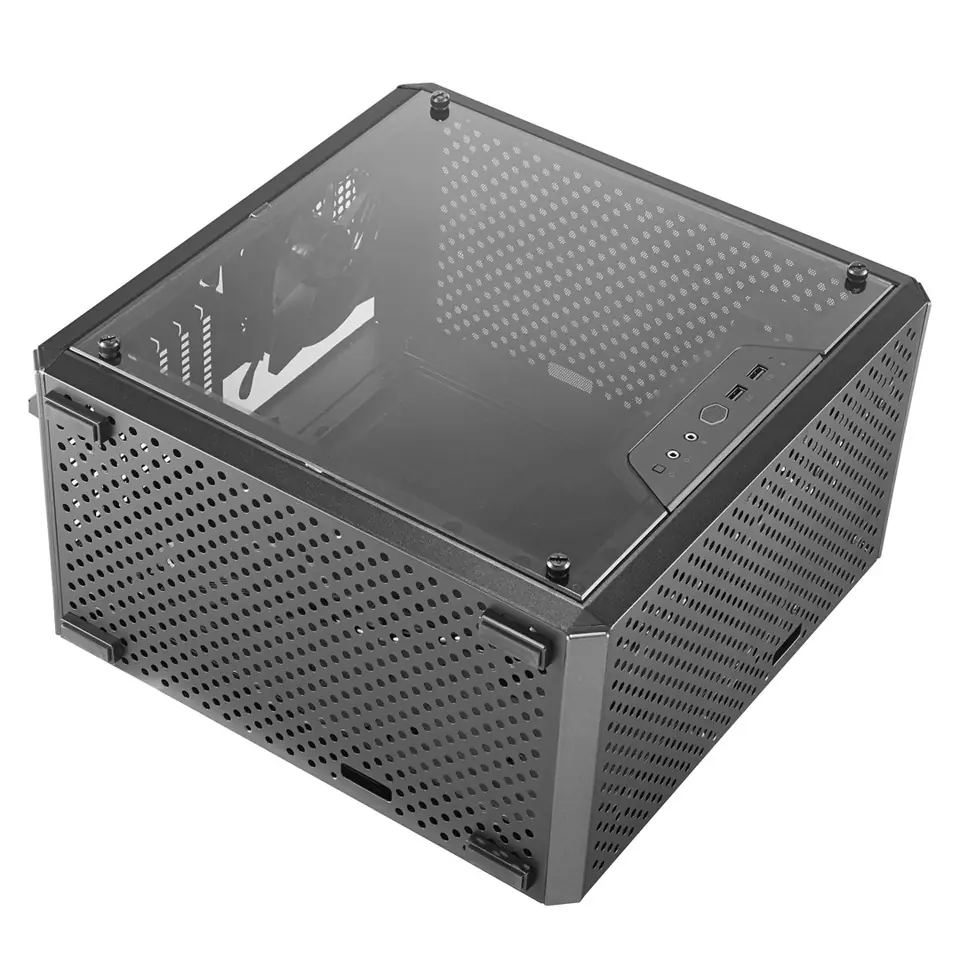

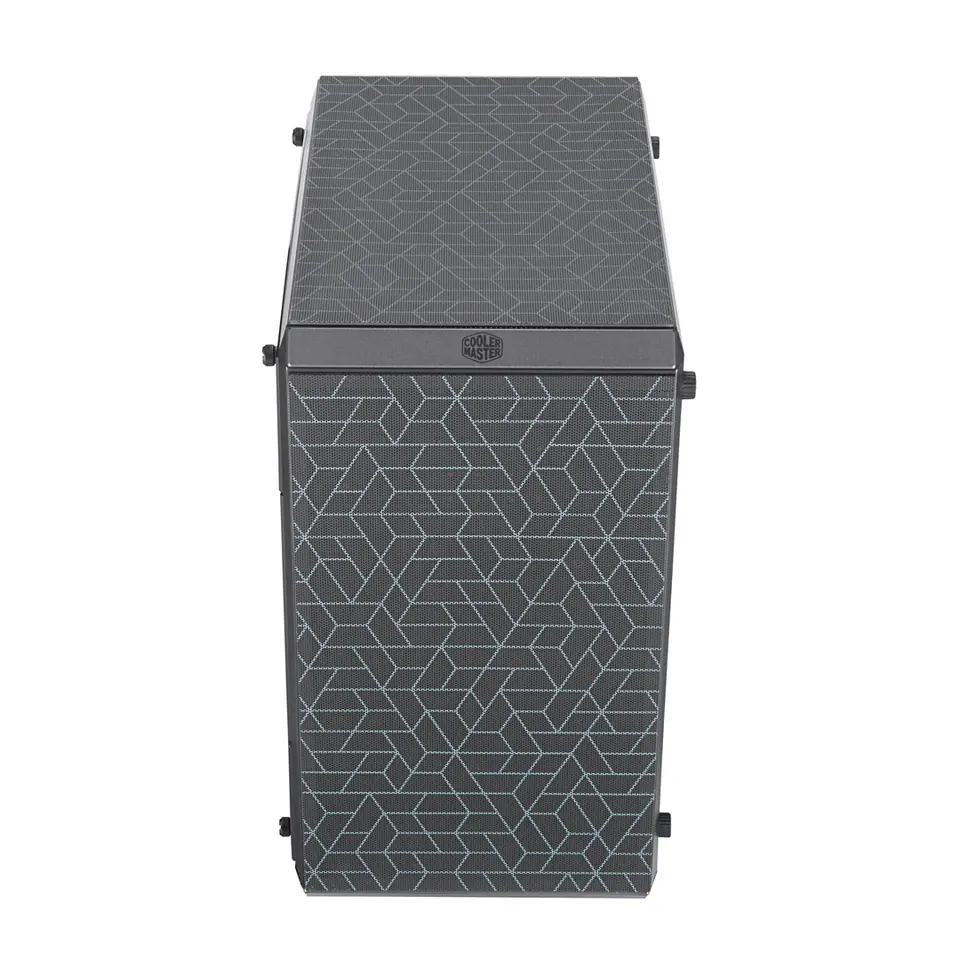

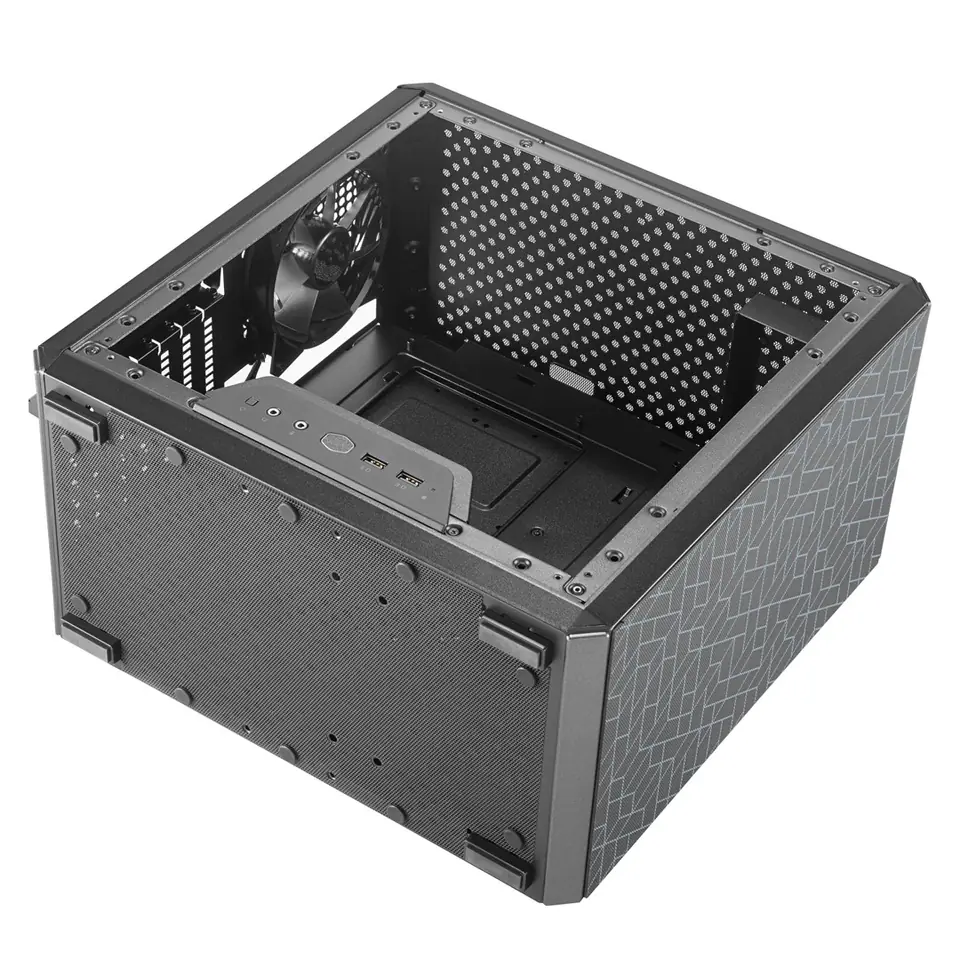

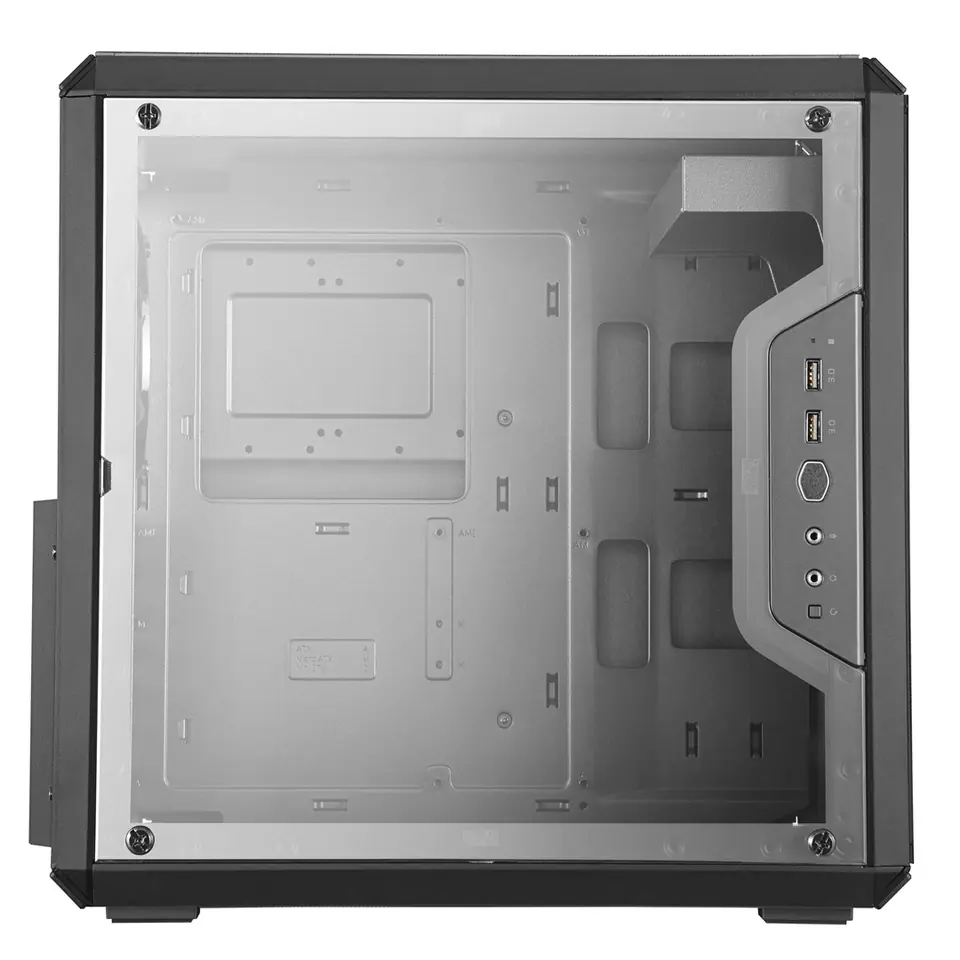

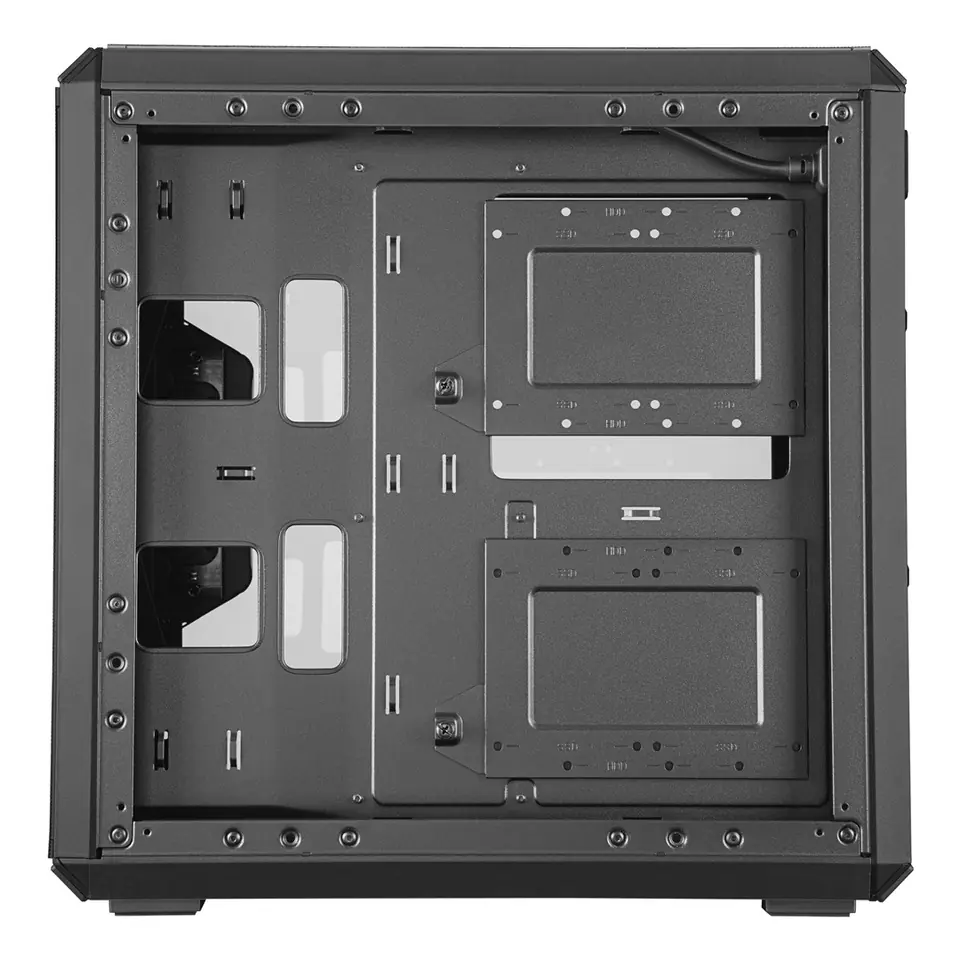

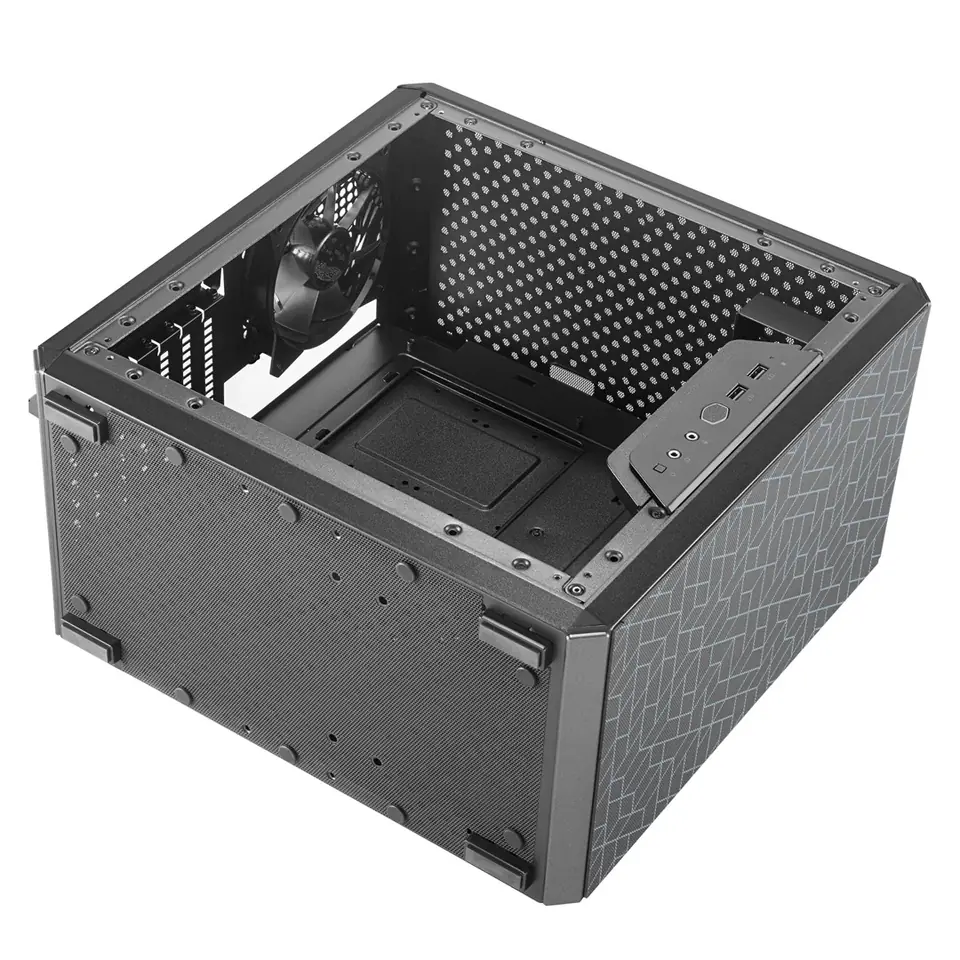

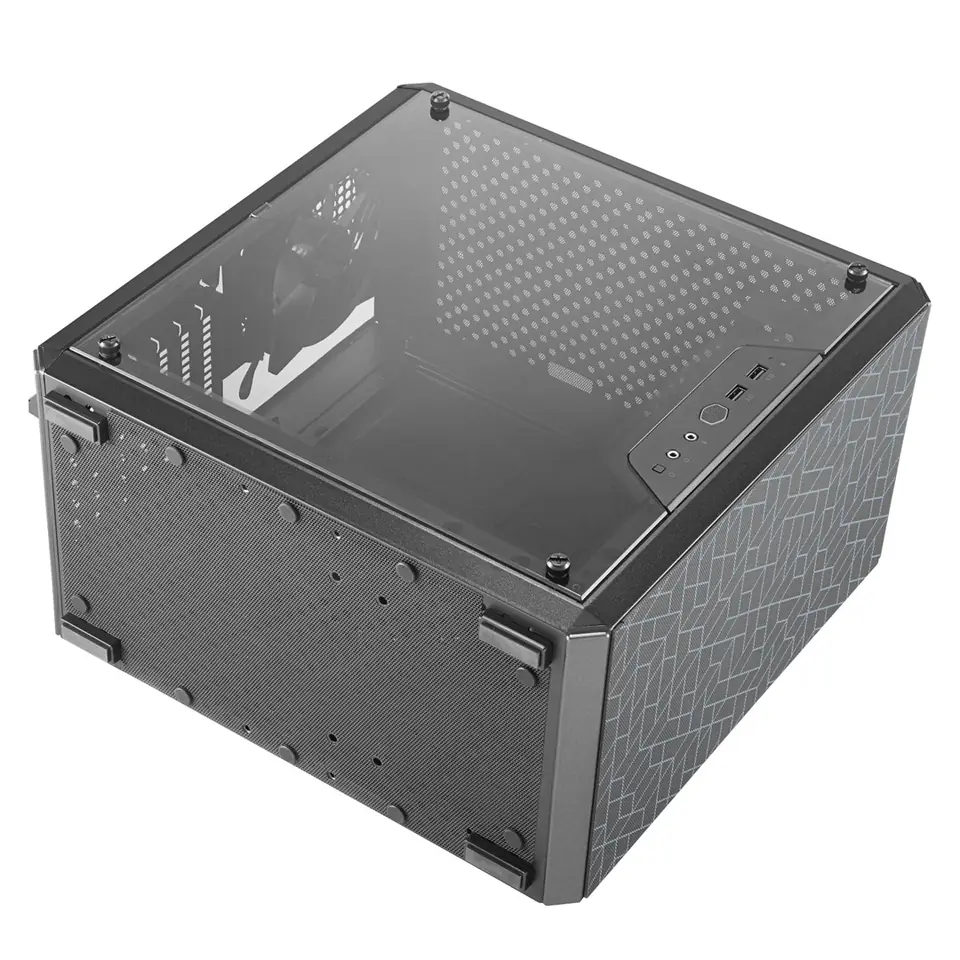

ORIENTATION & A MOVABLE I/O PANELThe modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.VERSATILE PSU BRACKETThe PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.FULLY PERFORATED CHASSISThe top, front, rear, and bottom panels are fully perforated to support various fan configurations.MAGNETIC DUST FILTERSThe magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.COOLING SUPPORTThe bottom supports up to two 120mm fans.The rear supports a 120mm fan or 120mm radiator.The top supports up to two 120mm/140mm fans or a 120/240mm radiator.STORAGE SUPPORTEach storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two caddies included.Possible Configurations:4x 2.5" drives | 2x 3.5" drives | 2x 2.5" drives + 1x 3.5" driveMOTHERBOARD SUPPORTThe internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.CLEAN ROUTING SPACEBehind the motherboard tray, 27~30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.

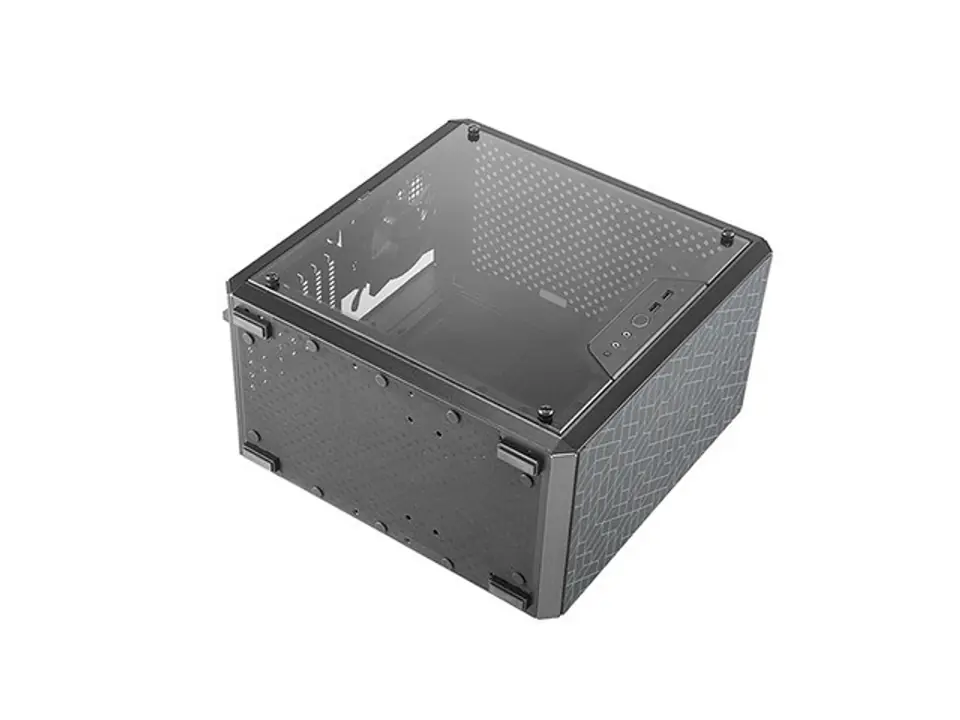

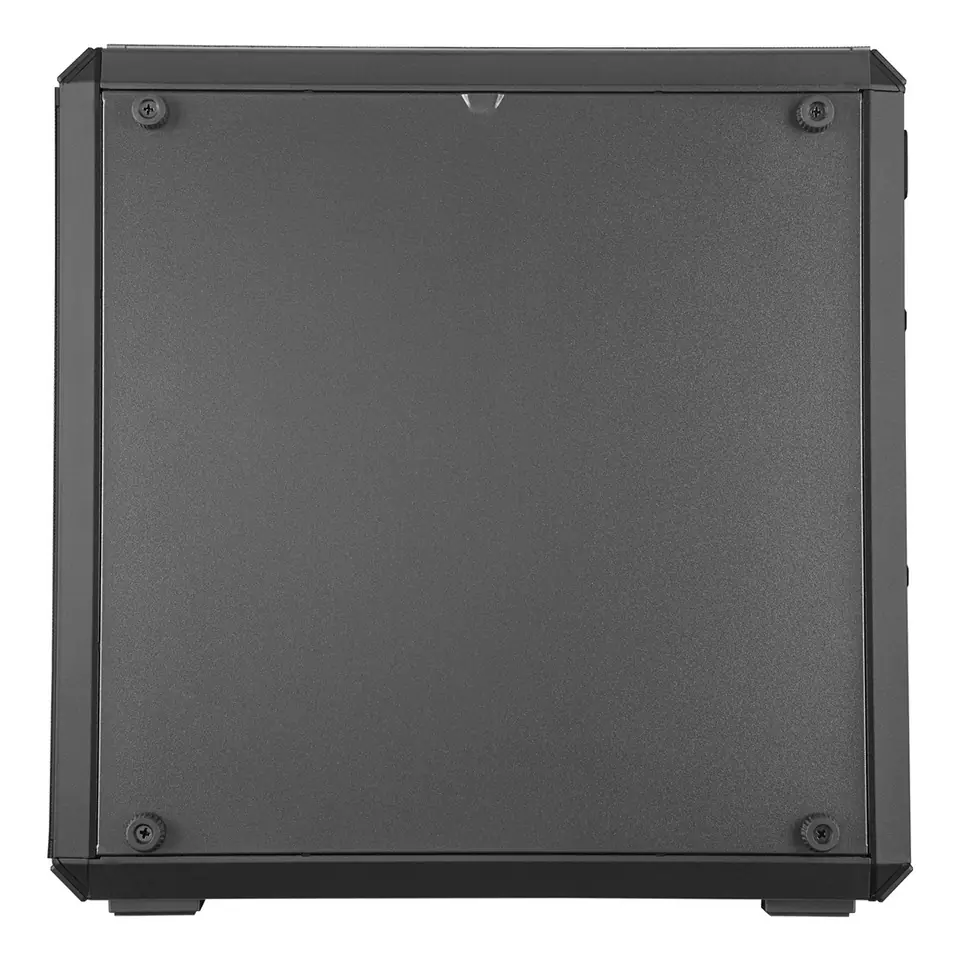

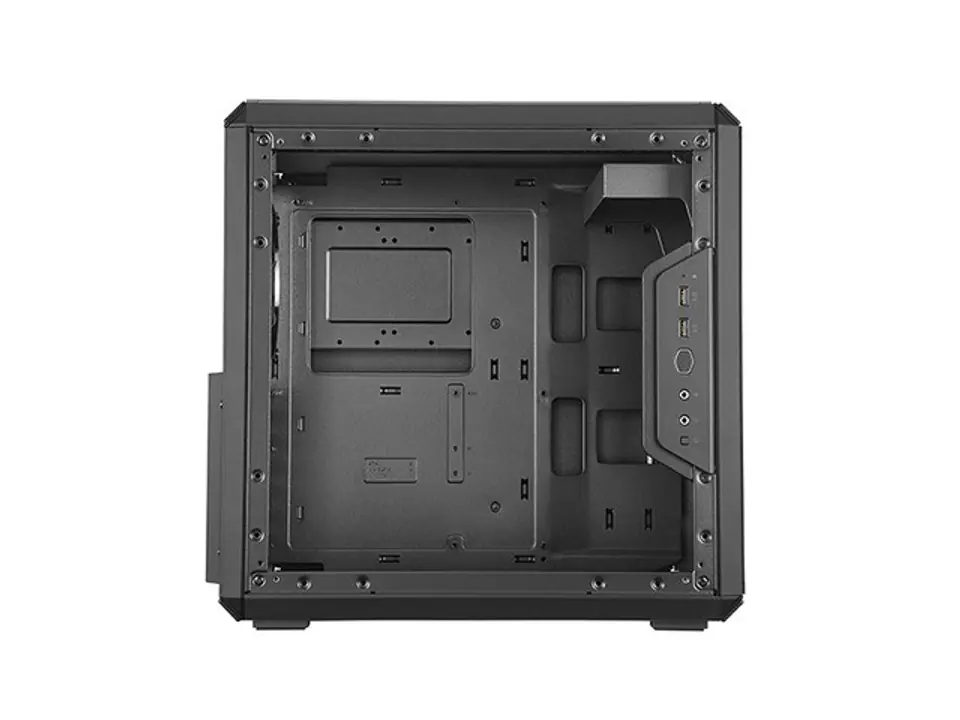

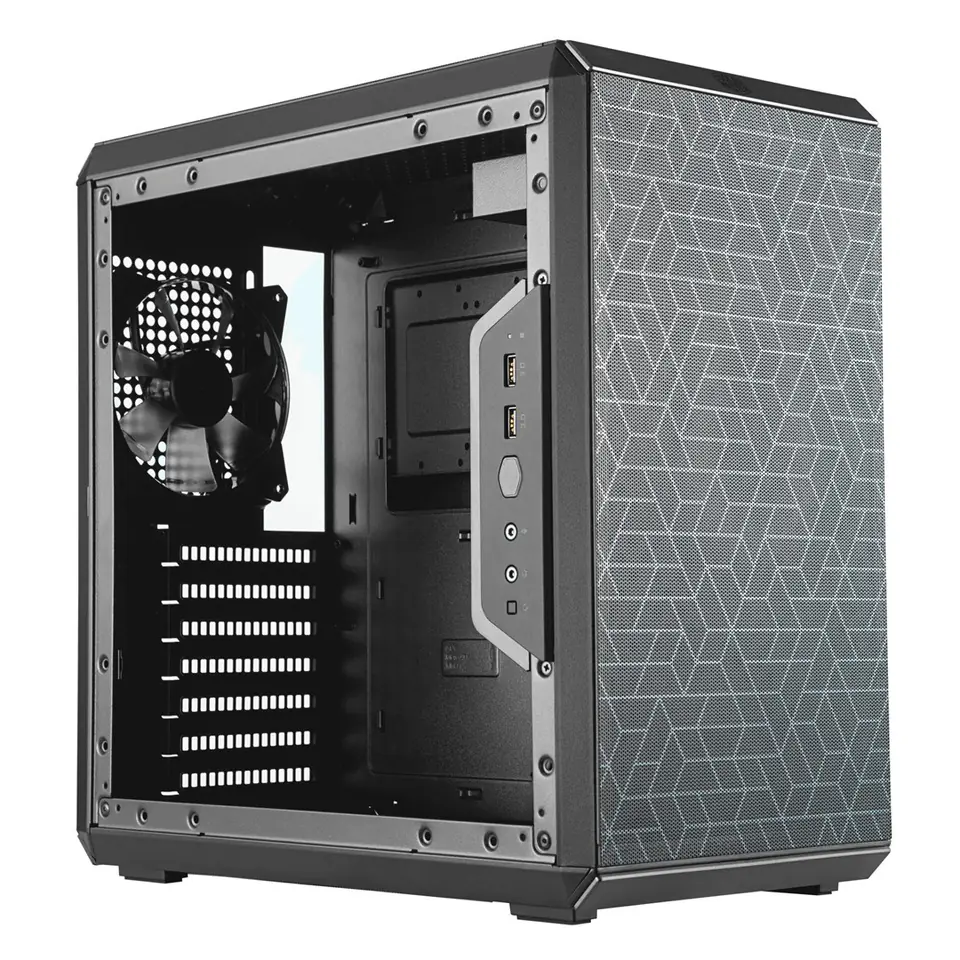

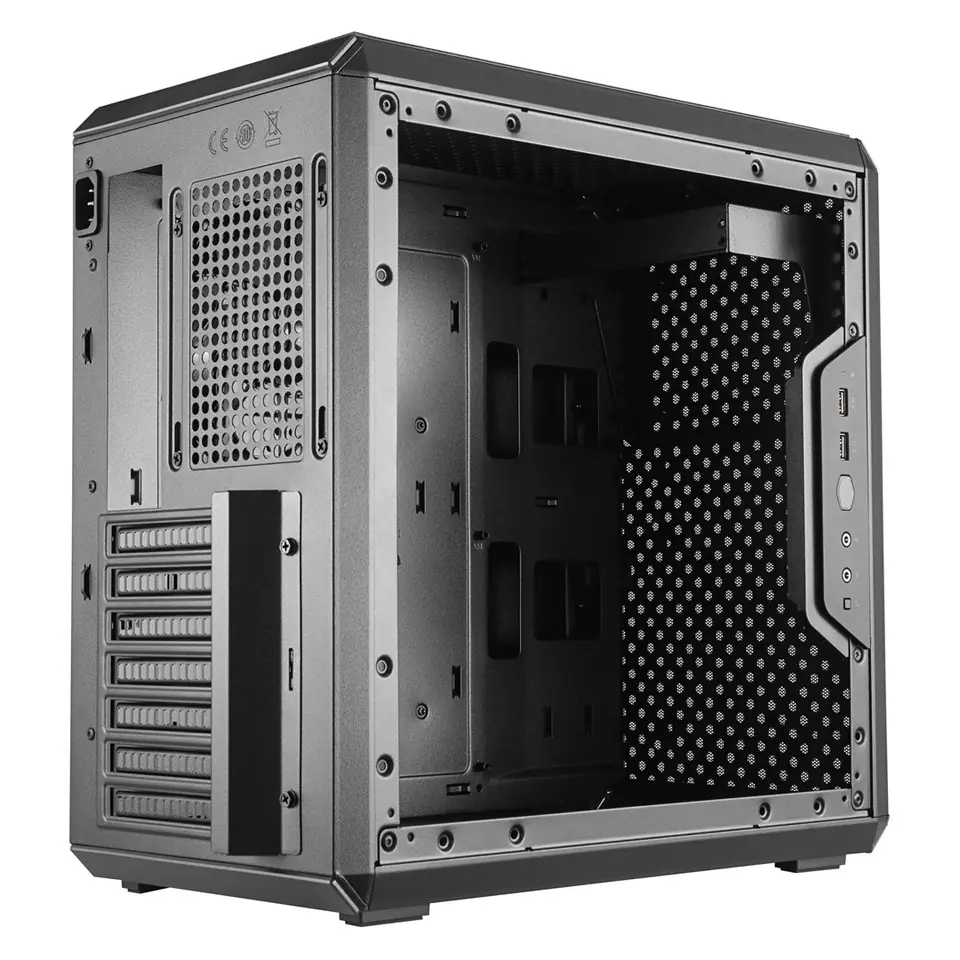

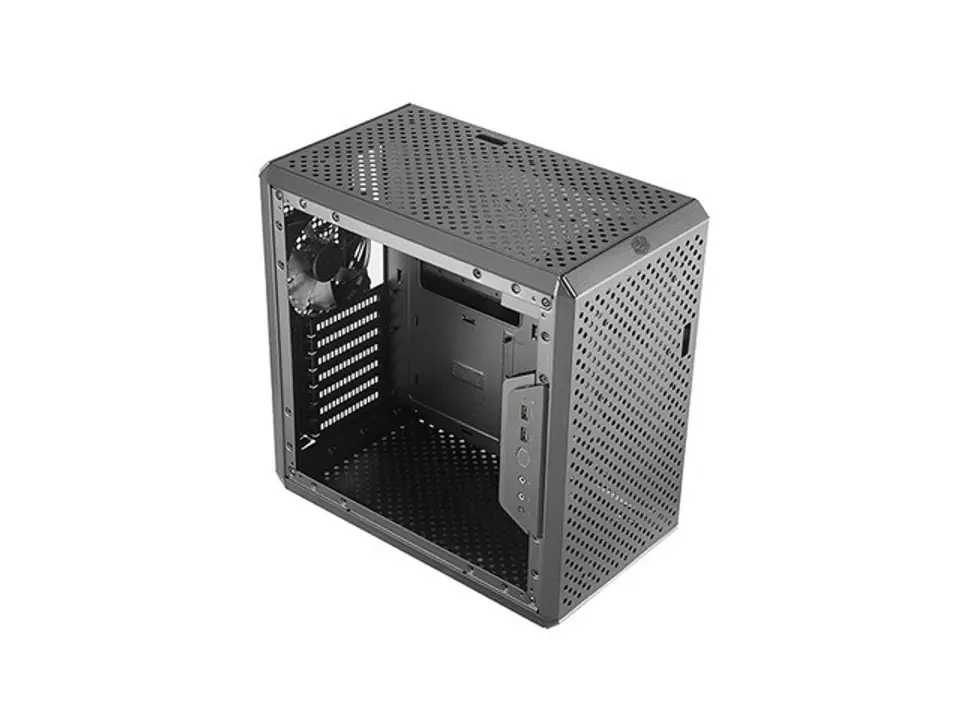

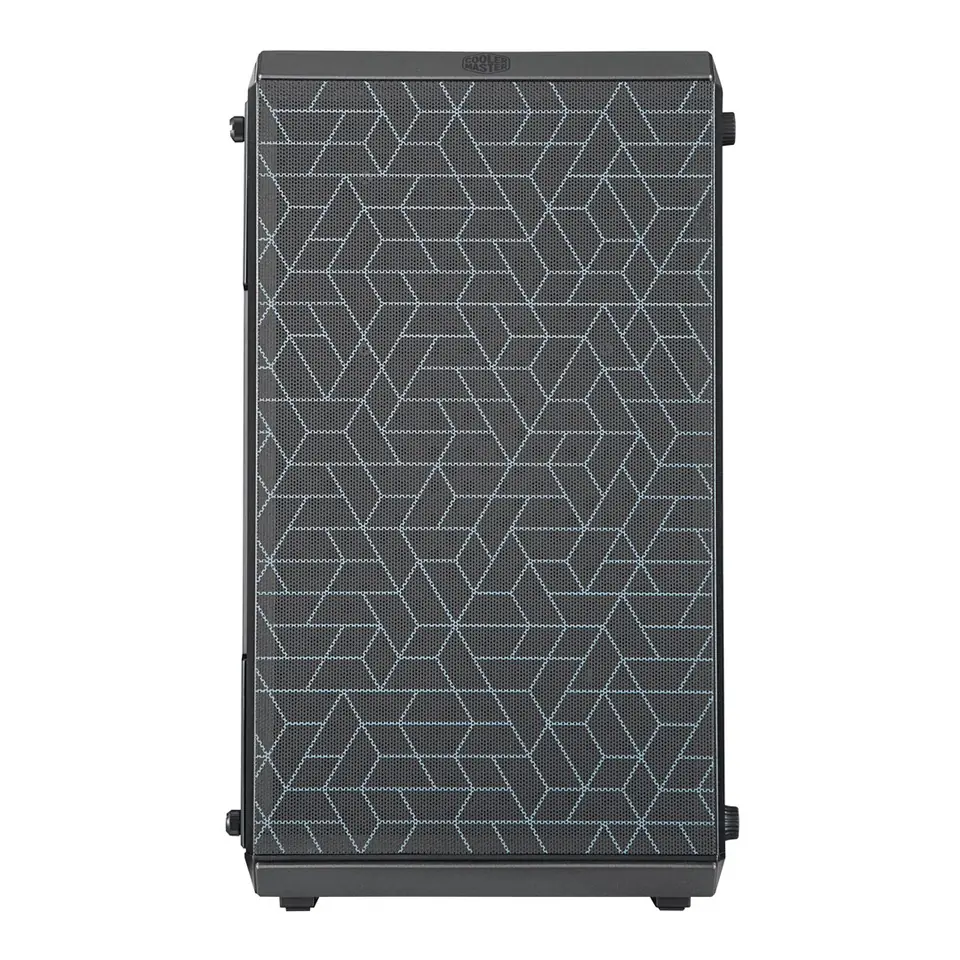

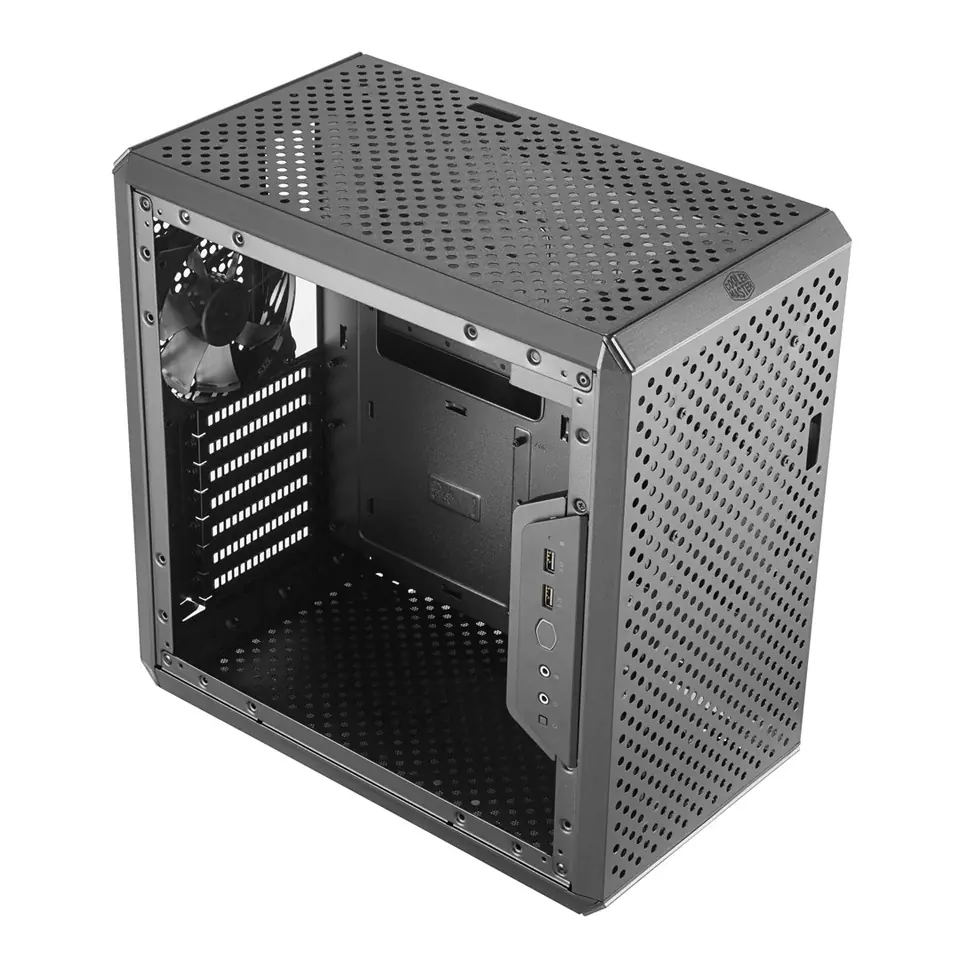

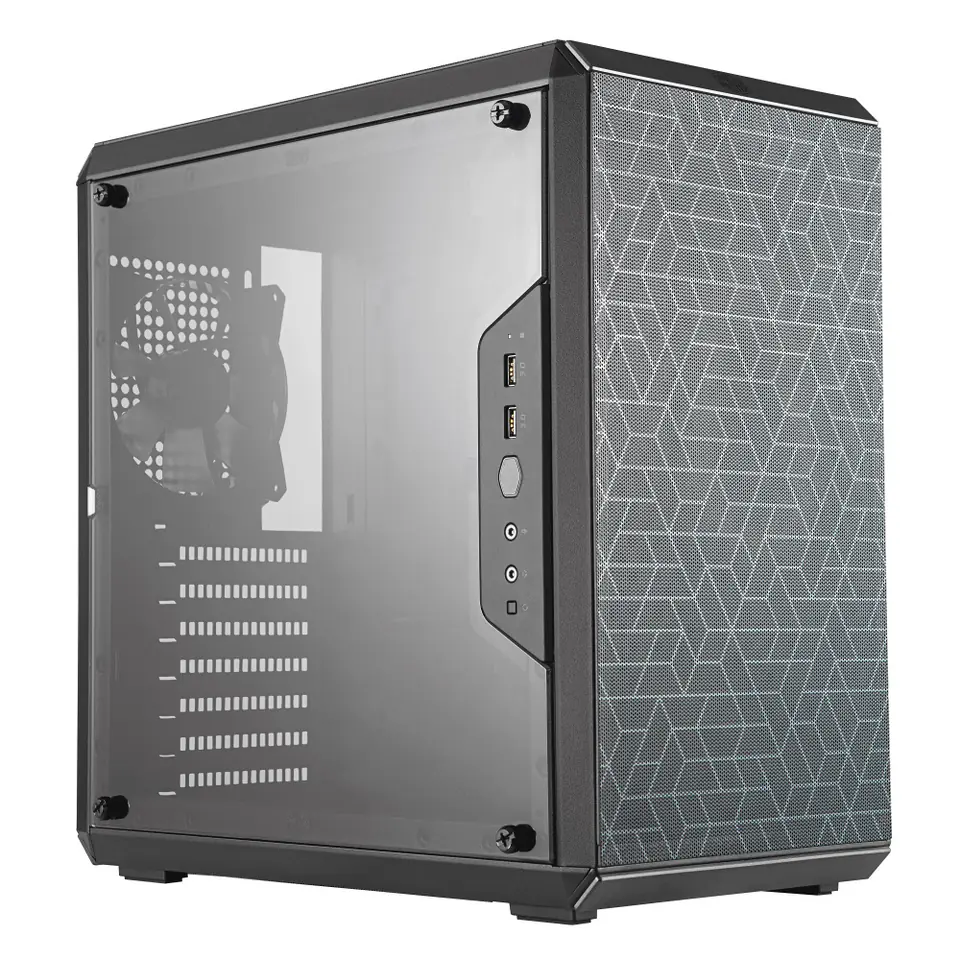

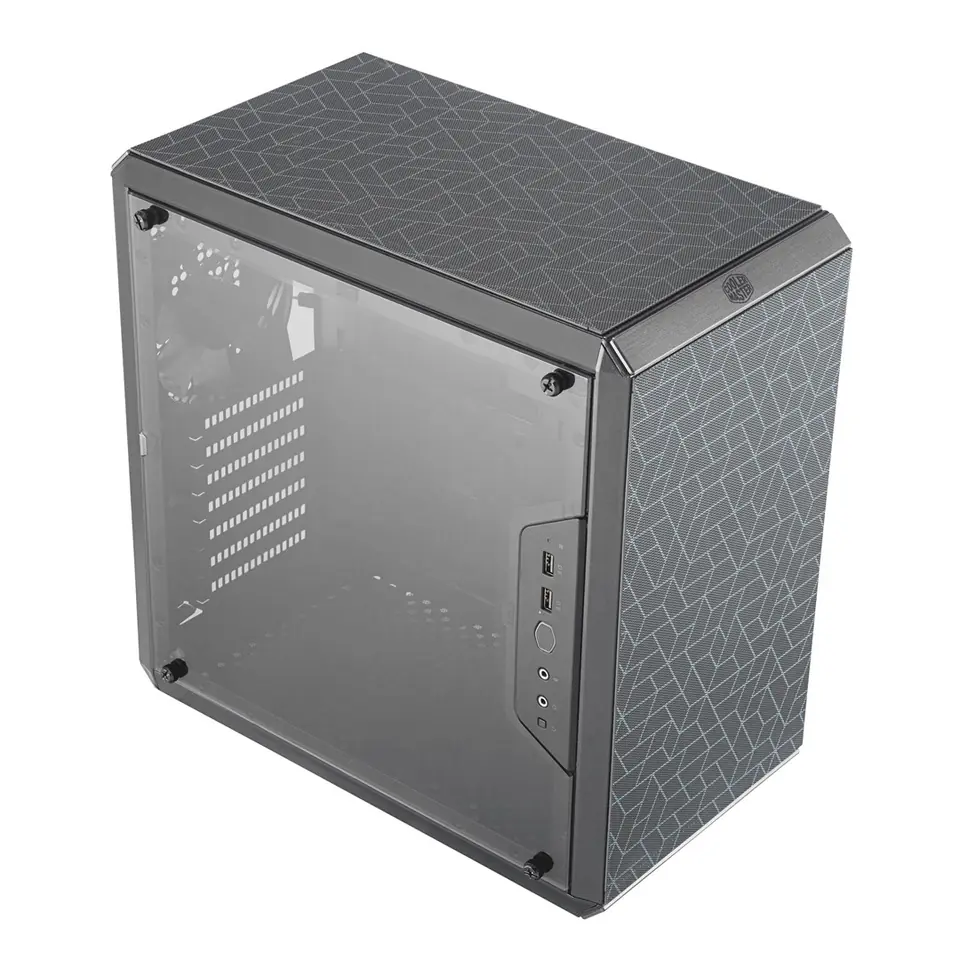

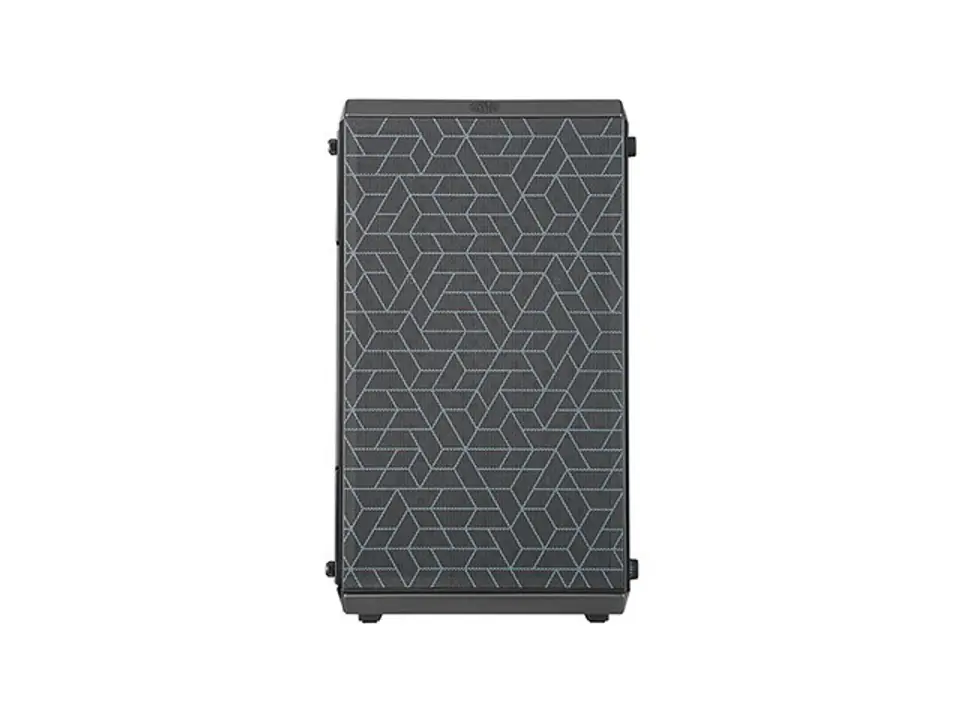

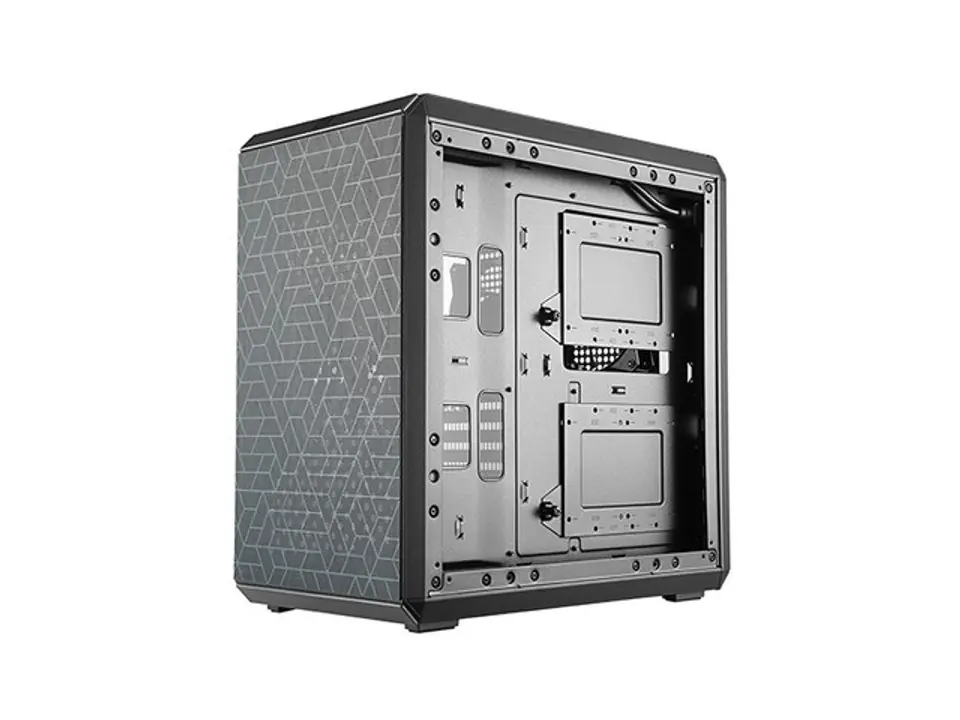

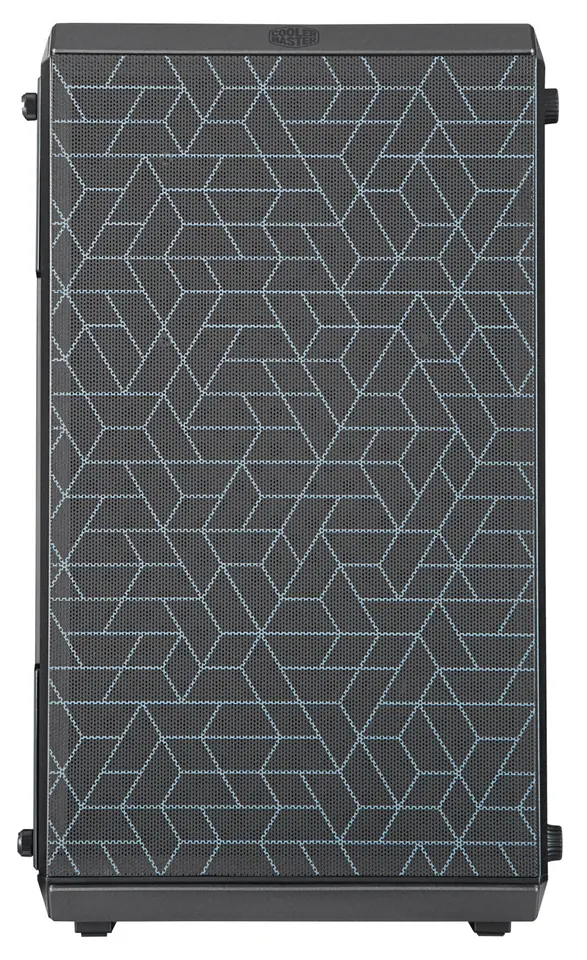

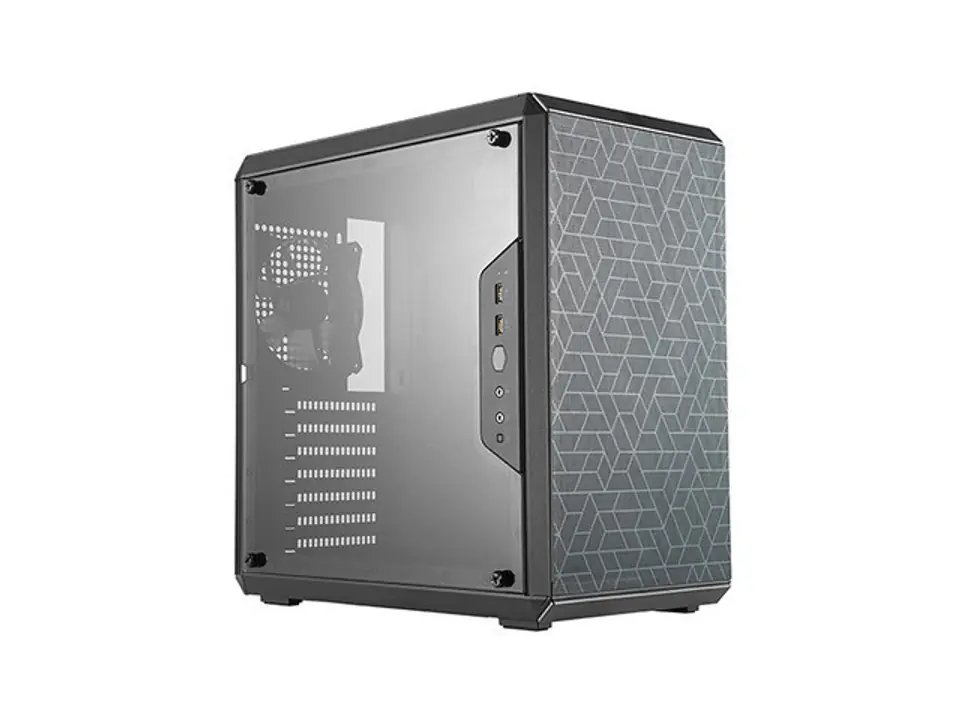

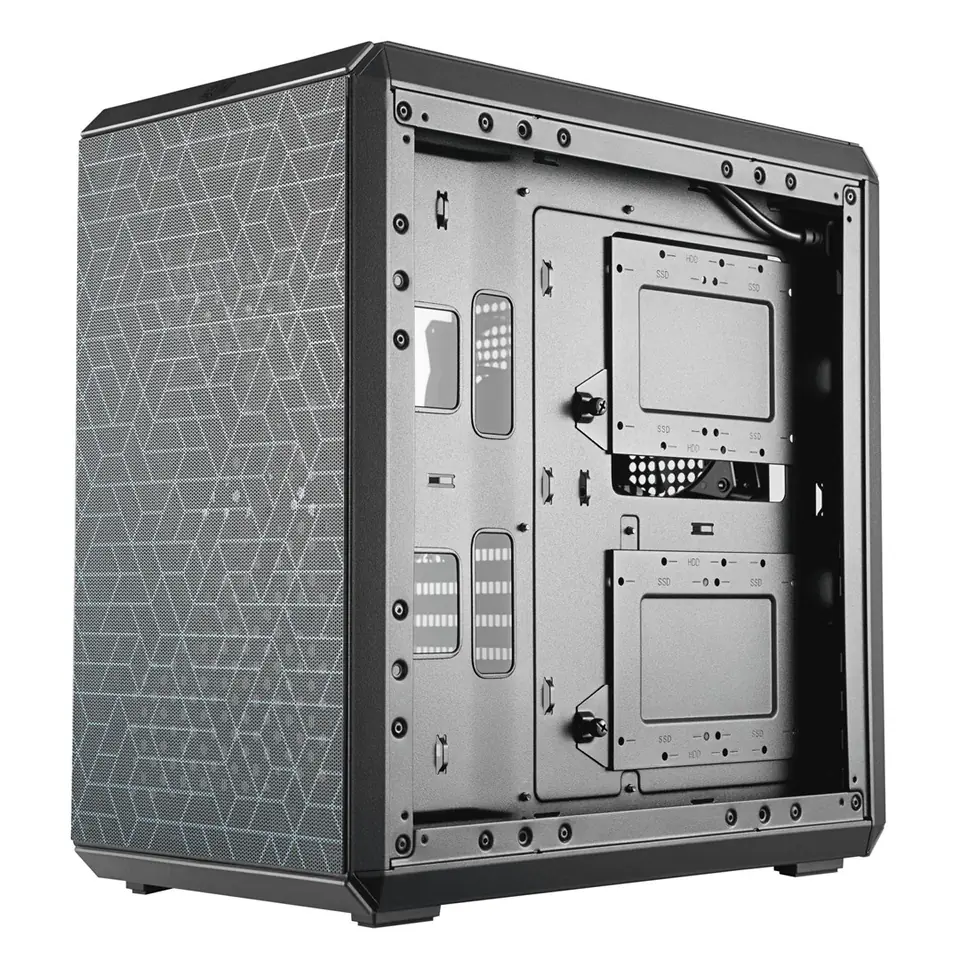

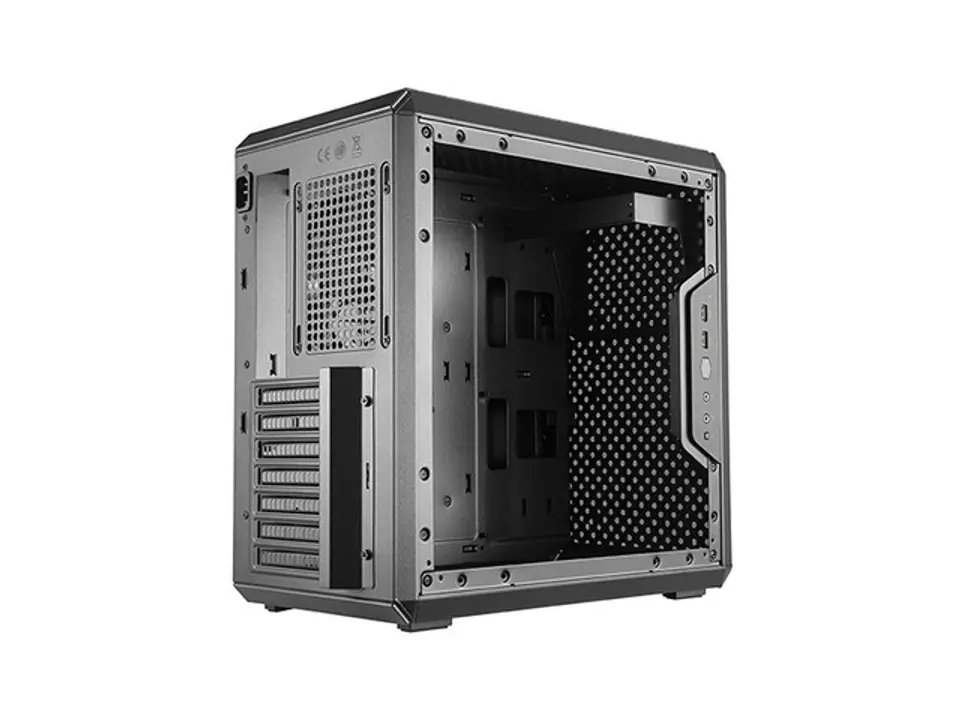

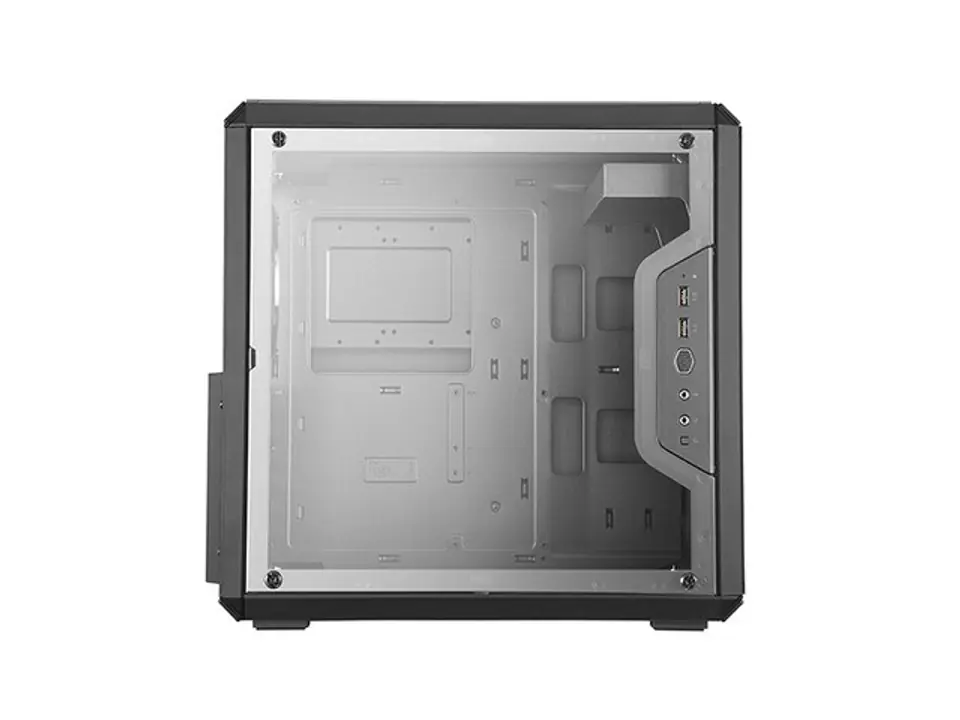

PC ase MasterBox Q500L with window
€80.87
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Cooler Master
- Product code:
- MCB-Q500L-KANN-S00 / 4719512080580
Share this product:
Specification
| Anti-dust filter: | Yes |
|---|---|
| Audio input: | Yes |
| Audio output: | Yes |
| Bottom fans diameters supported: | 120 mm |
| Cable management: | Yes |
| Depth: | 386 mm |
| Form factor: | Midi Tower |
| Front radiator sizes supported: | 120, 240 |
| Harmonized system (hs) code: | 84733080 |
| Hdd/ssd combo cage: | Yes |
| Height: | 381 mm |
| Liquid cooling capability: | Yes |
| Material: | Acrylic, Plastic, Steel |
| Maximum cpu cooler height: | 16 cm |
| Maximum graphics card length: | 36 cm |
| Maximum psu length: | 18 cm |
| Number of 2.5" bays: | 2 |
| Number of 3.5" bays: | 1 |
| Number of bottom fans supported (max): | 2 |
| Number of expansion slots: | 7 |
| Number of rear fans supported (max): | 1 |
| Number of top fans supported (max): | 2 |
| On/off button: | Yes |
| Package depth: | 435 mm |
| Package height: | 461 mm |
| Package weight: | 4.83 kg |
| Package width: | 276 mm |
| Power supply included: | No |
| Power supply location: | Top |
| Product colour: | Black |
| Rear fans diameters supported: | 120 mm |
| Rear fans installed: | 1x 120 mm |
| Rear radiator sizes supported: | 120 mm |
| Reset button: | Yes |
| Side window: | Yes |
| Supported hdd sizes: | 3.5", 2.5 |
| Supported motherboard form factors: | ATX, micro ATX, Mini-ITX |
| Supported power supply form factors: | ATX, PS2 |
| Top fans diameters supported: | 140 mm, 120 |
| Type: | PC |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Weight: | 3.83 kg |
| Width: | 230 mm |
