Use

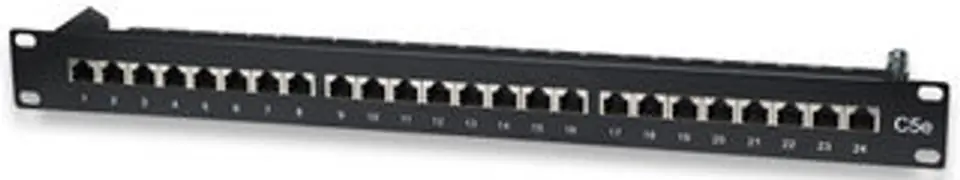

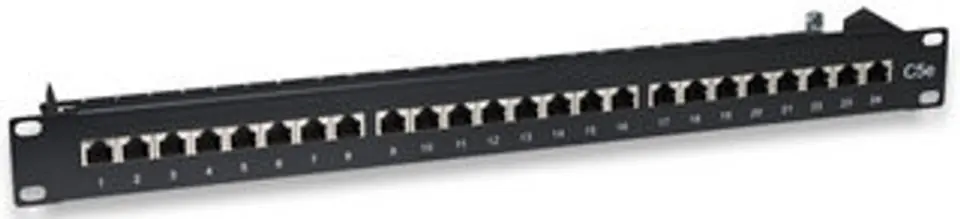

The Cat5e 513487 Patch Panel from Intellinet is designed to be mounted in 19" racks and racks. In cabinets it occupies a height of 1U. The device is designed for use with shielded twisted pair cable (FTP) Cat5e. It is ideal for Ethernet, Fast Ethernet and Gigabit Ethernet networks.
Parameters

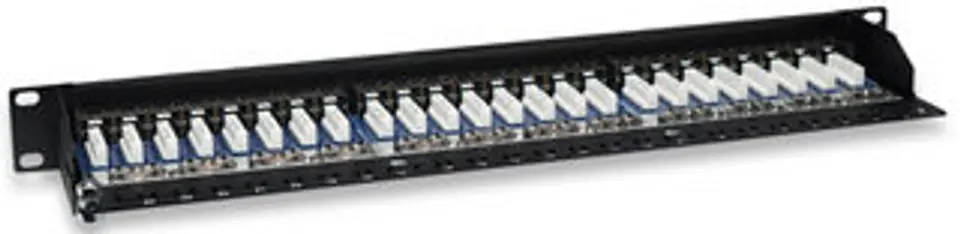

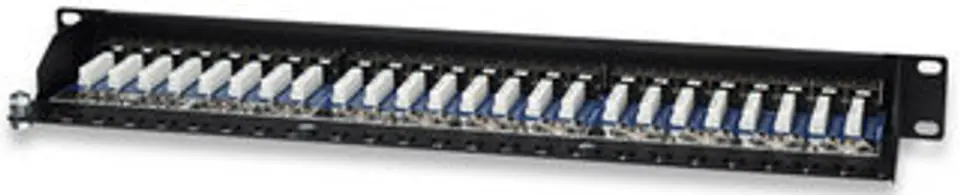

The Patch Panel is equipped with 24 ports and 90° terminal blocks with vertical access for easy installation. It has a durable copper conductor mount using gold-plated 3 mm contacts. Panel dimensions are 482 x 43 x 109 mm. The horizontal distance between the left and right mounting holes is 465 mm. The vertical distance between the upper and lower mounting holes is 31.8 mm. Earning cable with 110 and Krone standard impact tool.
Compatibility
It is suitable for cables from 22 to 26 AWG, both cable and wire. It supports IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet) and IEEE 802.3ab (1000Base-T Gigabit Ethernet). It has UL and RoHS certificates.
RoHS Certificate
EU directive Restriction of Hazardous Substances from 2003. It concerns restrictions on the content of harmful materials in electronic devices such as: lead, mercury, cadmium and many others.
