PATCH PANEL POE-8/R19

€58.07

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: POE-8/R19 / 5902887016448

Specification

Case::	1 U Rack 19"
Dimensions::	483 x 44 x 36 mm
Manufacturer / brand::	DELTA
Maximum output current::	550 mA / Output
Number of inputs::	8 pcs. Reference (RJ-45)
Number of outputs::	8 pcs. Reference (RJ-45)
Operating temperature / relative humidity::	-10 °C ... 55 °C / < 95 %
Output voltage::	Max. 60 volts
Scales::	0.29 kg
Security::	Short-circuit Overload

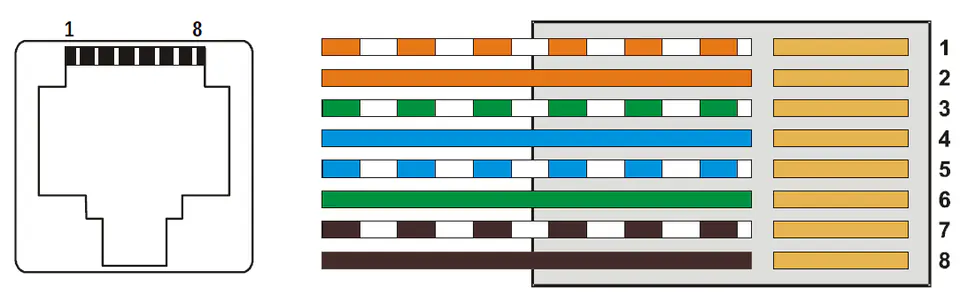

Selected features::	RJ-45 connector pin numbers DATA 1, 2 and 3, 6 Power supply 4, 5 (+) and 7.8 (-) Supported transmission speed 10 / 100 Mbps Maximum load per port 550 mA
Signal diodes::	Power
Warranty::	3 years

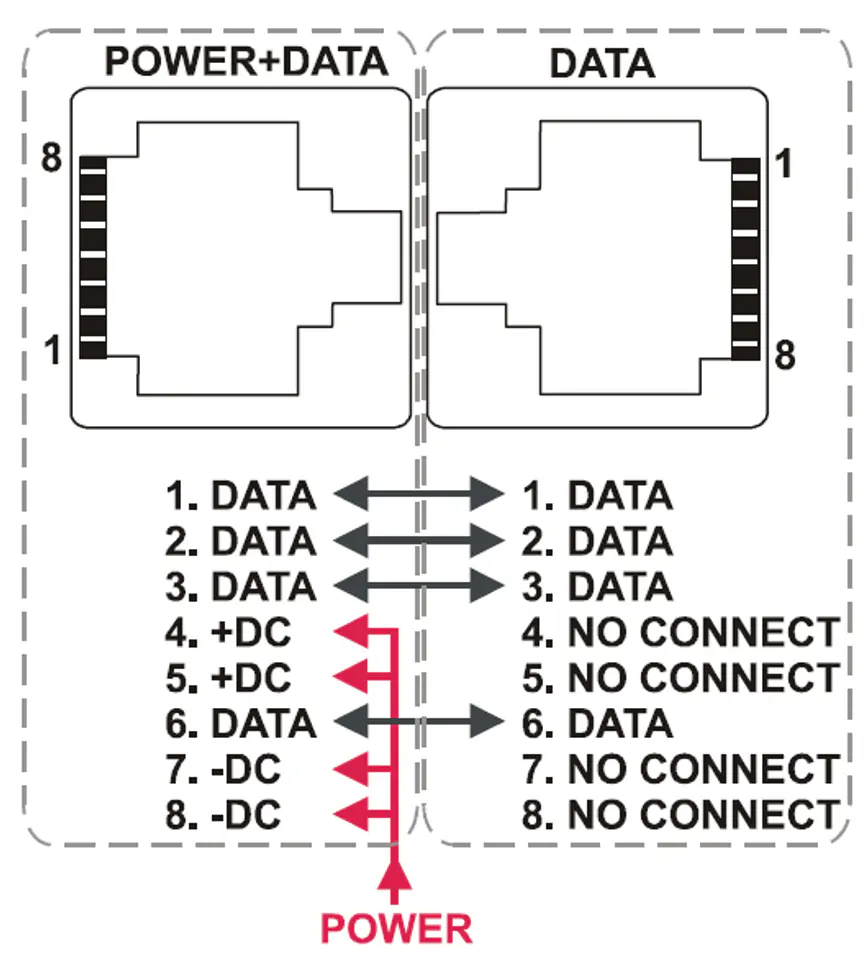

The POE-8/R19 panel is a passive device designed to add PoE power in twisted pair cables running to end devices As a standard, the twisted pair cable uses wires 1, 2, 3 and 6Panel PoE adds 4, 5(+) on the remaining wires for data transmission; 7, 8(-) supply voltage

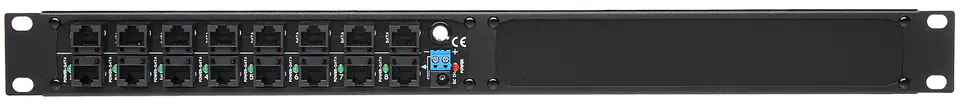

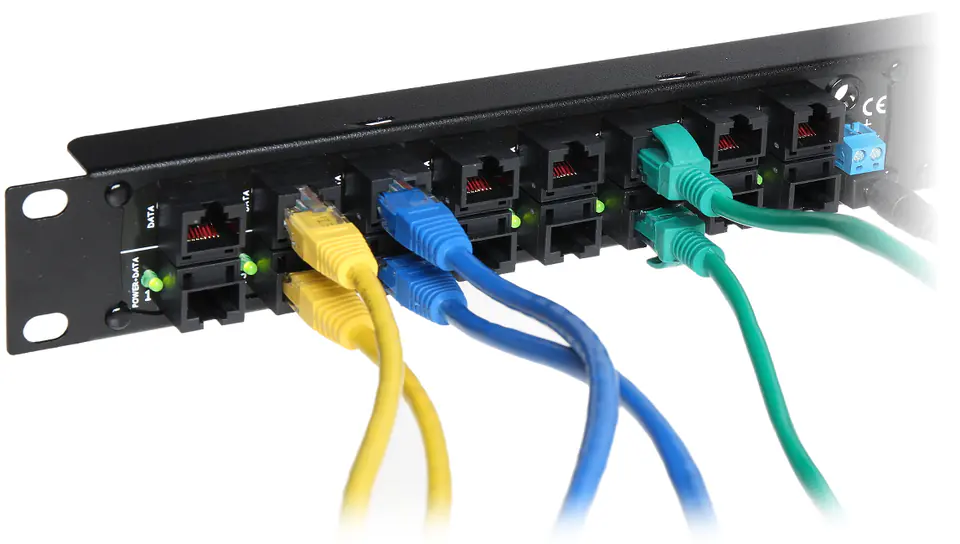

On the front of the panel there are two rows of sockets RJ-45Panel is able to add power to 8 PoE devices

POE-8/R19 is a passive device

The set has overload protection (polymer fuses at each output protect the installation: the power supply is disconnected with a longer flow of high current) and short-circuit protectionOn the front panel there is a green DIODE indicating the proper operation of the device

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
