PATCH PANEL POE-8/R

€33.00

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: POE-8/R / 5902887039652

Specification

Dimensions::	220 x 44 x 25 mm
Manufacturer / brand::	DELTA
Maximum output current::	550 mA / Output
Number of inputs::	8 pcs. Reference (RJ-45)
Number of outputs::	8 pcs. Reference (RJ-45)
Operating temperature / relative humidity::	-10 °C ... 55 °C / < 95 %
Output voltage::	Max. 60 volts
Scales::	0.078 kg
Security::	Short-circuit Overload

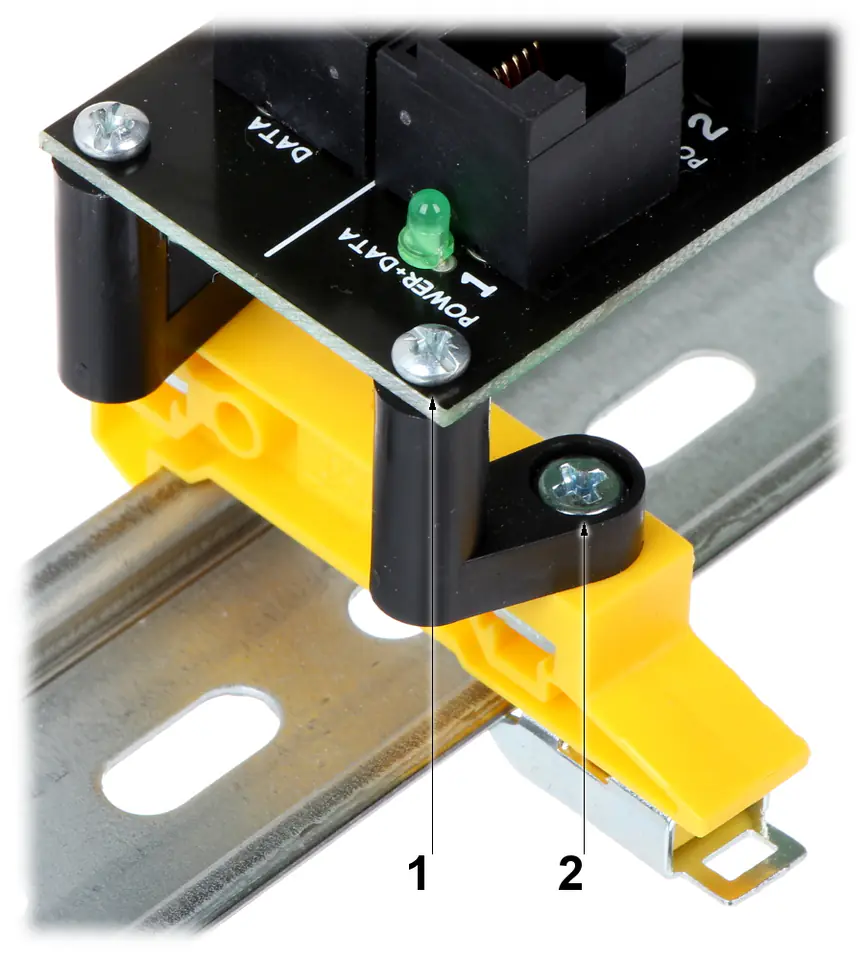

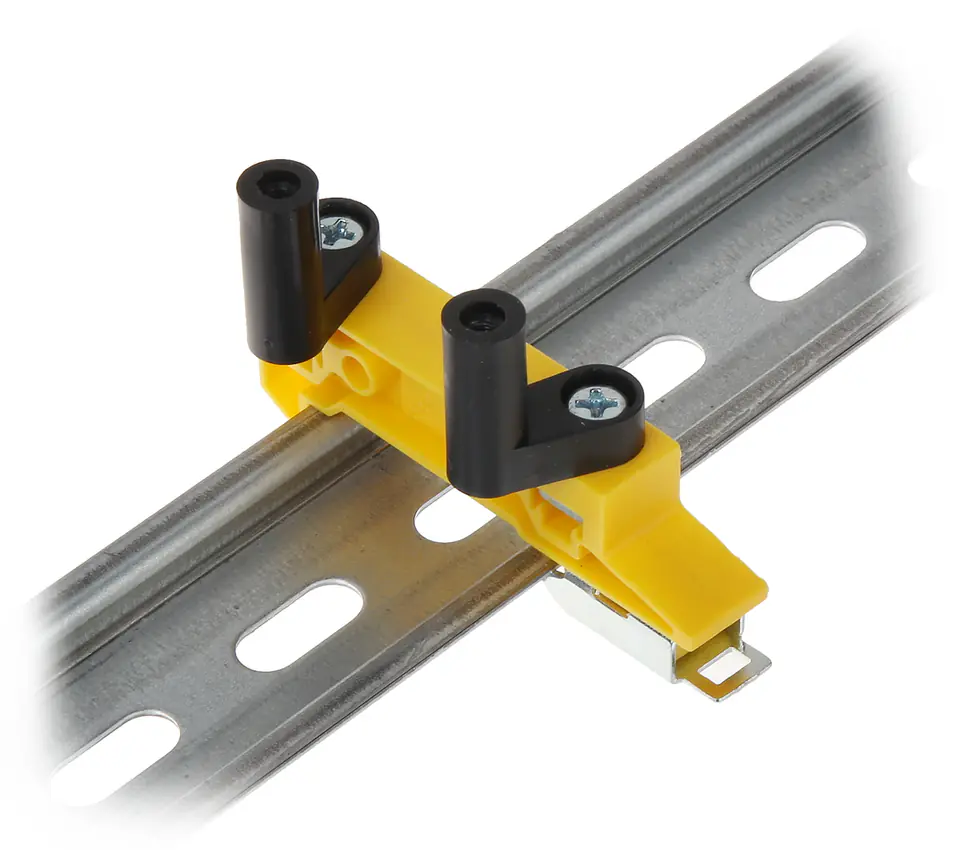

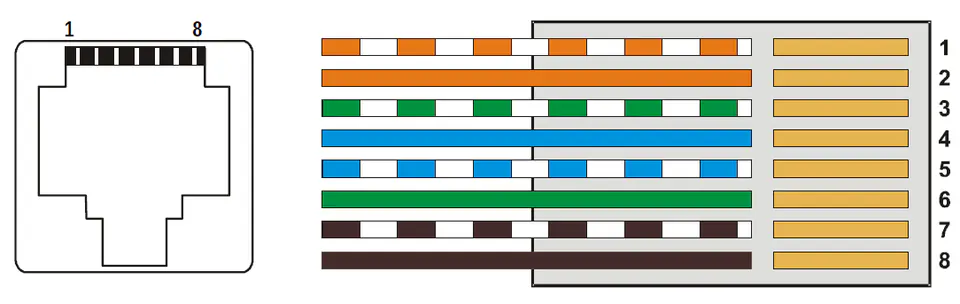

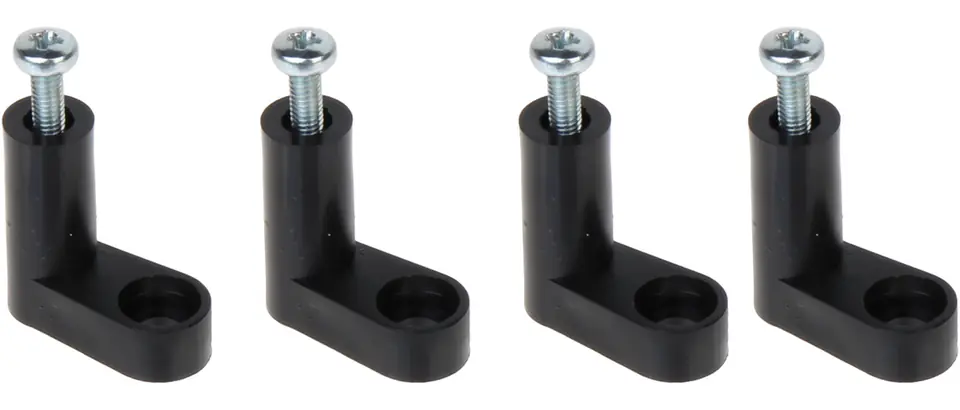

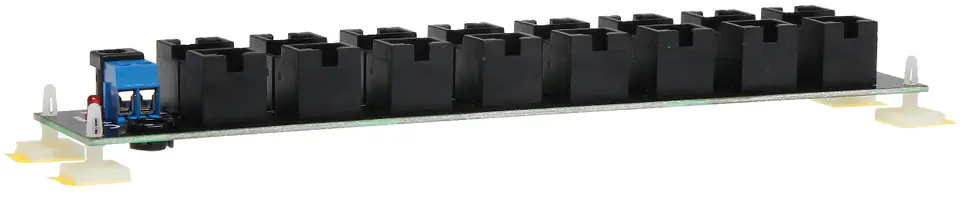

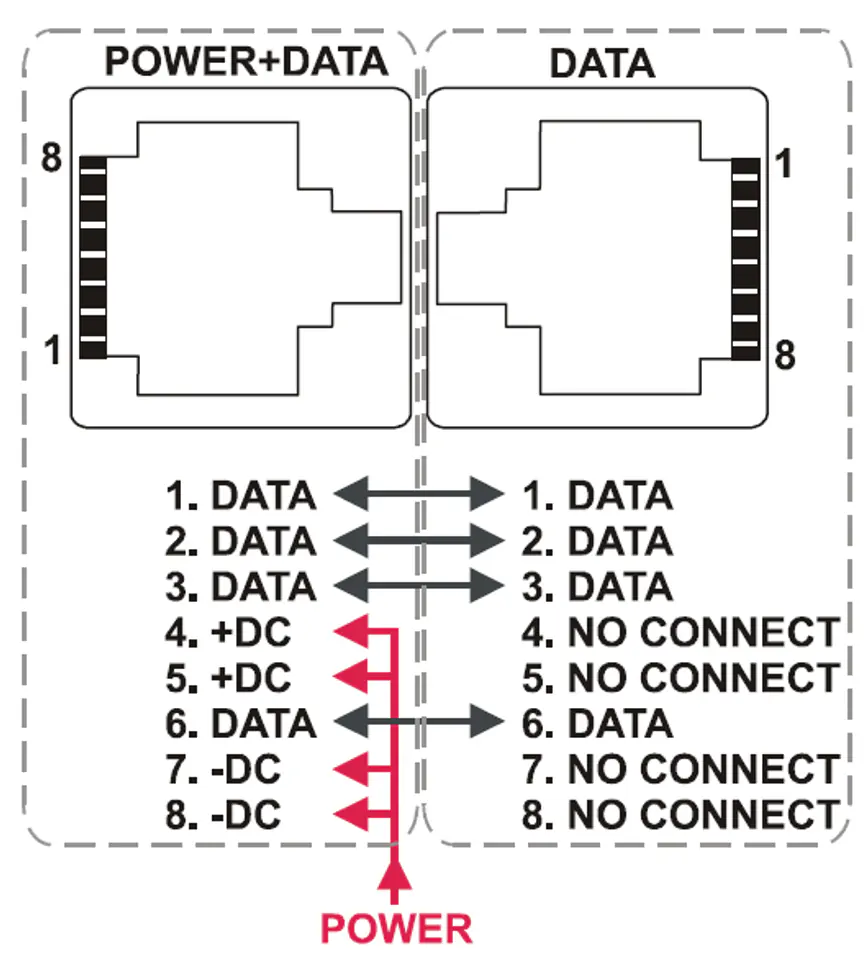

Selected features::	RJ-45 connector pin numbers DATA 1, 2 and 3, 6 Power supply 4, 5 (+) and 7.8 (-) Supported transmission rate 10 / 100 Mbps Maximum load per port 550 mA Mounting with self-adhesive stands Adhesive spacers allow easy installation of the PCB.
Signal diodes::	Power
Warranty::	3 years

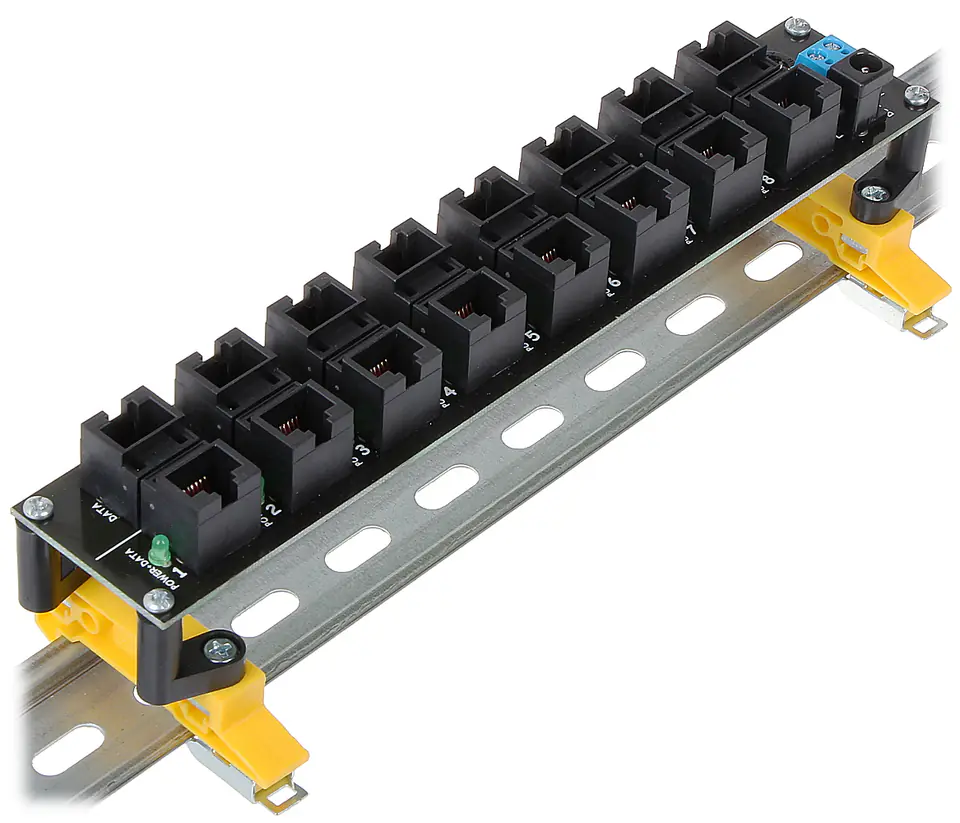

The POE-8/R panel is a passive device designed to add PoE power in twisted pair cables running to end devices As a standard, 1, 2, 3 and 6link cables are used for data transmission. 7, 8(-) supply voltage

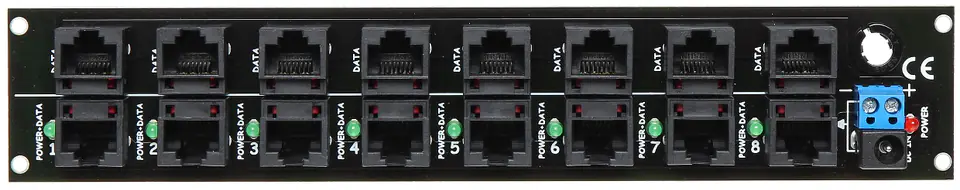

On the front of the panel there are two rows of sockets RJ-45Panel is able to add power to 8 PoE devices

POE-8/R is a passive device

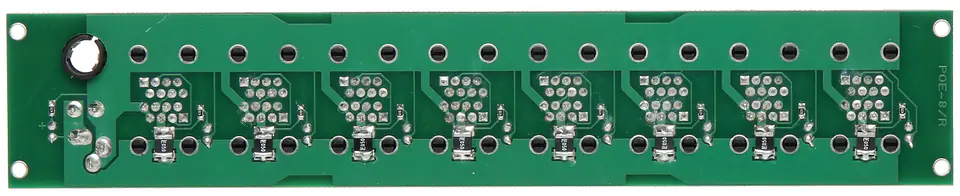

The set has overload protection (polymer fuses at each output protect the installation: the power supply is disconnected with a longer flow of high current) and short-circuit protectionOn the front panel there is a green DIODE indicating the proper operation of the device
