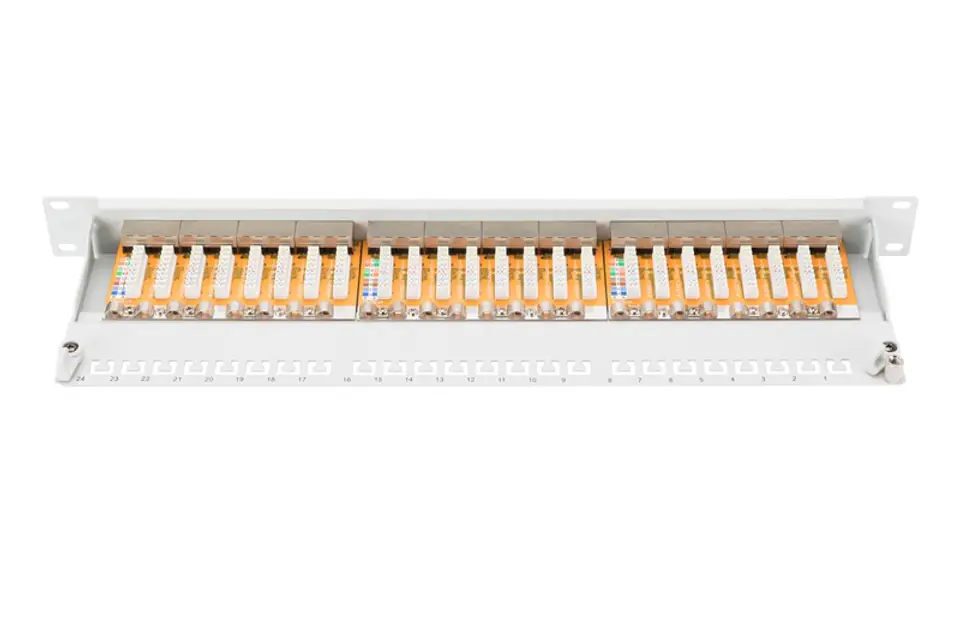

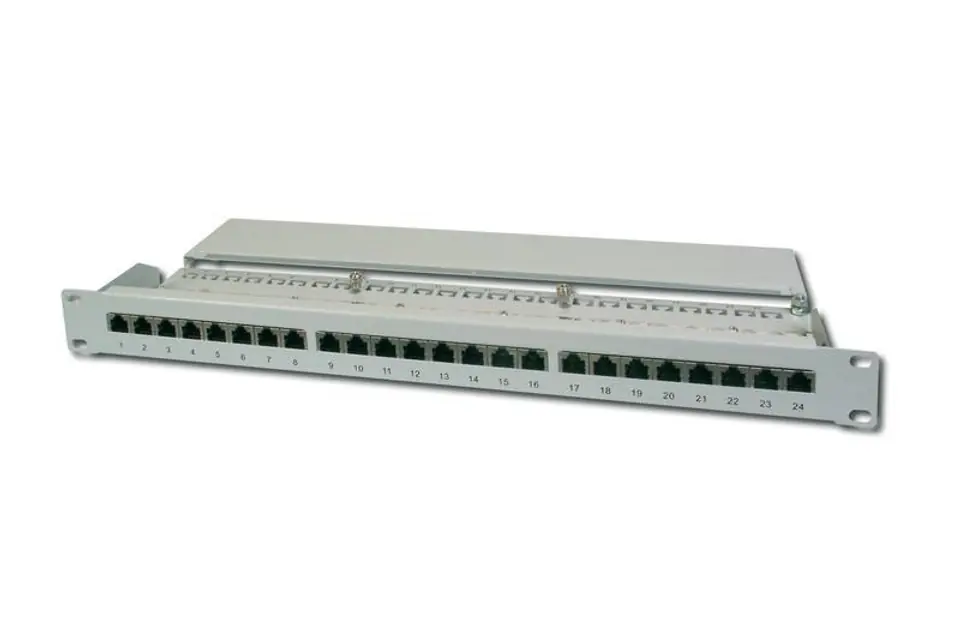

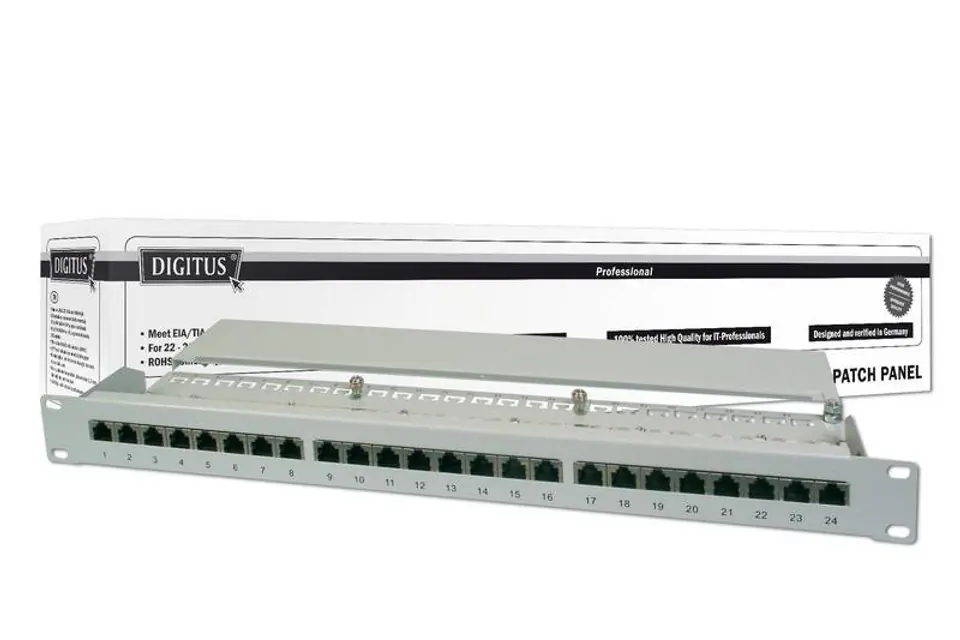

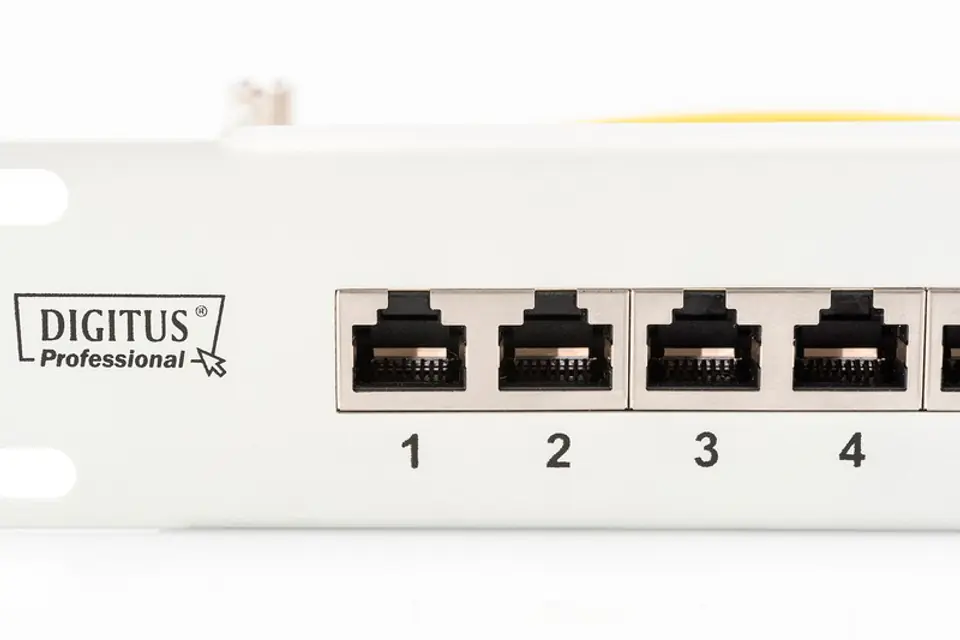

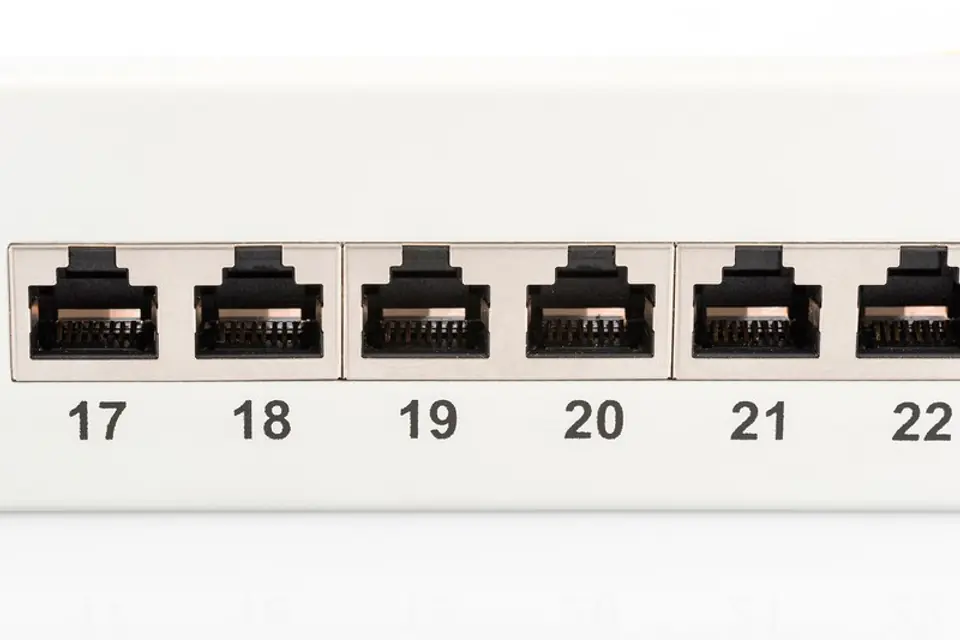

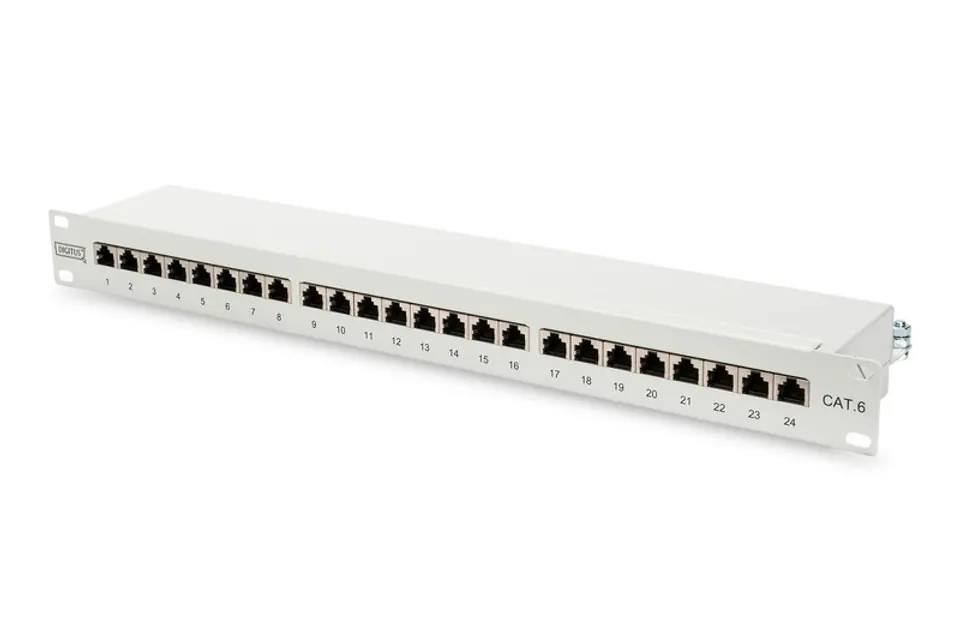

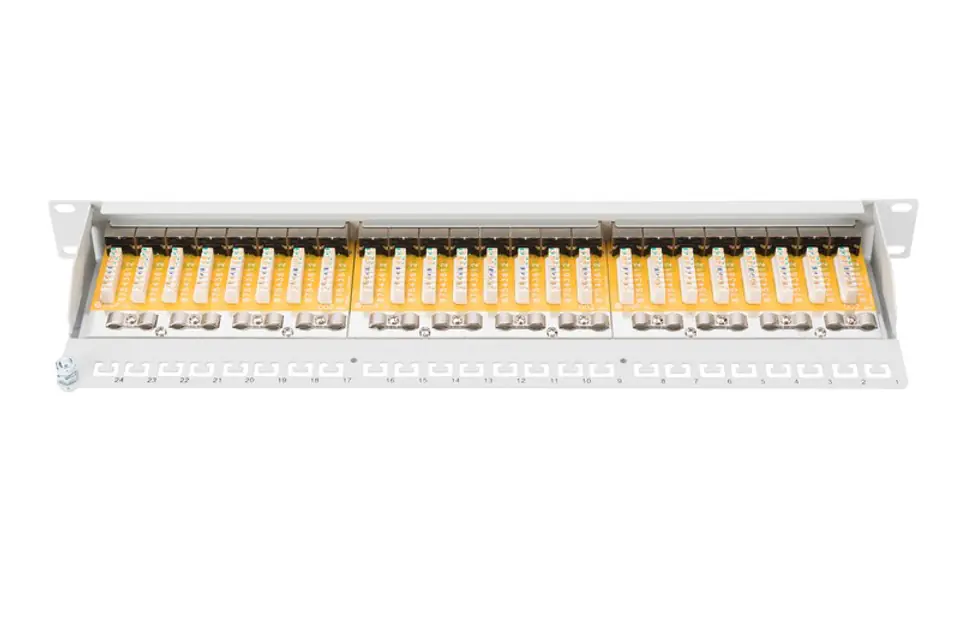

Patch panel 19" 24 ports, cat.6, S/FTP, 1U, cable bracket, gray complete

€56.72
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
running out
Brand:
Digitus
Product code:
DN-91624S / 4016032246848

24-port patch panel for mounting in 19" (483 mm) rack cabinets from DIGITUS

Suitable for AWG 22-26 diameter wires (cord/wire);
Made of cold rolled steel sheet (SECC) with a thickness of 1.5 mm in accordance with EN1.4301, UNS S30400, AISI 304 and LMSAD110;
Contact material: phosphor bronze;
Plug coating: nickel, gold 0.3;

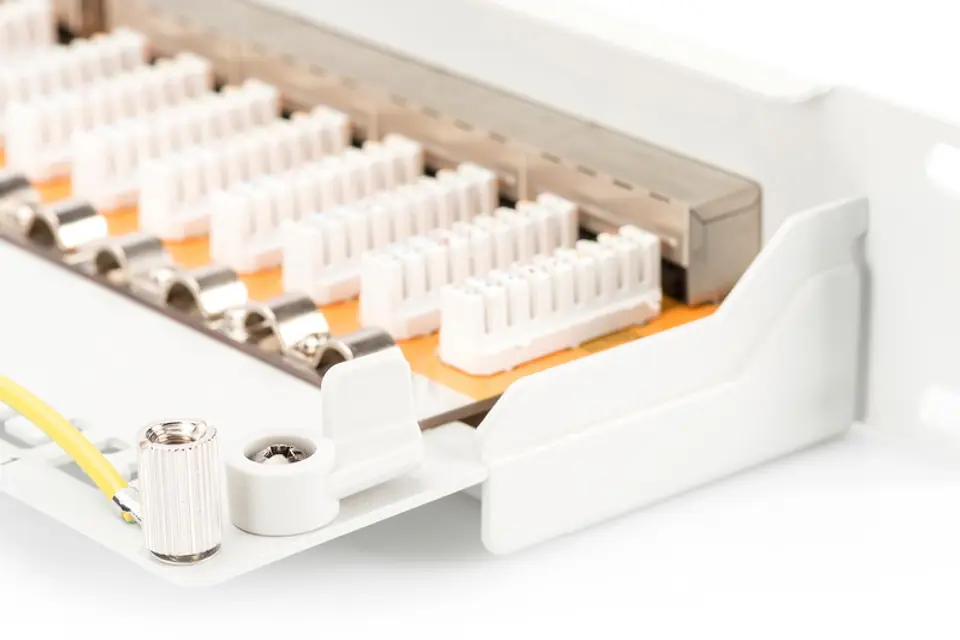

Cable installation via Krone LSA+ connector, color coding in accordance with EIA/TIA 568 A &B;
Number of on/off cycles of the connection cable from the RJ45 socket: >750 cycles according to ISO/IEC 118001, IEC 60603-7-5;
Number of cable mounting cycles in the Krone LSA+ connector: >200 cycles in accordance with ISO/IEC 118001, IEC 60603-7-5;
IDC Terminal Material: Phosphor bronze 50 zinc per 60 nickel;
PCB Material: FR4, UL 94V-0, Cover Thickness 1.45mm;
Durability: 750 (ISO/IEC 11801, IEC 60603-7-5);
Operating temperature: -20°C ... +70°C;
Insulation resistance > 500MOhm;

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
