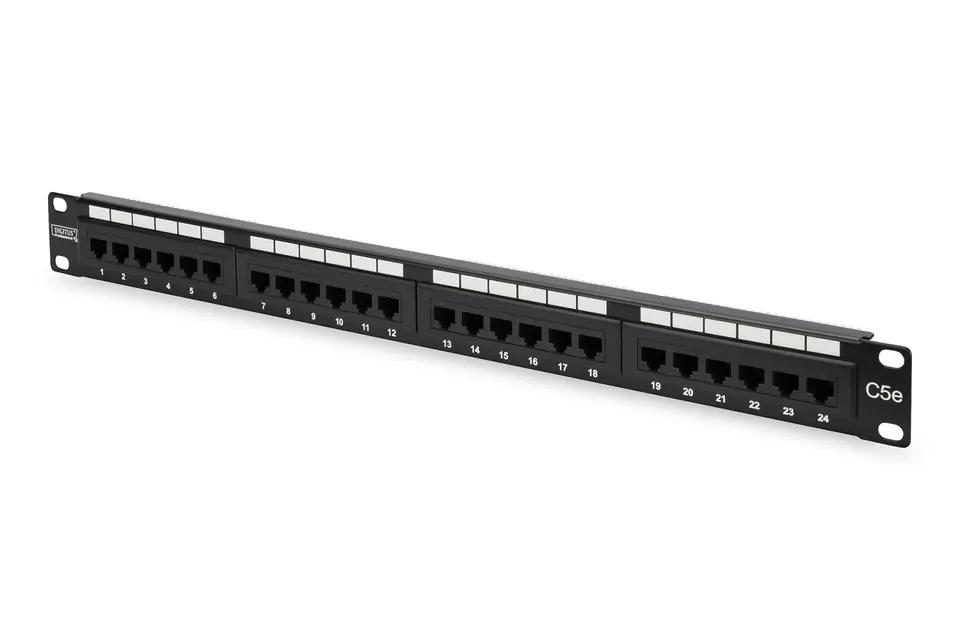

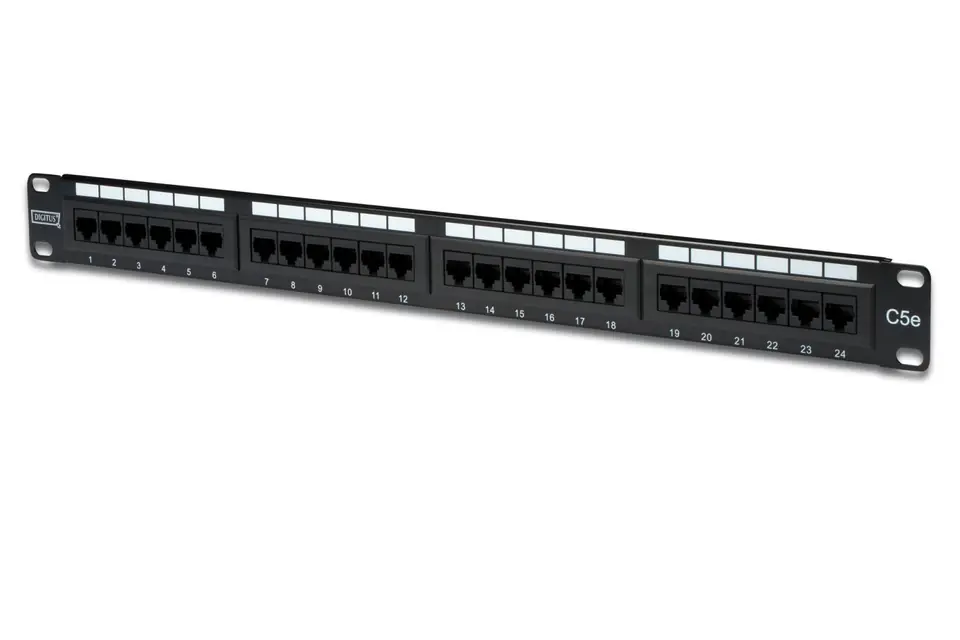

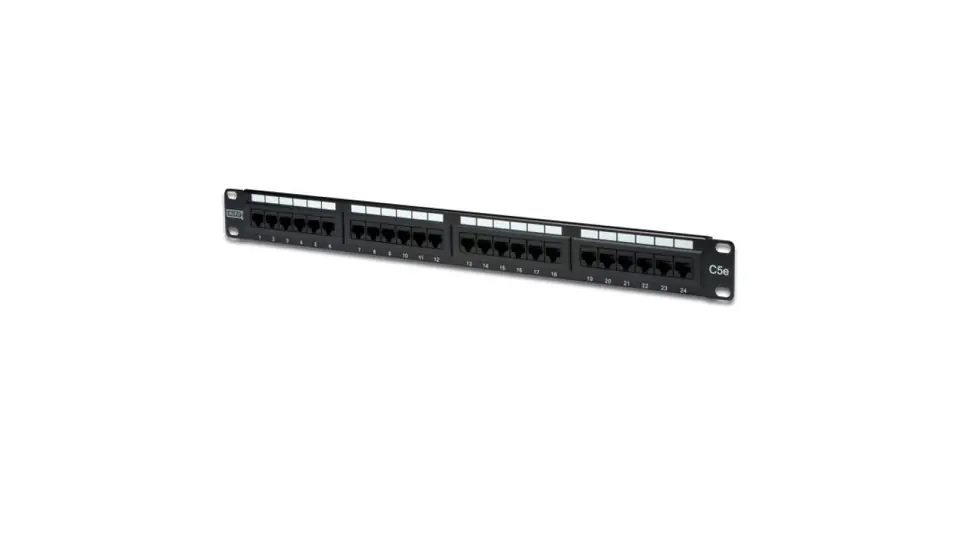

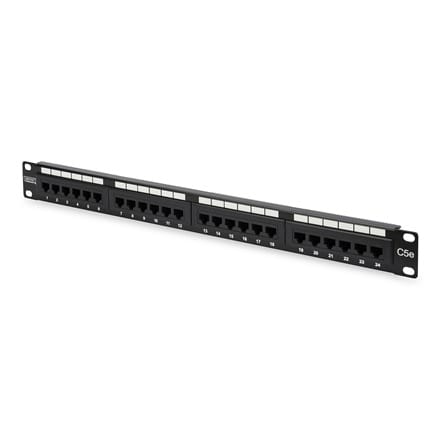

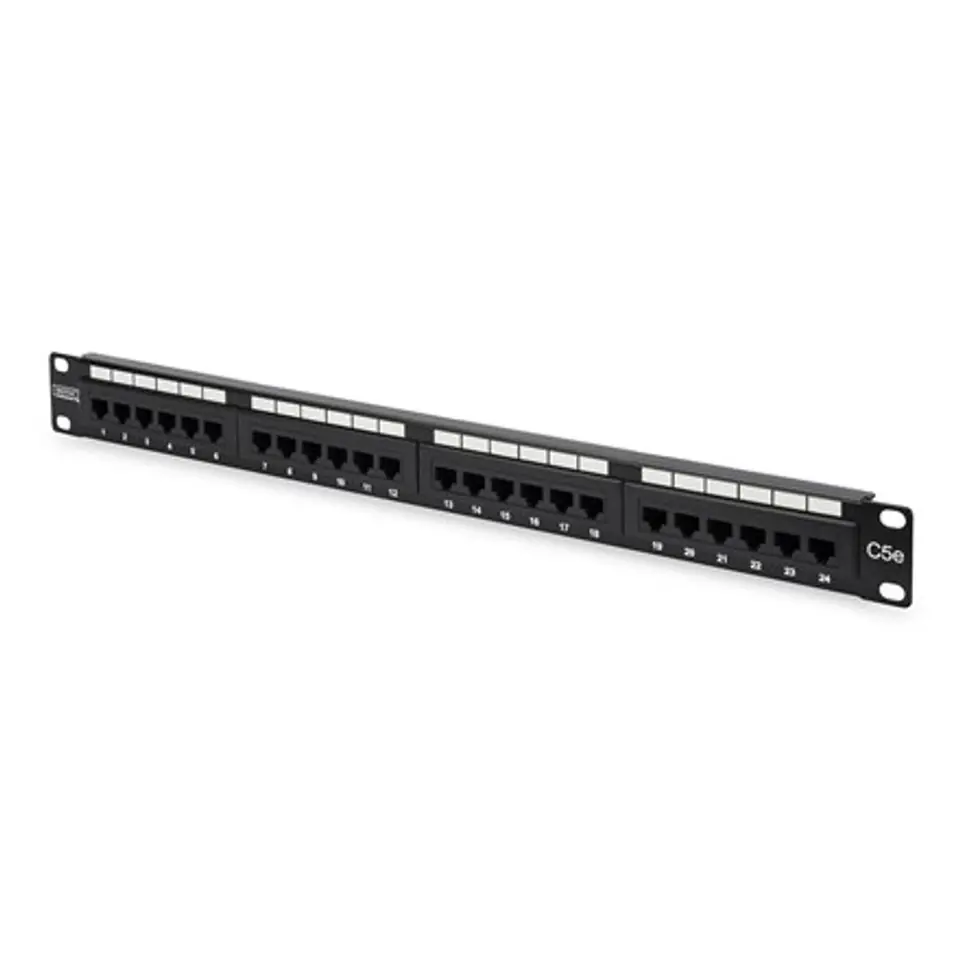

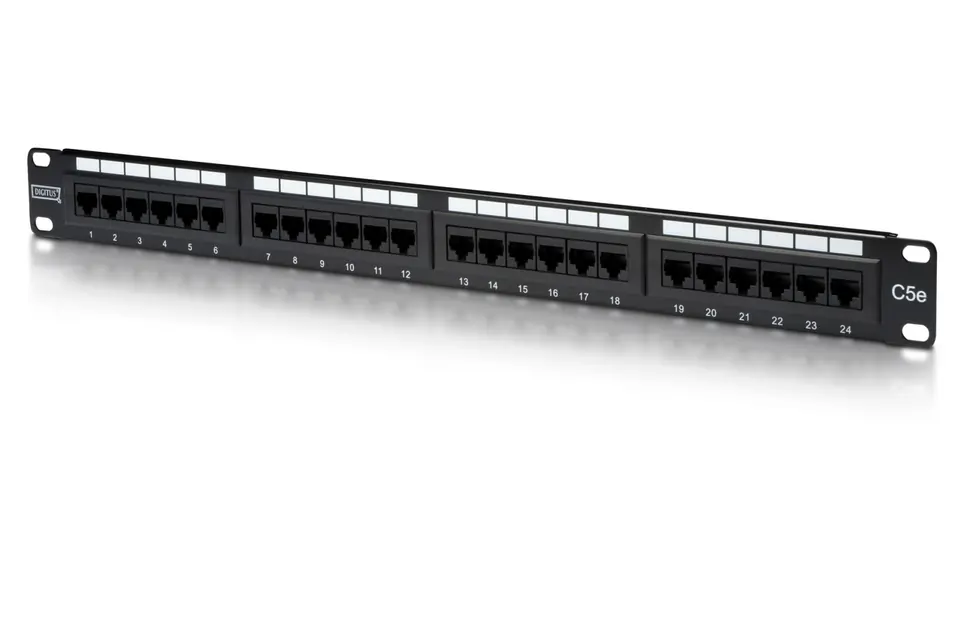

24-port patch panel with bracket for mounting in 19" (483 mm) rack cabinets from DIGITUS
Suitable for AWG 22-26 diameter wires (cord/wire);
Made of cold rolled steel sheet (SECC) with a thickness of 1.5 mm in accordance with EN1.4301, UNS S30400, AISI 304 and LMSAD110;
Contact material: phosphor bronze;
Plug coating: nickel, gold 0.3;
Cable installation via Krone LSA+ connector, color coding in accordance with EIA/TIA 568 A &B;
Number of RJ45 jack on/off cycles: >750 cycles according to ISO/IEC 118001, IEC 60603-7-5;
Number of cable mounting cycles in the Krone LSA+ connector: >200 cycles according to ISO/IEC 118001, IEC 60603-7-5;

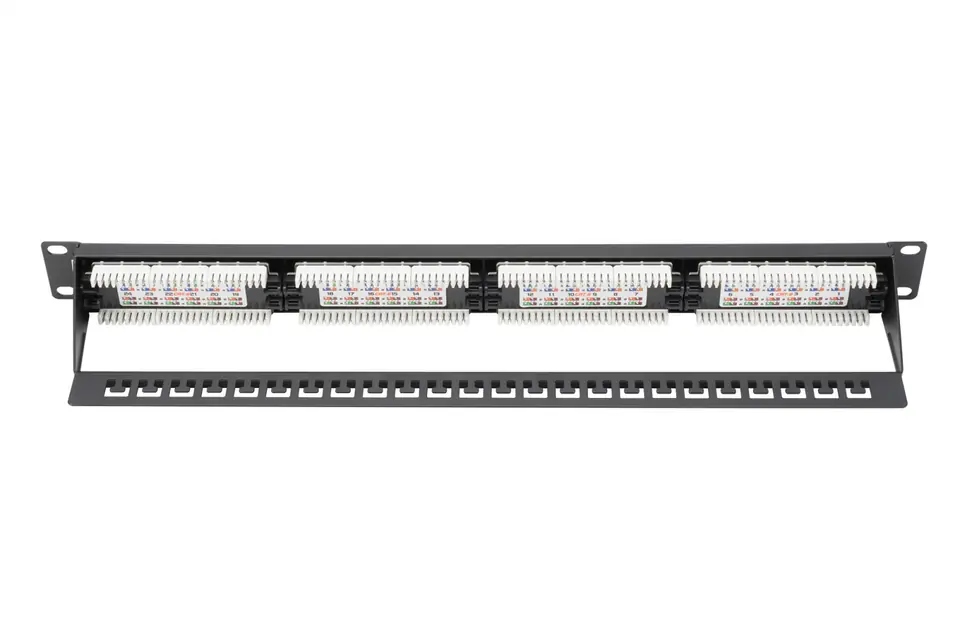

Integrated guide for easy cable fastening;
IDC Terminal Material: Phosphor bronze 50 zinc per 60 nickel;
PCB Material: FR4, UL 94V-0, Cover Thickness 1.45mm;
Durability: 750 (ISO/IEC 11801, IEC 60603-7-5);
Operating temperature: -20°C ... +70°C;
Insulation resistance > 500MOhm;
Patch panel 19" 24 ports, cat.5e, U/UTP, 1U, cable bracket, black complete
€31.77
Shipping from warehouse: A1
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DN-91524U / 4016032241461
Share this product:
Specification
| Cable types supported: | Cat5e |
|---|---|
| Category: | 5E |
| Colour: | Black |
| Connection type: | LSA |
| Connector(s): | RJ-45 |
| Country of origin: | China |
| Harmonized system (hs) code: | 85371098 |
| Mounting method: | 19 inch body |
| Number of ports: | 24 |
| Number of u units: | 1 |
| Package depth: | 60 mm |
| Package volume: | 3182.7 cm³ |
| Package weight: | 654 g |
| Package width: | 515 mm |
| Plug-in connector type: | RJ45 8(8) |
| Ports quantity: | 24 |
| Product colour: | Black |
| Shielded: | No |
| Suitable for the number of sockets/connectors: | 24 |
| Uk trade tariff code: | 85369010 |
