Patch-panel 24-port for installation in rack cabinets 19 "(483 mm) of DIGITUS
- Suitable for cables with a diameter of 22-26 AWG (wire)
- Made of steel cold-rolled (SECC) with a thickness of 1.5 mm according to EN 1.4301, UNS S30400, AISI 304 and LMSAD110
- Contact material: phosphor
- Shell connectors: nickel, gold 0,3
- Installation of cable: the universal connector Krone LSA + / 110, color-coded in accordance with EIA / TIA 568 A & B
- Number of cycles on / off connection cable with RJ45:> 750 cycles in accordance with ISO / IEC 118001, IEC 60603-7-5
- The number of cycles of the cable connector assembly of the universal Krone LSA + / 110:> 250 cycles in accordance with ISO / IEC 118 001, IEC 60603-7-5
- The kit includes a label with plastic handles mounted on the front of the panel for easy identification of ports
- Material IDC Terminal: Phosphor 50 to 60 zinc nickel
- PCB material: FR4, UL 94V-0, coating thickness 1.45 mm
- Durability: 750 (ISO / IEC 11801, IEC 60603-7-5)
- Operating Temperature: -20 ° C ... + 70 ° C
- Insulation resistance> 500Mohm

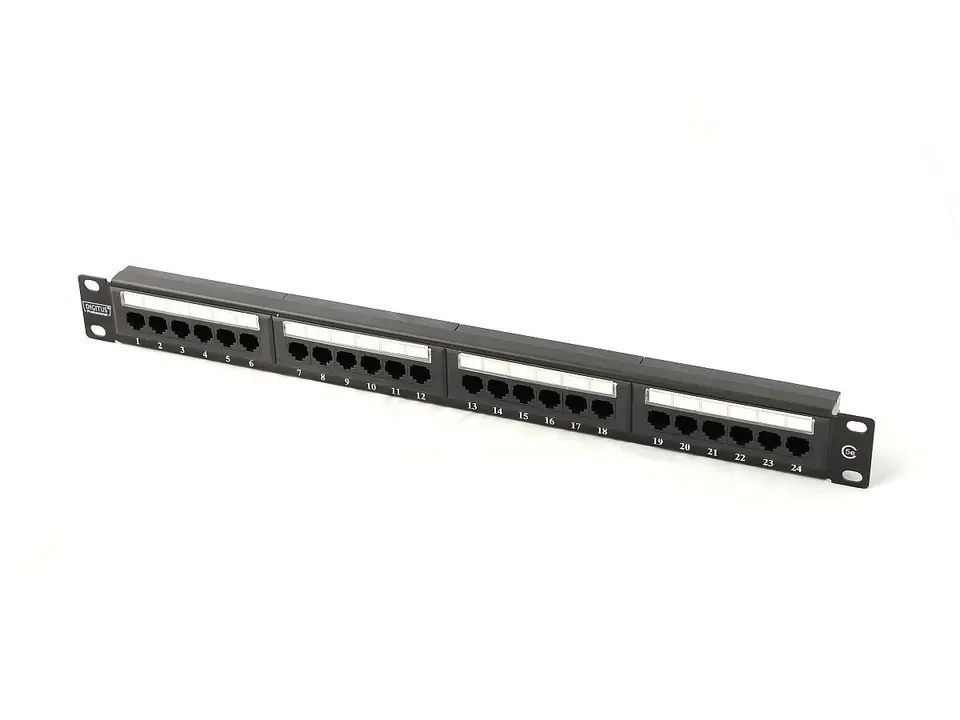

Patch panel 19 "24-port, 5e, U / UTP, 1U, black complete
€25.55
Shipping from warehouse: A1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DN-91524U-1 / 5907772593233
Share this product:
Specification
| Cable shielding: | U/UTP (UTP) |
|---|---|
| Cable types supported: | Cat5e |
| Depth: | 50 mm |
| Height: | 60 mm |
| Package weight: | 590 g |
| Ports quantity: | 24 |
| Product colour: | Black |
| Rack capacity: | 1U |
| Weight: | 540 g |
| Width: | 500 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
