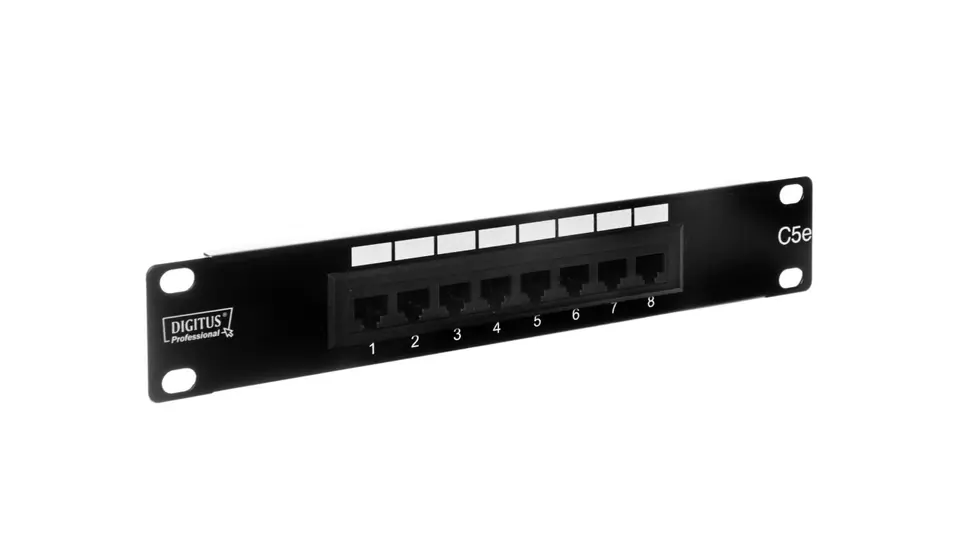

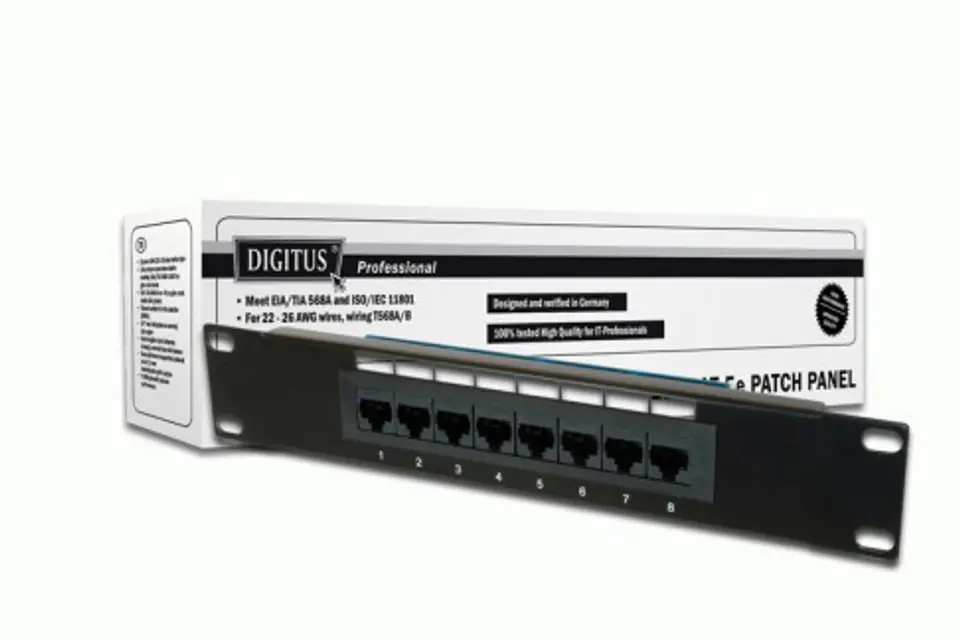

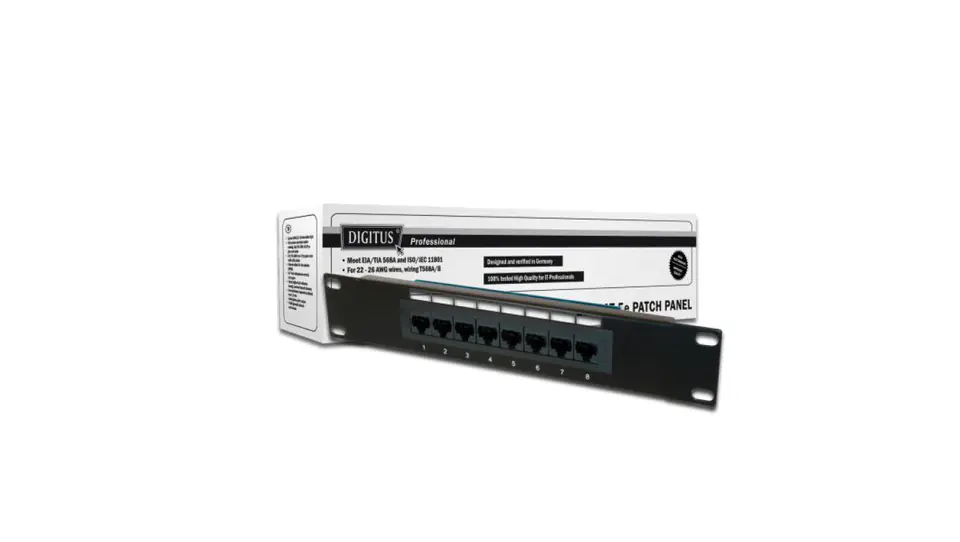

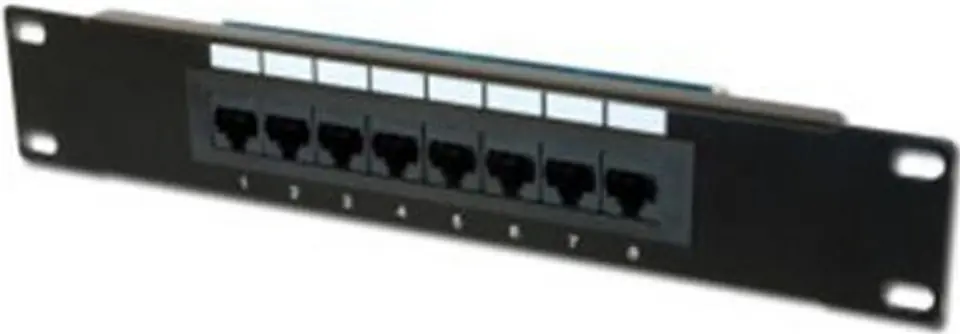

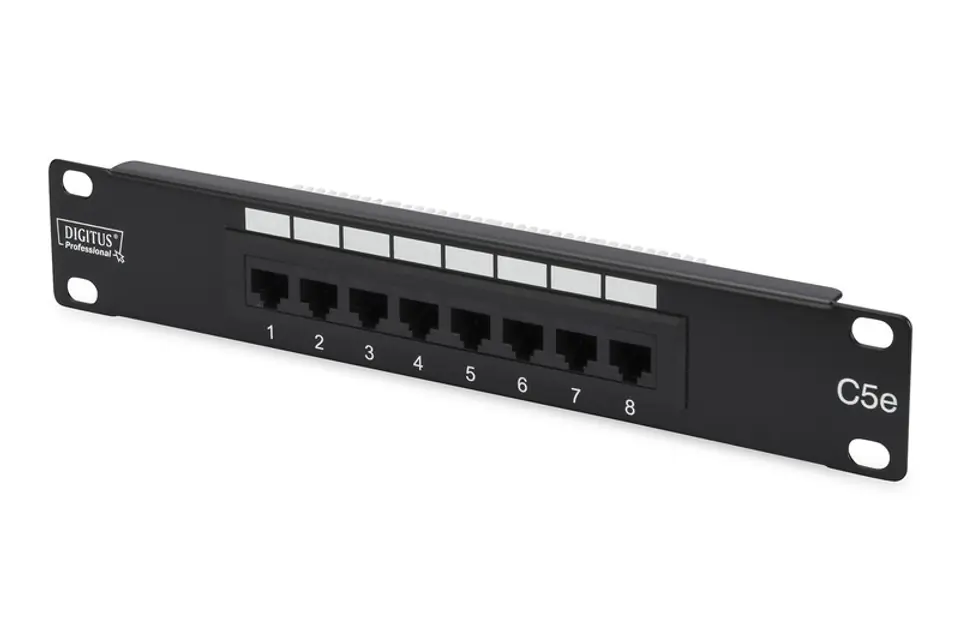

8-port patch-panel designed for mounting in 10" (254 mm) DIGITUS rack cabinets
Suitable for AWG 22-26 (strand/wire) cables;
Made of 1.5 mm thick cold-rolled steel sheet (SECC) according to EN1.4301, UNS S30400, AISI 304 and LMSAD110;
Contact material: phosphor bronze;
Plug shell: nickel, gold 0,3;
IDC Terminal material: 50 zinc phosphor bronze on 60 nickel;
PCB Material: FR4, UL 94V-0, coating thickness 1.45mm;
Lifetime: 750 (ISO/IEC 11801, IEC 60603-7-5);
Operating temperature: -20°C ... +70°C;
Insulation resistance > 500MOhm;
