Unprotected U/UTP Cat 5e DIGITUS Professional patch 5.0m in black

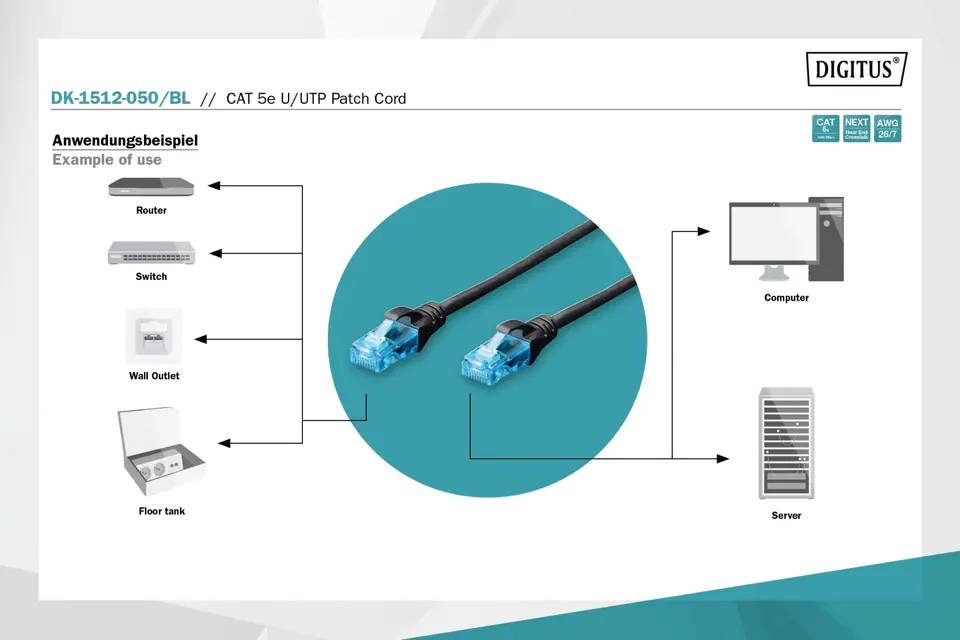

- The cable is used to connect an active network (eg switch, router) to a computer network and to connect a computer, a TV, a console to a local area network.
- Copper power cable on both ends ends with RJ45 plugs
- Each connector is marked with cable length
- The cable ends are protected against the breaking of the covered casings with strain relief
- 4-pair twisted-pair cable in straight 1: 1 configuration
- Made and tested for compliance with ISO / IEC 11801 class D and DIN EN 50173 for the highest transmission parameters and compliance with the category.
- Pachords are packed individually in polyethylene bags
Patch Cord U/UTP cat. 5e black 5m DK-1512-050/BL
€1.60
Shipping from warehouse: M7
Estimated shipping: Thu, Oct 10 - Mon, Oct 14
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- DK-1512-050/BL / 4016032320739
Share this product:
Specification
| Anti-flexion bushing: | Profiled |
|---|---|
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Category: | 5e |
| Cn: | 85444210 |
| Color of anti-flexion bushing: | Black |
| Colour: | Black |
| Connection type 1: | Straight plug |
| Connection type 2: | Straight plug |

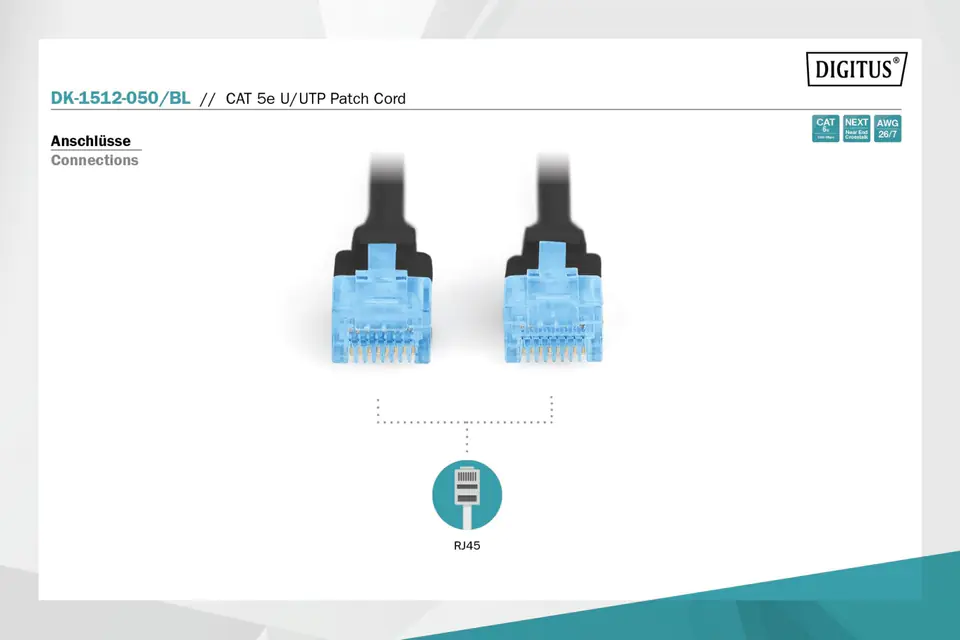

| Connector 1: | RJ-45 |
| Connector 2: | RJ-45 |
| Connector type 1: | RJ45 8(8) |
| Connector type 2: | RJ45 8(8) |

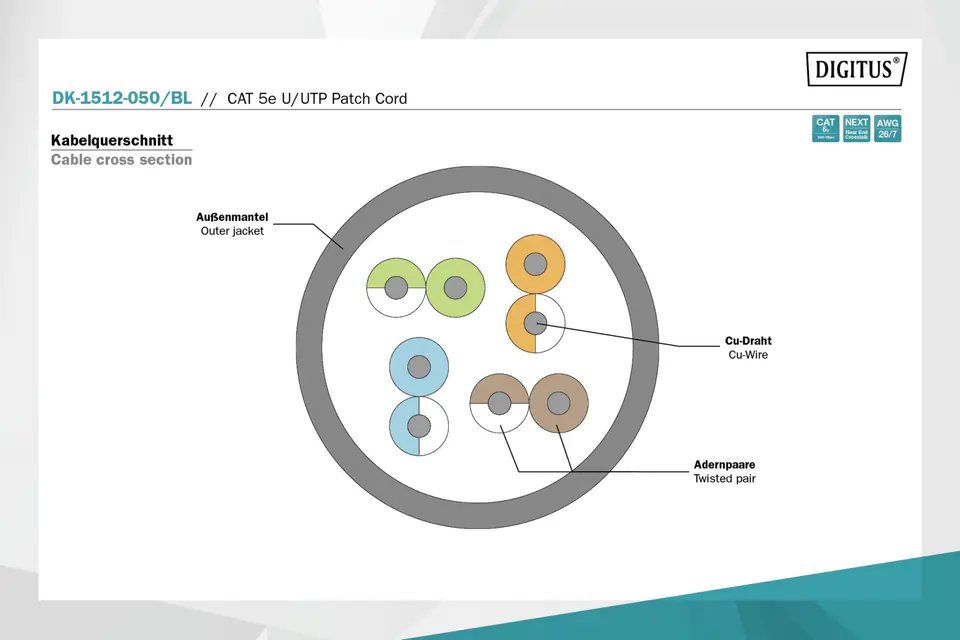

| Construction: | Encapsulated Cover, PVC Cable Insulation Material, Structure: 4 x 2 AWG 26/7, Gold-plated 3 μ contacts, 4.8 mm diameter |
| Flame retardant design: | no |
| Halogen-free: | no |
| Insulation color: | Black |
| Kind: | Patchcord |
| Length (m): | 5 |
| Length [m]: | 5 |
| Line: | Professional |
| Locking lever: | yes |
| Manufacturer's warranty: | 2 years |
| Number of connectors: 1: | 1 |
| Number of connectors: 2: | 1 |
| Oil resistant (according to en 60811-2-1): | no |
| Other parameters: | Bending and relief protection |
| Pkwiu: | 27.90.44.0 |
| Plug/pin configuration: | 1:1 |
| Shielding: | no |
| Signal propagation (nvp) [%]: | 69 |
| Standards and certificates: | ISO/IEC 11801 |
| Technologies: | Plug & Play |
| Warranty fulfillment: | Manufacturer's warranty |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
