| Alarm output:: | NC, 24 V DC / 100 mA |
|---|---|
| Cooperation:: | Alarm control panels - input for connecting a wired detector type NC |
| Dimensions:: | Ø 97 x 29 mm |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Permissible relative humidity:: | 93 % ± 3 % |
| Scales:: | 0.052 kg |
| Selected features:: | Application : Internal Tamper detection - enclosure opening, detachment from the ground Environmental class EN 50130-5 : II |
| Tamper protection:: | NC, 24 V DC / 10 mA |
| Warranty:: | 2 years |

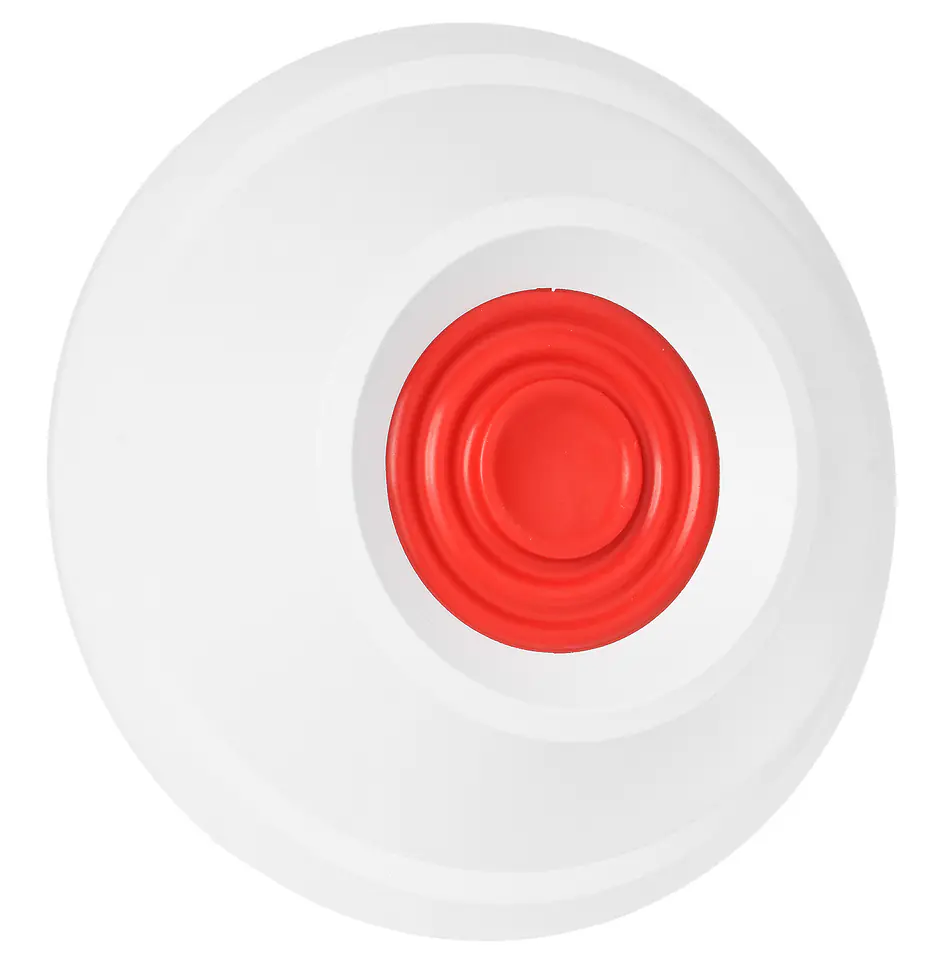

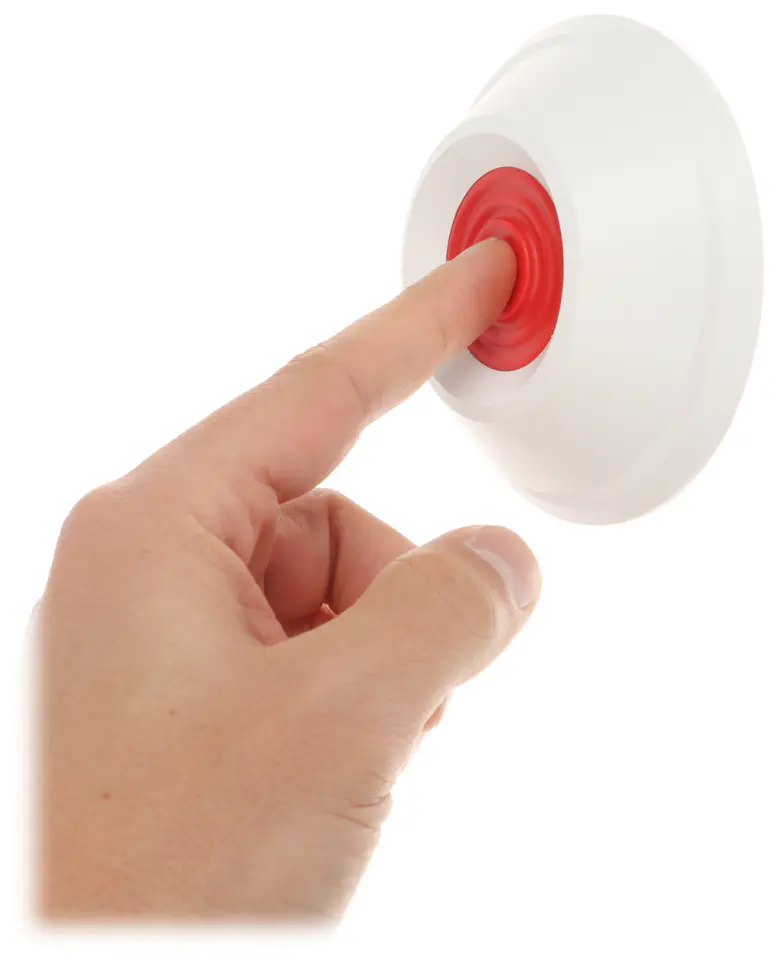

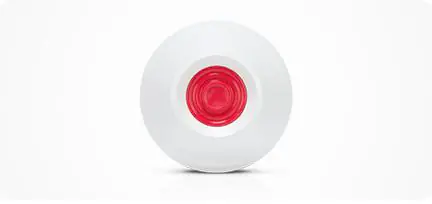

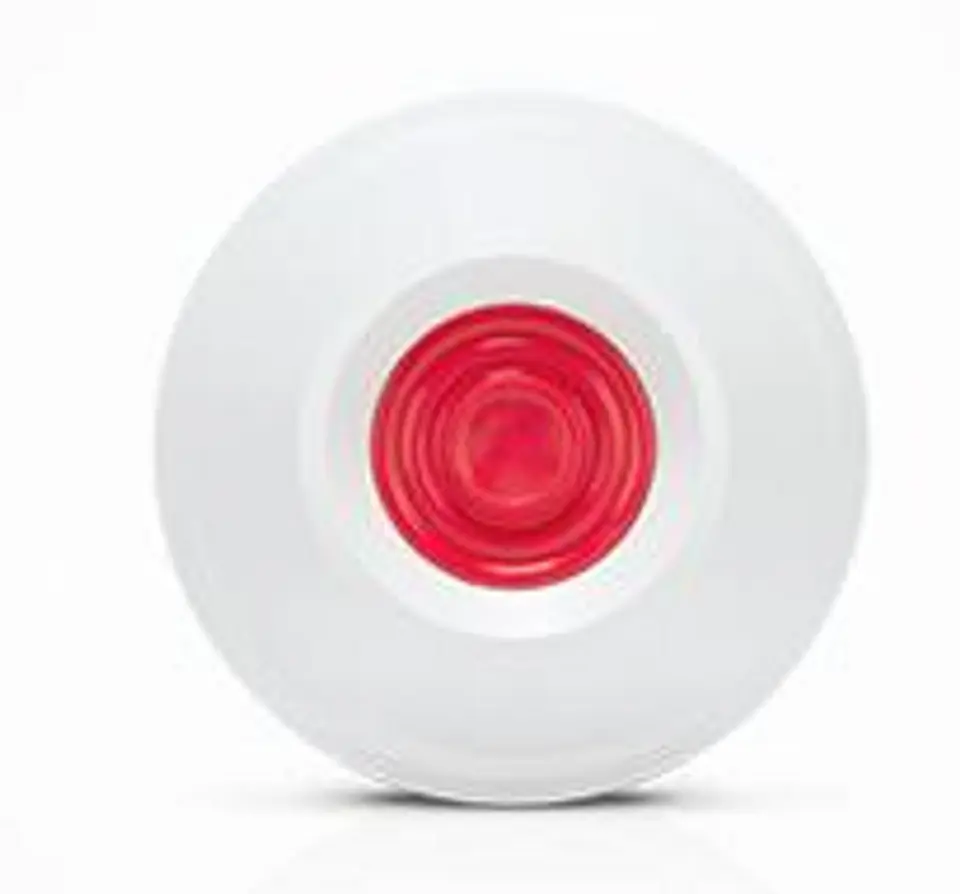

The button immediately triggers an alarm and/or notifies the monitoring station about the emergency situation in the protected facilityThe button can also be used to control the operation of various devices (e.g. automation system devices or access control)
The device cooperates with any alarm control panel that supports NC detectors
