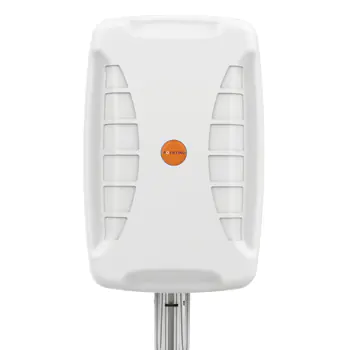

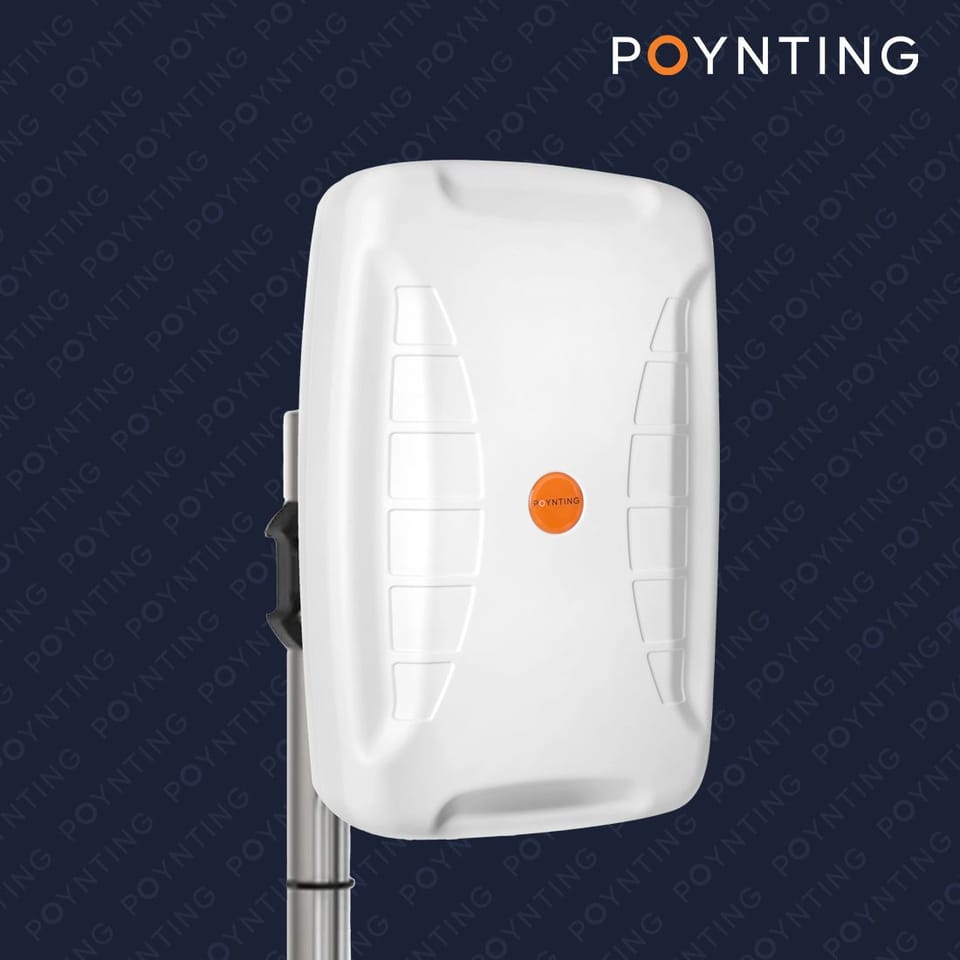

Poynting XPOL-24-V1-01 (4x4 MIMO) Directional Antenna 11 dBi | cable with SMA plug, 5m
XPOL-24 expands the very popular range of cross-polarized Poynting antennas (XPOL). XPOL-24 is our first unidirectional 4x4 MIMO 5G/LTE bands with exceptional performance. This is due to the use of advanced metamaterial technology, using artificial magnetic conductor (AMC) and a new registered/patented configuration that provides exceptional throughput and gain improvements. The radiation characteristics of this antenna are extremely well controlled, further enhancing the outstanding performance of the antenna. The XPOL-24 offers broadband coverage from 617 to 4200 MHz, with a peak gain of 11dBi in the operating bands. The antenna performs exceptionally well in the frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz and 3400 – 4200 MHz. Exceptional broadband performance is an important factor for 5G/LTE technology, as these technologies rely on features such as Carrier Aggregation (CA) to ensure the best possible reception and throughput in multiple frequency bands simultaneously. This makes XPOL-24 an ideal solution for current and future deployments of 5G/LTE antennas.
- X-Polarised 4x4 MIMO for current and future technologies
- Broadband coverage with exceptional performance
- Works from 617 to 4200 MHz with 11dBi gain
- Consistent broadband performance

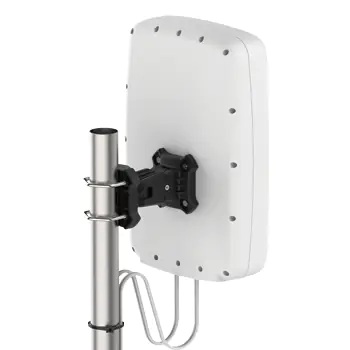

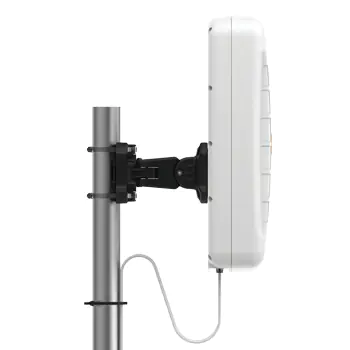

- Various mounting options for easy installation (wall or pole)
- Waterproof and waterproof (IP65)
- External antenna for permanent wireless access (FWA)
- LTE/5G Internet connectivity for consumers
- Industrial and commercial deployments of LTE/5G

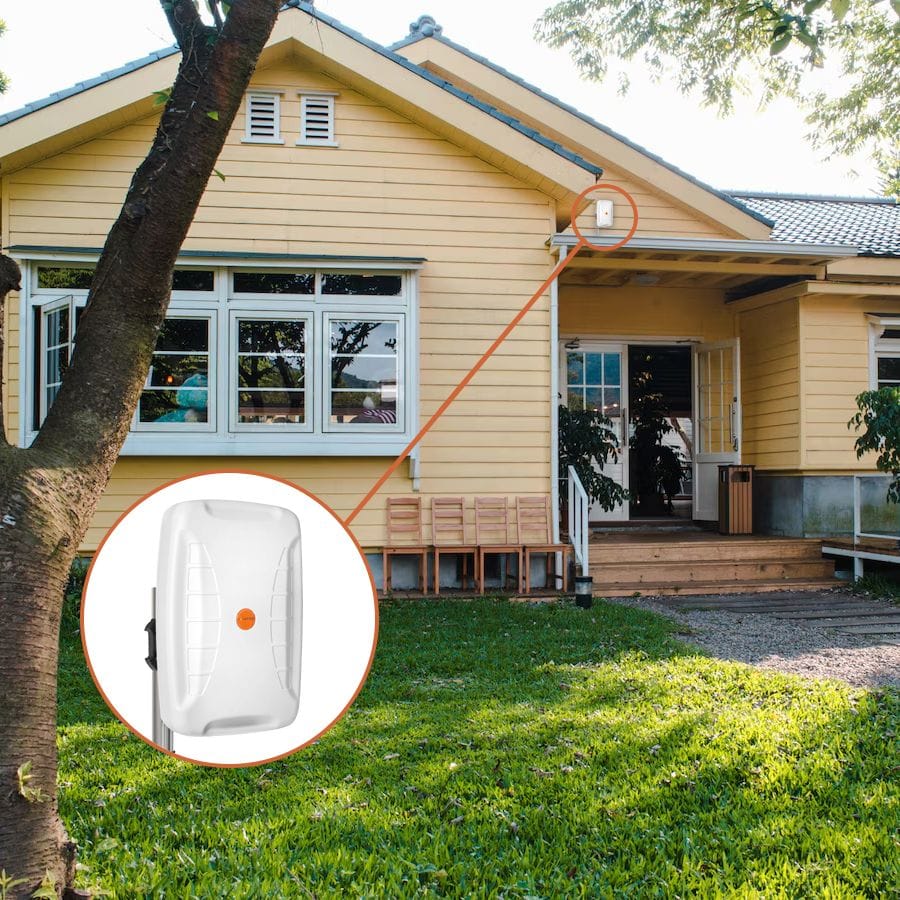

- Improving reception in urban and rural households
- LTE/5G data distribution for agriculture and agriculture
- Access to energy, energy and water telemetry
- Oil and gas communication systems
- Range extender and amplifiers

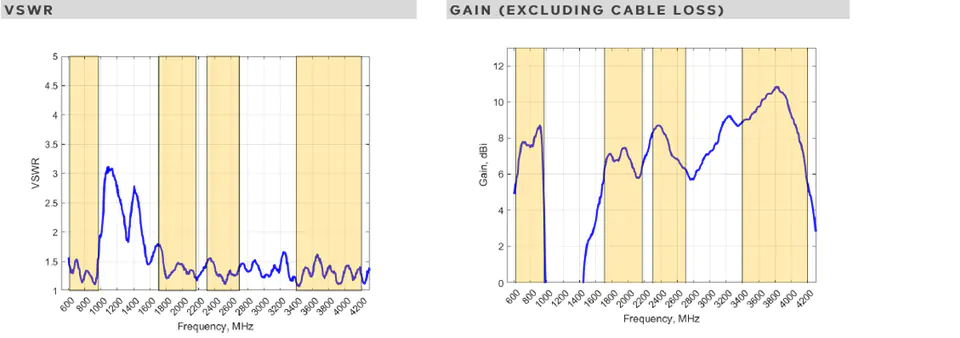

Voltage Wave Factor (VSWR)*
VSWR is a measure of how efficiently radio frequency power is transmitted from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, which corresponds to VSWR 1:1. XPOL-24 provides excellent performance on all bands with VSWR < 2:1.

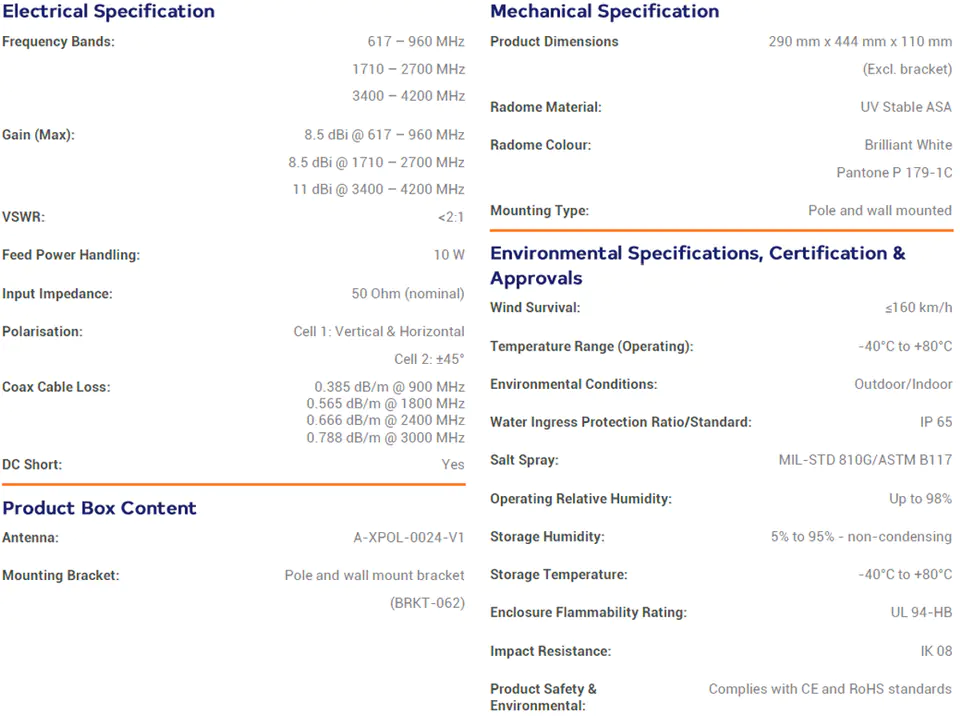

Gain in dBi
11 dBi is the peak gain in all bands from 617 to 4200 MHz
- Gain at 617 – 960 MHz: 8.5 dBi
- Gain @ 1710 – 2700 MHz: 8.5 dBi
- Gain @ 3400 – 4200 MHz: 11dBi
*Antenna gain measured with standard polarization-aligned antenna
Click here for full antenna technical documentation.
