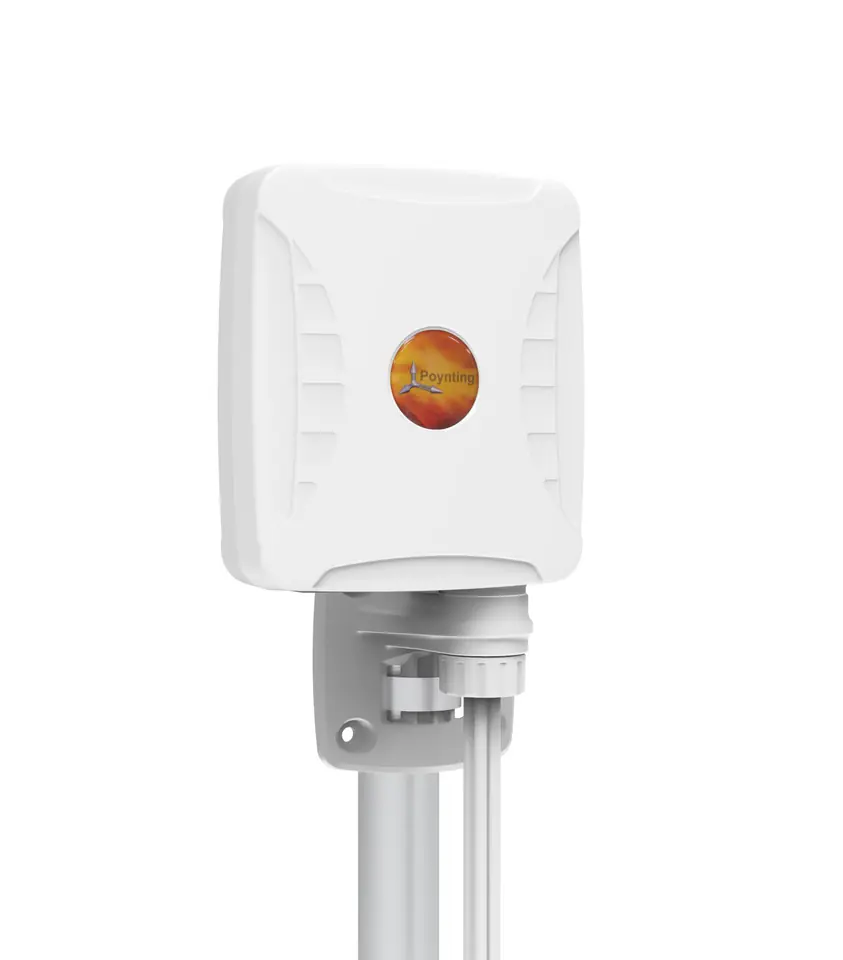

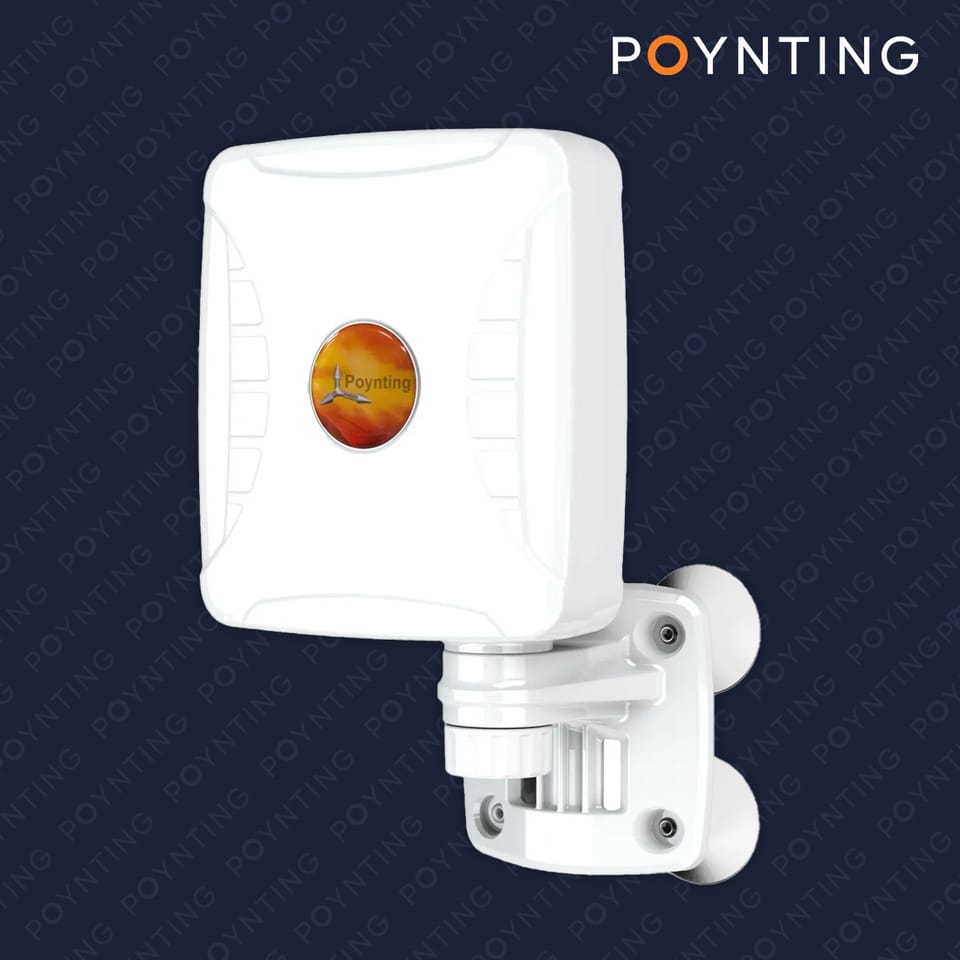

Panel antenna Poynting XPOL-1-5G-21 2x2MIMO 3dBi

€128.96
Shipping from warehouse: ⁨D3⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
POYNTING
Product code:
6009710920763

Omnidirectional Broadband Antenna Poynting XPOL-1-5G-21 (2x2 MIMO) 3 dBi

XPOL-1-5G is the second generation of XPOL-1 Poynting, 2x2 MIMO antenna with cross polarization (XPOL). Depending on the user's needs, a 4X4 MIMO version is also available. The antenna has been completely redesigned compared to the previous generation with a completely new housing and design. The antenna now includes the newer 3400-3800 MHz bands, as well as the desired lower band than 690 MHz, which the previous version did not contain. It is suitable for 2G, 3G, 4G and 5G. The antenna performs exceptionally well in the following frequency bands: 698-960 MHz, 1700-2700 MHz and 3400-3800 MHz, with a peak gain of 3 dBi in the operating bands. The radiation characteristics of this antenna are multidirectional and very well controlled, which further increases the efficiency of the antenna. This makes the antenna ideal for most applications such as urban, rural, agricultural and commercial areas to achieve the best possible coverage over a large area. The robust design of the housing makes the antenna resistant to weather, dust and vandalism and provides it with an IP65 rating, suitable for harsh environments.

Poynting anteny

- Ultra-wideband operating range from 698 to 960 MHz, from 1710 to 2700 MHz and from 3400 to 3800 MHz;
- Thoughtful, decorrelated antennas provide excellent MIMO performance in cellular bands;

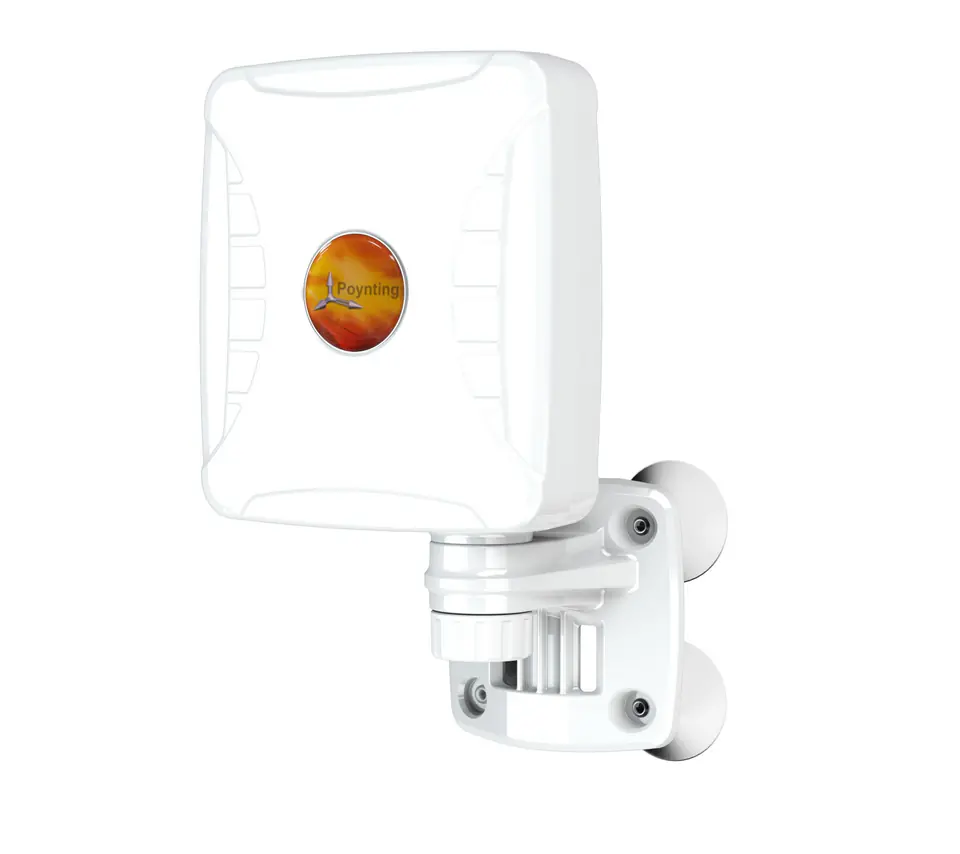

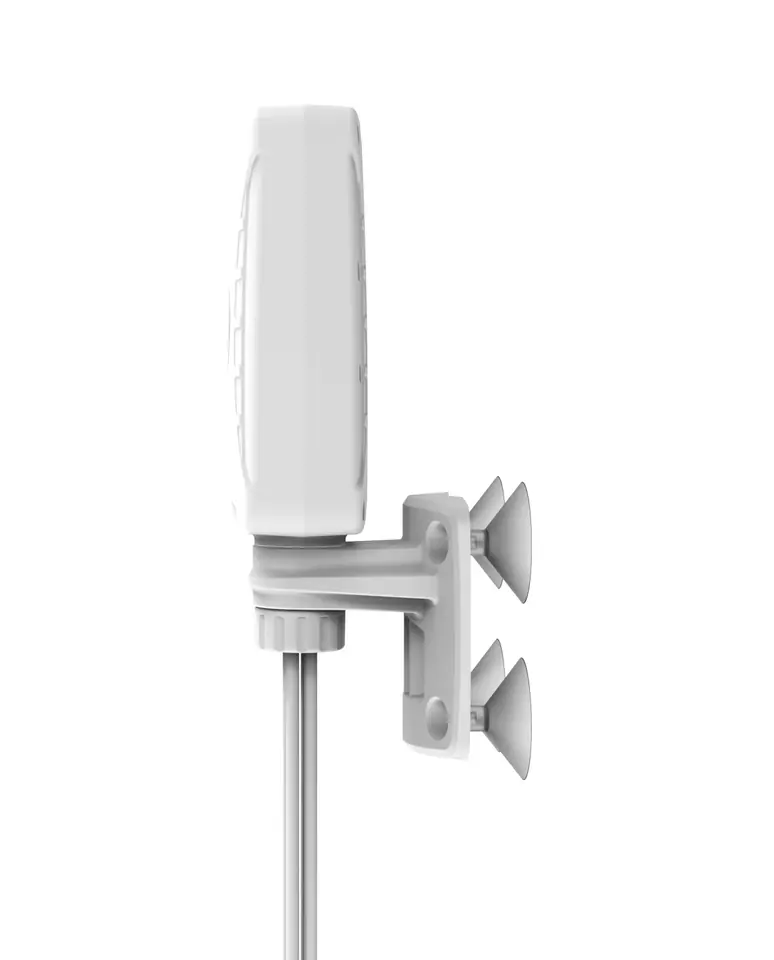

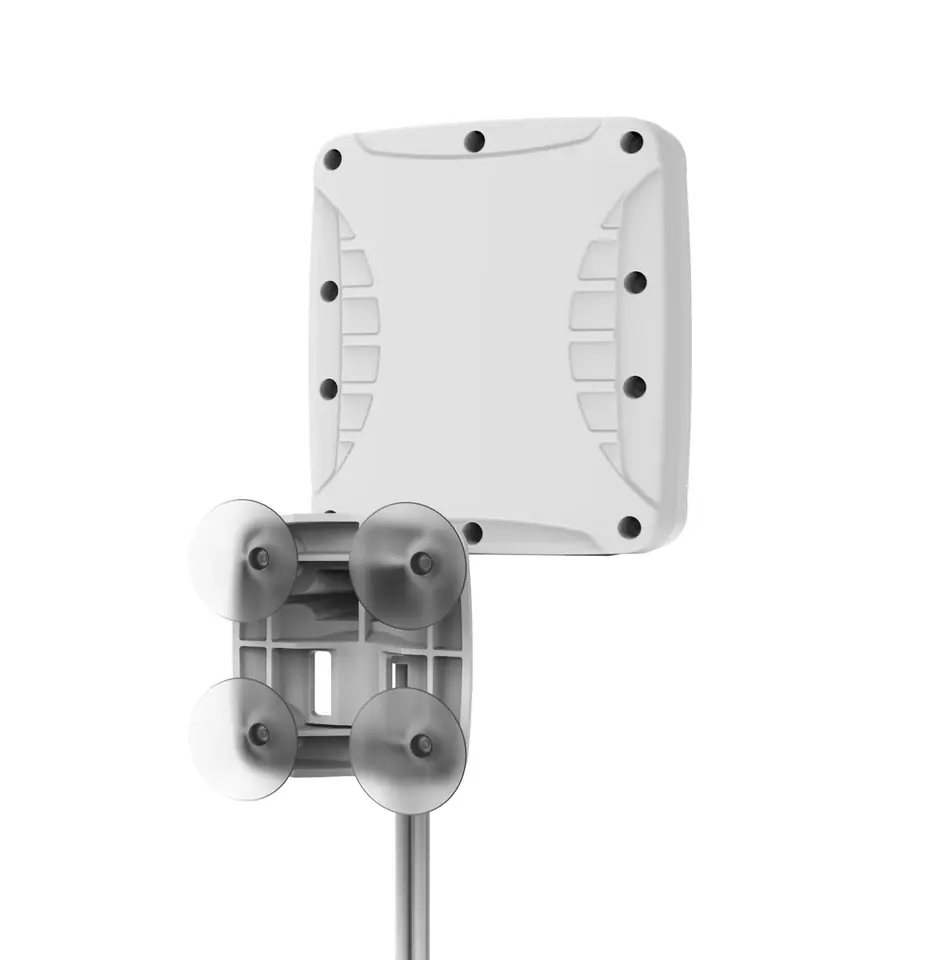

- Can be mounted in a window, on a wall or pole, light weight and durable housing;
- Careful mechanical design provides strength, corrosion, water and dust resistance (IP 65);
- Available in two versions: 2x2 MIMO and 4x4 MIMO.

Najważniejsze cechy anteny
Najważniejsze cechy anteny

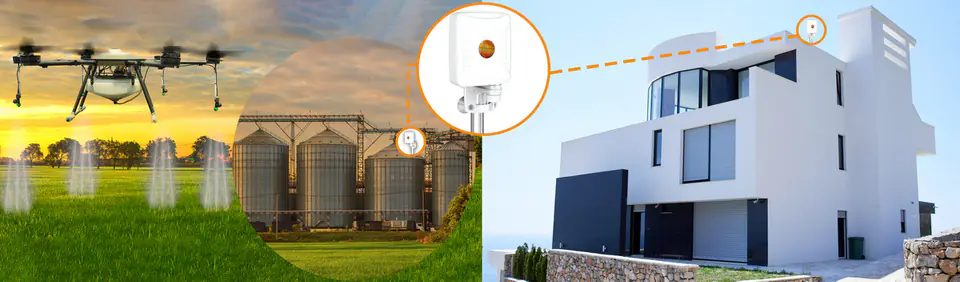

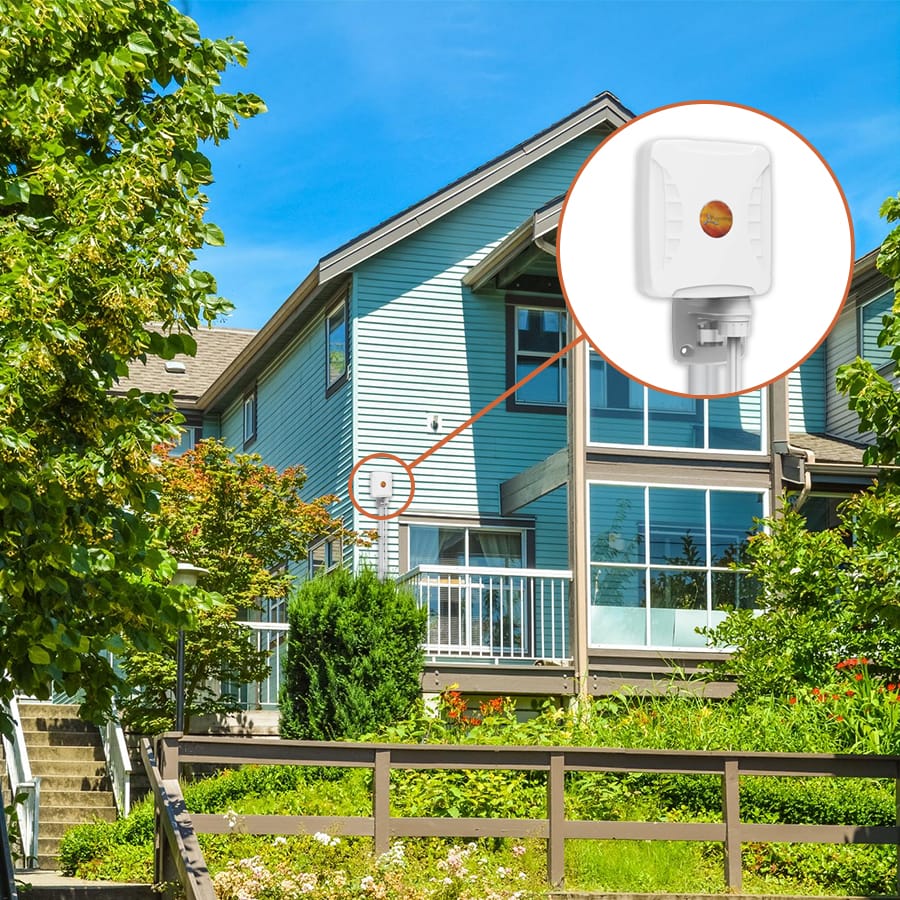

- Urban and suburban areas;
- Private residences, small and medium-sized local businesses;
- Small offices and offices at level "0" or "-1";
- Where the coverage is at a weak average level;
- In agriculture and agritourism;
- In the fuel and gas industry.


Panel antenna Poynting XPOL-1-5G-21 2x2MIMO 3dBi

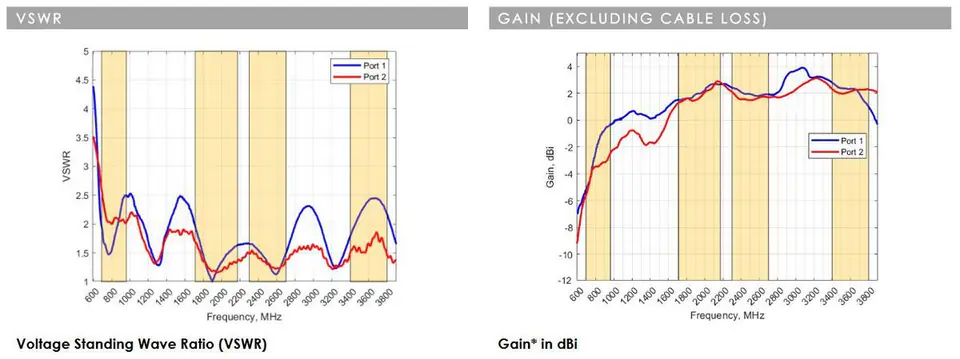

Voltage Wave Factor (VSWR)*

VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, which corresponds to a VSWR of 1:1.
Measured with a cable length of about 2m.

Gain in dBi

3 dBi is the peak gain for all bands from 698 to 3800 Mhz: the graph above on the right shows the gain in each of the operating ranges.

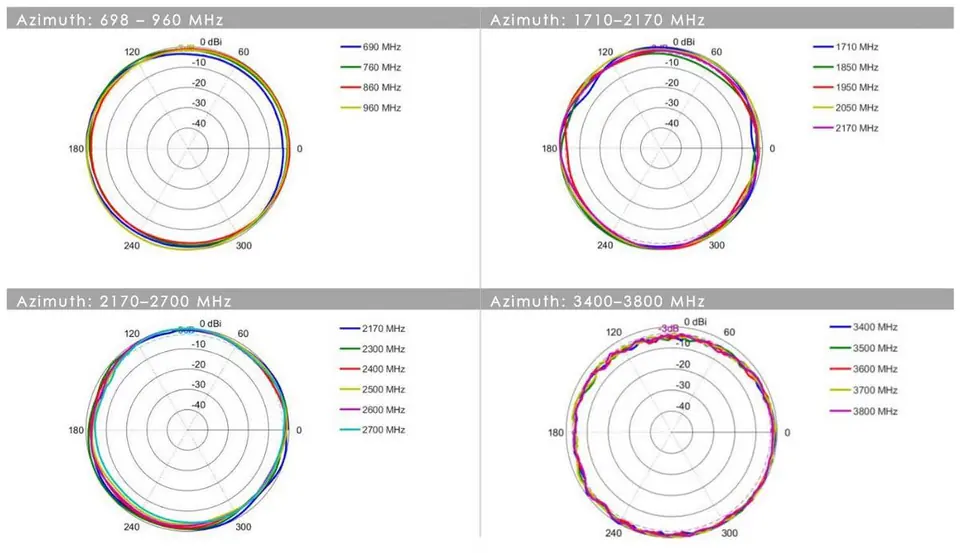

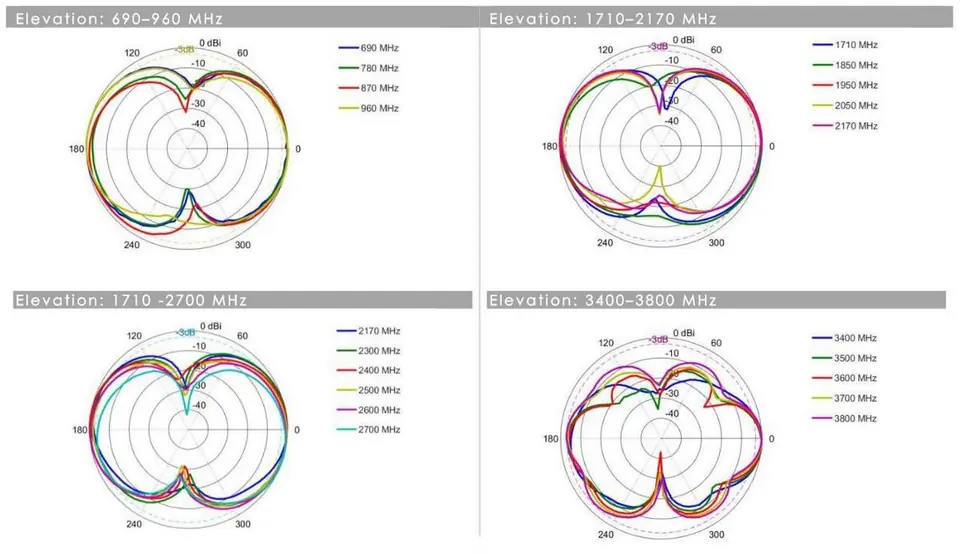

Wykresy anteny
Azymut rozmieszczenie pokrycie
Panel antenna Poynting XPOL-1-5G-21 2x2MIMO 3dBi

link: https://www.youtube.com/watch?v=_oxtECCwne8

Click here for full technical documentation of the antenna.

Panel antenna Poynting XPOL-1-5G-21 2x2MIMO 3dBi
Specyfikacja techniczna anteny
Panel antenna Poynting XPOL-1-5G-21 2x2MIMO 3dBi

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
