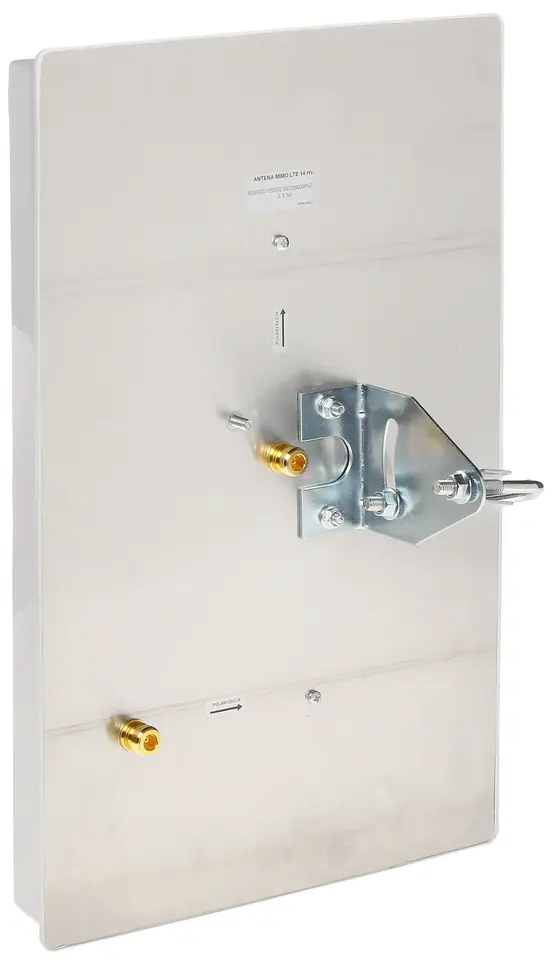

PANEL ANTENNA ATK-P14/800-2600

€68.23
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ATK-P14/800-2600 / 5904094280124

Specification

Dimensions::403 x 302 x 60 mm
Energy gain ::2 x max. 14 dBi @ 1800 ... 2600 MHz, 2 x max. 10 dBi @ 800 ... 900 MHz
Frequency range::800  ... 900 MHz, 1800 ... 2600 MHz
Impedance::50 Ω

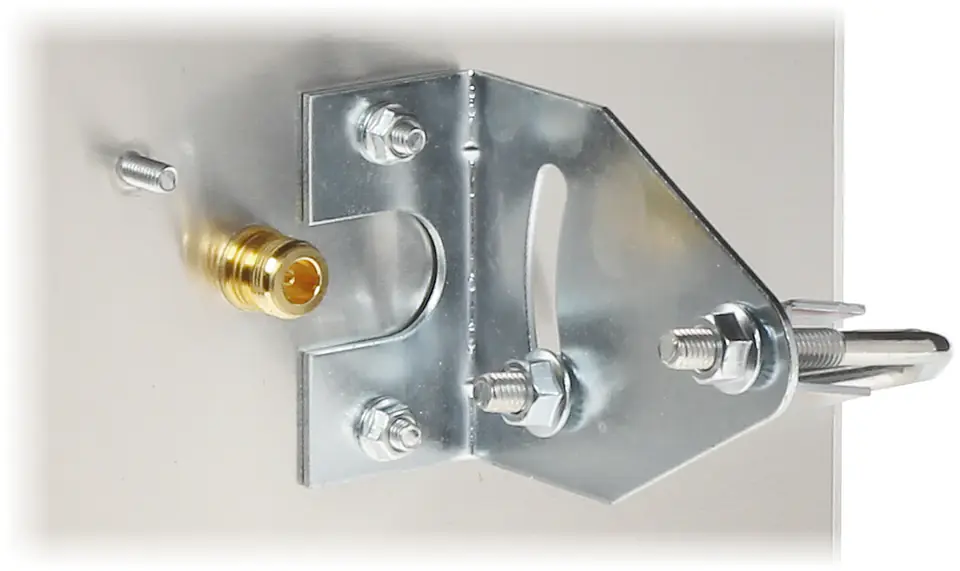

Joint::2 x "N" Socket
Polarity::Vertical / Horizontal
Scales::1.47 kg

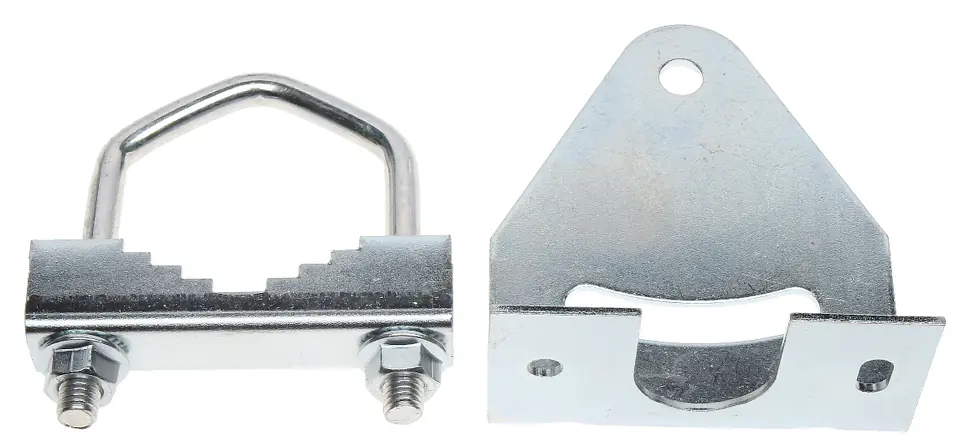

Selected features::Mast diameter Ø 35 ... 50 mm High resistance to wind and weather conditions
Warranty::2 years
Width of the main beam in the horizontal plane (h)::30 °
Width of the main beam in the vertical plane (v)::25 °

The ATK-P14/800-2600 antenna is specially designed for LTE Internet access serviceConnecting the antenna to the modem allows you to significantly increase the transmission speed by increasing the signal level

Only a dual antenna ensures proper operation and the best LTE performance

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
