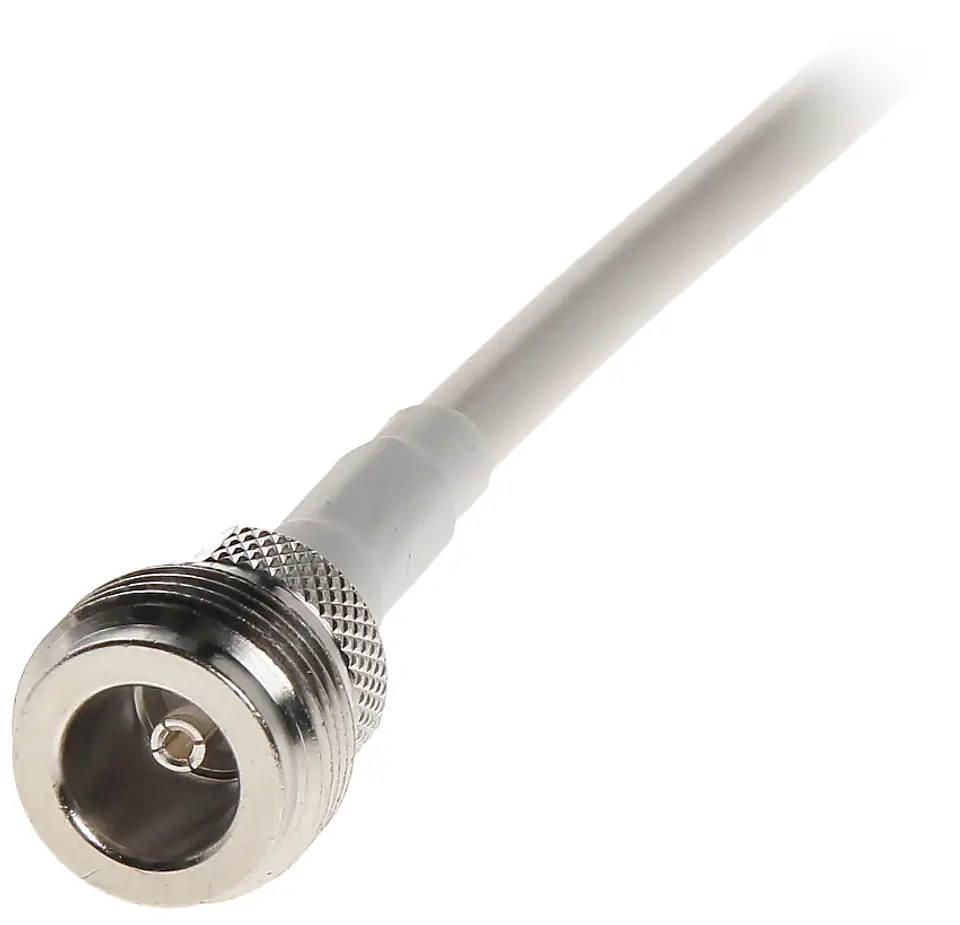

| Connectors:: | Socket N |
|---|---|
| Dimensions:: | 210 x 180 x 44 mm |
| Energy gain :: | 9 dBi @ 698 MHz ... 960 MHz, 10 dBi @ 1700 MHz ... 2700 MHz |
| Frequency range:: | 698 MHz ... 960 MHz, 1700 MHz ... 2700 MHz |
| Impedance:: | 50 Ω |
| Manufacturer / brand:: | Trans Data |
| Polarity:: | Vertical |
| Scales:: | 0.3 kg |
| Selected features:: | Cable length - 0.3 m, Very simple and quick installation |
| Vswr:: | < 1.5 |
| Warranty:: | 2 years |
| Width of the main beam in the horizontal plane (h):: | 60 ° ... 70 ° |
| Width of the main beam in the vertical plane (v):: | 45 ° ... 55 ° |

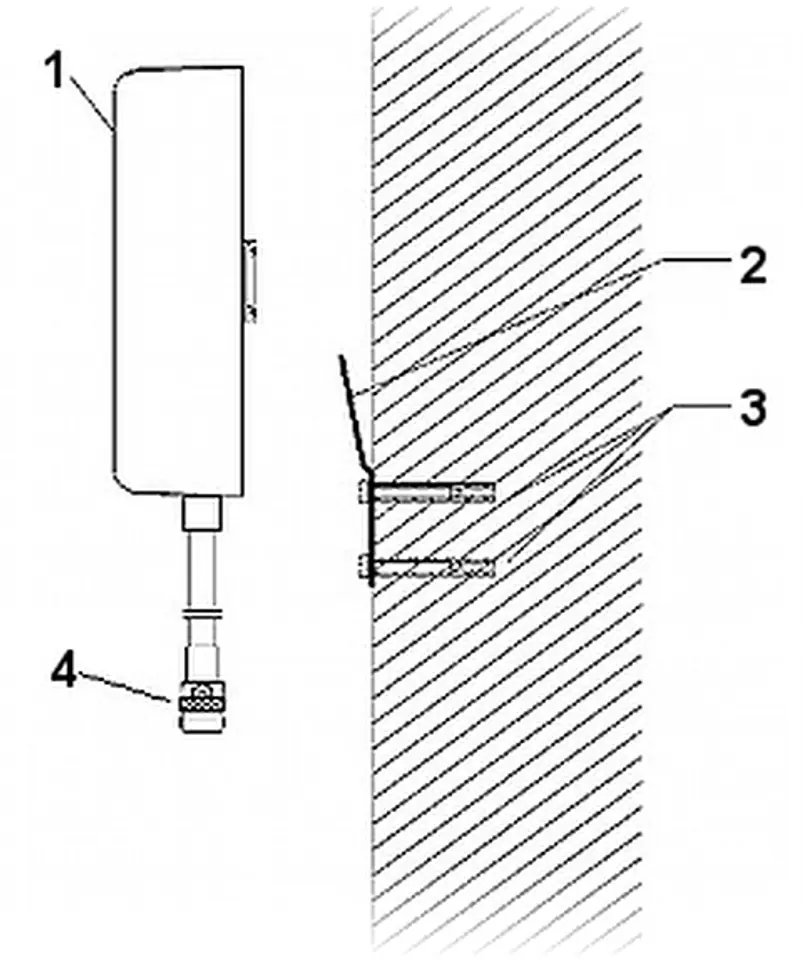

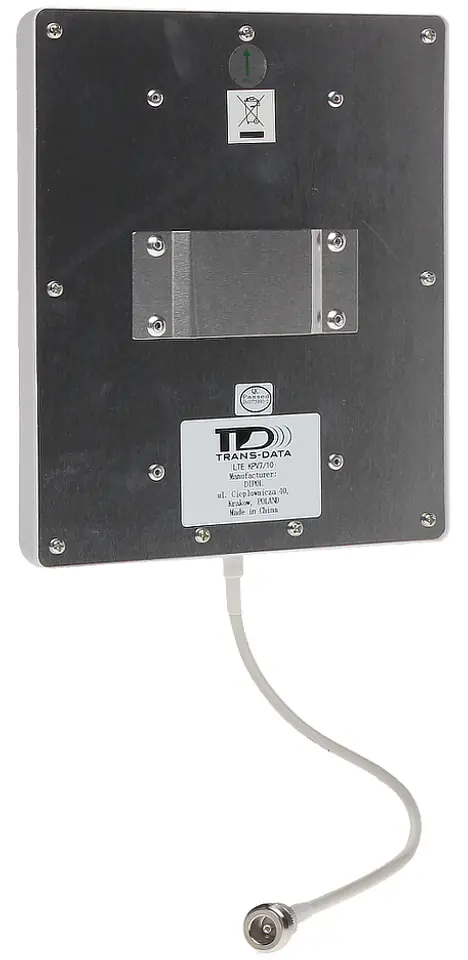

Directional panel antenna designed for outdoor or indoor installation, dedicated to receiving and transmitting LTE/GSM/3G signals, as well as GSM repeaters
The antenna perfectly solves the problems of insufficient signal level, which often occurs in the case of modems / devices with built-in antennas
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
