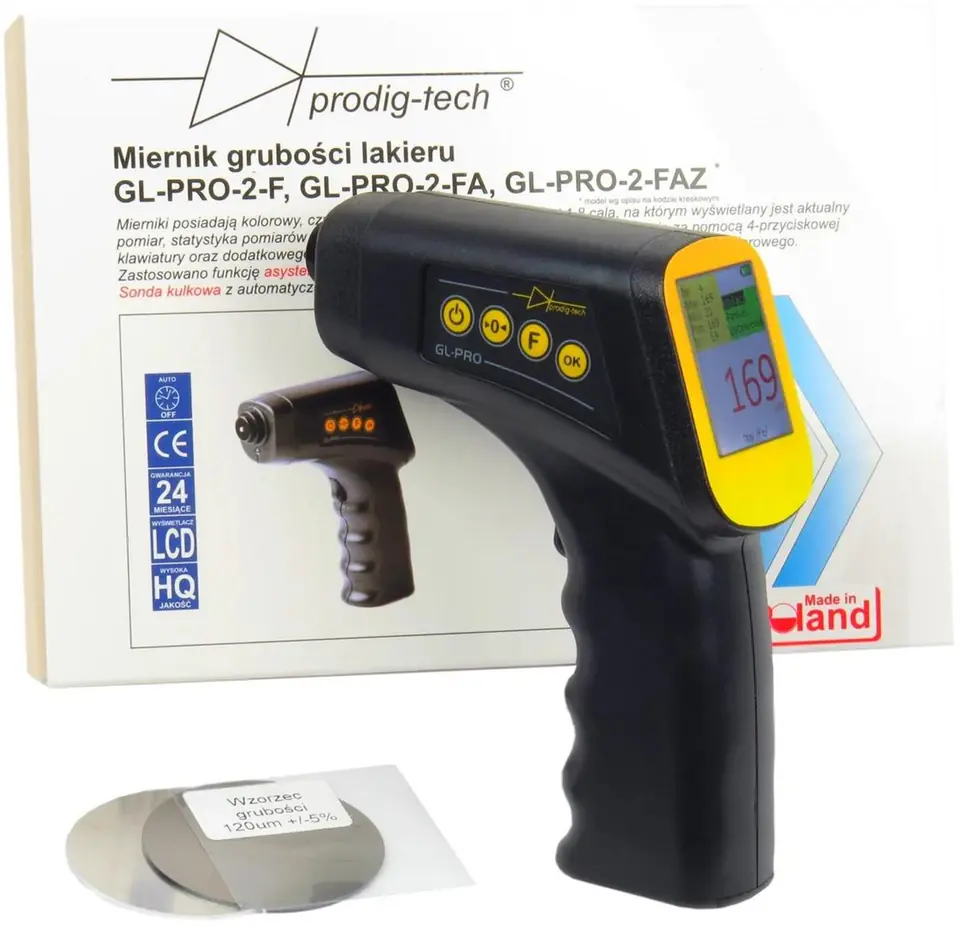

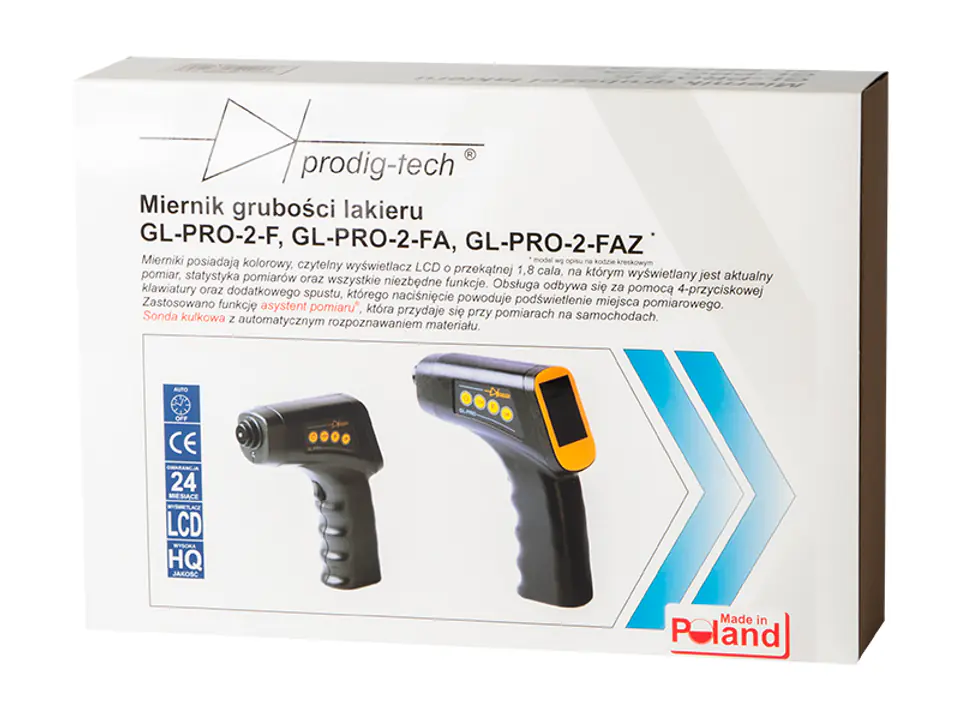

Currently, the GL-PRO-2 paint gauge is available in three versions:
– GL-PRO-2-F, measurement only on steel sheets;
– GL-PRO-2-FA, measurement on steel and aluminum sheets (automatic material recognition);
– GL-PRO-2-FAZ, measurement on steel and aluminum sheets (automatic material recognition with the function of detecting the zinc coating on the steel sheet).
GL-PRO-2 series meters are solutions based on modern 32-bit processors. As a result, a fast and accurate measurement was obtained using a 12-bit converter.

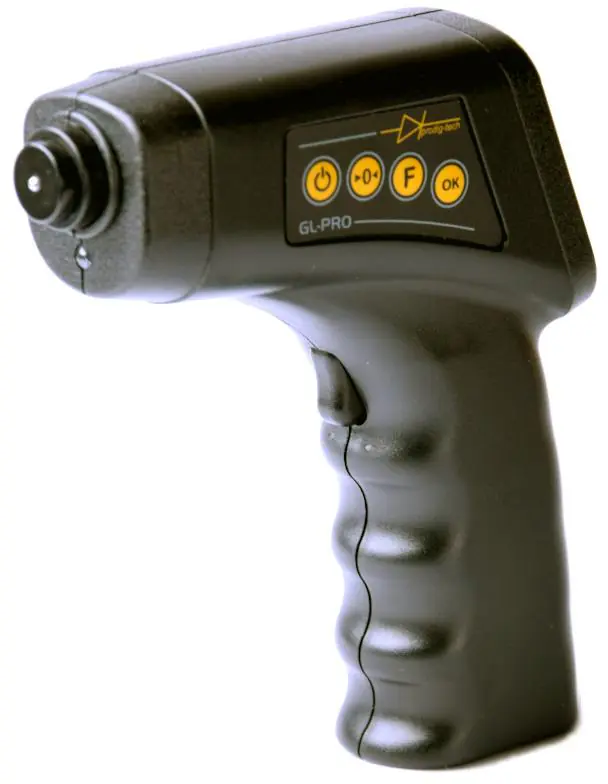

The meters use an innovative design of the measuring probe, which allows spot measurement on ferromagnetic and non-magnetic materials (depending on the version), automatically recognizing the tested material and informing on the display about the type of material. The probe ends with the so-called ball.
The distinguishing feature of the GL-PRO-2-FAZ meters is the automatic recognition of whether the ferromagnetic sheet is covered with a zinc layer or whether it is not galvanized. This is very important when measuring on the car – it will reveal to us which body elements were replaced with cheaper non-galvanized ones. The probe was completely developed by us.

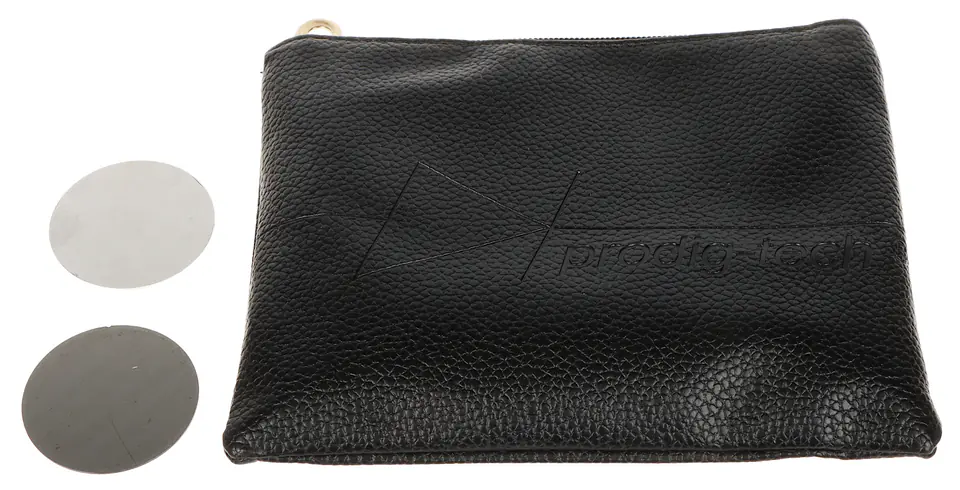

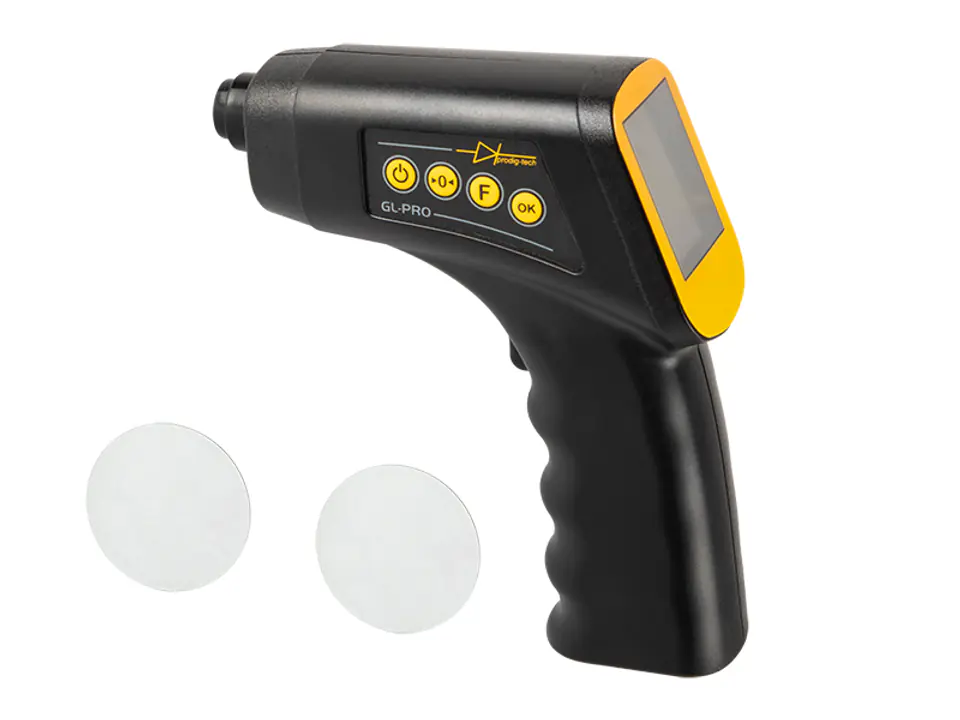

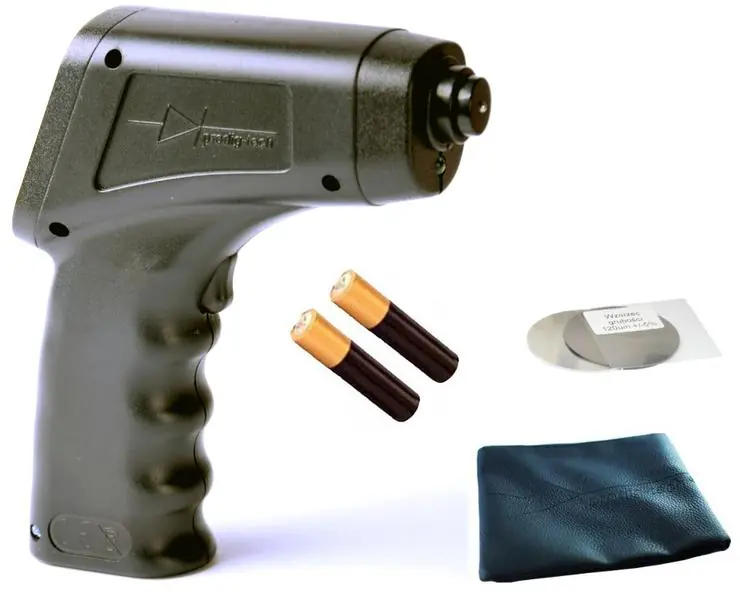

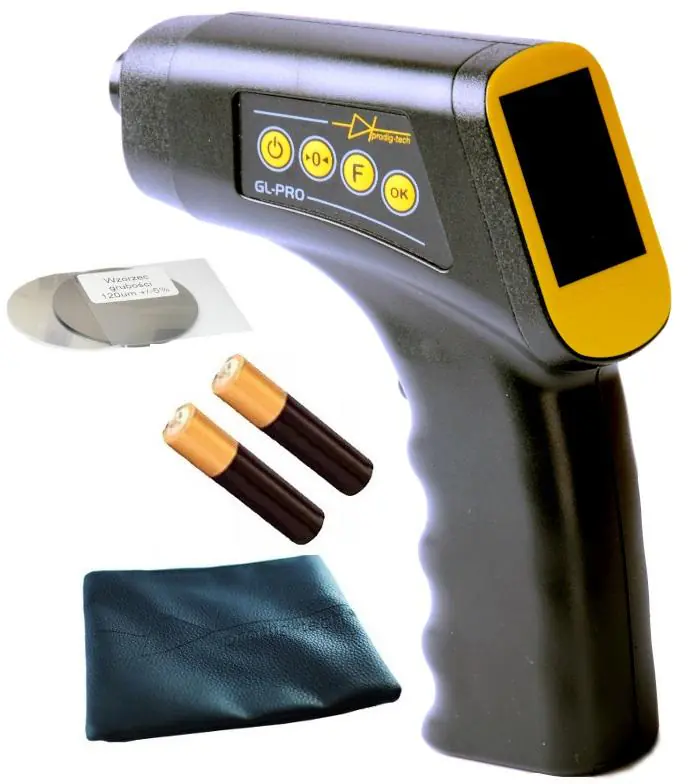

The meter has a calibration function on thickness standards (included in the kit).

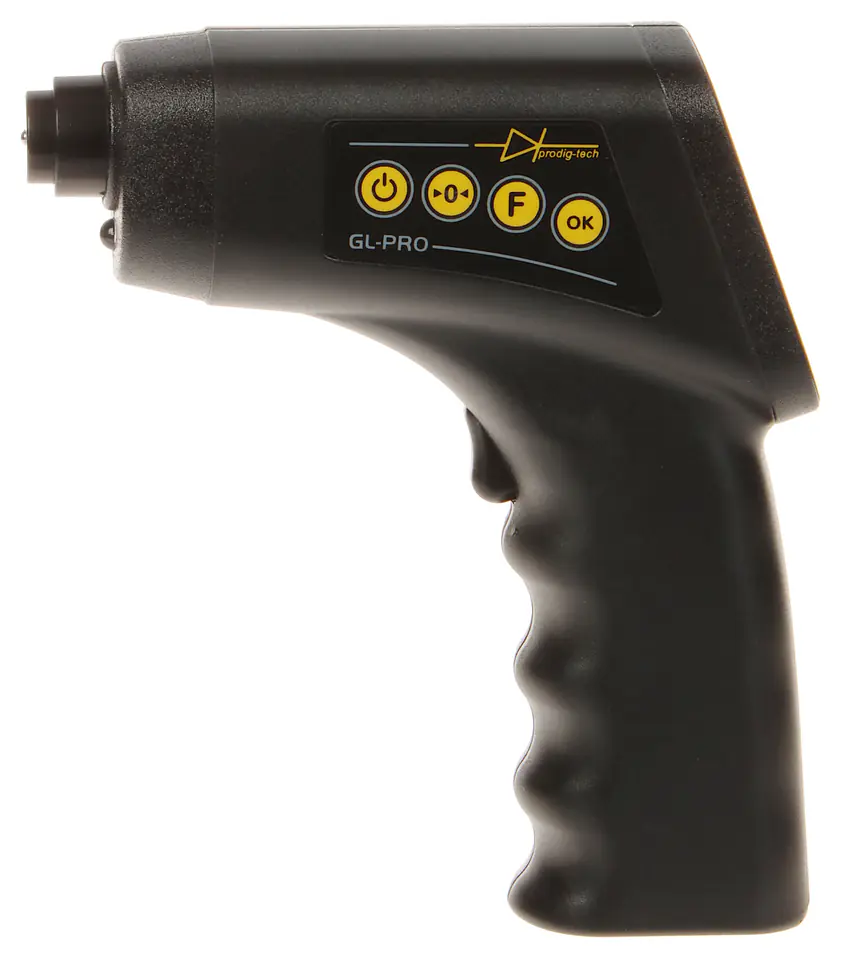

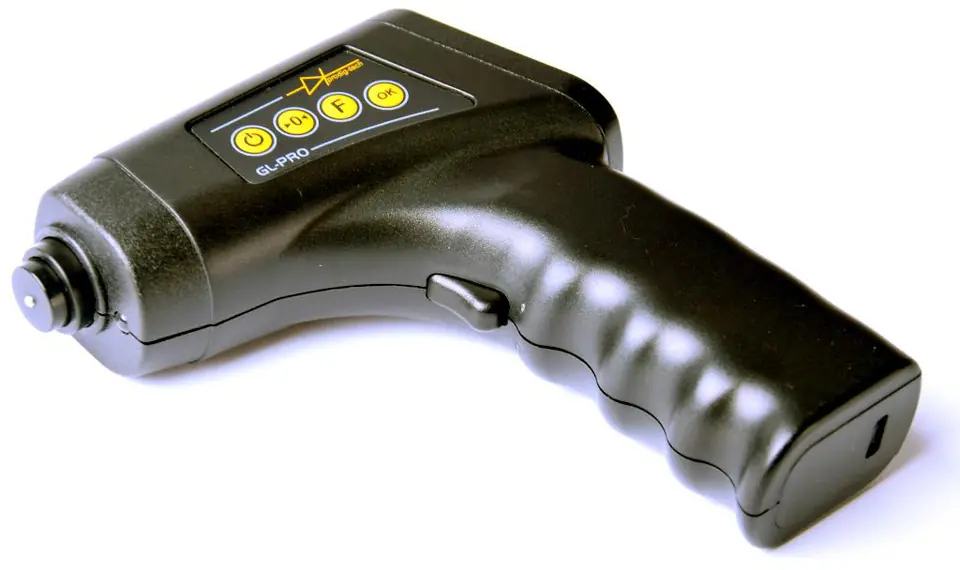

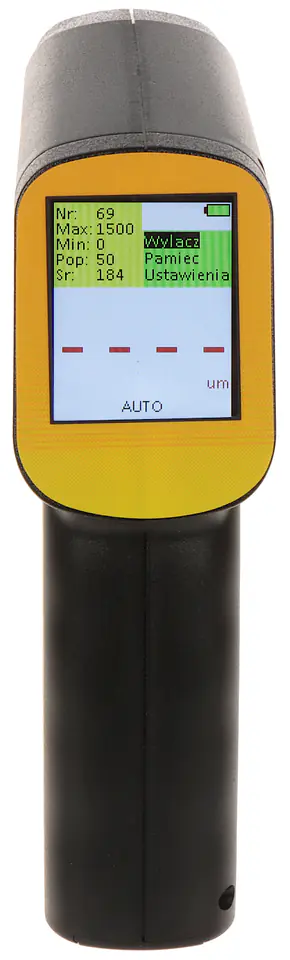

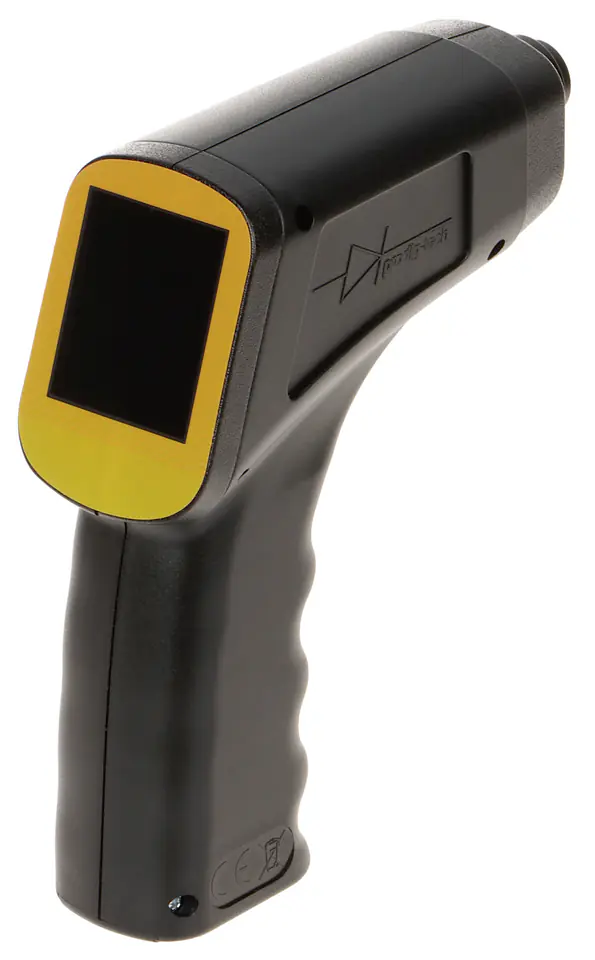

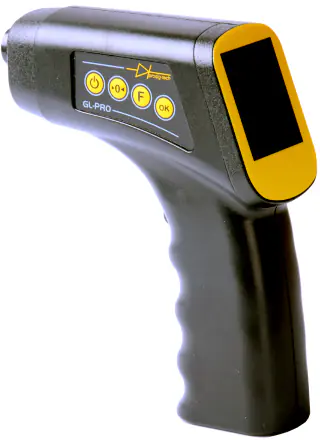

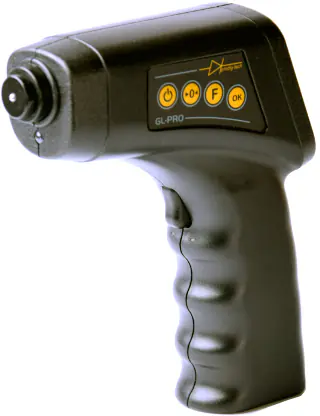

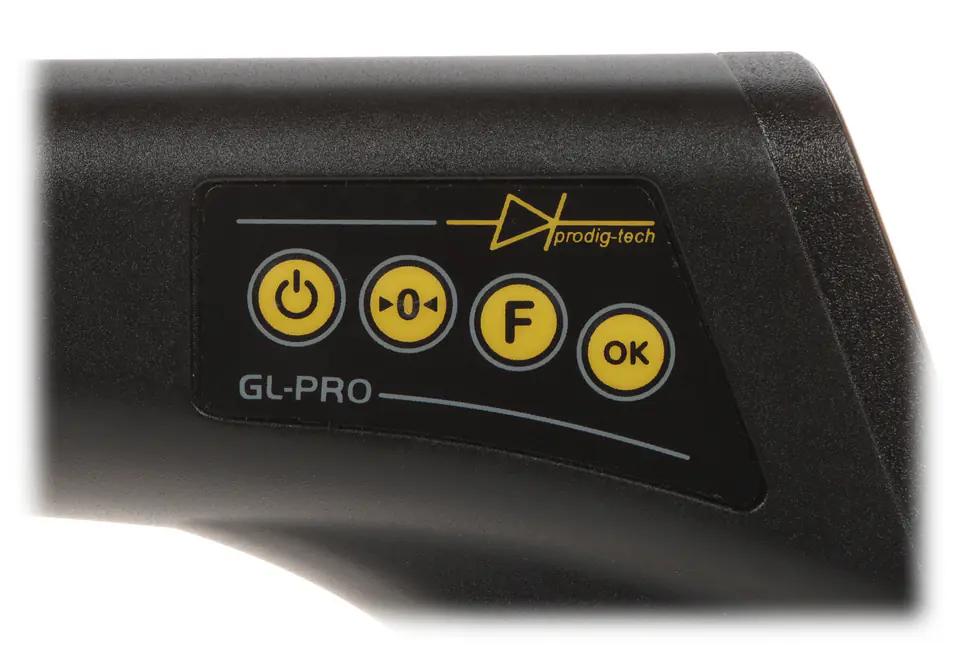

The meters have a color, legible LCD display with a diagonal of 1.8 inches, which displays the current measurement, measurement statistics and all necessary functions. Operation is carried out using a 4-button keypad and an additional trigger, the press of which illuminates the measuring place.
Basic features of the instrument:
· Sheet metal measurement (automatic detection):
– steel, Fe (models GL-PRO-2-F, GL-PRO-2-FA, GL-PRO-2-FAZ);
– aluminum, Al (models GL-PRO-2-FA, GL-PRO-2-FAZ);
· Automatic detection of zinc (Zn) on steel sheet (GL-PRO-2-FAZ model only);
· Automatic ground detection (not applicable to GL-PRO-2-F for sheet steel only);
· measuring range 0-2000μm;
· 1μm pitch for Fe, 5μm for nFe;
· minimum measuring field for nFe 15x15mm, for Fe 5x5mm;
· built-in, elastic probe, ending with the so-called ball;
· measurement statistics (quantity, maximum, minimum, average, previous);
· 3 operating modes: continuous measurement, measurement stop (HOLD 1), measurement freezing (HOLD 2);
· possibility of manual setting of the measurement mode, Fe or Al;
· memory of measurements 960 positions;
· measurement assistant for the automotive industry (graphic + text);
· calibration (using plates and thickness standard);
· sound signaling;
· diode illuminating the place of measurement;

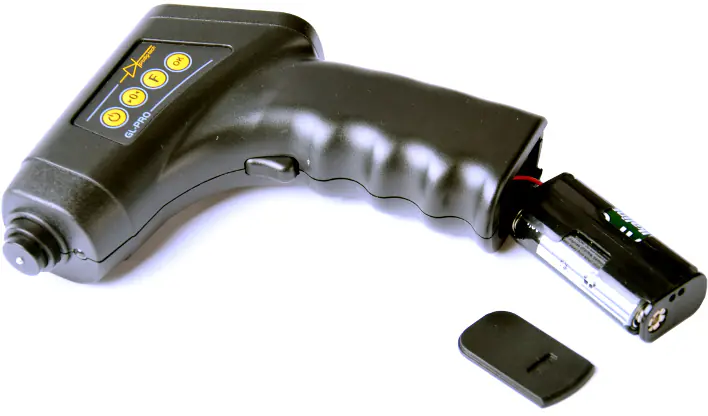

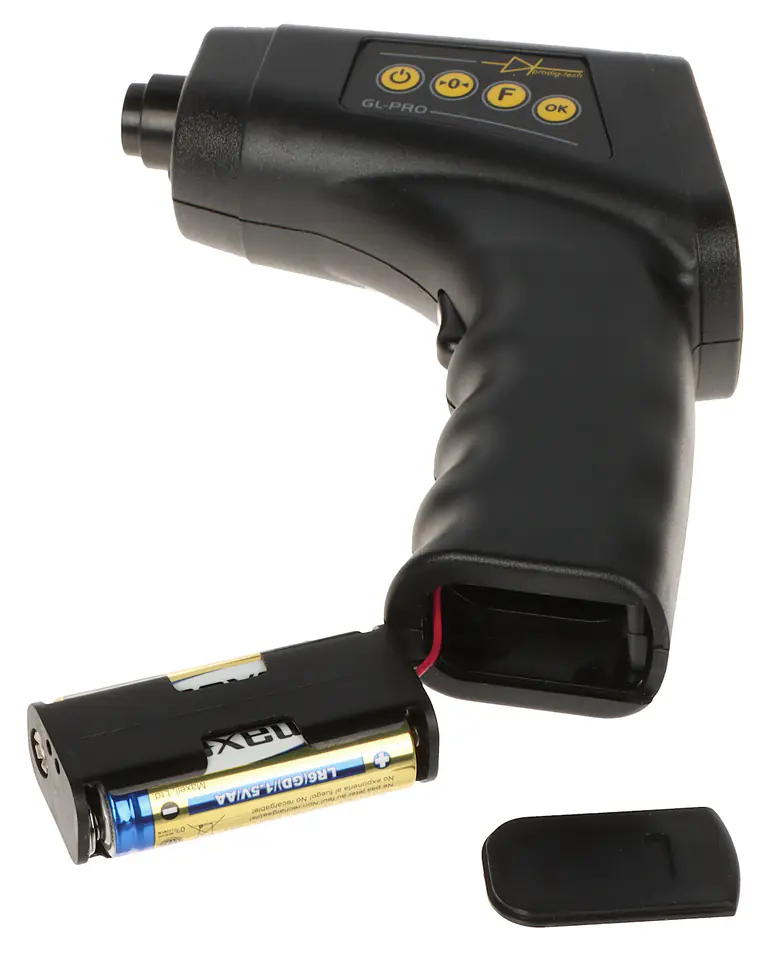

· power supply: two AA alkaline batteries (R6);
