| Case:: | Stainless |
|---|---|
| Colour:: | grey + black |
| Current:: | 3 A |
| Dimensions:: | 75 x 62 x 30 mm |
| Egress:: | NO/NC |
| Environmental class:: | II |
| Maximum switchable voltage of the reed switch:: | 125 V AC |

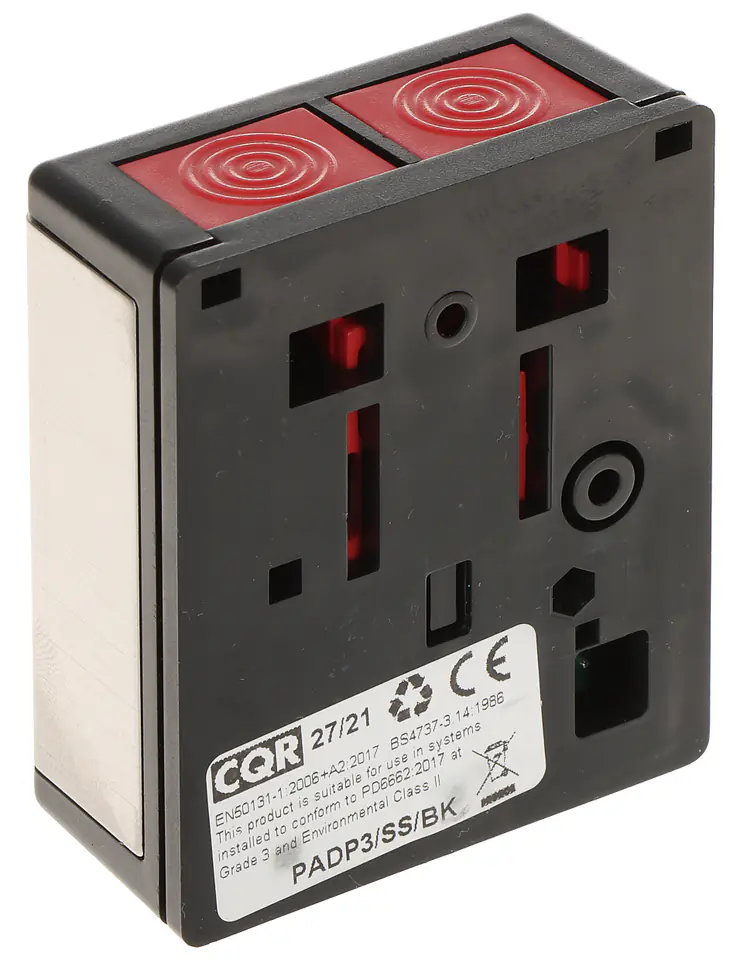

| Safety class:: | EN50131-1:2006+A1:2009 Grade 3 |
| Scales:: | 0.1 kg |

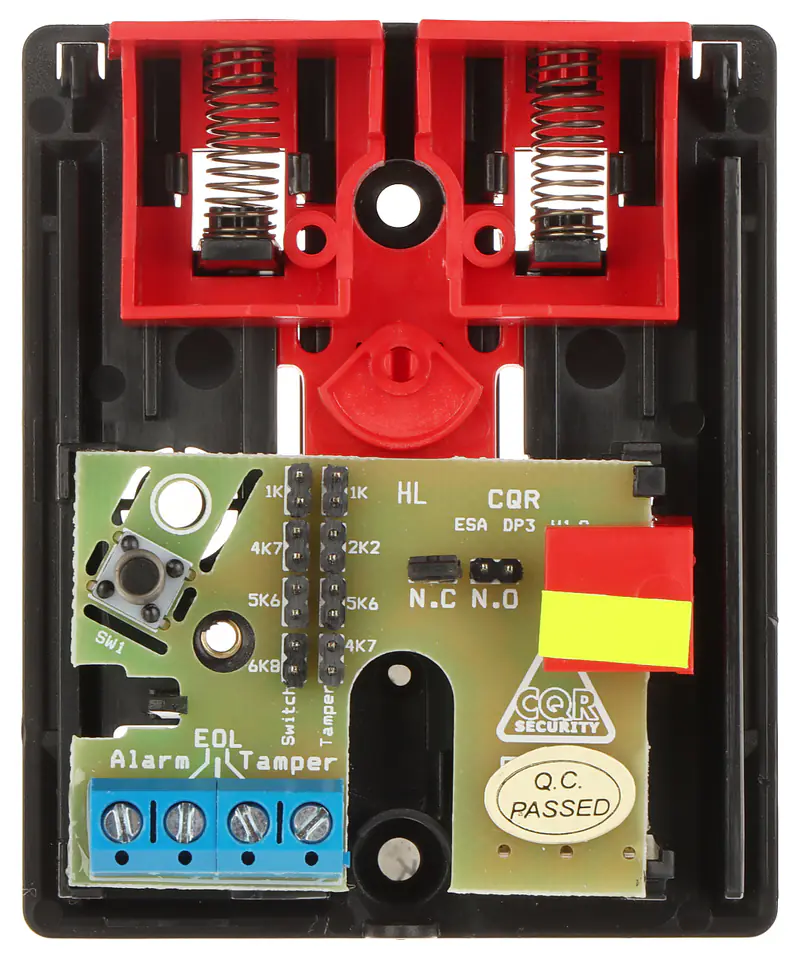

| Selected features:: | Button : In order to activate, press both buttons simultaneously - protection against accidental alarm activation, Manual Operation mode : snap /non-snap Reset - key Built-in parametric EOL resistors: 1 kΩ / 4.7 kΩ / 5.6 kΩ / 6.8 kΩ Surface mounting |
| Tamper protection:: | 24 VDC / 1 A |
| Warranty:: | 2 years |

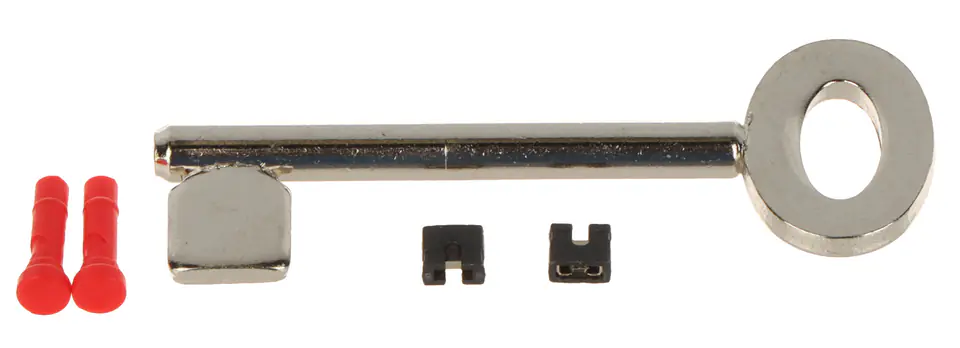

The button immediately triggers an alarm and/or notifies the monitoring station of the emergency situation in the protected objectIn the case of use, the key after pressing will remain in the alarm position (so-called mechanical memory), until it is reset with a special key
The device works with any alarm control panel that supports NO / NC detectors
