Specifications:
Gas Type:Oxygen
Inlet thread:G3/4
Rated inlet pressure:200 bar
Outlet pressure range:0.5-10 bar
Rated throughput:30 l/min
Outlet nut thread:G 1/4 (o)
Outlet connection (diameter):6.3 mm
Reducer Type:RB-Oxygen
Single-stage cylinder reducer is a leverless reducer with variable outlet pressure regulation. This reducer allows to reduce the pressure of gases taken from the cylinder to the required outlet (working) pressure and ensures automatic maintenance of this pressure at the most constant level regardless of changes in inlet pressure. The reducer is equipped with a safety valve, through which excess gas is released when the outlet pressure rises above the permissible limit. The maximum inlet and outlet pressure of the reducer is marked on the pressure gauges with a red line.
**

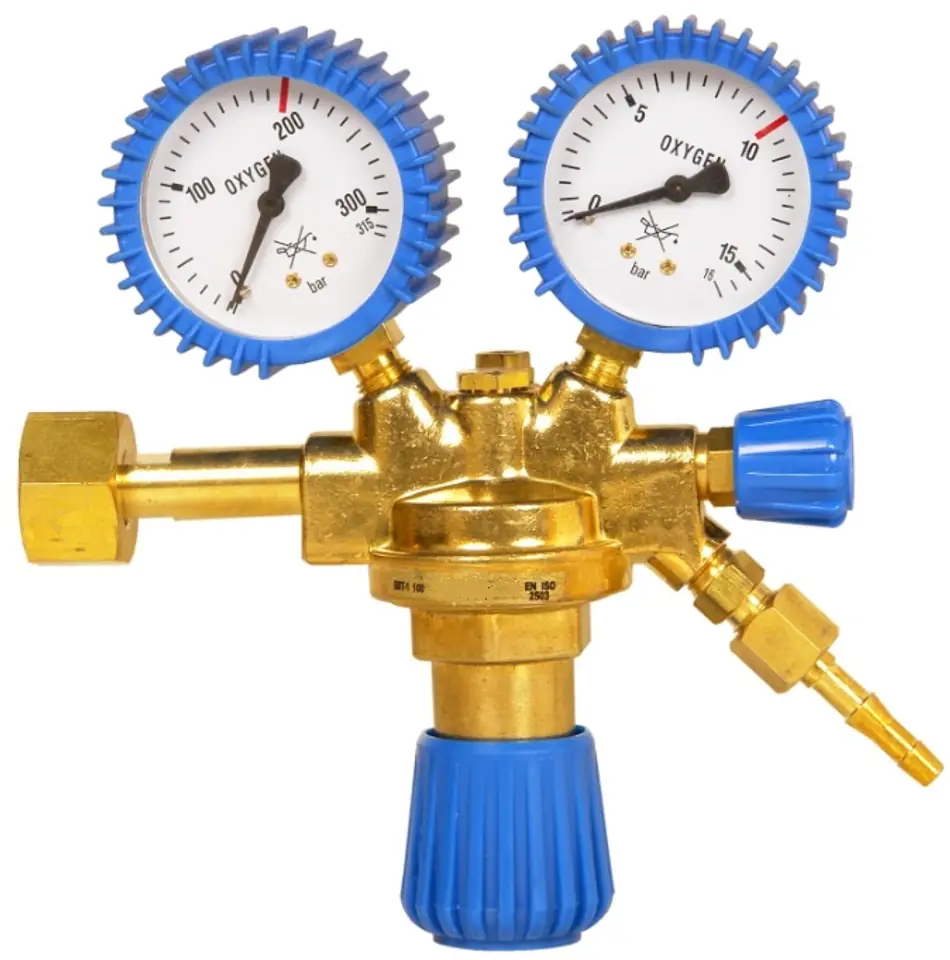

Illustrative photo.
OXYGEN REDUCER OR-10
PLN 194.99
Shipping from warehouse: A3
Estimated shipping: Mon, Apr 7 - Tue, Apr 8
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- UN
- Product code:
- RED110 / 5902561140056
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
