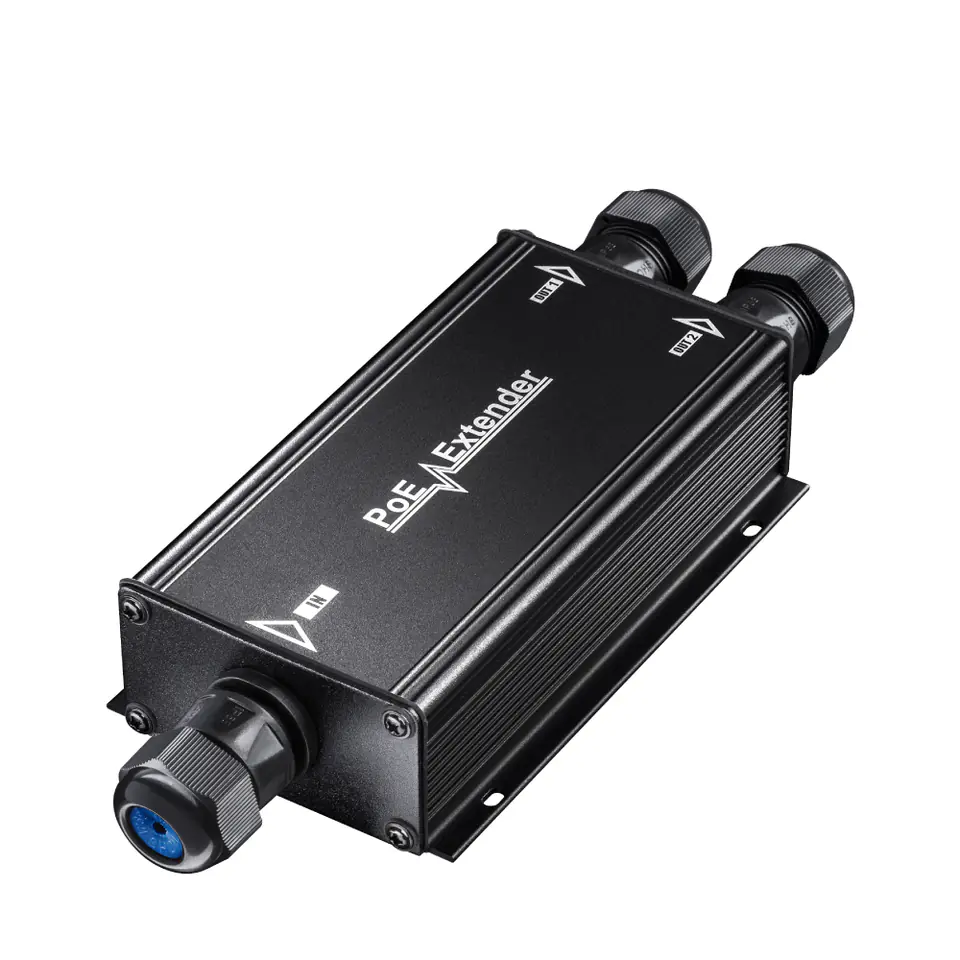

Outdoor PoE++ Extender 1x2 IP67 Gigabit POE25

€85.37
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Cudy
Product code:
POE25 / 6971690791506

Specification

Ac adapter included:Yes
Cabling technology:10/100
Depth:90 mm
Ethernet interface type:Gigabit Ethernet
Ethernet lan data rates:10, 100, 1000 Mbit/s
Height:40 mm
Networking standards:IEEE 802.3bt, IEEE 802.3ab, IEEE 802.3at
Number of products included:1 pc(s)
Operating temperature (t-t):-25 - 55 °C
Package type:Box
Pin assignment & polarity:1/2(-),3/6(+) and 4/5(+),7/8(-) / 1/2(+),3/6(-)
Plug and play:Yes
Power over ethernet (poe):Yes
Power over ethernet (poe) voltage:100 V
Product colour:Black
Quick installation guide:Yes
Rj-45 input ports:1
Rj-45 output ports:2
Storage temperature (t-t):-40 - 70 °C
Wall mountable:Yes
Width:230 mm

Outdoor extender 1x2 PoE / PoE+ 1 Gbps 60W 100m Cudy POE25

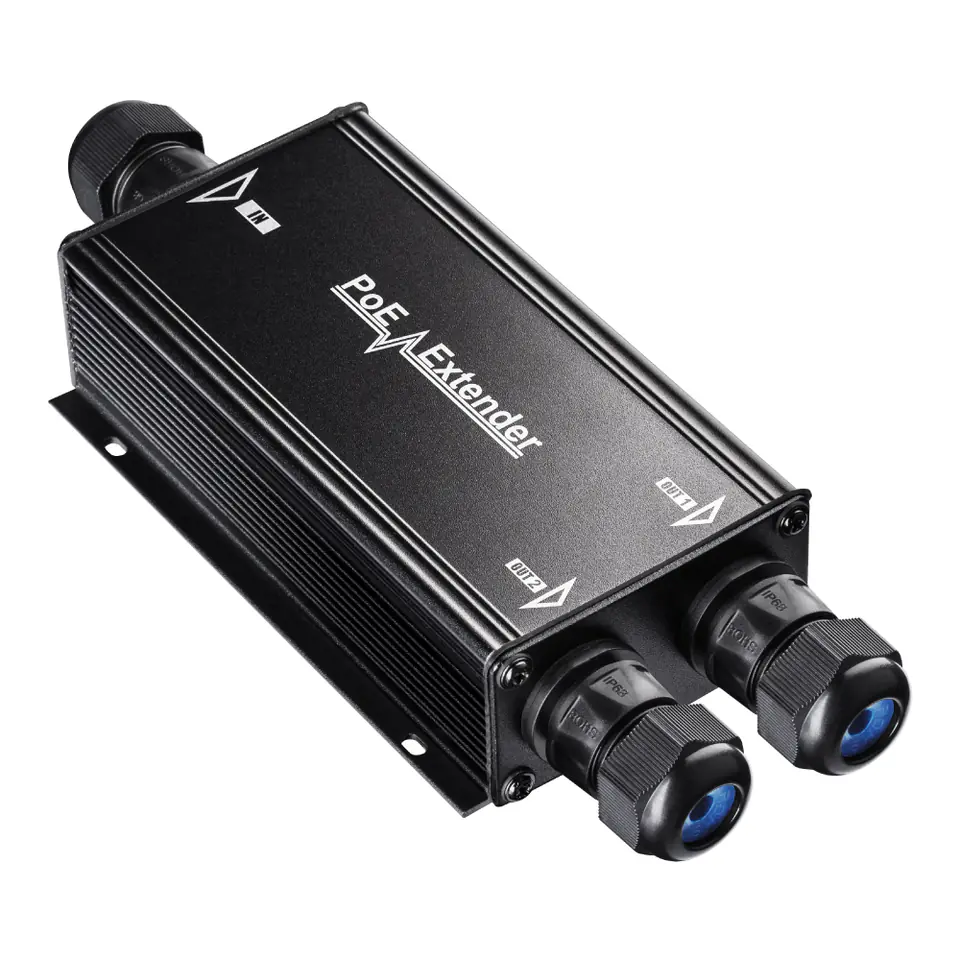

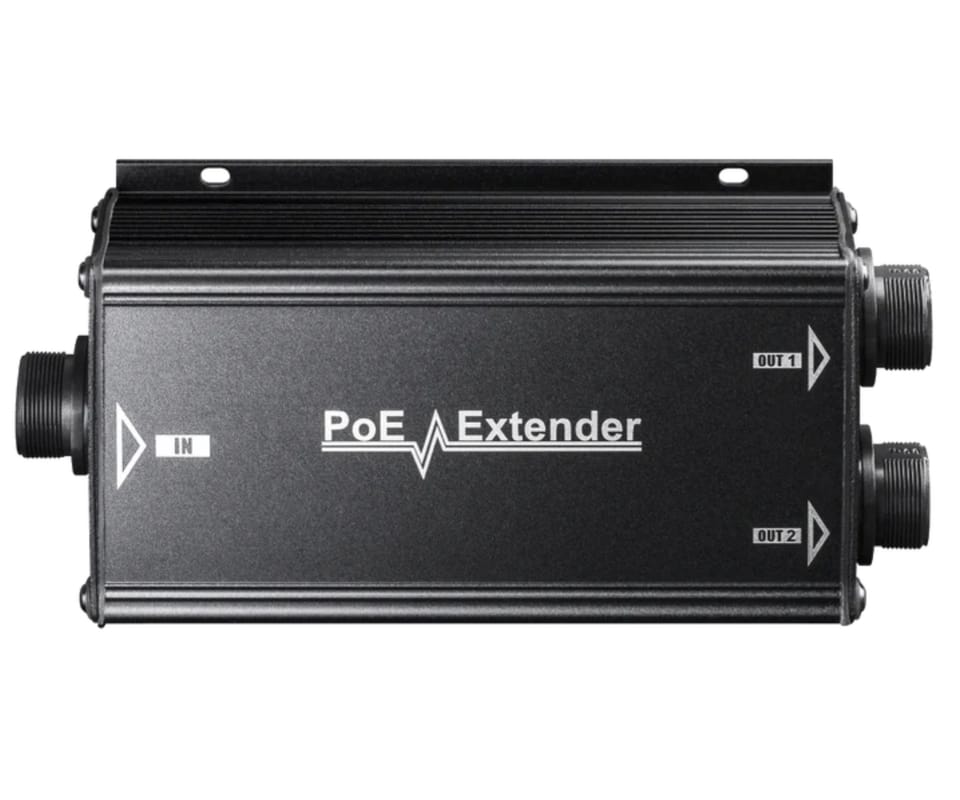

Outdoor PoE++ Extender 1x2 IP67 Gigabit POE25

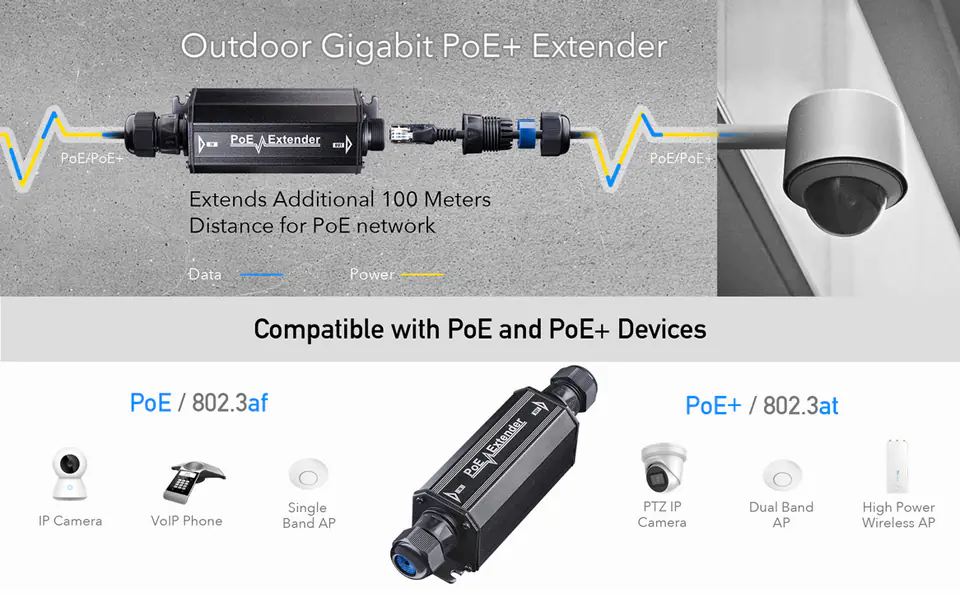

Cudy PoE+ extender is a device that provides power extensions to network devices. Thanks to it, we can increase the range of the POE network without using an additional power source. Extender has two ports with a speed of 1 Gbps, so we have the ability to connect many devices without worrying about the speed of data transfer. This model allows you to power devices up to 30W. The Cudy Extender works on the Plug & Play principle, so it does not require additional configuration. The housing has holes to attach the device to the wall.

Power over Ethernet PoE - what is it?

Zewnętrzny extender 1x2 POE+ 1Gbit

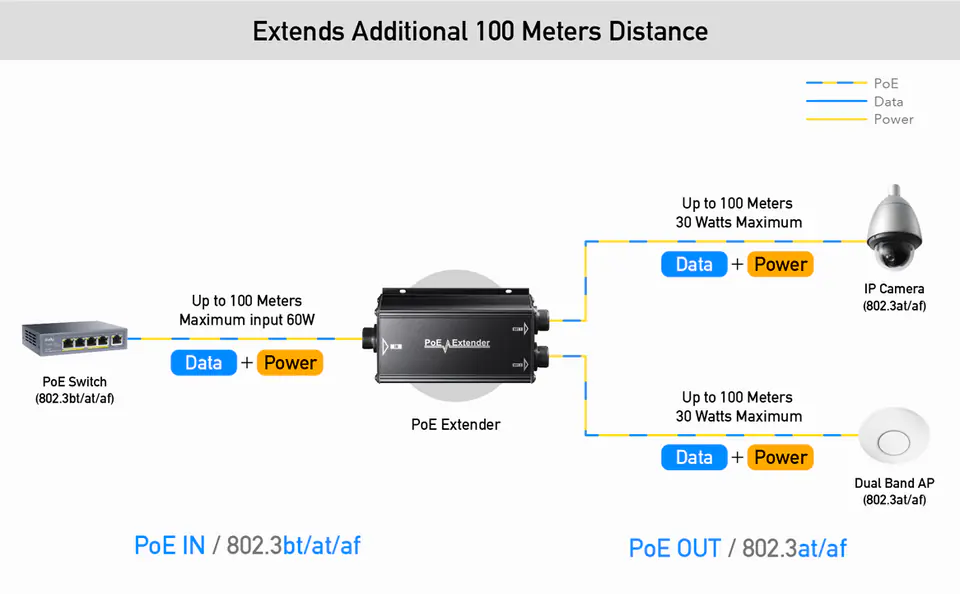

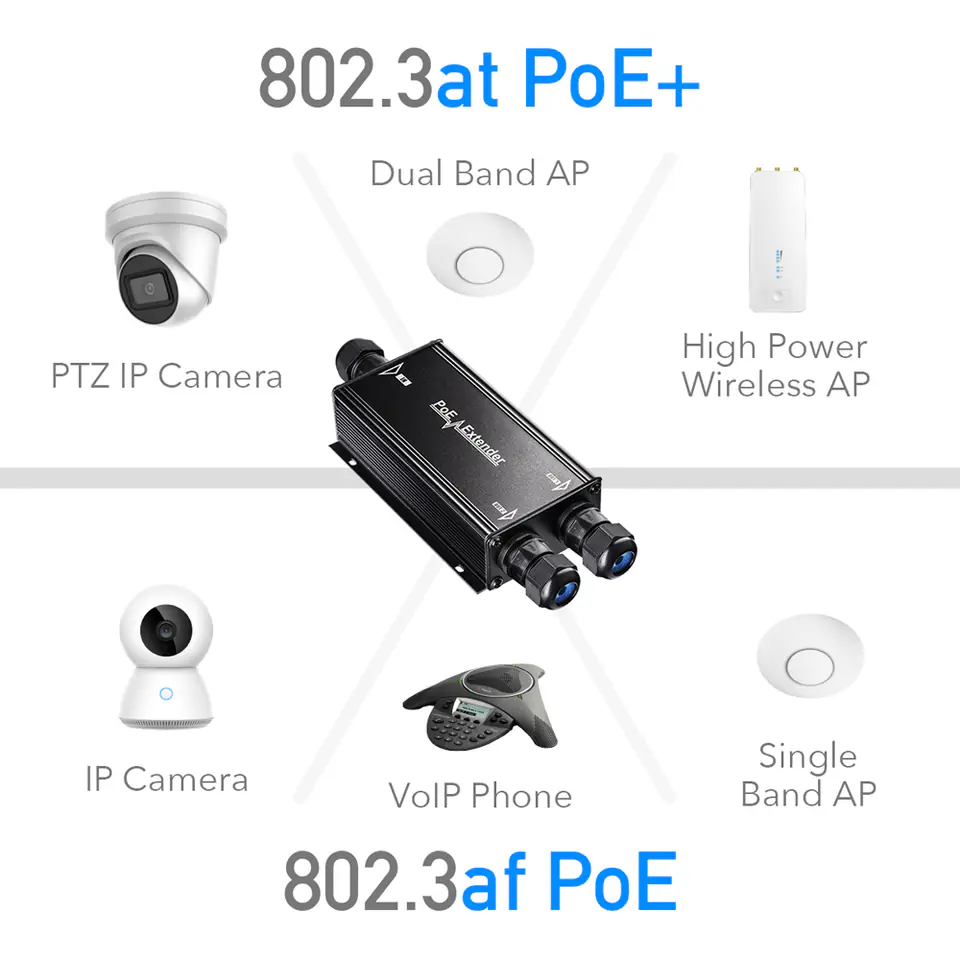

Power over Ethernet (PoE for short) is a technology for transmitting power over an ethernet cable. Thanks to this, we can simultaneously power the device and ensure the exchange of information. PoE technology is especially popular for IP cameras, VoIP phones, Internet access points (Access Points) and POS terminals. Network devices using PoE are convenient to use, which is why they are liked by installers. Taking for example the monitoring network - normally you would have to pull the power and transmission cable to each camera separately. Here we can use a switch that will simultaneously power the devices and send information from them.

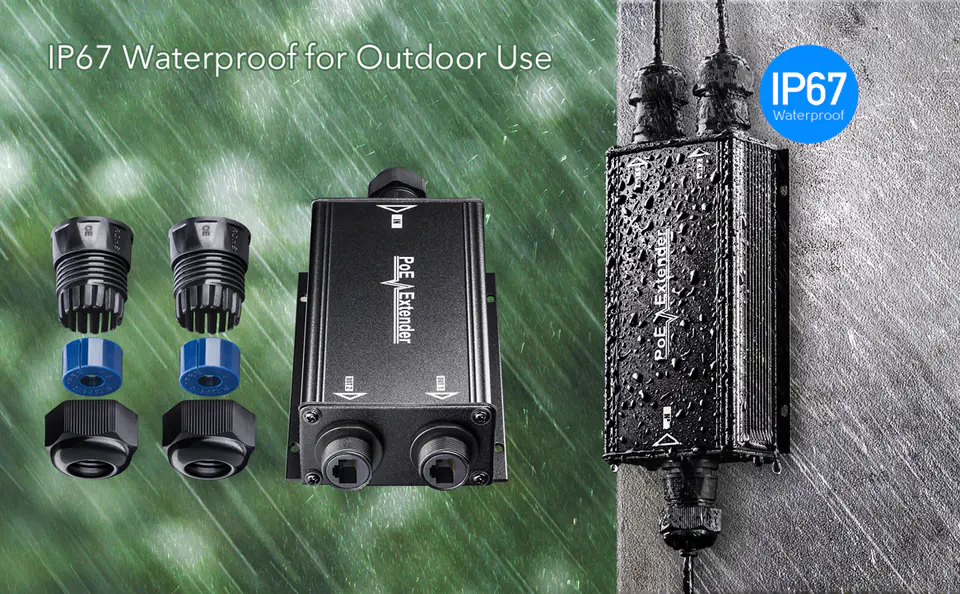

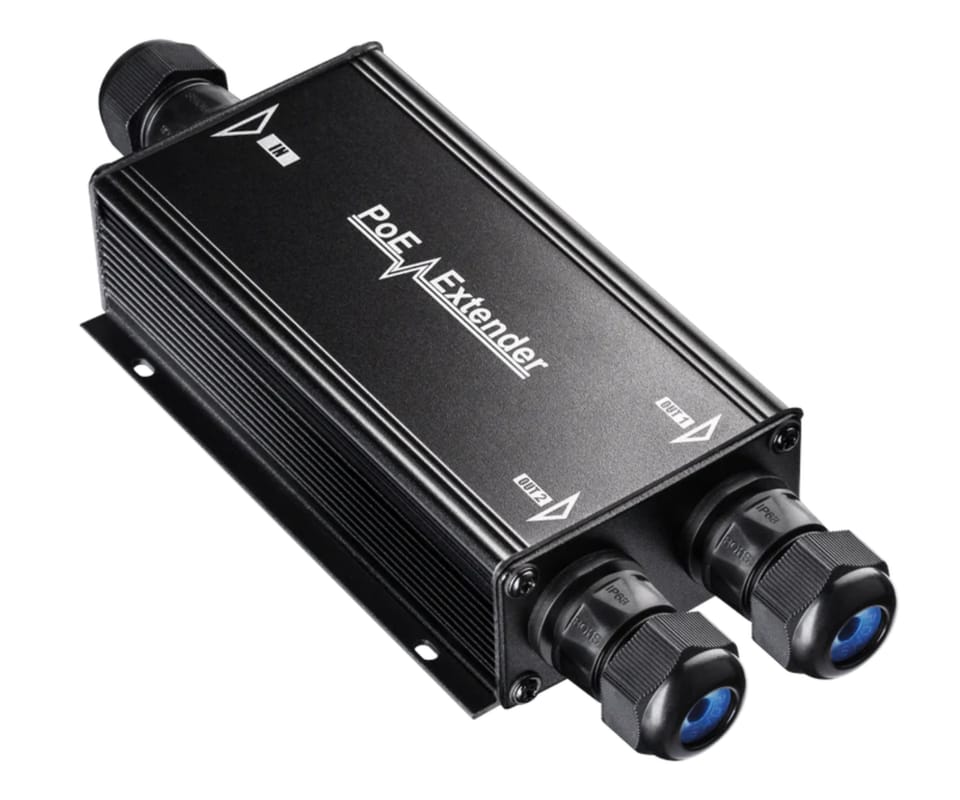

Outdoor POE+ extender

Extender zewnętrzny beczka ethernet POE+
Jak działa extender poe+

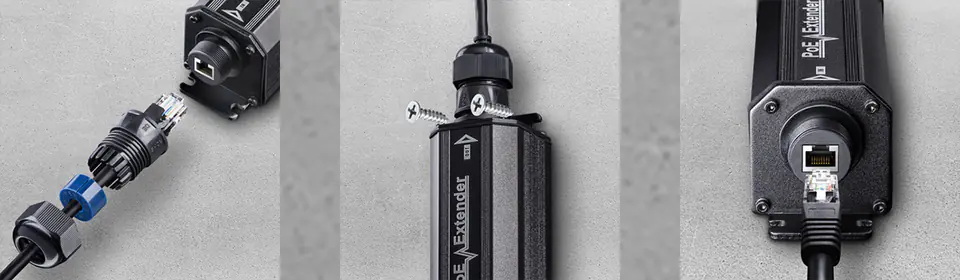

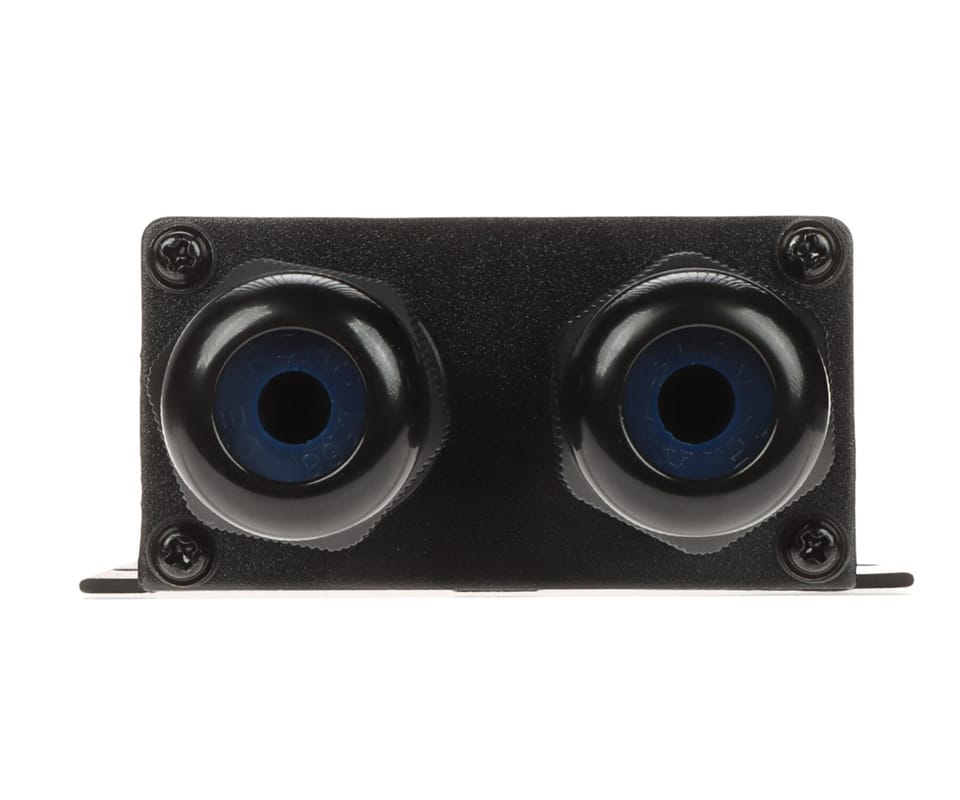

The POE+ extender has Gigabit ports (10/100/100 Mbps) on the input and output. Thanks to this, you can get data transmission at the highest level. The device can also be mounted on the wall with screws. The Plug & Play function is very useful here - just connect the cables and tighten the sealing nuts.





Technical Specifications:

extender 1x2 1 gbit 25W Cudy
