| Adjustable traffic routes: | 8 |
|---|---|
| Audio: | Built-in Microphone Built-in Speaker Support Two-way Audio Voice Prompts in English or Chinese |
| Automatic ir illuminator: | Adaptive adjustment of IR illuminator power to lens zoom and ambient light brightness |
| Case: | Speed Dome, Metal |
| Colour: | White + Black |
| Default administrator login / password: | admin / adminAdministrator password should be set on first run |
| Default ip address: | 192.168.1.168 |

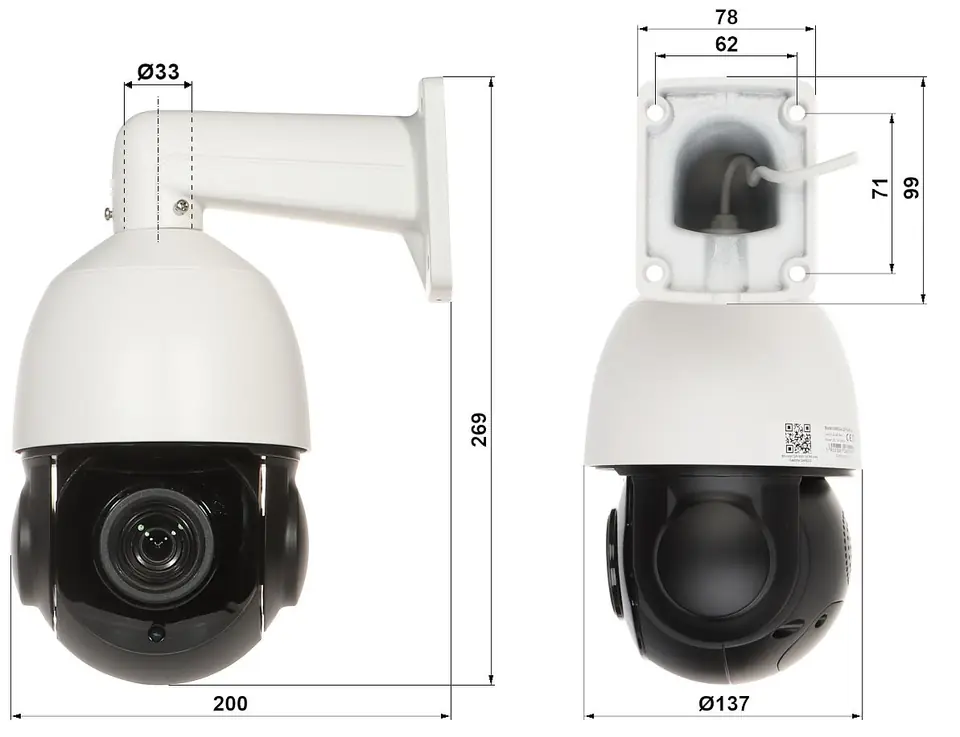

| Dimensions: | 200 x 269 x 137 mm (with bracket) |
| Horizontal rotation range: | 360° continuous |
| Image compression method: | H.265 / H.264 |
| Ir illuminator range: | 80 m |
| Main stream transmission speed: | 20 fps @ 5 Mpx25 fps @ 4 Mpx |
| Mobile phone access: | Port: 80 or cloud access (P2P) Android: Free BitVision app iOS (iPhone): Free BitVision app |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP |
| Number of presets: | 255 |
| Objective: | 5.35 ... 96.3 mm |
| Operating temperature: | -40 °C ... 60 °C |
| Optical zoom: | x 18 |
| Osd on-screen menu: | preset 95 |
| Port onvif: | 8999 |

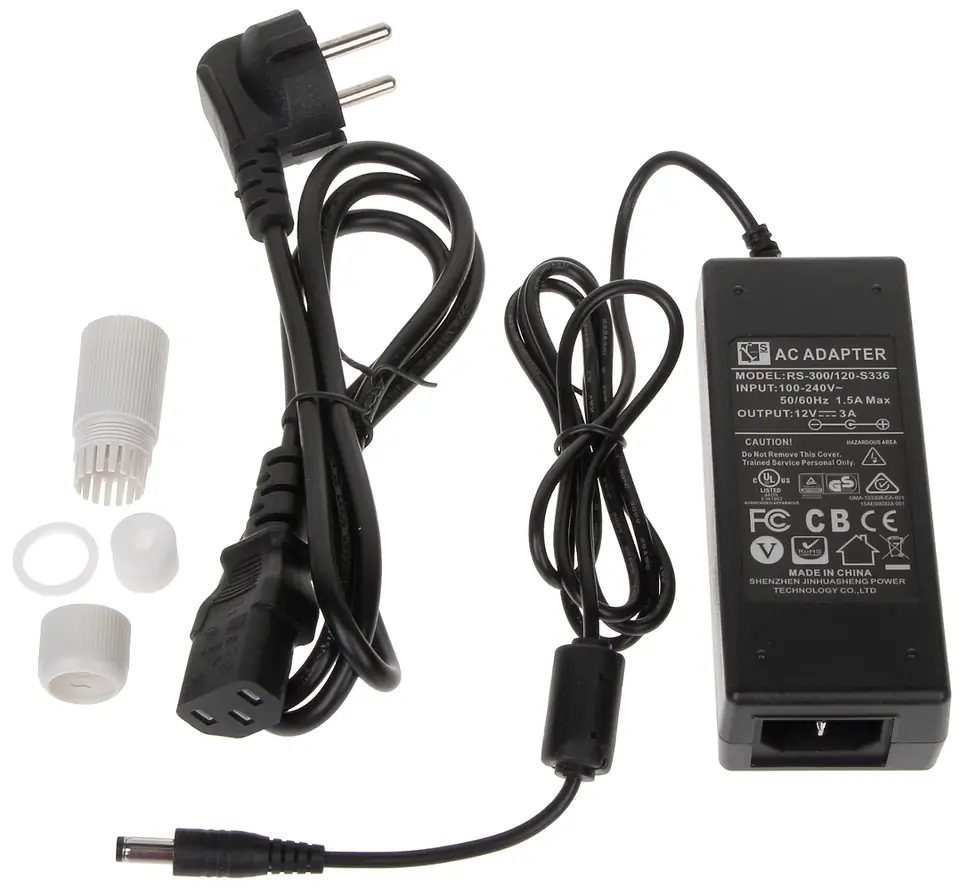

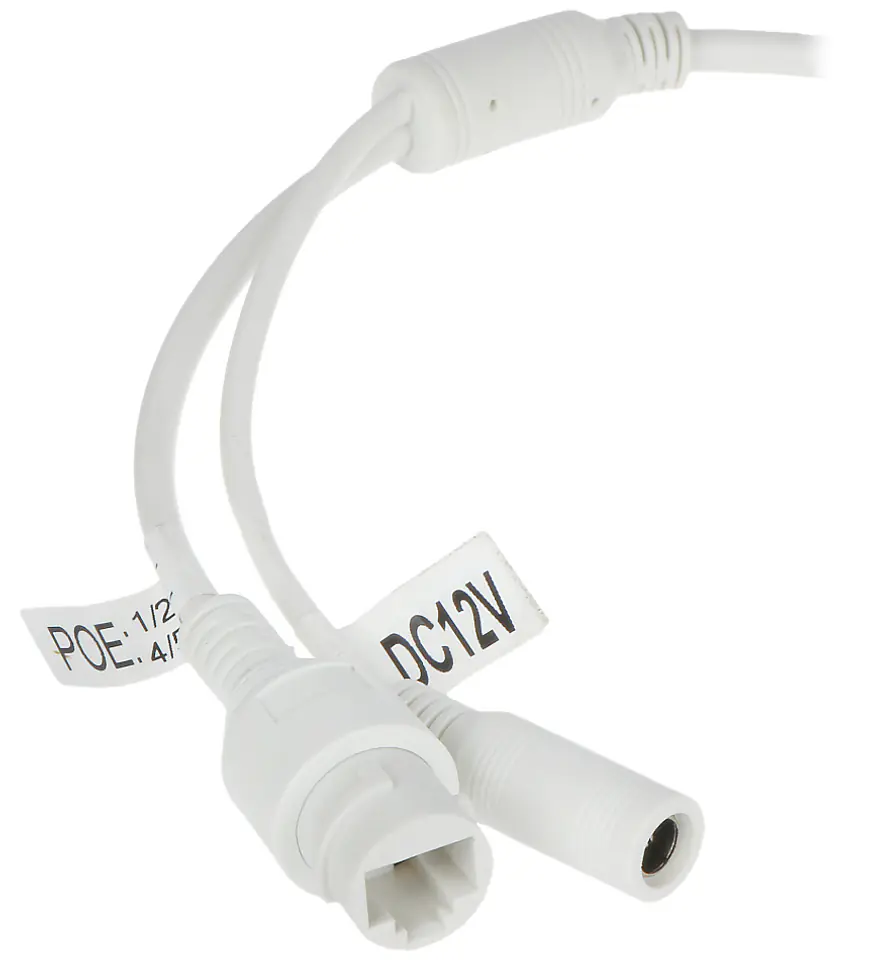

| Power: | PoE (802.3at) 12 V DC / 3 A (power adapter included) |
| Producer / brand: | OMEGA |
| Resolution: | 2592 x 1944 - 5 Mpx, 2560 x 1440 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Rotational speed (manual control): | 1 °/s ... 120 °/s (horizontal) ,1 °/s ... 30 °/s (vertical) |
| Rtsp url: | rtsp://ip_address/1/h264major - Main streamrtsp://ip_address/1/h264minor - Auxiliary stream |
| Scales: | 1.51 kg (with handle) |
| Sealing: | IP66 |
| Security: | Surge protectors |
| Selected features: | Intelligent Image Analysis : WDR Intrusion - Wide dynamic range of lighting ROI - improving the quality of selected parts of the image Parking action - the camera sets to a specific position or starts the path in case of operator inactivity for a predetermined time ICR - Mechanical IR filter BLC - configurable backlight compensation Automatic white balance AGC - Automatic adjustment of image gain Optimization of illuminator operation Infrared Mirror - Mirror image Motion detection - Screen division into zones 16 x 12 |
| Sensor size: | 5 MP |
| Standard: | TCP/IP |
| Supported languages: | Polish, Czech, English, French, German, Greek, Italian, Portuguese, Russian, Spanish, Turkish |
| Transducer: | 1/2.8" Progressive Scan CMOS |
| Vertical rotation range: | 0 ° ... 93 ° |
| Viewing angle: | 59 ° ... 3.6 ° (manufacturer's data) 50 ° ... 3.8° (our tests) |
| Warranty: | 2 years |
| Web access ports: | 80 |
| Web server: | Built-in |
IP camera with very good high-resolution sensorThis makes it ideal for monitoring systems where identification of people or vehicles is required
The range of the illuminator given by the manufacturer depends on the environmental conditions (transparency of air, environment, color of walls, i.e. the so-called scene reflectance)
For several IP cameras operating at ≥ 1920 x 1080 resolution, we recommend 1Gbps networks
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
