OUTDOOR IP SPEED DOME CAMERA OMEGA-23P18-6P-AI - 1080p 5.35 ... 96.3 mm

€219.84
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Omega
Product code:
OMEGA-23P18-6P-AI / 5902887069864

Specification

Adjustable traffic routes:8
Audio:Built-in Microphone Built-in Speaker Support Two-way Audio Voice Prompts in English or Chinese
Automatic ir illuminator:Adaptive adjustment of IR illuminator power to lens zoom and ambient light brightness
Case:Speed Dome, Metal
Colour:White + Black
Default administrator login / password:admin / adminAdministrator password should be set on first run
Default ip address:192.168.1.168

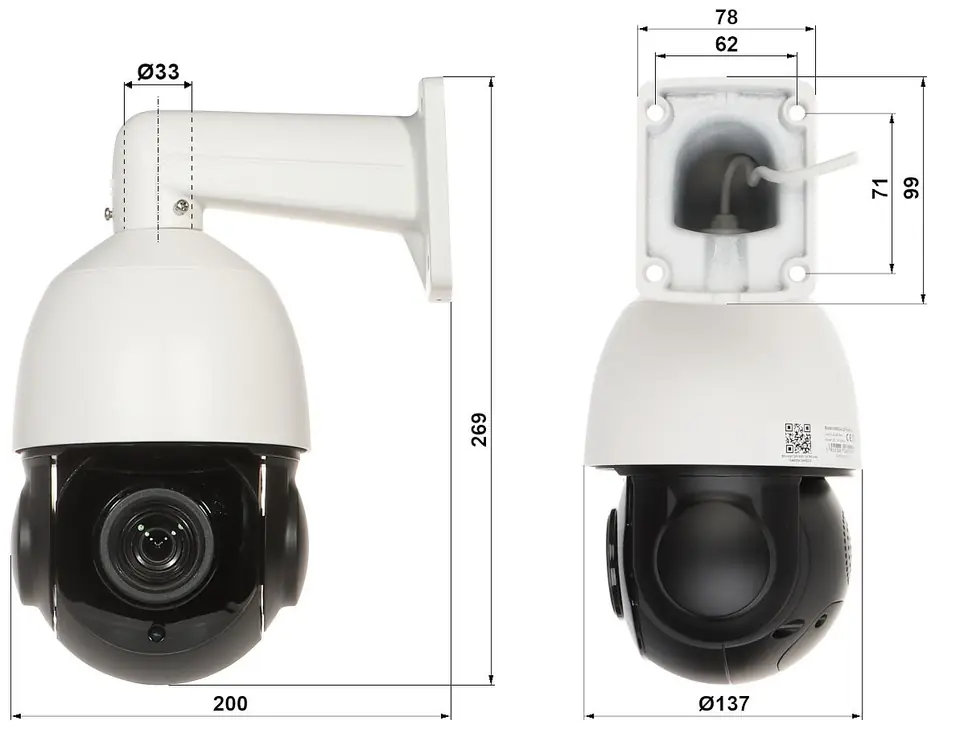

Dimensions:200 x 246 x 136 mm (with bracket)
Horizontal rotation range:360° continuous
Image compression method:H.265 / H.264
Ir illuminator range:80 m
Main stream transmission speed:25 fps @ 1080p
Mobile phone access:Port: 80 or cloud access (P2P) Android: Free BitVision app iOS (iPhone): Free BitVision app
Network interface:10/100 Base-T (RJ-45)
Network protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
Number of presets:255
Objective:5.35  ... 96.3 mm
Operating temperature:-40 °C ... 70 °C
Optical zoom:x 18
Osd on-screen menu:preset 95
Port onvif:8999

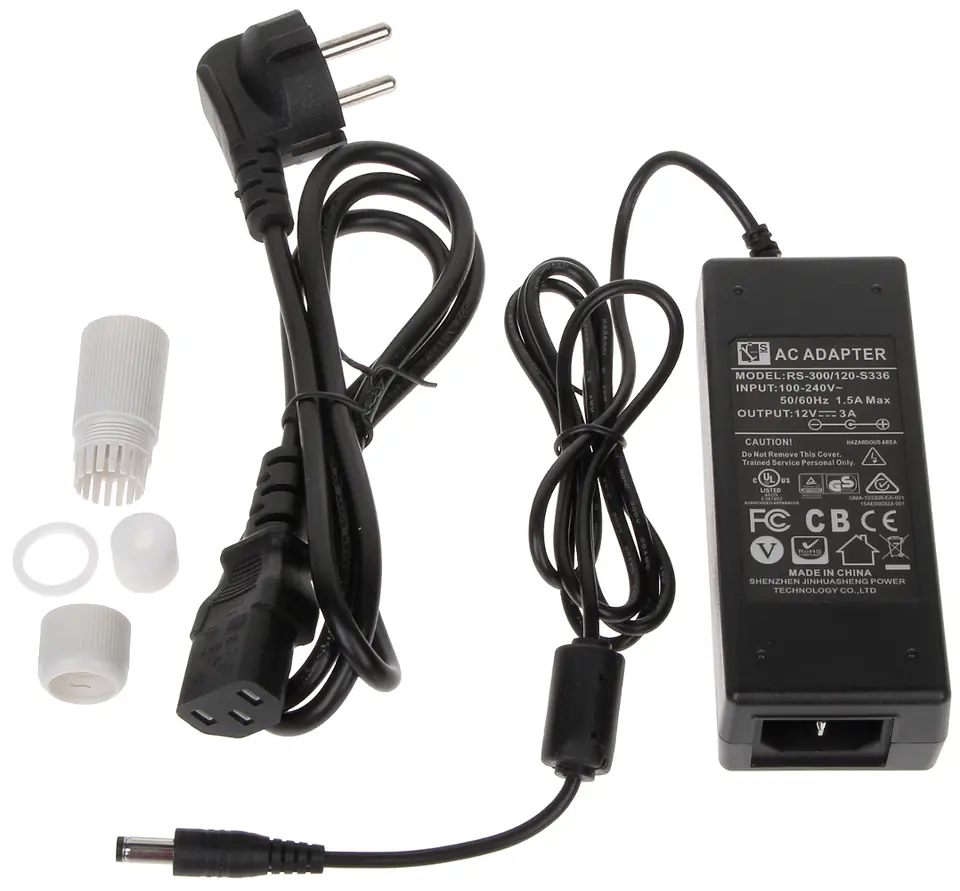

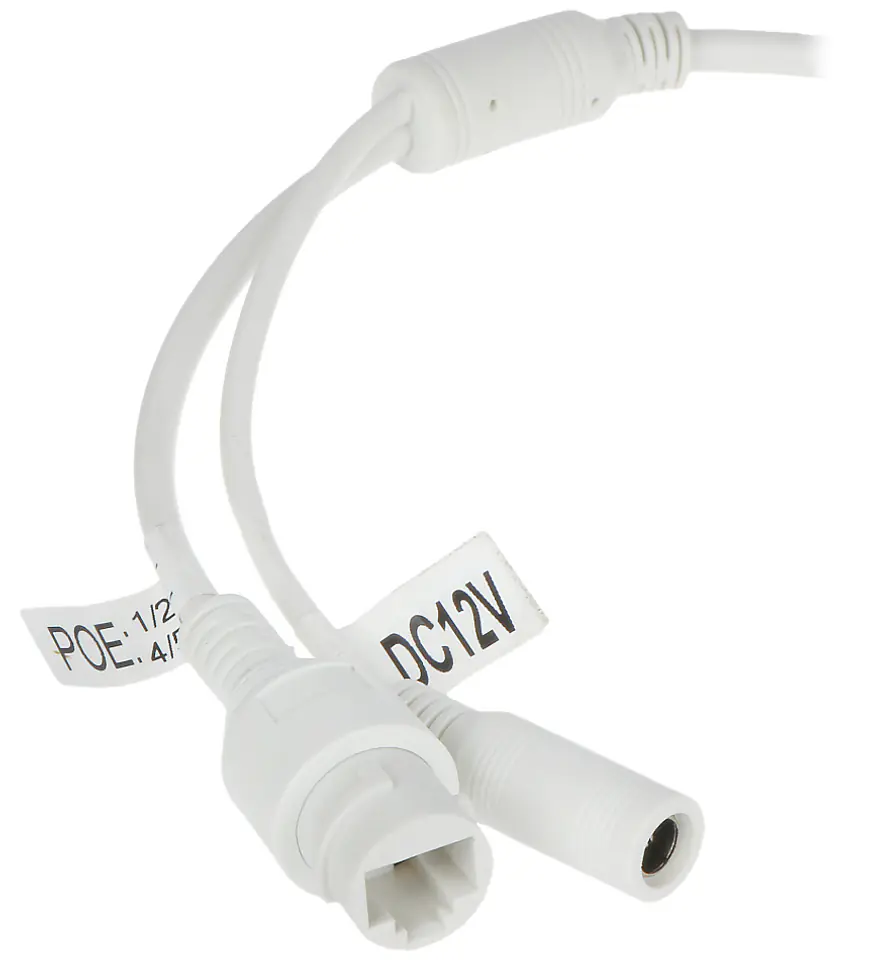

Power:PoE (802.3at) 12 V DC / 3 A (power adapter included)
Producer / brand:OMEGA
Resolution:1920 x 1080 - 1080p,1280 x 720 - 720p
Rotational speed (manual control):1 °/s ... 120 °/s (horizontal) ,1 °/s ... 30 °/s (vertical)
Rtsp url:rtsp://ip_address/1/h264major - Main streamrtsp://ip_address/1/h264minor - Auxiliary stream
Scales:1.5 kg (with handle)
Scanning system:Progressive
Sealing:IP66
Security:Surge protectors
Selected features:Intelligent Image Analysis: Intrusion, Intelligent Object Tracking - Effective Tracking Range: 5 ... 45 m, speed: 3 ... 12 km/h WDR - Wide dynamic range Parking action - camera setting to a specific position or starting the path in case of inactivity of the operator for a predetermined time ICR - Mechanical IR filter BLC - configurable backlight compensation Automatic white balance AGC - Automatic adjustment of image gain Optimization of IR illuminator operation Mirror - Mirror image Motion detection - Screen division into 16 zones x 12
Sensor size:2.1 MP
Standard:TCP/IP
Supported languages:Polish, Czech, English, French, German, Greek, Italian, Portuguese, Russian, Spanish, Turkish
Transducer:1/2.9" Progressive Scan CMOS
Vertical rotation range:0 ° ... 93 °
Viewing angle:57 ° ... 3.5 ° (manufacturer's data) 50 ° ... 3.8° (our tests)
Warranty:2 years
Web access ports:80
Web server:Built-in

IP camera with very good high-resolution sensorThis makes it ideal for monitoring systems where identification of people or vehicles is required

The range of the illuminator given by the manufacturer depends on the environmental conditions (transparency of air, environment, color of walls, i.e. the so-called scene reflectance)

For several IP cameras operating at ≥ 1920 x 1080 resolution, we recommend 1Gbps networks

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
