| Adjustable traffic routes: | 4 |
|---|

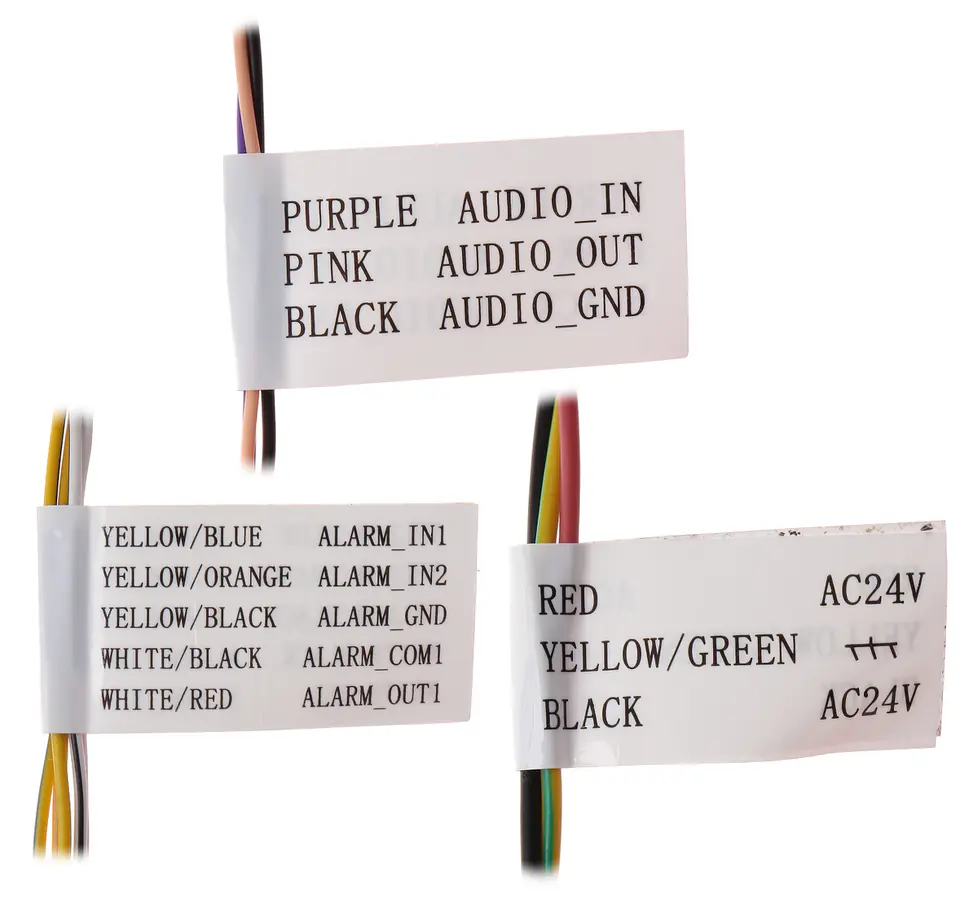

| Alarm inputs / outputs: | 2 / 1 |
|---|
| Audio: | External microphone input Audio output Sound detection Built-in speaker - Alarm siren Two-way audio support Digital noise reduction |
|---|
| Case: | Speed Dome, Metal |
|---|
| Colour: | white |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.64 |
|---|
| Digital zoom: | x 16 |
|---|

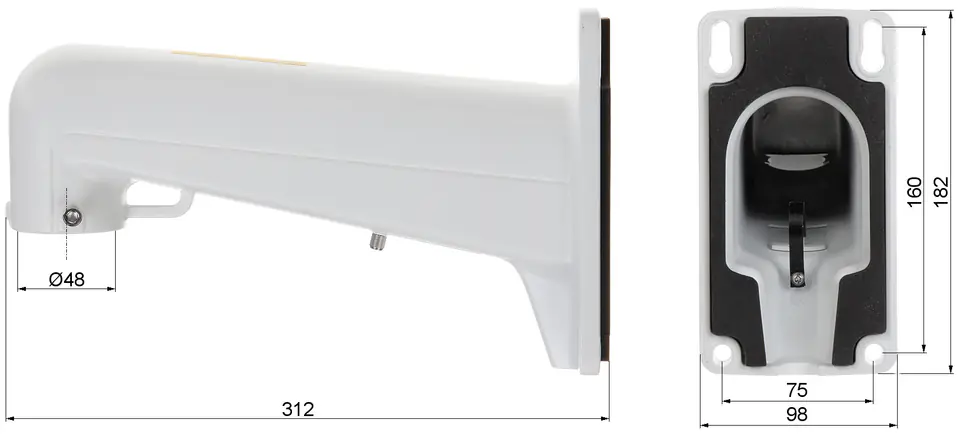

| Dimensions: | Ø 220 x 363 mm (without bracket) Ø 220 x 393 x 453 mm (with bracket) |
|---|
| Horizontal rotation range: | 360° - continuous |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Ir illuminator range: | 200 m |
|---|
| Main stream transmission speed: | 25 fps @ 8.3 Mpx |
|---|
| Max. number of on-line users: | 20 |
|---|
| Maximum resolution: | 3840 x 2160 pixels |
|---|

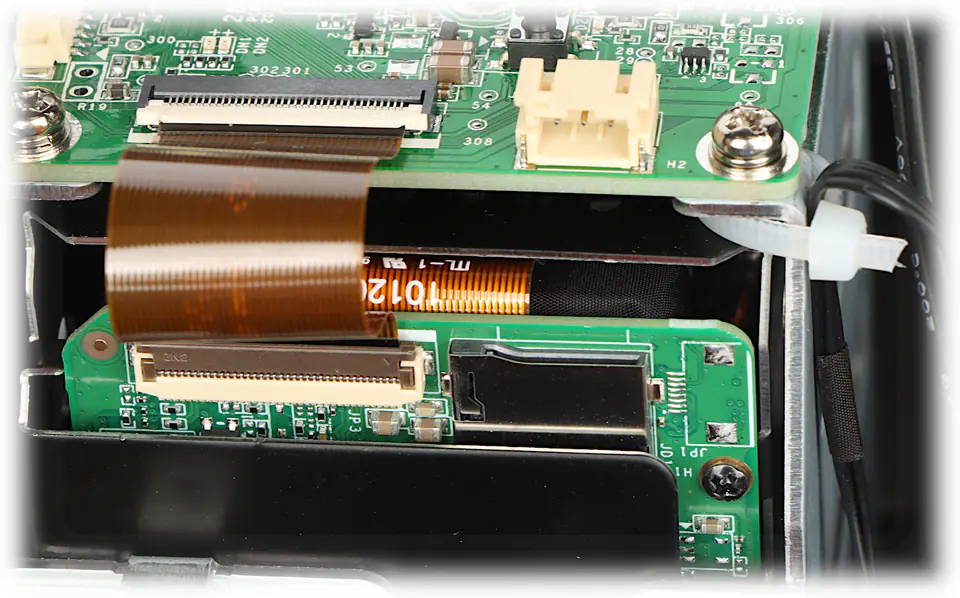

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
|---|
| Number of presets: | 300 |
|---|
| Objective: | 5.9 ... 147.5 mm |
|---|
| Onvif: | 19.12 |
|---|
| Operating temperature: | -30 °C ... 65 °C |
|---|
| Optical sensor size: | 25.4 / 1.8 mm (1 / 1.8") |
|---|
| Optical zoom: | x 25 |
|---|
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
|---|
| Port onvif: | 80 |
|---|
| Power: | Hi-PoE, 24 V AC (power adapter included) |
|---|
| Power consumption: | ≤ 42 watts |
|---|
| Producer / brand: | Hikvision |
|---|
| Resolution: | 3840 x 2160 - 8.3 Mpx, 4K UHD, 2560 x 1440 - 3.7 MP, 1920 x 1080 - 1080p1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
|---|
| Rotational speed (manual control): | 0.1 °/s ... 160 °/s (horizontal)0.1 °/s ... 120 °/s (vertical) |
|---|
| Rotational speed at presets: | 240°/s (horizontal) 200°/s (vertical) |
|---|
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
|---|
| Sap code: | 327000245 |
|---|
| Scales: | 6.1 kg (with handle) |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP66 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image EIS - Electronic image stabilization F-DNR (Defog) - Reduction of noise associated with precipitation ROI - improving the quality of selected parts of the BLC/HLC image - compensation of background light / strong light ICR - Mechanical IR filter Parking action - setting the camera to a specific position or starting the path in case of inactivity of the operator by the set earlier ANR time - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization NAS support - Network Attached Storage - allows you to connect storage resources directly to the computer network Privacy zones - max. 24 Sharpness Motion Detection - Sharpening image contours The camera has a built-in heater with a thermostat Intelligent 3D positioning system Intelligent object tracking Active deterrent function - Light and sound alarm Filtering false alarms based on person and vehicle recognition Intelligent image analysis: line crossing, intrusion, area entry detection, abandoned/missing object, advanced features Face capture - detecting up to 5 faces simultaneously |
|---|
| Sensor size: | 8.3 MP |
|---|
| Standard: | TCP/IP |
|---|
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese |
|---|
| Total megapixels: | 8 MP |
|---|
| Transducer: | 1/1.8" Progressive Scan CMOS |
|---|
| Vandal-resistant: | IK10 |
|---|
| Vertical rotation range: | -15 ° ... 90 ° |
|---|
| Viewing angle: | 51 ° ... 2.6 ° (manufacturer's data) 57 ° ... 3.2° (our tests) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
