| Active tampering alarm: | Yes |
|---|
| Adjustable traffic routes: | 8 |
|---|
| Alarm input channels: | 1 |
|---|

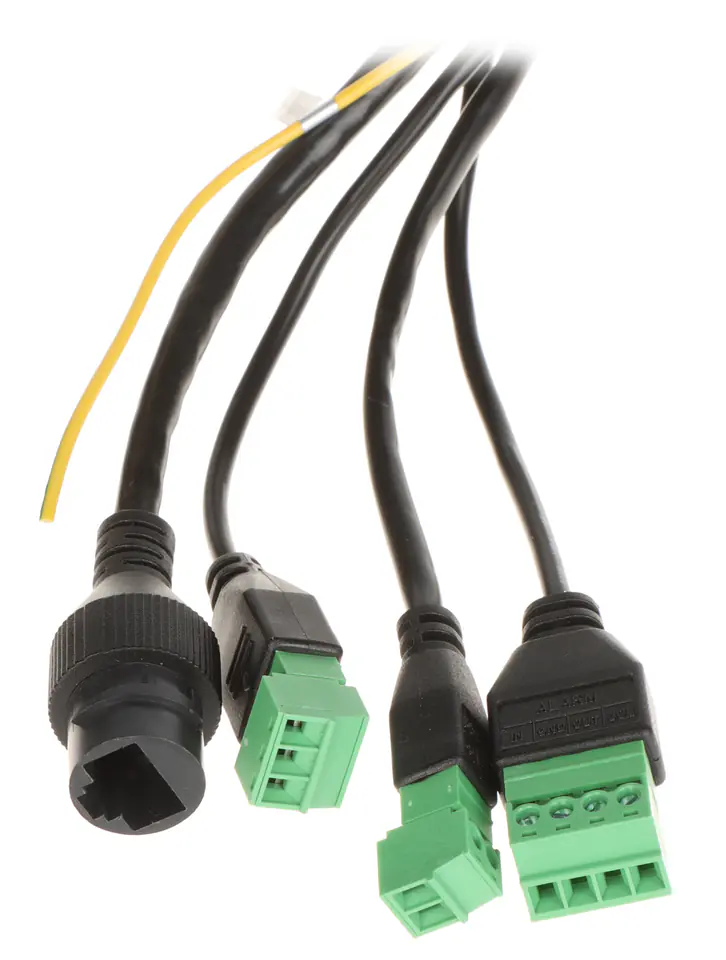

| Alarm input/output: | Yes |
|---|
| Alarm inputs / outputs: | 1 / 1 |
|---|
| Alarm output channels: | 1 |
|---|
| Audio: | External microphone input Audio output Audio detection Support two-way audio Noise reduction |
|---|
| Audio input channels: | 1 channels |
|---|
| Audio output channels: | 1 channels |
|---|
| Auto focus: | Yes |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Camera pan control: | Yes |
|---|
| Camera shutter speed: | 1/30000 s |
|---|
| Camera tilt control: | Yes |
|---|
| Card reader integrated: | Yes |
|---|

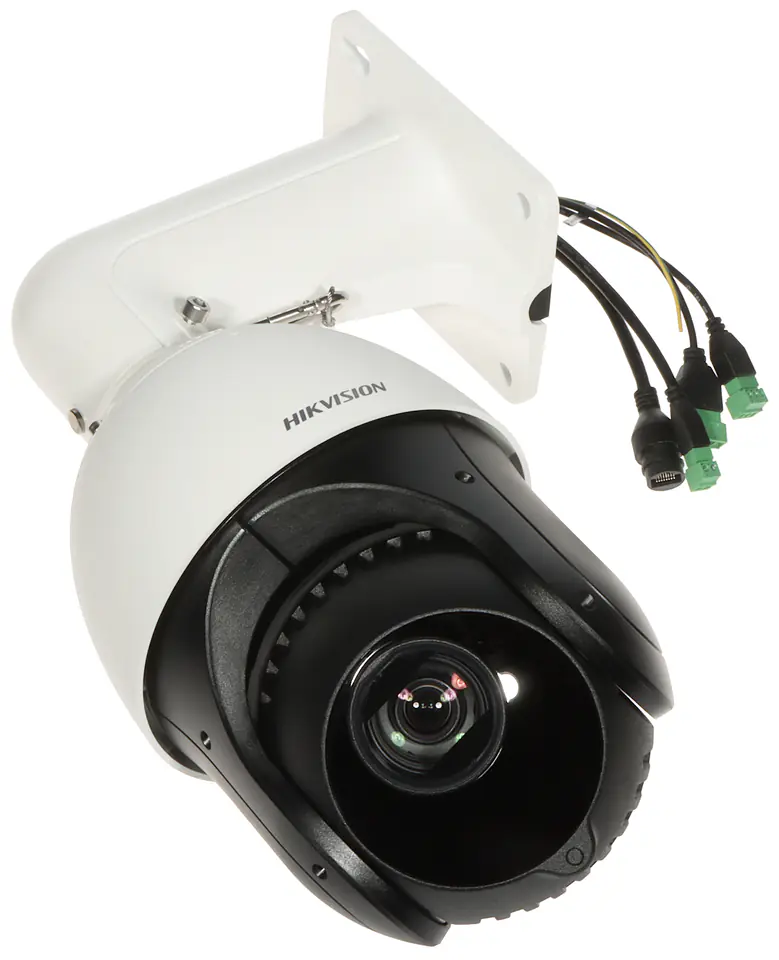

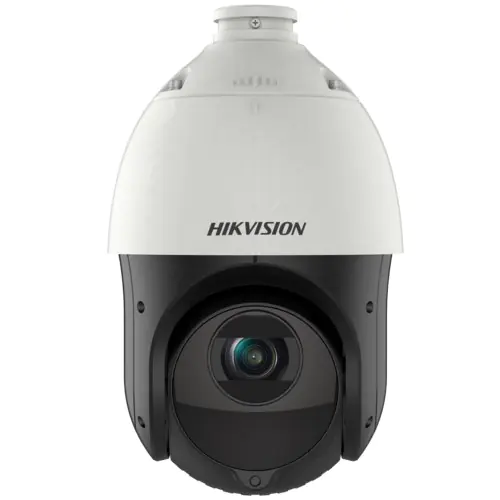

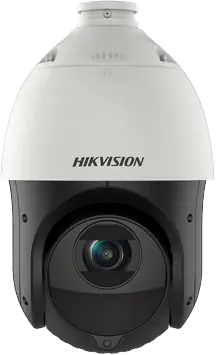

| Case: | Speed Dome, Metal + Plastic |
|---|
| Colour: | White + Black |
|---|
| Compatible memory cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.64 |
|---|
| Diameter: | 16.4 cm |
|---|
| Digital watermark: | Yes |
|---|
| Digital zoom: | 16x |
|---|

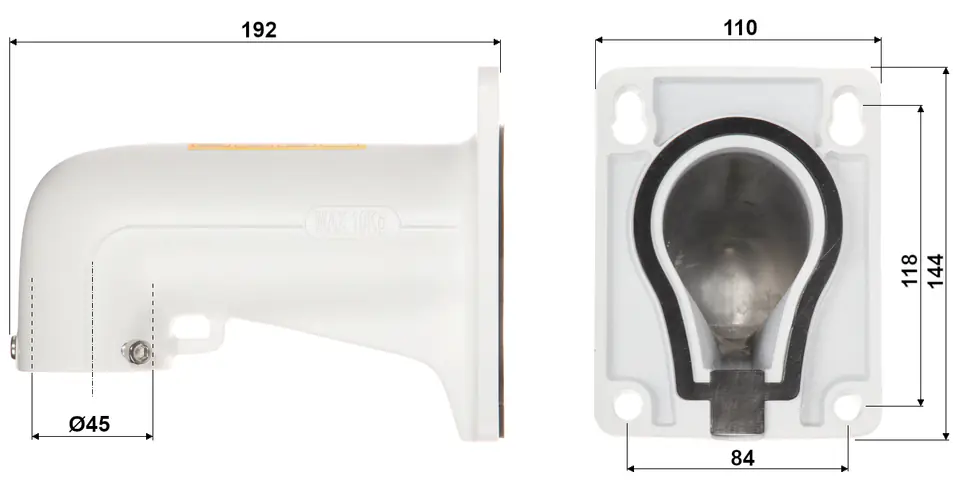

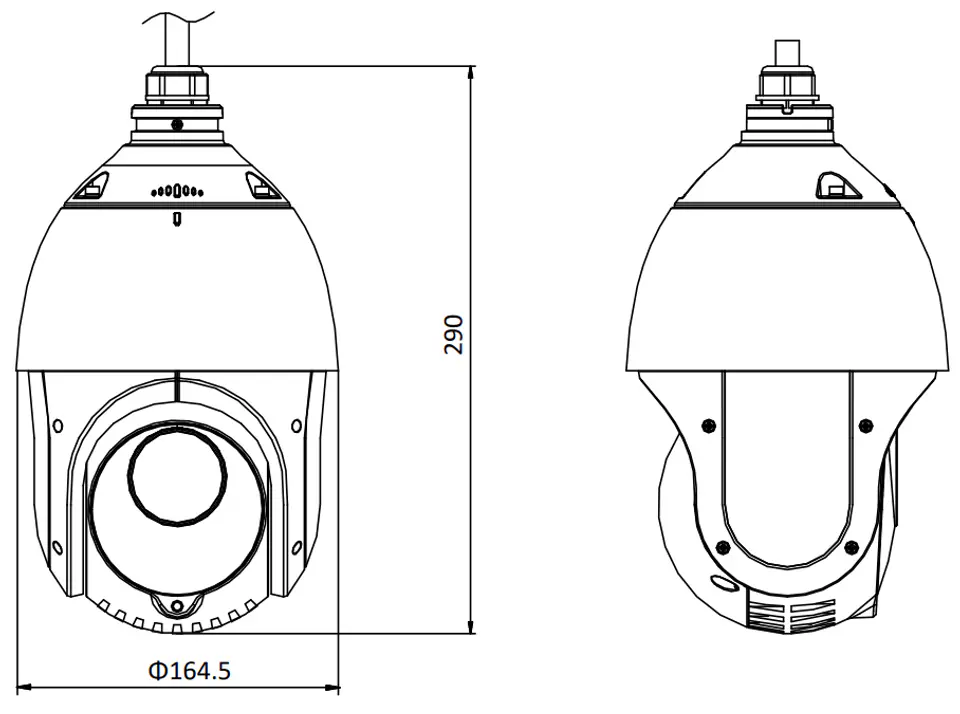

| Dimensions: | Ø 165 x 290 mm (without bracket) 245 x 165 x 240 mm (with bracket) |
|---|
| Dynamic range: | 120 dB |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Focal length range: | 5 - 75 mm |
|---|
| Focus: | Motorized/Manual |
|---|
| Form factor: | Dome |
|---|
| Frame rate: | 30 fps |
|---|
| Height: | 290 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Horizontal rotation range: | 360° - continuous |
|---|
| Https encryption: | Yes |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Image quality adjustment: | Sharpness, Saturation, Contrast, Brightness |
|---|
| Infrared (ir) cut-off filter: | Yes |
|---|
| Intelligent video surveillance (ivs) system features: | Face detection |
|---|
| International protection (ip) code: | IP66 |
|---|
| Ip address filtering: | Yes |
|---|
| Ir illuminator range: | 100 m |
|---|
| Led type: | IR |
|---|
| Live view: | Yes |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Manual: | Yes |
|---|
| Max. number of on-line users: | 20 |
|---|
| Maximum aperture number: | 1.6 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 1920 x 1080 pixels |
|---|

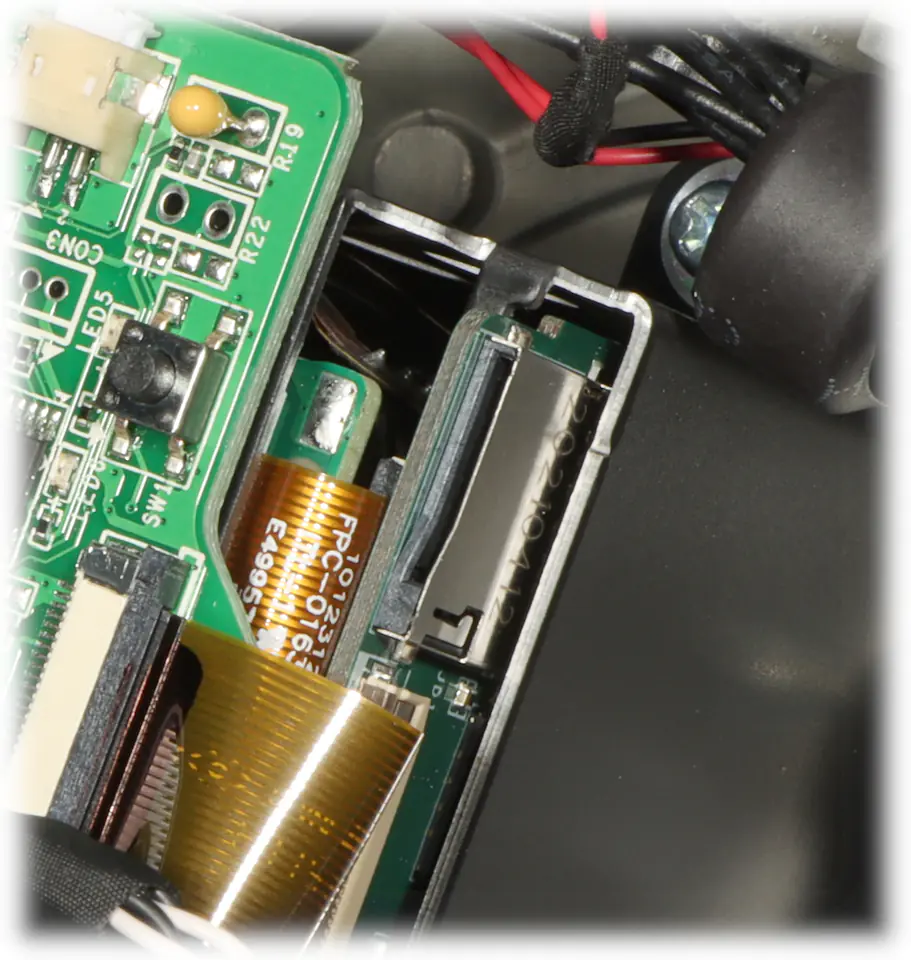

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
|---|
| Motion sensor: | Yes |
|---|
| Mounting type: | Ceiling/wall |
|---|
| Network interface: | 10/100 Base-TX (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
|---|
| Networking standards: | IEEE 802.1x, IEEE 802.3at |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 100 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of lenses: | 1 |
|---|
| Number of presets: | 300 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 32 user(s) |
|---|
| Objective: | 5 ... 75 mm |
|---|
| Operating relative humidity (h-h): | 0 - 90% |
|---|
| Operating temperature: | -30 °C ... 65 °C |
|---|
| Operating temperature (t-t): | -30 - 65 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Optical zoom: | 15x |
|---|
| Pan preset speed: | 80 °/sec |
|---|
| Pan range: | 0 - 360° |
|---|
| Pan speed: | 80 °/sec |
|---|
| Password protection: | Yes |
|---|
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|

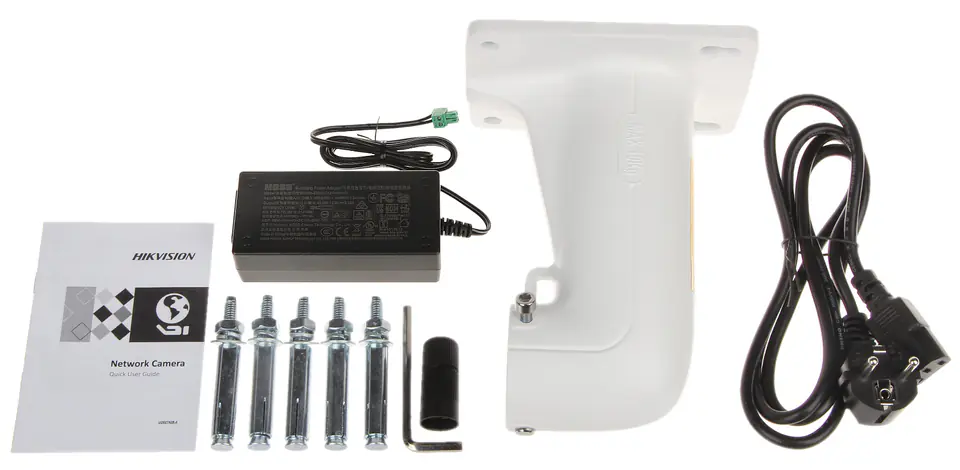

| Power: | PoE (802.3at), 12 V DC / 1.5 A (power adapter included) |
|---|
| Power consumption: | ≤ 18 watts |
|---|
| Power consumption (max): | 24 W |
|---|
| Power source type: | DC, PoE |
|---|
| Preset points: | Yes |
|---|
| Preset programs quantity: | 300 |
|---|
| Privacy masking: | Yes |
|---|
| Producer / brand: | Hikvision |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Ptz control: | Yes |
|---|
| Ptz modes: | Auto scan, 4 Pattern |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Reset button: | Yes |
|---|
| Resolution: | 1920 x 1080 - 1080p1280 x 960 - 1.3 MP x 7280 x 720 - 720p |
|---|
| Rotational speed (manual control): | 0.1 °/s ... 80 °/s (horizontal)0.1 °/s ... 80 °/s (vertical) |
|---|
| Rotational speed at presets: | 80 °/s |
|---|
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
|---|
| S/n ratio (s/n): | > 52 dB |
|---|
| Sample rate: | 48 kHz |
|---|
| Sap code: | 327000470 |
|---|
| Scales: | 2.28 kg (without handle) 2.94 kg (with handle) |
|---|
| Sealing: | IP66 |
|---|
| Security algorithms: | EAP-TLS, EAP-MD5, EAP-LEAP |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image F-DNR (Defog) - Reduction of noise associated with precipitation BLC/HLC - compensation of background light / strong light Intelligent 3D positioning system ICR - Mechanical IR filter Configurable privacy zones - 24 Sharpness motion detection - Sharpen image contours Configurable: brightness, contrast, saturation AGC - Automatic image gain adjustment Day/night mode (color/b&w/auto) Auto white balance Parking action - setting the camera to a specific position or starting the path in case of inactivity of the operator for a predetermined time ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization NAS - Network Attached Storage - allows you to connect storage resources directly to your computer network Intelligent Image Analysis: Line Crossing, Intrusion, Area Entry Detection/Area Exit, People and Vehicle Classification, Abandoned/Missing Object, Face Detection - Advanced Face Capture Features - Detect up to 5 faces simultaneously |
|---|
| Sensor size: | 2.1 MP |
|---|
| Sensor type: | CMOS |
|---|
| Signal-to-noise ratio (snr): | 52 dB |
|---|
| Standard: | TCP/IP |
|---|
| Supported graphics resolutions: | 704 x 480, 1280 x 720 (HD 720), 352 x 240, 640 x 480 (VGA), 352 x 288, 704 x 576, 1920 x 1080 (HD 1080) |
|---|
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
|---|
| Tilt angle range: | -15 - 90° |
|---|
| Tilt speed: | 80 °/sec |
|---|
| Total megapixels: | 2 MP |
|---|
| Transducer: | 1/2.8" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| User access level: | Administrator, Operator, User |
|---|
| Vertical rotation range: | -15 ° ... 90 ° |
|---|
| Video compression formats: | H.264, H.265 |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 58 ° ... 4 ° (manufacturer's data) 53 ° ... 4.7° (our tests) |
|---|
| Voice codecs: | G.726, G.722.1, G.711, PCM, MP2L2 |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in, NVR compliant |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 2 kg |
|---|
| White balance: | Auto, Fluorescent, Sodium lamp, Indoor, Outdoor, ATW |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
| Zoom capability: | Yes |
|---|
