Alarm input/output: | Yes |
---|

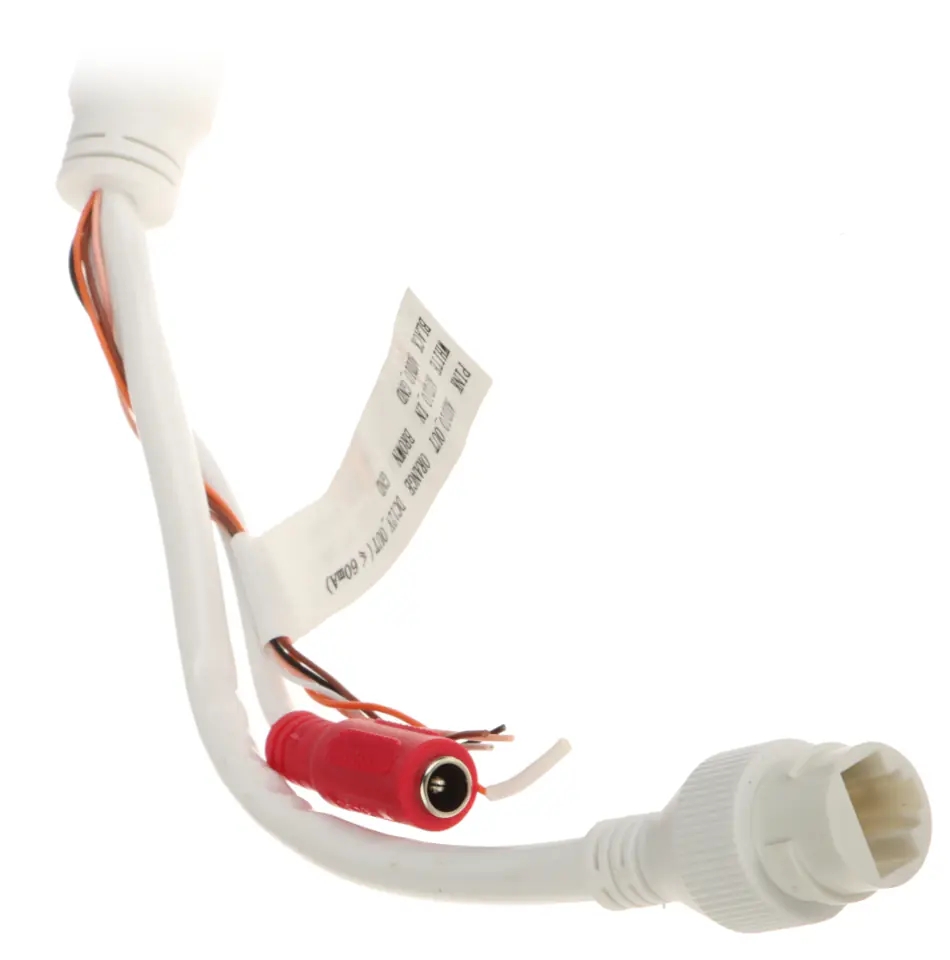

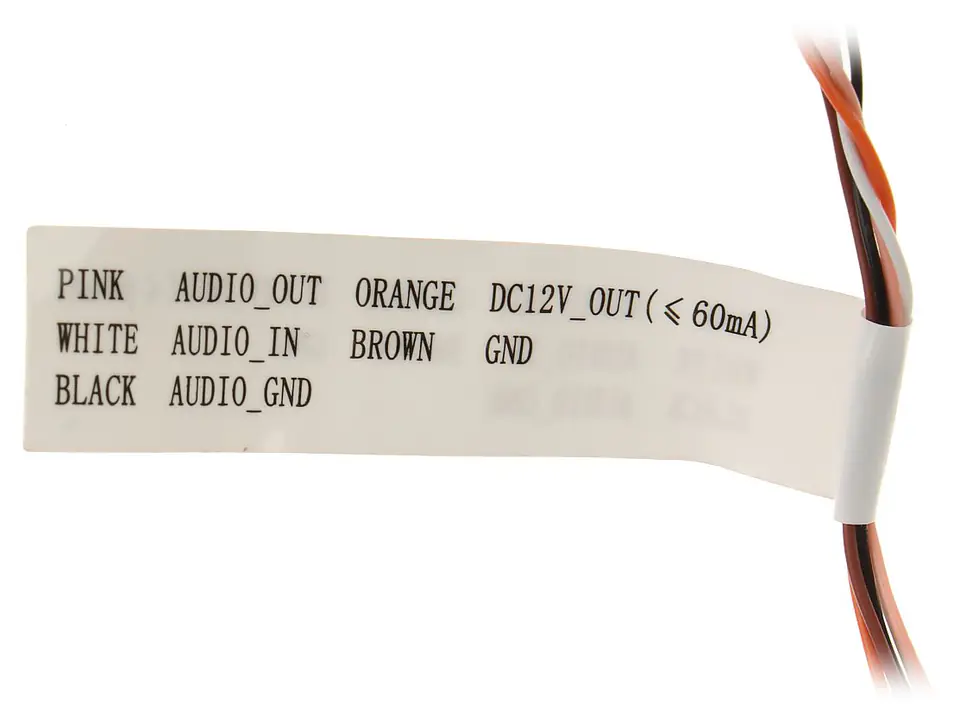

Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
---|
Audio input channels: | 1 channels |
---|
Audio output channels: | 1 channels |
---|
Auto focus: | Yes |
---|
Back light compensation (blc): | Yes |
---|
Bluetooth: | No |
---|
Built-in hdd: | No |
---|
Built-in microphone: | Yes |
---|
Camera pan control: | Yes |
---|
Camera tilt control: | Yes |
---|
Card reader integrated: | Yes |
---|

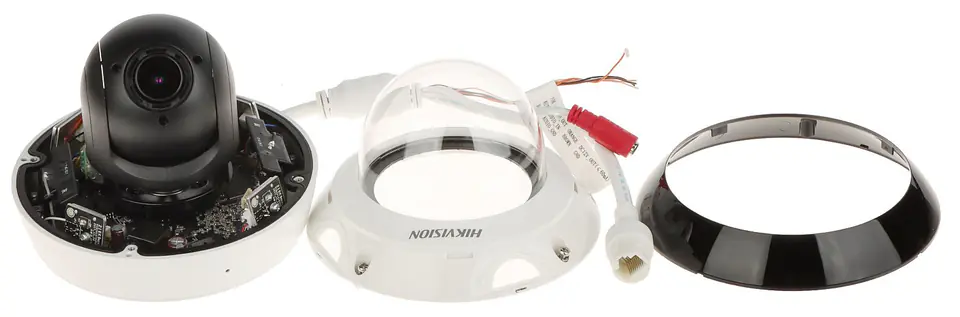

Case: | Speed Dome, Metal |
---|
Colour: | White + Black |
---|
Compatible memory cards: | MicroSDXC, MicroSD (TransFlash), MicroSDHC |
---|
Connectivity technology: | Wired & Wireless |
---|
Day/night mode: | Yes |
---|
Dc output voltage: | 12 |
---|
Default administrator login / password: | admin / -Administrator password must be set on first run |
---|
Default ip address: | 192.168.1.64 |
---|
Diameter: | 13.1 cm |
---|
Digital zoom: | 16x |
---|
Dimensions: | Ø 131 x 102 mm |
---|
Ethernet interface type: | Fast Ethernet |
---|
Ethernet lan: | Yes |
---|
Ethernet lan (rj-45) ports: | 1 |
---|
Focus: | Motorized/Manual |
---|
Form factor: | Dome |
---|
Frame rate: | 30 fps |
---|
Height: | 101.7 mm |
---|
Highlight compensation (hlc): | Yes |
---|
Horizontal rotation range: | 355 ° - The rotation of the head is limited by the limit switch |
---|
Https encryption: | Yes |
---|
Ik code: | IK10 |
---|
Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
---|
Image quality adjustment: | Contrast, Saturation, Brightness, Sharpness |
---|
Infra-red wavelength: | 850 nm |
---|
Infrared (ir) cut-off filter: | Yes |
---|
Intelligent video surveillance (ivs) system features: | Face detection |
---|
International protection (ip) code: | IP66 |
---|
Ip address filtering: | Yes |
---|
Ir illuminator range: | 20 m |
---|
Led type: | IR |
---|
Main stream transmission speed: | 25 fps @ 3.7 Mpx |
---|
Max. number of on-line users: | 20 |
---|
Maximum aperture number: | 1.5 |
---|
Maximum memory card size: | 256 GB |
---|
Maximum resolution: | 2560 x 1440 pixels |
---|

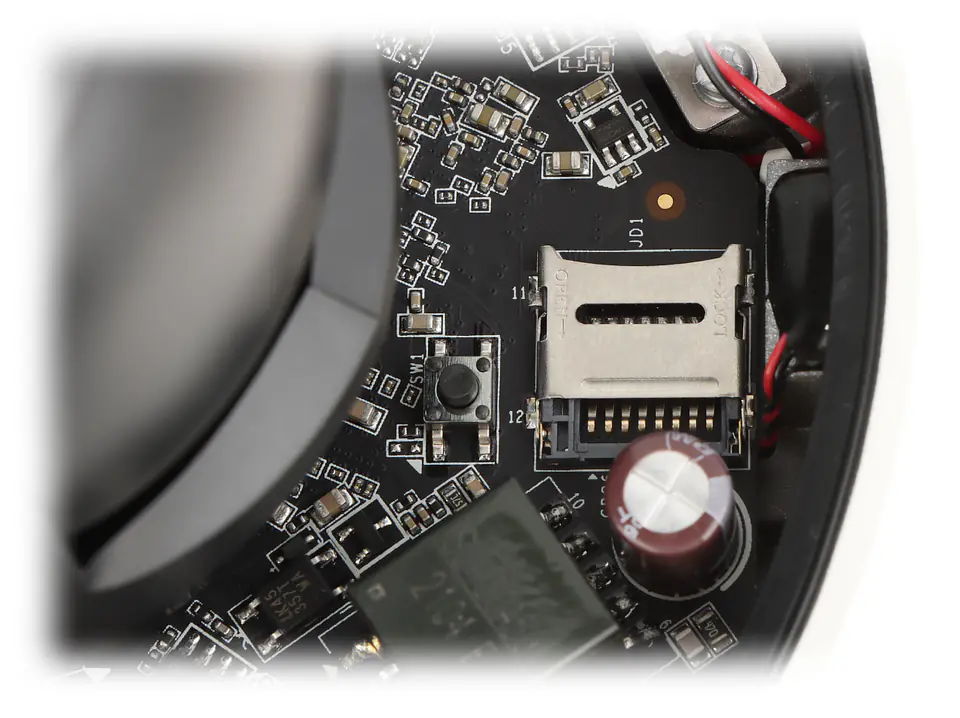

Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
---|
Mirror: | Yes |
---|
Mobile app access port: | 8000 |
---|
Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
---|

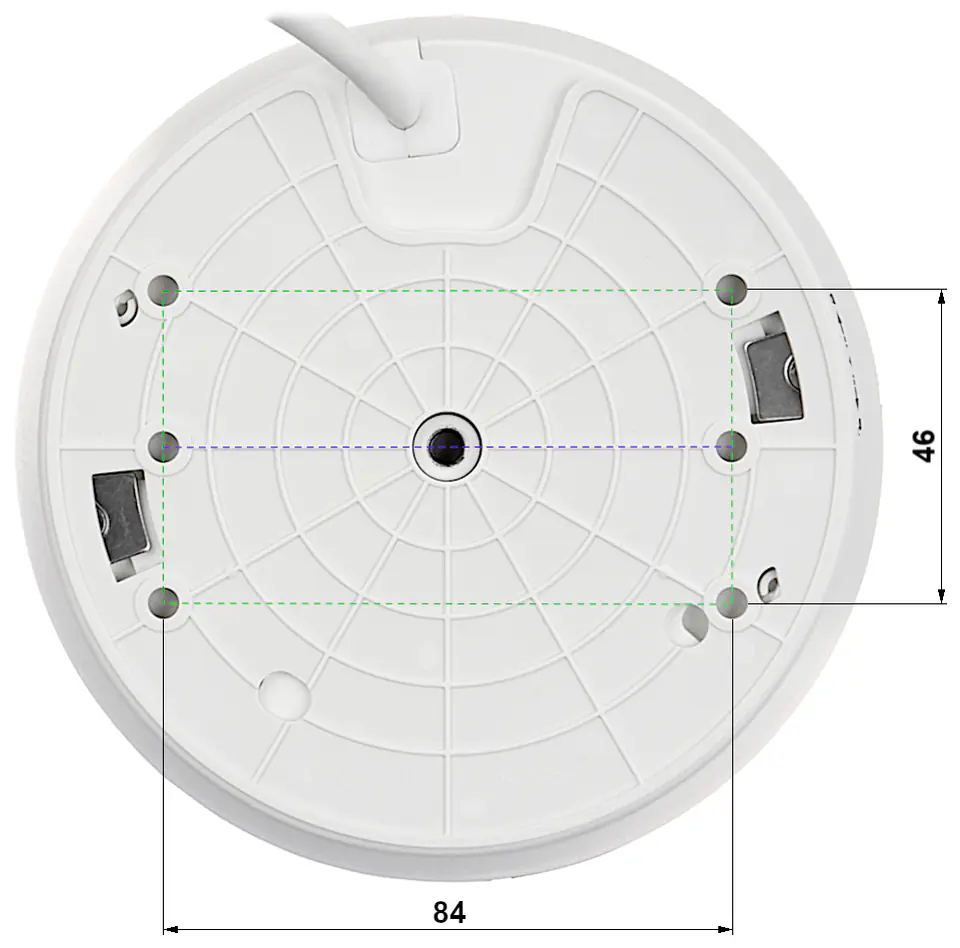

Mounting type: | Ceiling/wall |
---|
Network interface: | 10/100 Base-T (RJ-45) |
---|
Network protocols: | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSockets, WebSockets |
---|
Networking standards: | IEEE 802.11b, IEEE 802.1x, IEEE 802.11g, IEEE 802.3af, IEEE 802.11n |
---|
Night vision: | Yes |
---|
Night vision distance: | 20 m |
---|
Noise reduction: | Yes |
---|
Noise reduction technology: | 3D noise reduction |
---|
Number of cameras: | 1 |
---|
Number of lenses: | 1 |
---|
Number of presets: | 300 |
---|
Number of sensors: | 1 |
---|
Number of users: | 32 user(s) |
---|
Objective: | 2.8 ... 12 mm |
---|
Operating relative humidity (h-h): | 0 - 90% |
---|
Operating temperature: | -20 °C ... 60 °C |
---|
Operating temperature (t-t): | -20 - 60 °C |
---|
Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
---|
Optical zoom: | 4x |
---|
Pan preset speed: | 100 °/sec |
---|
Pan range: | 0 - 355° |
---|
Pan speed: | 100 °/sec |
---|
Password protection: | Yes |
---|
Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
---|
Placement supported: | Outdoor |
---|
Port onvif: | 80 |
---|
Power: | PoE (802.3af), 12 V DC / 760 mA |
---|
Power consumption: | ≤ 9.2 watts @ 12 volts DC |
---|
Power consumption (max): | 11.2 W |
---|
Power source type: | DC, PoE |
---|
Preset points: | Yes |
---|
Privacy masking: | Yes |
---|
Producer / brand: | Hikvision |
---|
Product colour: | White |
---|
Progressive scan: | Yes |
---|
Ptz control: | Yes |
---|
Quality of service (qos) support: | Yes |
---|
Region of interest (roi) encoding: | Yes |
---|
Reset button: | Yes |
---|
Resolution: | 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
---|
Rotational speed (manual control): | 0.1 °/s ... 100 °/s (horizontal) 0.1 °/s ... 100 °/s (vertical) |
---|
Rotational speed at presets: | 100°/s (horizontal) 100°/s (vertical) |
---|
Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
---|
Sap code: | 327000403 |
---|
Scales: | 0.63 kg |
---|
Sealing: | IP66 |
---|
Security algorithms: | WPA-PSK, WPA2-PSK, 64-bit WEP, WPA2, 128-bit WEP, WPA |
---|
Selected features: | Built-in Wi-Fi : IEEE 802.11 b/g/n, 300 Mbps (max) WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction NAS - Network Attached Storage - allows you to connect memory resources directly to the computer network ROI - improving the quality of selected parts of the image F-DNR (Defog) - Noise reduction associated with precipitation ICR - Mechanical IR filter Privacy zones - max. 24 Sharpness motion detection - Sharpening image contours Mirror - Image mirroring ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization Intelligent Image Analysis: abandoned/missing object, line crossing, intrusion, area entry / exit detection, video tampering, face detection |
---|
Sensor size: | 3.7 MP |
---|
Sensor type: | CMOS |
---|
Standard: | TCP/IP |
---|
Supported graphics resolutions: | 1280 x 720 (HD 720), 704 x 576, 352 x 240, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2560 x 1440, 704 x 480, 352 x 288 |
---|
Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Turkish |
---|
Tilt angle range: | 0 - 90° |
---|
Tilt speed: | 100 °/sec |
---|
Total megapixels: | 4 MP |
---|
Transducer: | 1/2.8" Progressive Scan CMOS |
---|

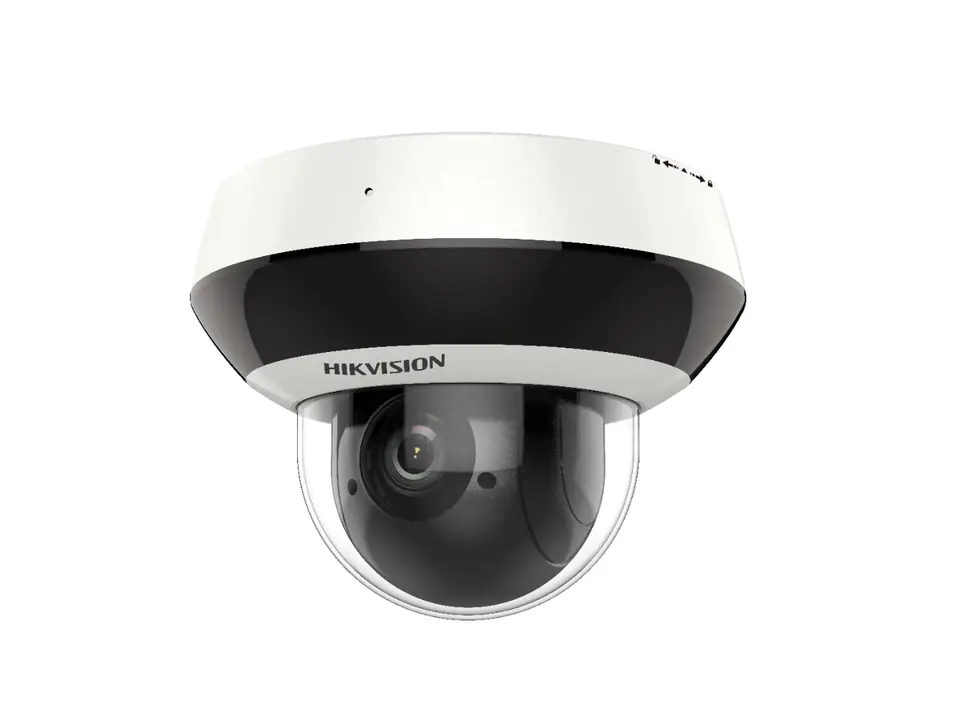

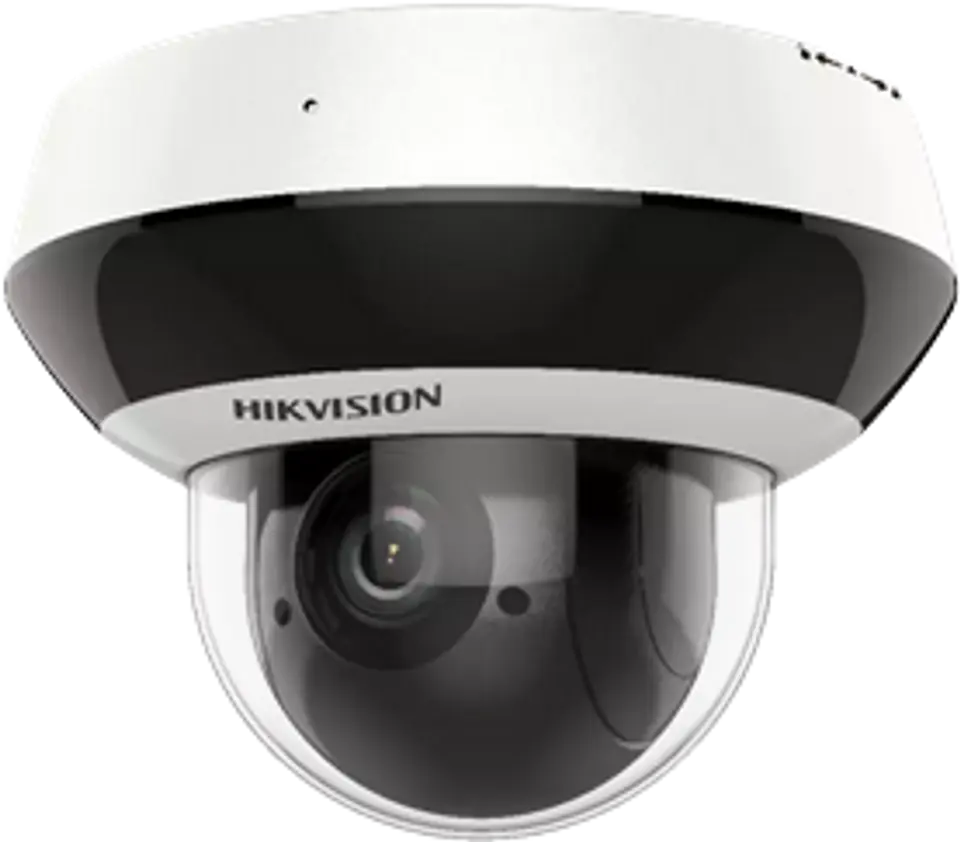

Type: | IP security camera |
---|
Vandal-resistant: | IK10 |
---|
Vertical rotation range: | 0 ° ... 90 ° |
---|
Video compression formats: | H.265, H.265+, M-JPEG, H.264+, H.264 |
---|
Video motion detection: | Yes |
---|
Video streaming: | Yes |
---|
Viewing angle: | 97 ° ... 32 ° (manufacturer's data) 92 ° ... 31° (our tests) |
---|
Voice codecs: | G.722.1, G.726, G.711ulaw, MP2L2, G.711alaw, PCM |
---|
Warranty: | 3 years |
---|
Web access ports: | 80 |
---|
Web server: | Built-in |
---|
Web-based management: | Yes |
---|
Weight: | 530 g |
---|
Wi-fi: | Yes |
---|
Wi-fi data rate (max): | 54 Mbit/s |
---|
Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11b, 802.11g |
---|
Wide dynamic range (wdr): | Yes |
---|
Zoom capability: | Yes |
---|
