| Adjustable traffic routes: | 8 |
|---|---|
| Audio: | Built-in microphone Network audio streaming |
| Automatic ir illuminator: | Adaptive adjustment of IR illuminator power to lens zoom and ambient light brightness |
| Case: | Speed Dome, Metal |
| Colour: | White + Black |
| Default administrator login / password: | admin / adminAdministrator password should be set on first run |
| Default ip address: | 192.168.1.168 |
| Dimensions: | 204 x 395 x 327 mm (with handle) |
| Horizontal rotation range: | 360° continuous |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Ir illuminator range: | 120 m |
| Main stream transmission speed: | 20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Mobile phone access: | Port: 80 or cloud access (P2P) Android: Free BitVision app iOS (iPhone): Free BitVision app |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP |
| Number of presets: | 255 |
| Objective: | 4.6 ... 165 mm |
| Operating temperature: | -40 °C ... 60 °C |
| Optical zoom: | x 36 |
| Osd on-screen menu: | preset 95 |
| Port onvif: | 8999 |

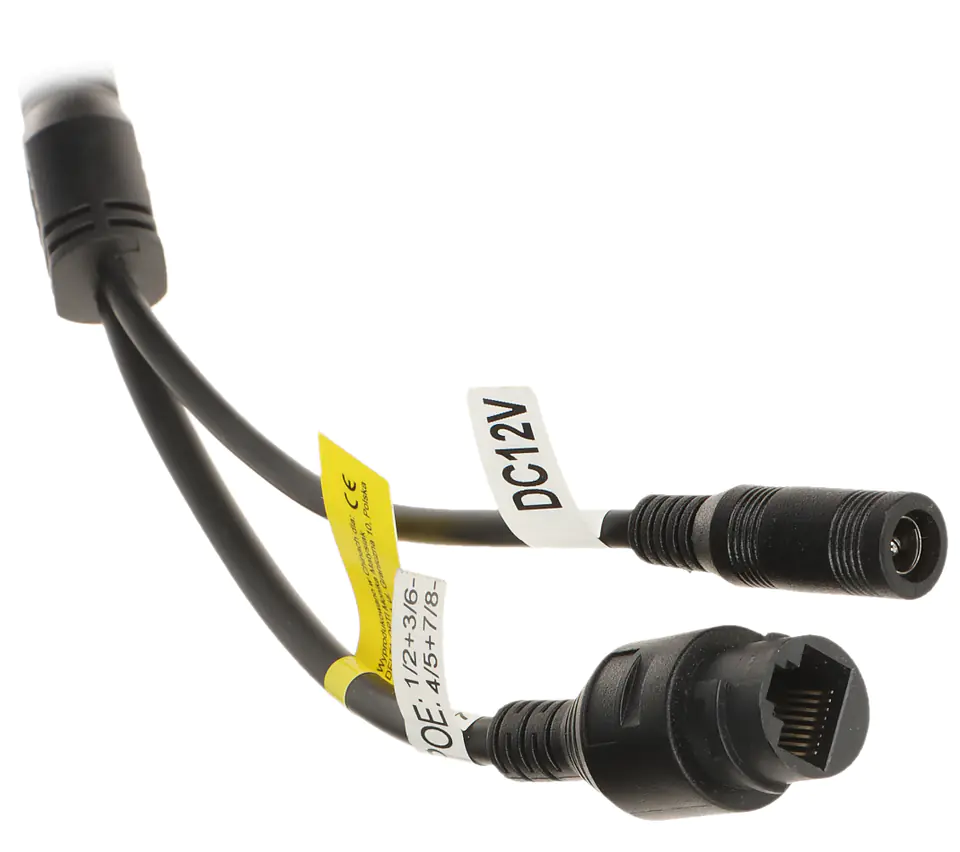

| Power: | PoE (802.3at), 12 V DC / 3 A (power adapter included) |
| Power consumption: | ≤ 26 watts |
| Producer / brand: | OMEGA |
| Resolution: | 2592 x 1944 - 5 Mpx, 2560 x 1440 - 4 Mpx, 1920 x 1080 - 1080p1280 x 720 - 720p |
| Rotational speed (manual control): | 1 °/s ... 200 °/s (horizontal) 1 °/s ... 100 °/s (vertical) |
| Rtsp url: | rtsp://ip_address/1/h264major - Main streamrtsp://ip_address/1/h264minor - Auxiliary stream |
| Scales: | 2.82 kg (with handle) |
| Sealing: | IP66 |
| Security: | Surge protectors |
| Selected features: | Intelligent Image Analysis : Intelligent object tracking - optimal distance : 5 ... 45 m, speed: 3 ... 12 km/h, intrusion, motion detection based on human detection, video tampering WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image Parking action - setting the camera to a specific position or starting the path in case of inactivity of the operator for a preset time ICR - Mechanical IR filter BLC - configurable backlight compensation Auto balance White Optimization of IR illuminator operation Mirror - Image mirroring Privacy zones - max. 4 |
| Sensor size: | 5 MP |
| Standard: | TCP/IP |
| Supported languages: | Polish, Czech, English, French, German, Greek, Italian, Portuguese, Russian, Spanish, Turkish |
| Transducer: | 1/2.8" Sony CMOS IMX335 |
| Vertical rotation range: | 0 ° ... 93 ° |
| Viewing angle: | 61 ° ... 1.9 ° (manufacturer data) 53 ° ... 3.2° (our tests) |
| Warranty: | 2 years |
| Web access ports: | 80 |
| Web server: | Built-in |
IP camera with very good high-resolution sensorThis makes it ideal for monitoring systems where identification of people or vehicles is required
The range of the illuminator given by the manufacturer depends on the environmental conditions (transparency of air, environment, color of walls, i.e. the so-called scene reflectance)
For several IP cameras operating at ≥ 1920 x 1080 resolution, we recommend 1Gbps networks
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
