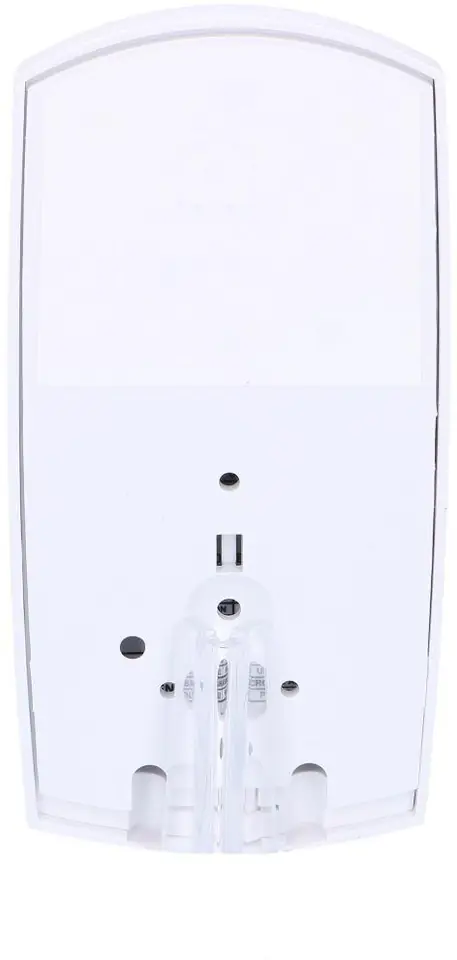

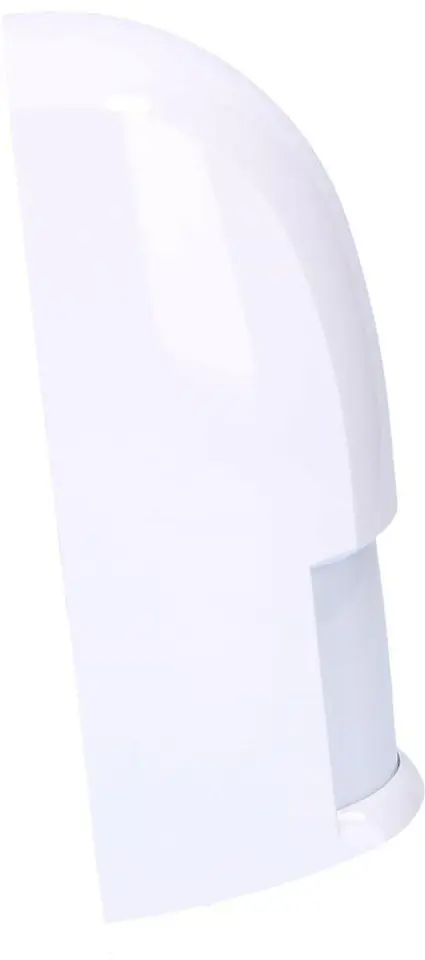

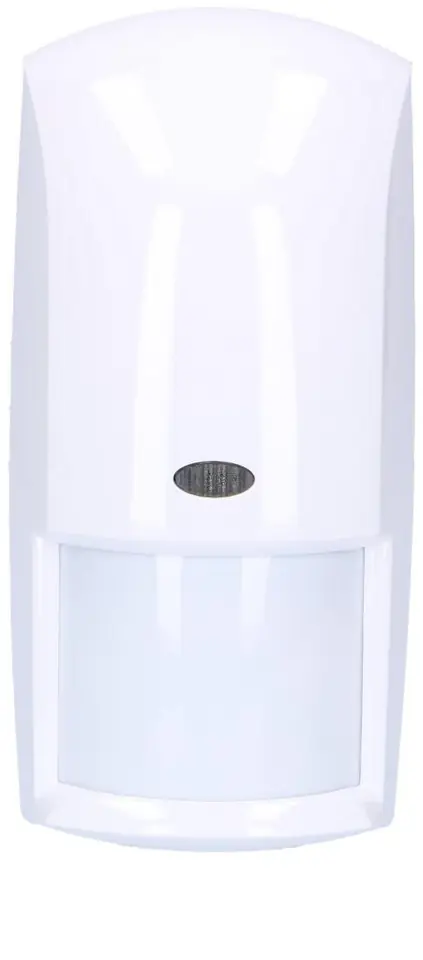

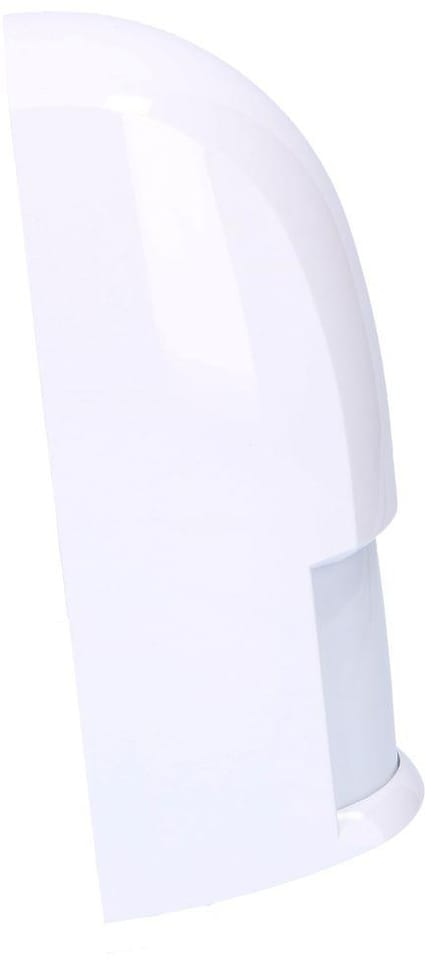

OUTDOOR DUAL DETECTOR MICROWAVE + PIR FROM 850 BOSCH

€111.61

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Wed, Dec 25 - Mon, Dec 30

14 days returnUnconditional return policy

Availability:: large quantity
Product code:: OD850 / 4060039089861

Specification

Alarm outputs::	(NO/C/NC) 28 V DC 0.1 A 10 Ω
Alarm relay type "a"::	Normally compact, supervised alarm contact swings when an alarm is triggered
Alarm relay type "c"::	Unattended, the timer transmits the signal when the alarm is triggered works according to the programmed timer settings
Dimensions::	165 x 82.5 x 57 mm
Maximum load on outputs::	3W resistive load max. 125 mA at max. 25 V DC and protection by 4.7 resistor Ω 1.2 V at the common "C" contact. Attaching only to SELV type circuit (low voltage)
Microwave frequency band::	10.525 GHz
Operating temperature::	-35 °C ... 60 °C
Power::	10 V ... 15 Vmax. 62 mA Active State22 mA Standby
Scales::	0.290 kg
Sensor type::	Passive infrared (PIR) and microwave (MW)
Tamper output::	Two switches: NC DC 28V 0.1A with 10 Ω a protective resistor ; Open when the cover is removed from the sensor body
Tamper::	Normally compact (with the housing attached). Contact load capacity max. 125 mA at max. 25VDC
Use::	External
Warranty::	2 years

Od850 sensor with a coverage area of 15 x 15 m is designed for outdoor applications and for operation in adverse environmental conditions

The use of Motion Analyzer II technology processing the signal from the PIR detector and LTD (Linear Travel Distance) technology processing the signal from the microwave detector allows the detector to detect linear displacement, which allows reliable detection of human movement while omitting stationary objects that make slight movements such as tree branches or hanging signs

The combination of advanced signal processing techniques and mechanical design has resulted in the development of a sensor that is characterized by excellent performance in various environmental conditions

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
