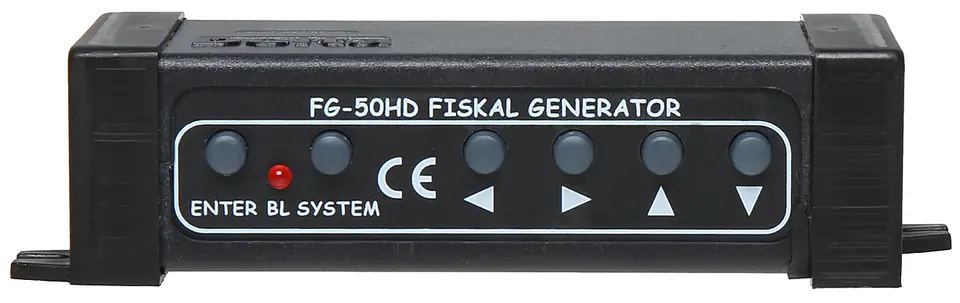

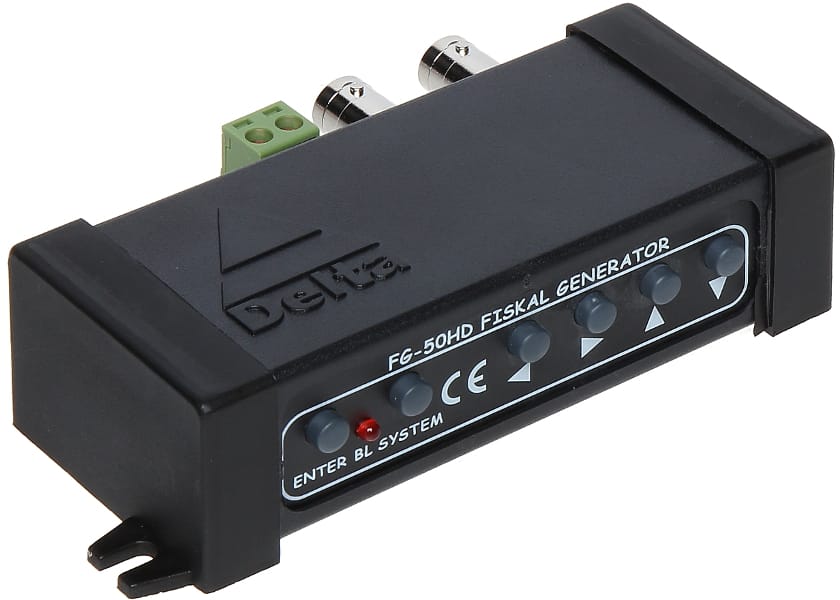

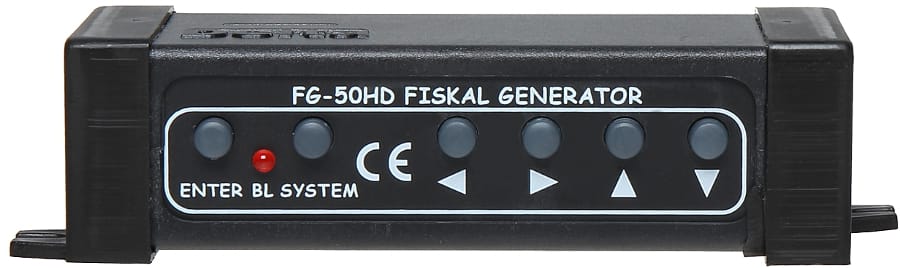

The device is used to overlay alphanumeric characters on the image from the camera

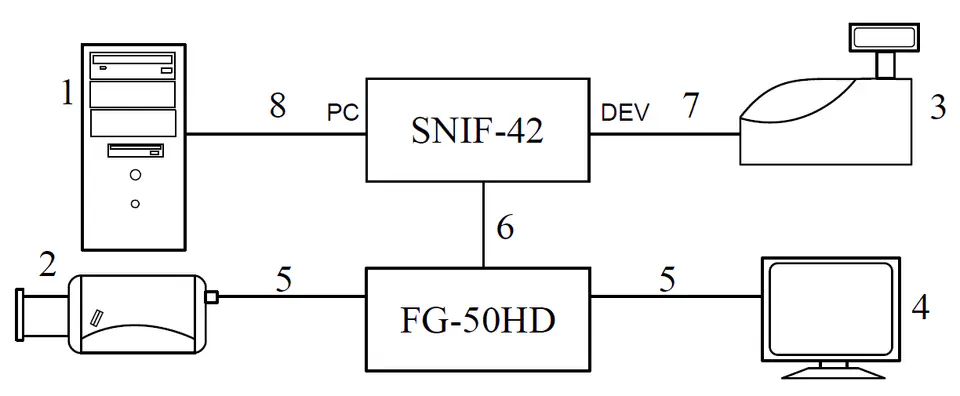

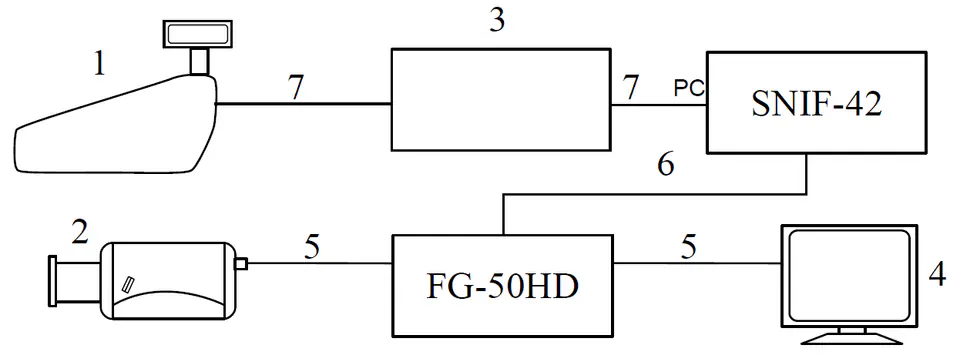

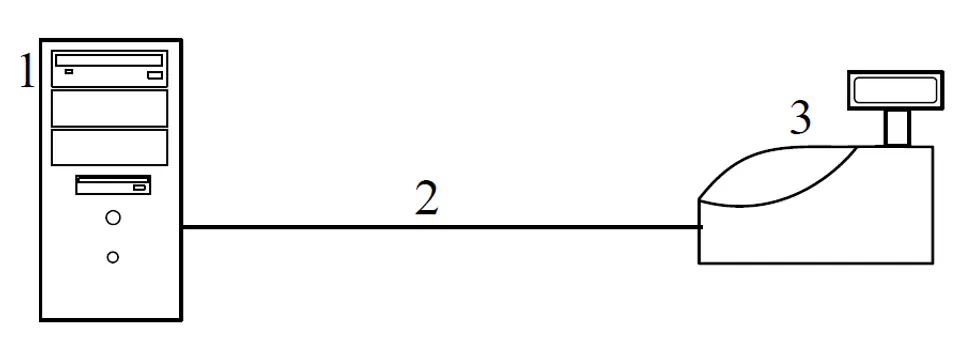

The FG-50HD device in combination with the SNIF-42 sniffer allows you to capture data sent from various devices via the RS-232 port and place them in the image from CCTV camerasExample examples of such devices can be, for example: printers and cash registers, scales, dynamometers, banknote counters, time recorders and others with RS-232 / RS-485 port
The device supports analog CCTV cameras in the following standards: PAL, AHD, HD-CVI, HD-TVI, both in 720p and 1080p resolution

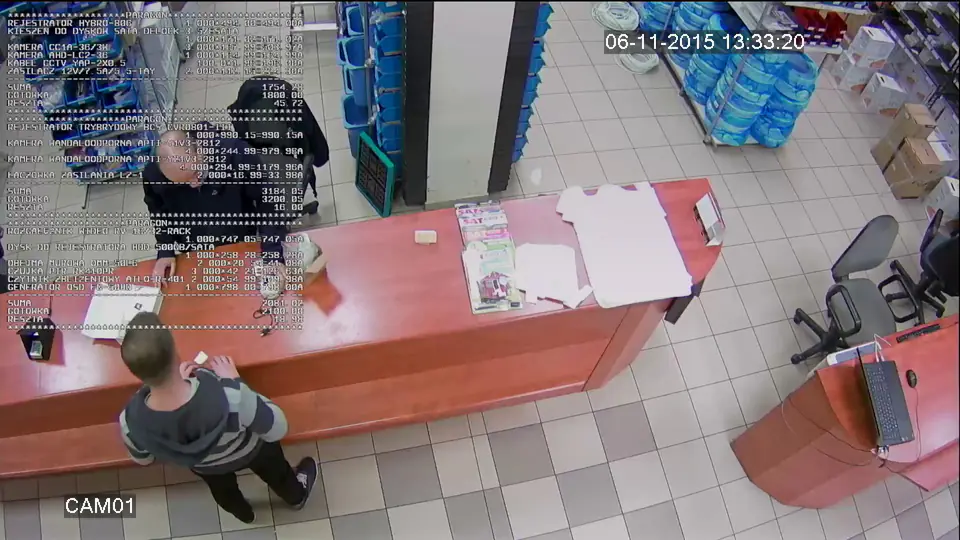

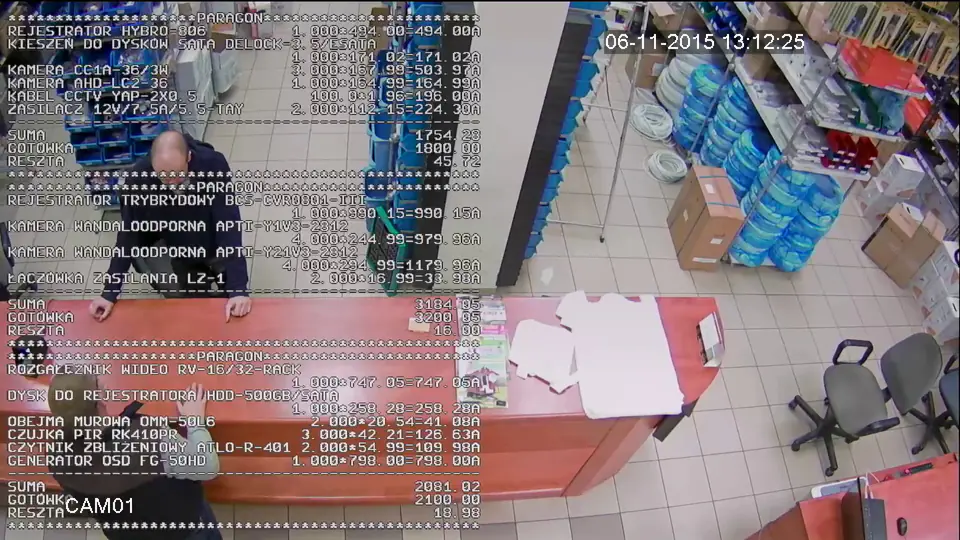

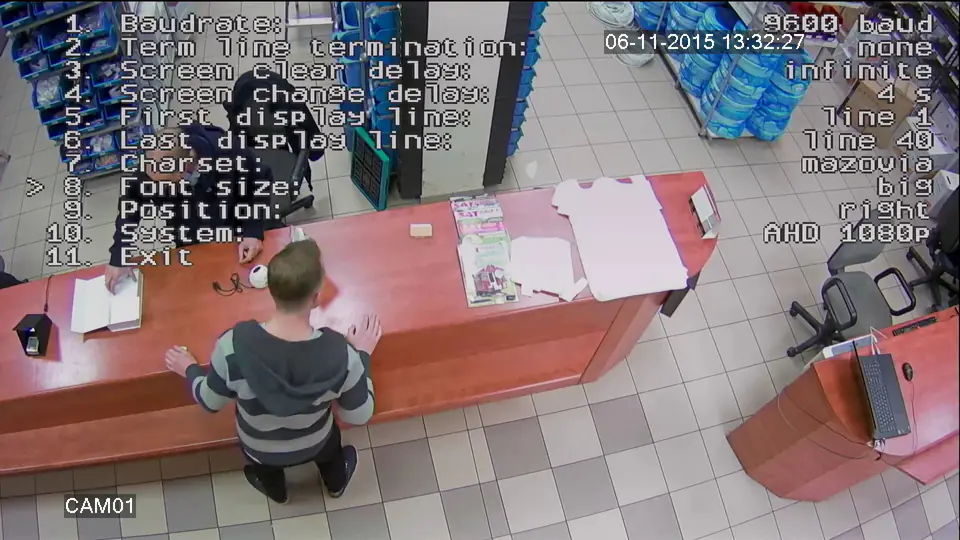

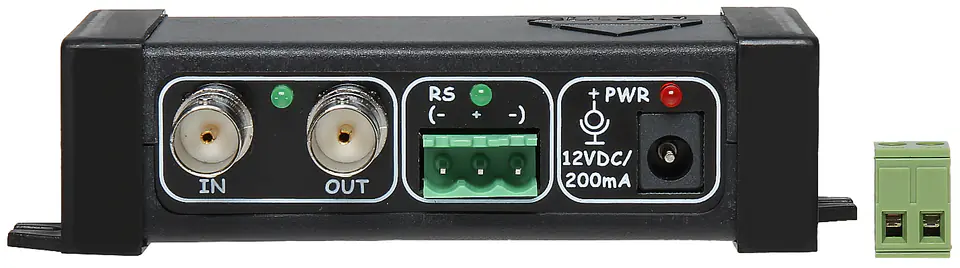

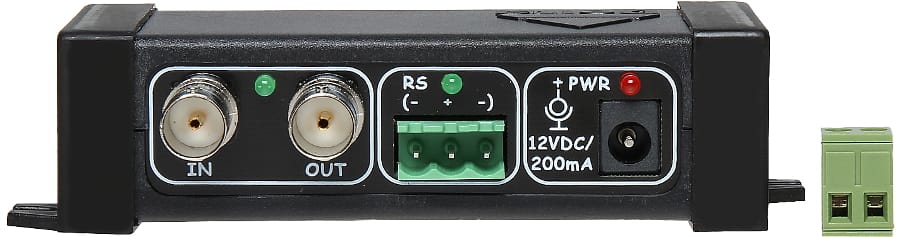

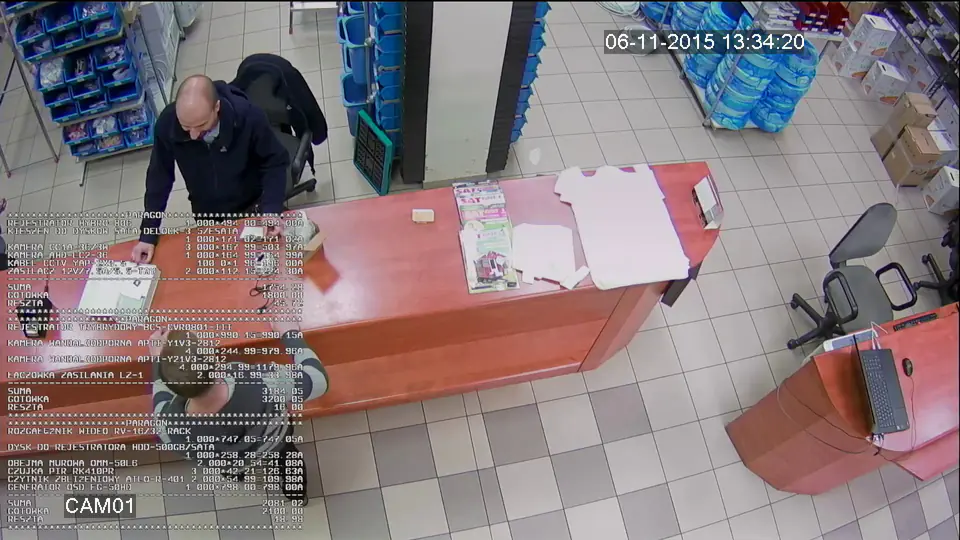

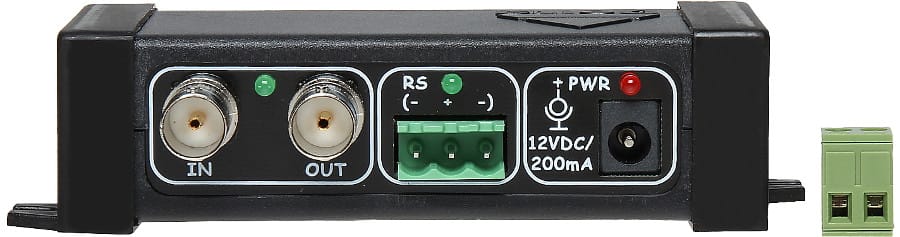

From the side of the video signal, the FG-50HD acts as a pass-through device, having a signal input and outputIt allows you to display the image from the CCTV camera, while placing a list of products recorded at the cash register standThe device can serve as an additional security for the sales station. It allows you to control the products issued in accordance with the issued receipt.

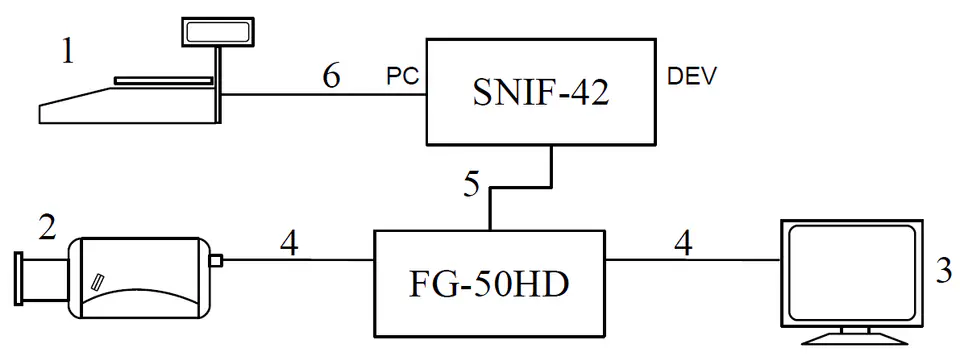

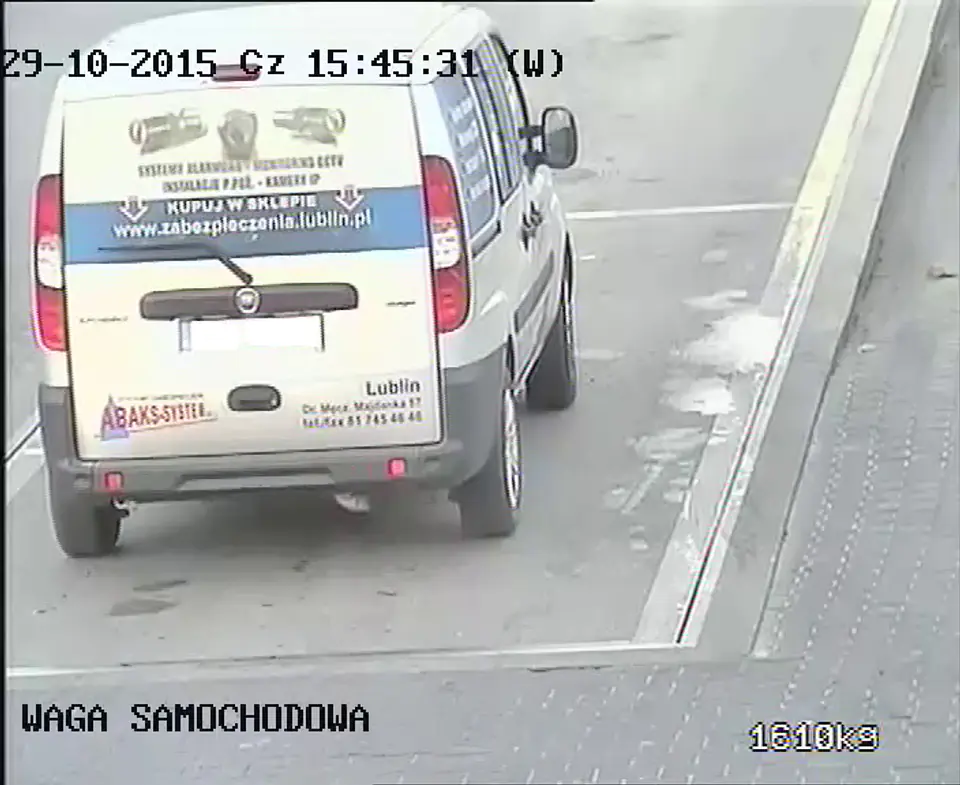

In addition, the FG-50HD can operate in character terminal mode and display all strings received from the controlled deviceExample can be the display of weight, temperature, or other quantities from any sensor equipped with RS-232 / RS-485It is possible to adapt the software to the customer's needs, e.g. adding a new communication protocol supporting other devices than those specified
The FG-50HD and SG-55HD are hardware compatible. It is possible to switch between them using a software updateIt means that having the FG-50HD you can migrate to the SG-55HD by uploading only its firmware, which is available on the manufacturer's websiteA detailed the same way the other way around - you can convert the SG-55HD into the FG-50HD
Since firmware version 1.25 it is possible to modify and upload your own fonts. The device also implements a graphical mode
