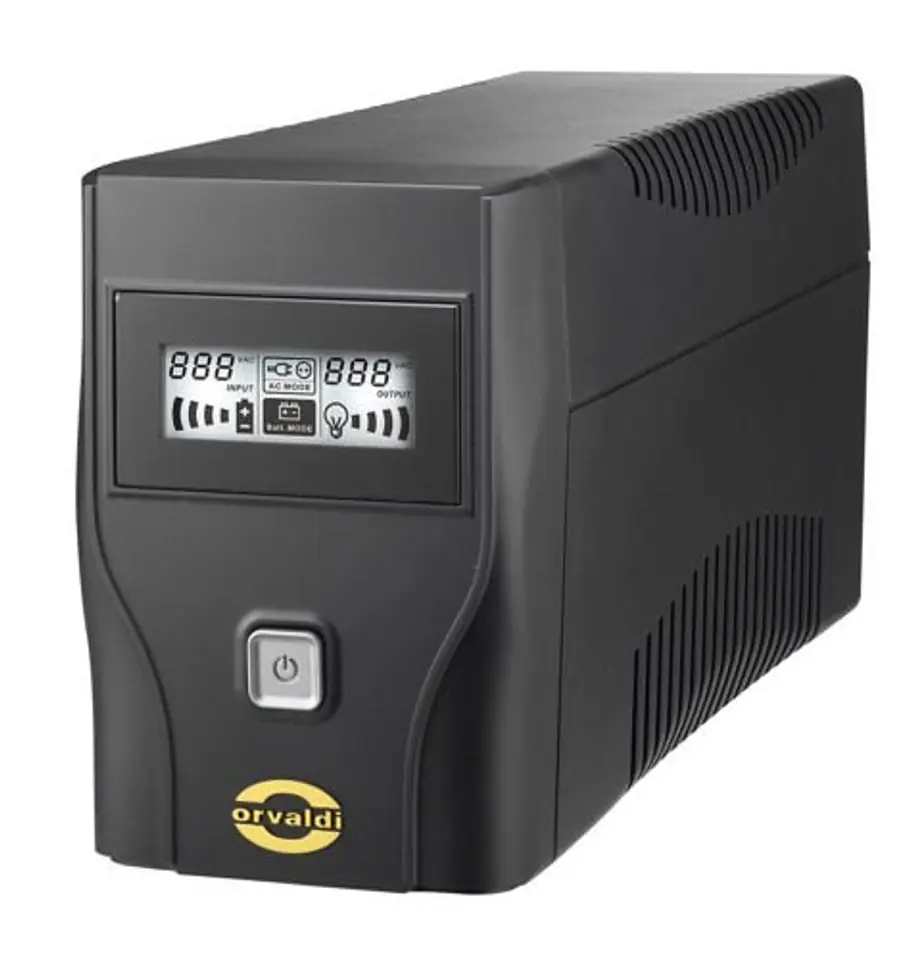

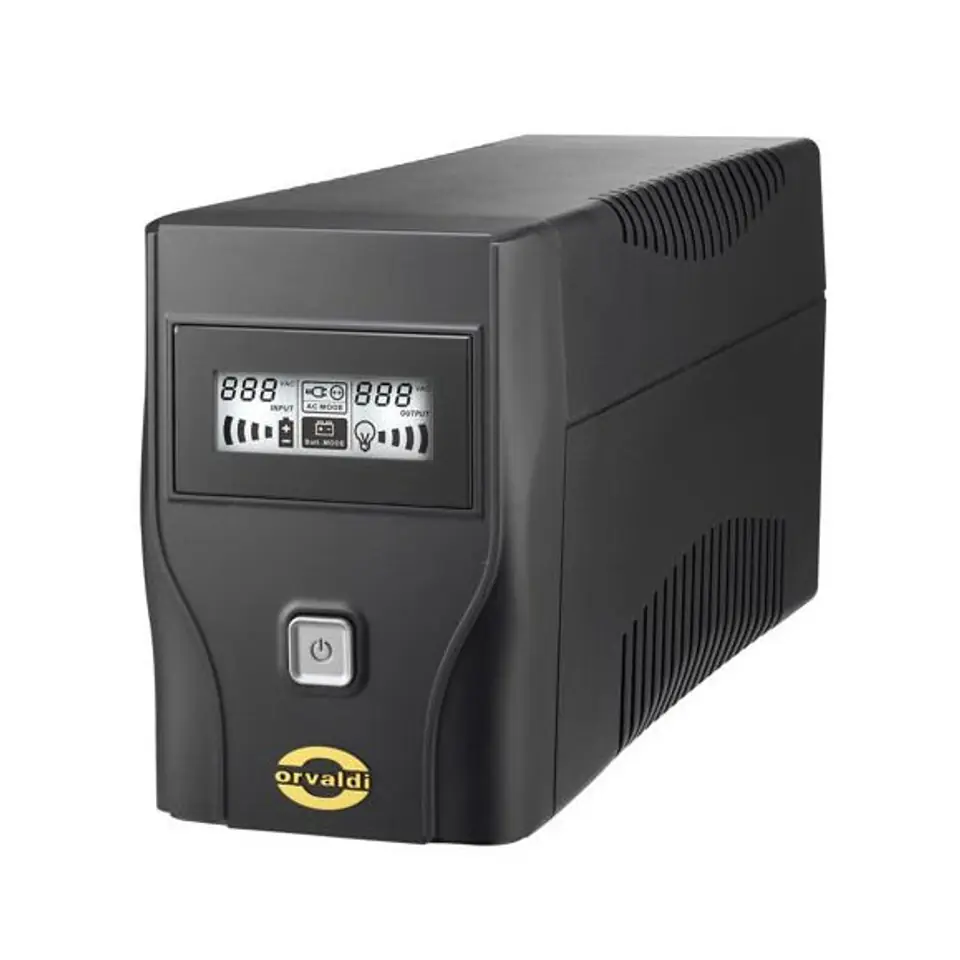

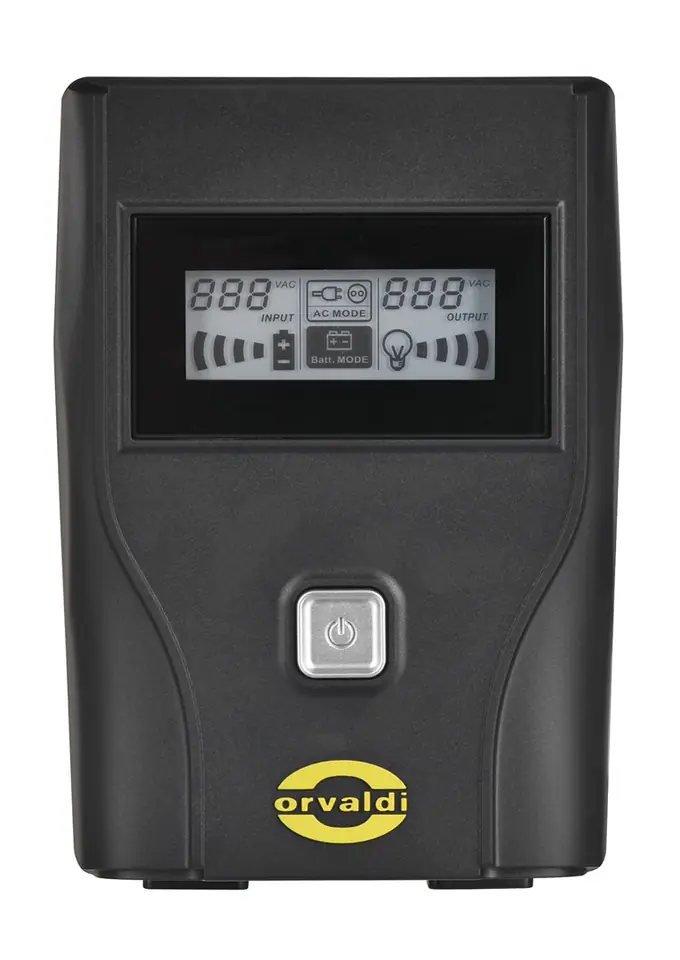

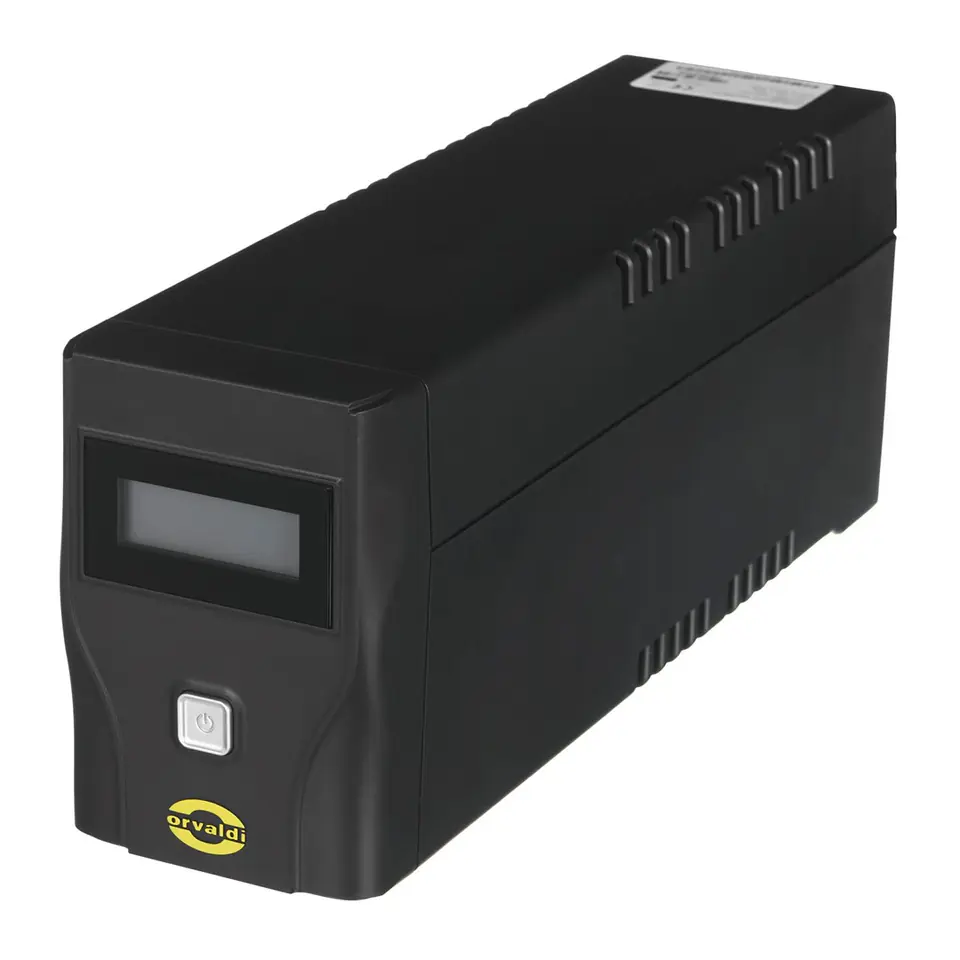

ORVALDI sinus 800 LCD VPS800

€180.75
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Orvaldi
Product code:
VPS800 / 5904006036054

Specification

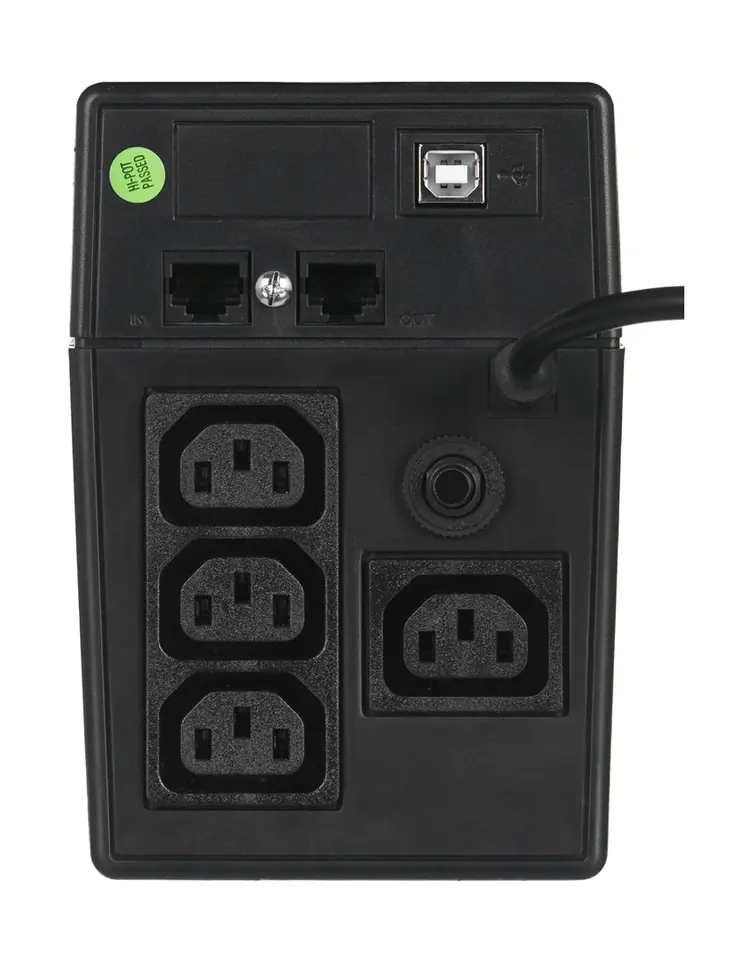

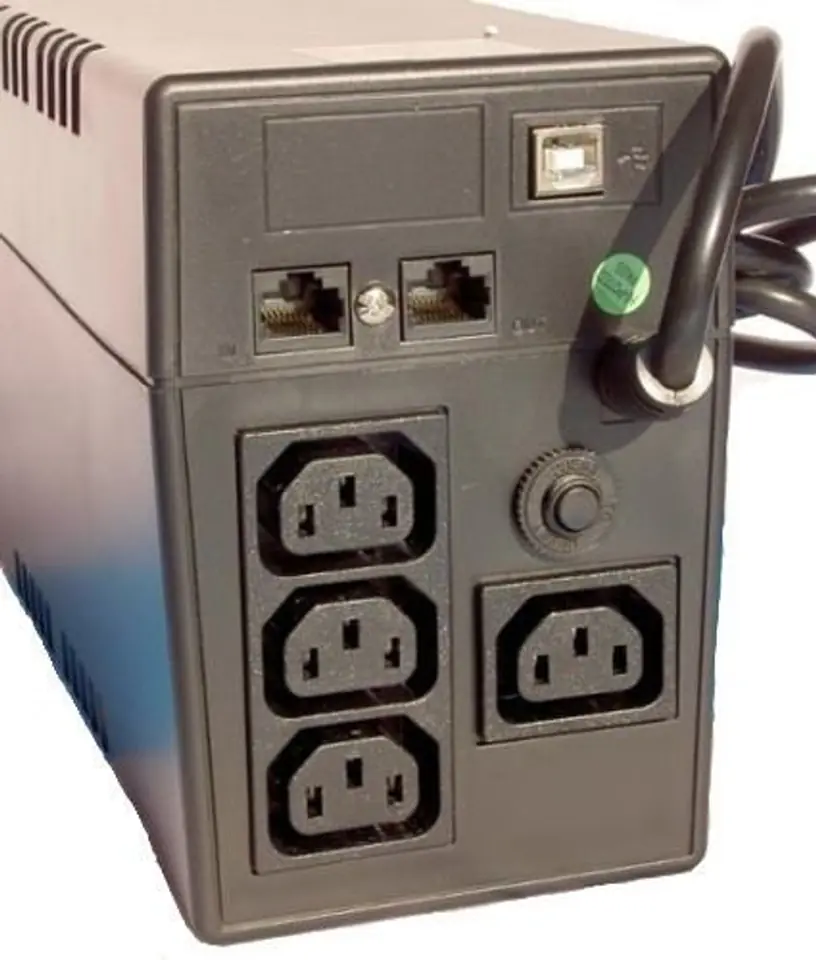

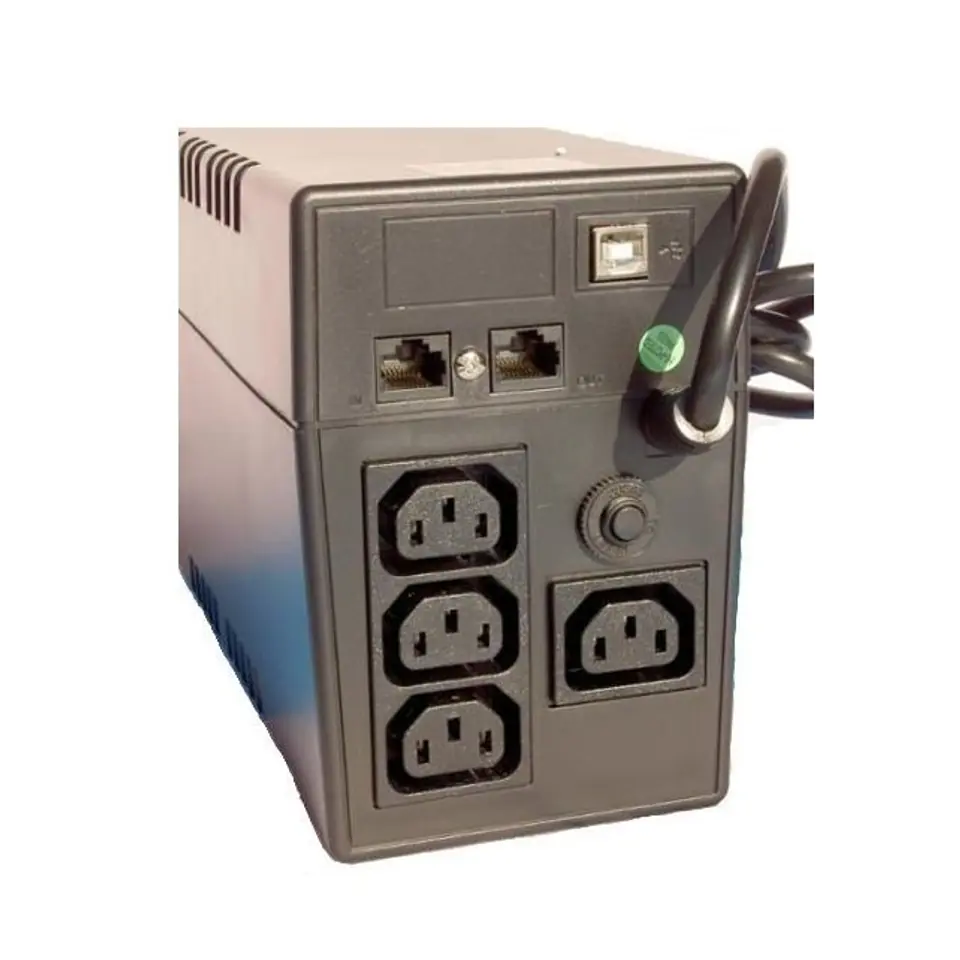

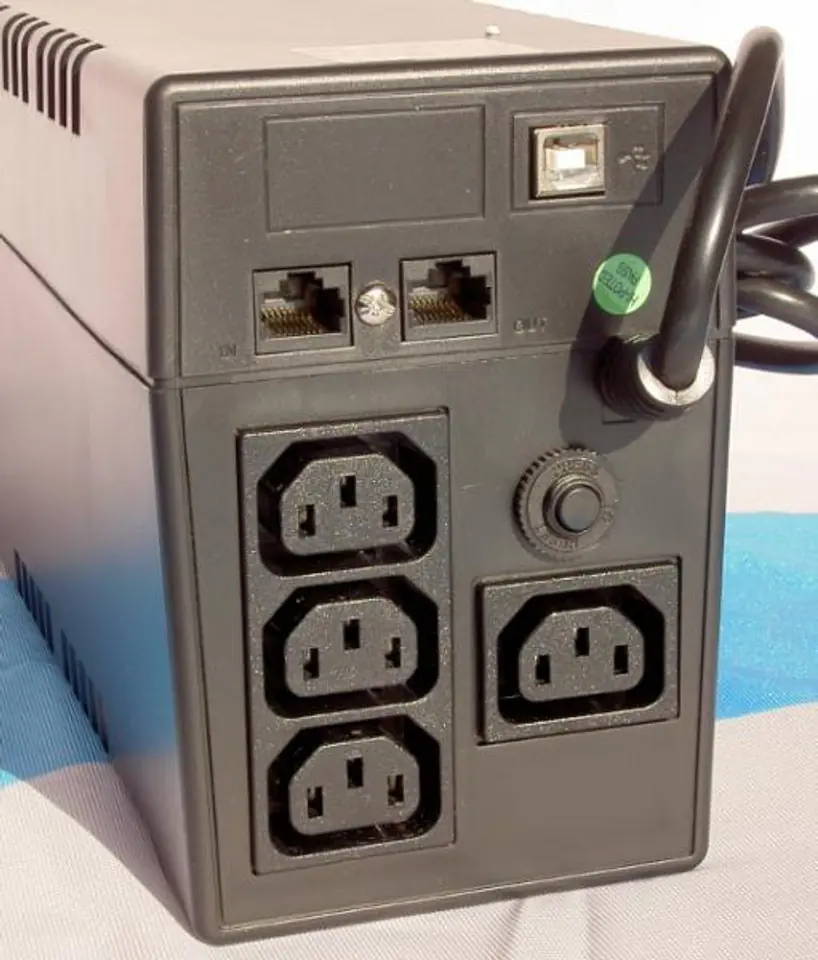

Ac outlet types:IEC 320
Ac outlets quantity:4 AC outlet(s)
Apparent power:800VA
Arrangement:Compact
Battery capacity:9 Ah
Battery voltage:12 V
Battery voltage in ups:12V
Charging time:4 hours to 90% full capacity
Cold start:Yes
Colour:Black
Depth:328 mm
Dimensions:328 x 100 x 145 mm
Form factor:Compact
Height:145 mm
Input frequency:50/60 Hz
Input operating voltage (maximum):240
Input operating voltage (minimum):220
Input operation voltage (max):240 V
Input operation voltage (min):220 V
Manufacturer's warranty:24 months
Mass:6 kg
Maximum configurable power:0,8
Number of batteries:1
Number of batteries supported:1
Number of power outlets:4
Number of supported batteries:1
Output power:480 W
Output power capacity:0.8 kVA
Port usb:yes
Product colour:Black
Product depth:328
Product height:145
Product width:100
Real power:480
Tension:230V
Types of ac outputs:IEC 320
Ups power (va):800
Ups topology:Line-Interactive
Ups topology:Line-interactive technology
Usb port:Yes
Wave waveform:Pure sine
Waveform:Pure sine
Width:100 mm

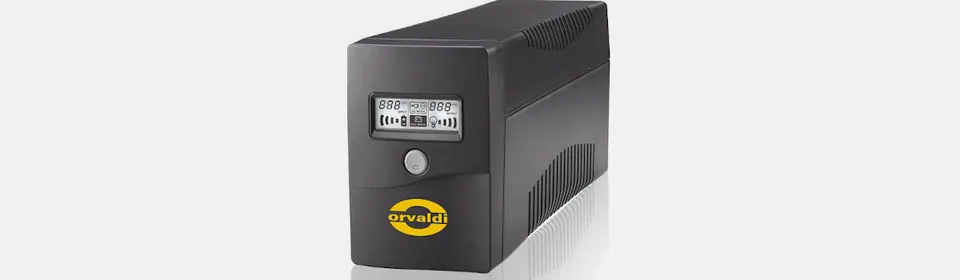

Zasilacz UPS Orvaldi sinus 800 LCD

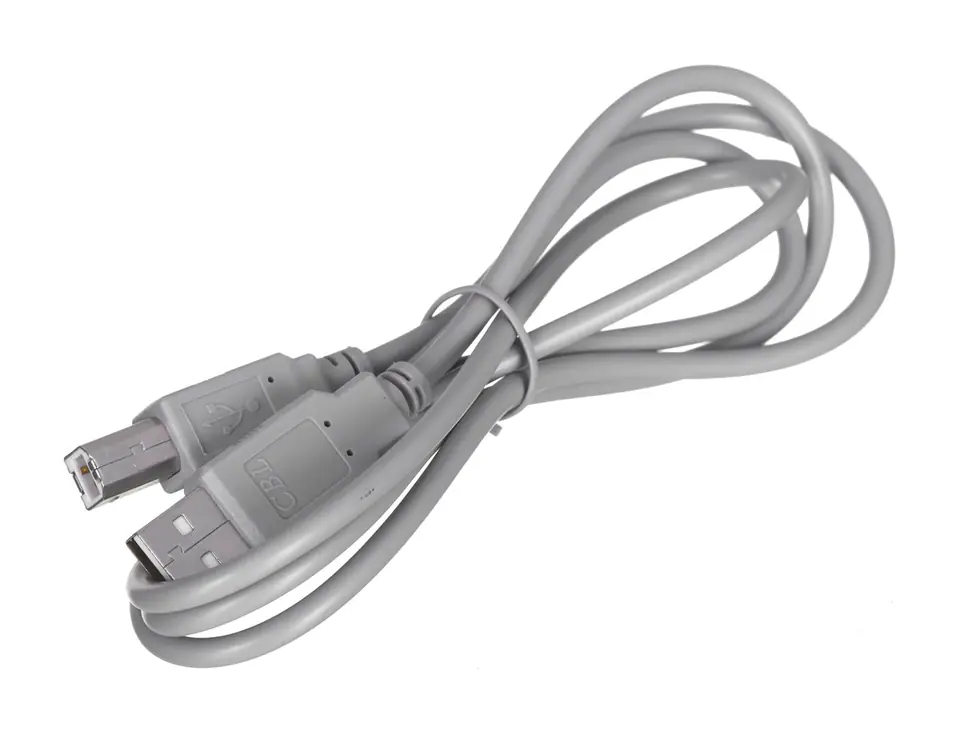

Orvaldi sinus 800 LCD is an advanced UPS in line-interactive topology based on full microprocessor control. It works with the latest technology and high efficiency, delivering a clean sine wave to protected loads both when working with the network and when working with the battery. This shape of the voltage at the output of the UPS and very quiet operation during battery mode ensures versatility of using this UPS. In the event of a power outage, it can immediately supply the energy stored in the batteries without any interruption. The switching time to battery operation and vice versa is carried out in the range from 2 to 10 ms.  Small UPS with a pure sine wave at the output to protect the computer with a demanding switching power supply and an active PFC filter; ideal for powering pumps, central heating stoves or fireplace pumps. The digital PWM controller provides a pure sinusoidal shape of the output voltage. Excellent microprocessor control guarantees high reliability. Boost and AVR stabilize voltages. Three-stage charging optimizes battery performance. Automatic restart when AC power returns. Built-in USB and RJ-45 communication port provides LAN and phone protection.

ORVALDI sinus 800 LCD VPS800
