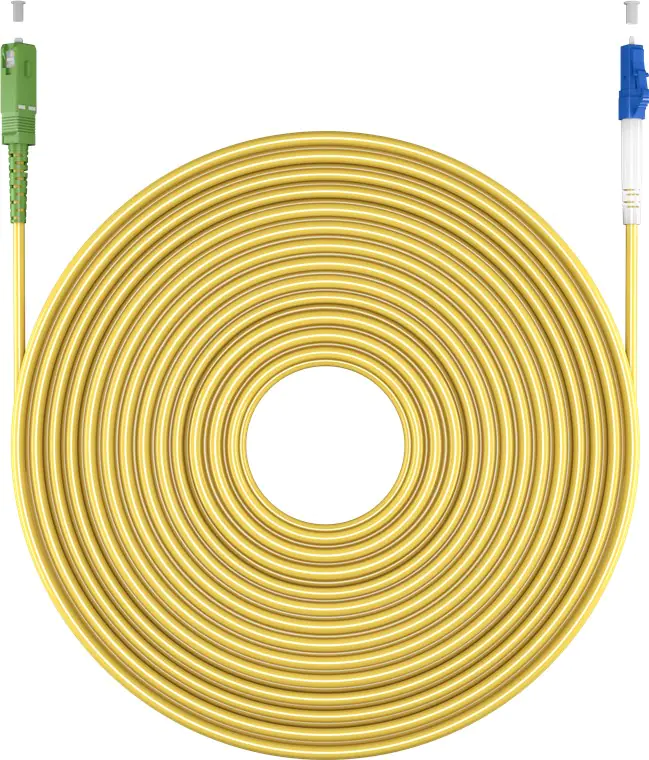

Single-mode OS2 simplex optical patch cord with SC-APC and LC (UPC) plugs
The cable is suitable for private and industrial applications, including home fiber optic (FTTH), and is compatible with FTTH offerings from many suppliers. The bend-optimized fiber optic cable saves installation space without increasing attenuation and the risk of interference. LSZH outer shell - does not emit harmful gases in case of fire, in accordance with IEC 60754 2, IEC 60332 1 and IEC 61034. As a patch cord, it creates a connection between the home transfer point (e.g. a wall socket) and the fiber optic modem (ONT) inside the building. Fiber optic cable up to 100 Gbit/s takes up little space and is optimized for bending. Plugs equipped with dust covers, compliant with ITU T G.657. Cable available in different lengths (see offer title): 0.5; 1; 2; 3; 5; 10; 15; 20; 25; 30 meters.

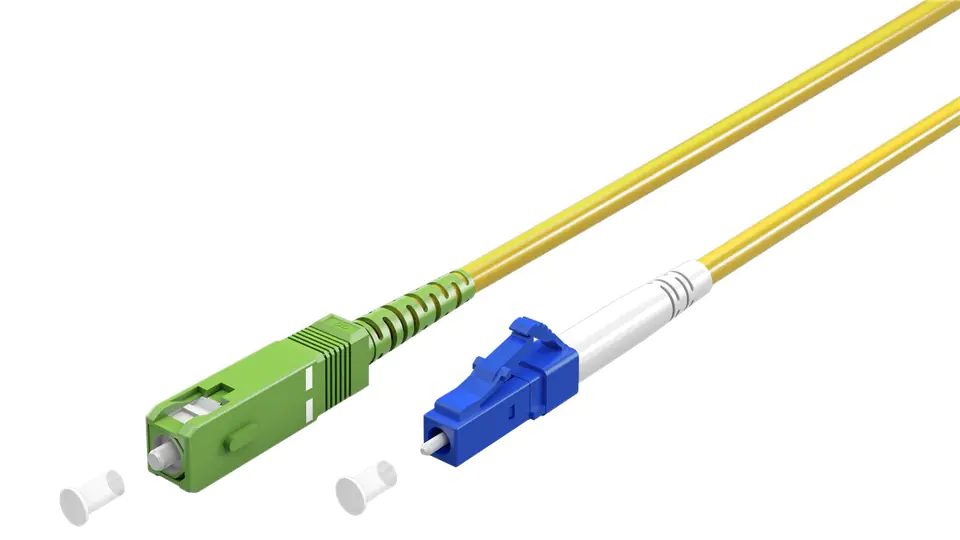

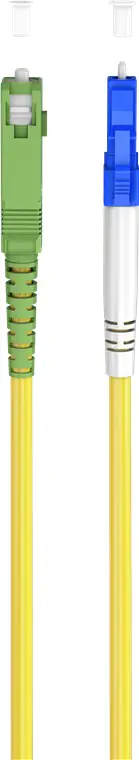

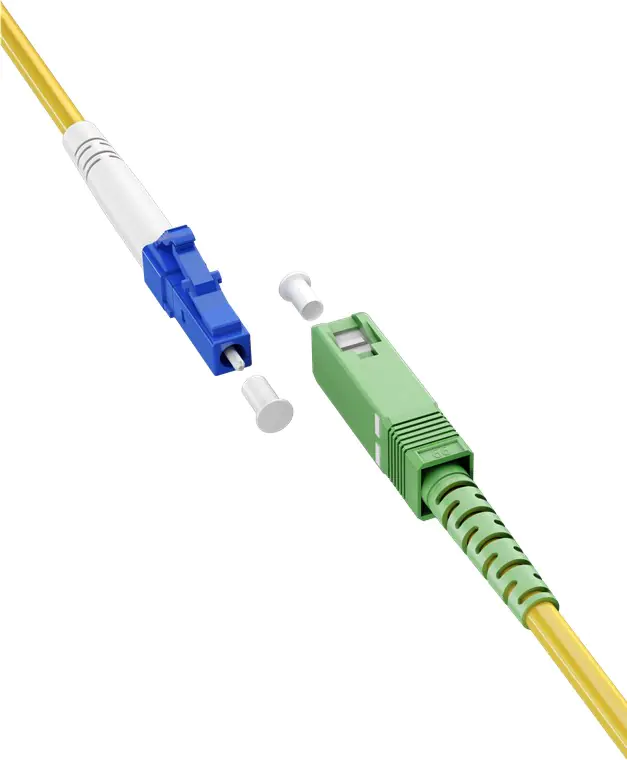

- SC-APC plug on one side (8°)
- LC plug (UPC) on the other hand
-Yellow
- Simplex cable type
- outer diameter of the cable 3 mm
- fiber core diameter 9 μ
- fiber optic jacket diameter 125 μ
- wavelength 1310 nm
- Glass Fibre G657. A2
- LSZH non-flammable coating - cable without poisonous substances in case of fire
- complies with IEC 60754 2, IEC 60332 1 and IEC 61034 standards
