OPTICAL LEVEL ELN 24 ZEST N12-EASY

Technical Specifications

Average error per 1km double levelling: 2.0mm
Telescope magnification: 24 x
Lens diameter: 36mm
Shortest purpose: 0.3m
Compensator operating range: 15
Compensator accuracy: 0.5
Spherical Libella: 8/2mm
Horizontal wheel: 400g
Enclosure protection class: IP 54
Weight: 1,5kg



Optical level ELN 24 zest N12-easy

It is a solidly made product of the German brand geo-FENNEL, which has been specializing in measurement technology for construction and geodesy for 165 years. ELN 24 set is an instrument from the economic line - created for economical contractors looking for a good quality instrument, with complete equipment and at a very attractive price. After registration, special perks are the third year of warranty protection.
Used device, 100% technically efficient,
I assess the visual condition on BDB

Product characteristics:
Magnetically dampened compensator (automatic aiming axis leveling)
High magnification of the scope (easy reading from a distant patch)
Large lens aperture (bright image of the patch in adverse lighting conditions)
Stepless double-sided sloths (fast and smooth direction of the scope to the patch)
Coarse sight (easy aiming at the patch without looking at the scope)
Box Bubble mirror (convenient leveling from any position)
Adjustable horizontal wheel (easy angles)
Metal housing (stability and effective protection against damage in difficult terrain conditions)
Levelling patch with permanent geodetic and millimeter division
Before shipment to the customer, the instrument undergoes a technical inspection and accuracy check confirmed by the verification protocol


**

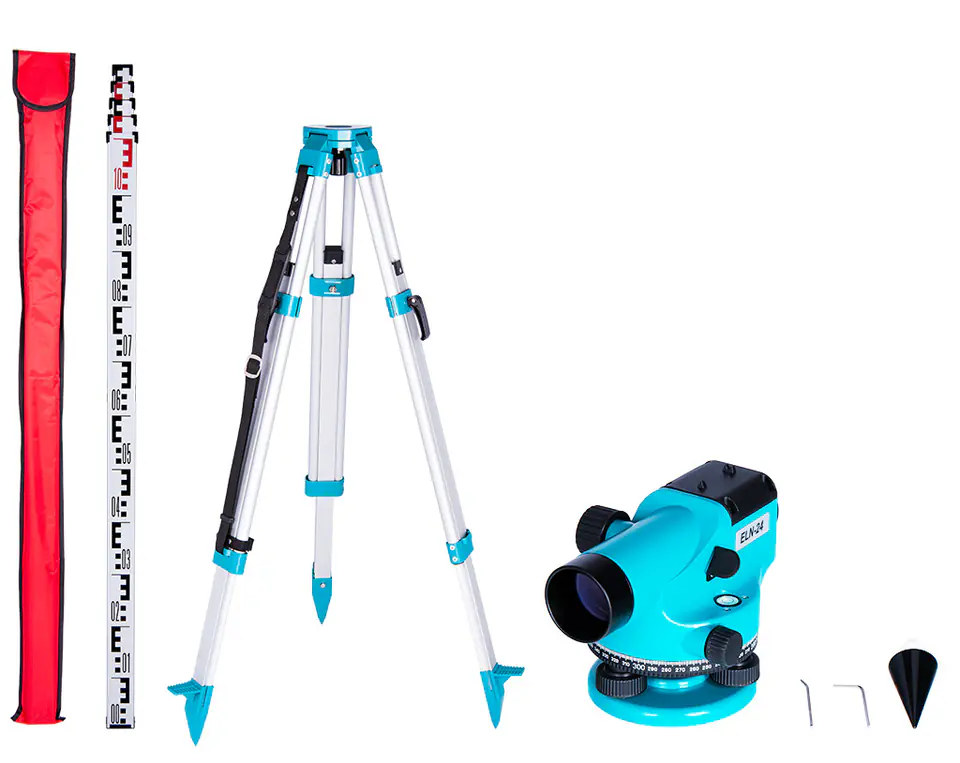

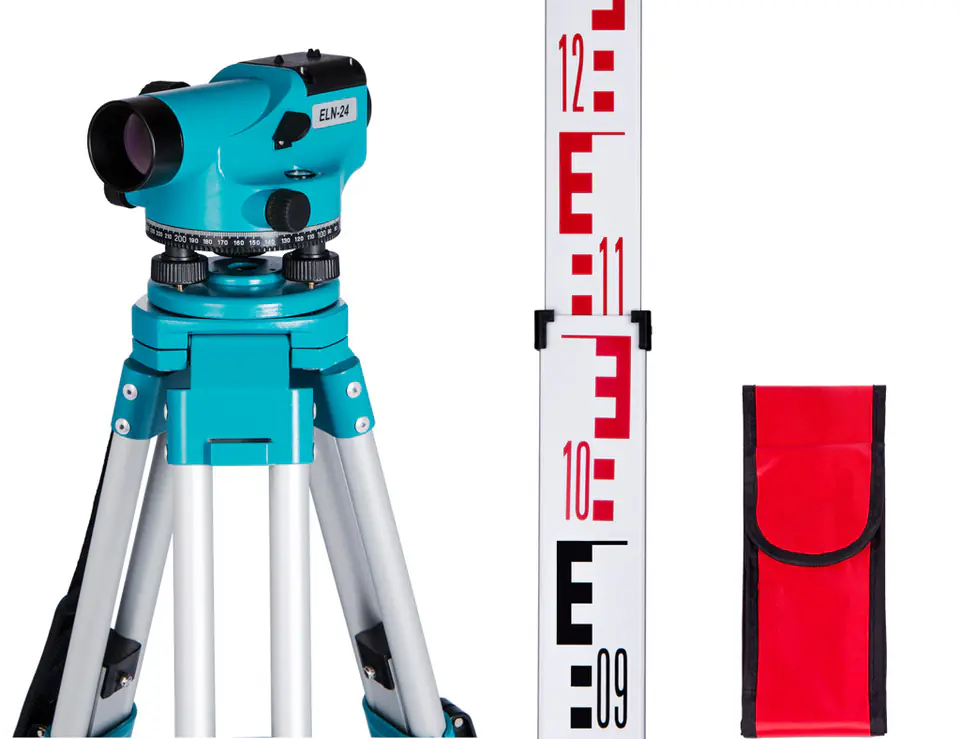

Illustrative photos
