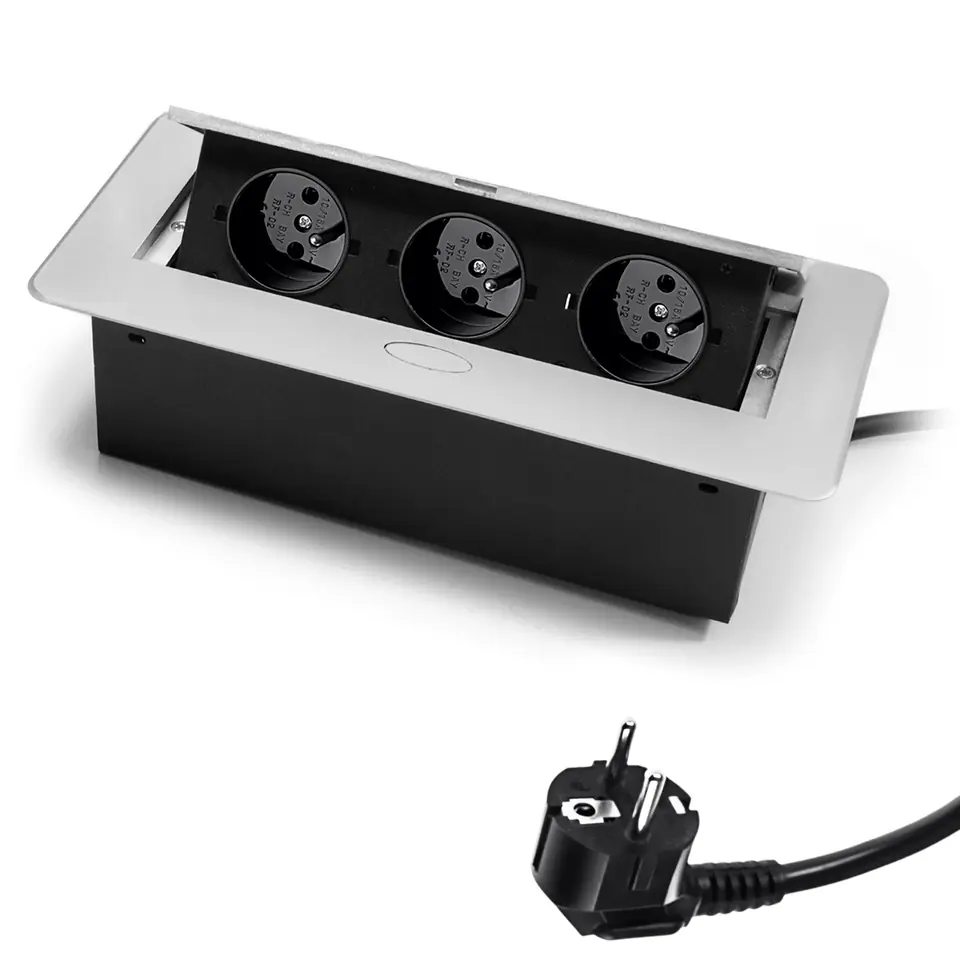

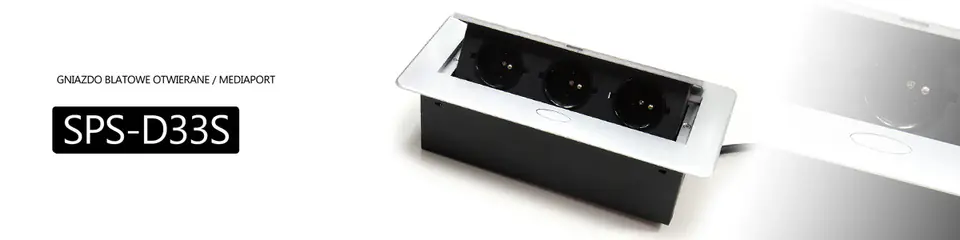

Opening table top socket ERGOLINE SPS-D33S (silver)

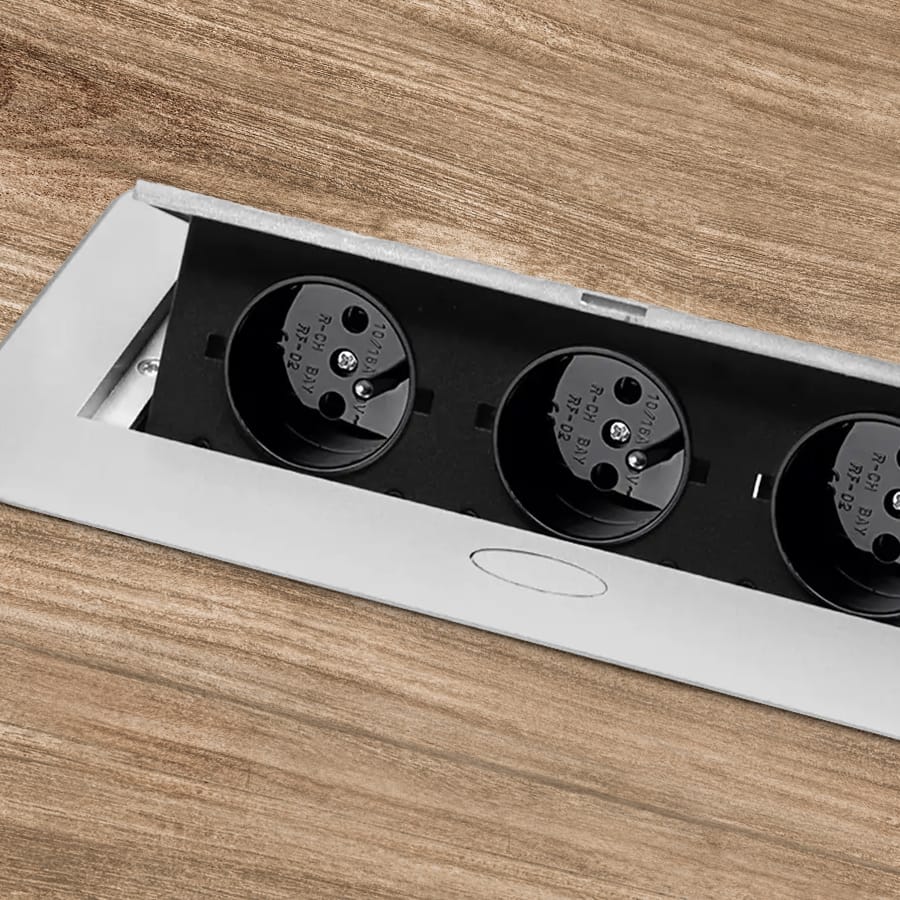

Mediaport Spacetronik ERGOLINE SPS-D33S is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. Press the button and the sockets will open smoothly. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables, both in a vertical and horizontal position, providing access to sockets. Mediaport is equipped with 3 sockets 110-250 V (French type).
The ERGOLINE mediaport series is distinguished by a significant design that will meet the needs of even the most demanding users. Made with attention to every detail, the mediaport will perfectly fit into the workplace, interior of the showroom or conference room.

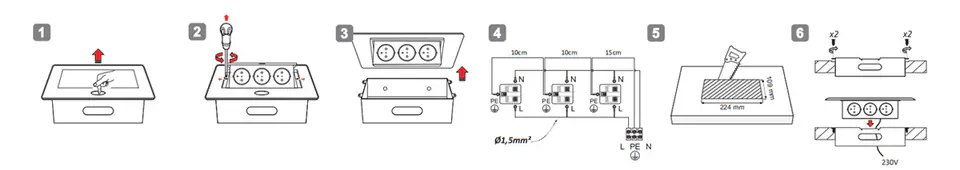

Installation of the opening table top socket is very easy.
1. Press the button to open mediaport.
2. Unscrew the 2 screws on the sides at the top of the mediaport.
3. Pull off the top panel.
4. Check connections.
5. Cut a hole of suitable dimensions.
6. Place the mediaport in the hole and screw it.
- Cable length: 1.5m
- Mains power supply: 230 V 50 Hz
- 3 x French-type socket 110-250 V (16 A)
- Can dimensions: 22 cm x 10.8 cm x 6.7 cm (width/height/depth)
- External dimensions: 26.6 cm x 11.8 cm
