Opening table top socket Spacetronik SPS-B26B V2 with brush grommet (black)

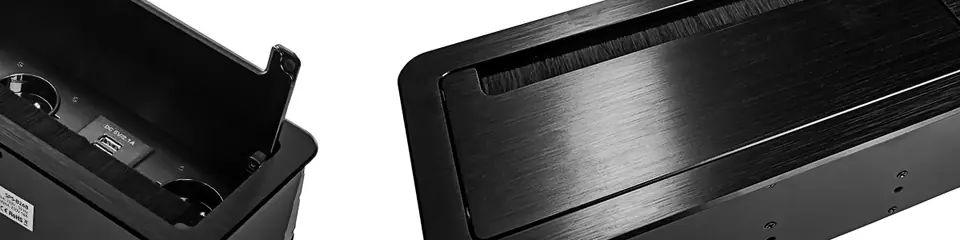

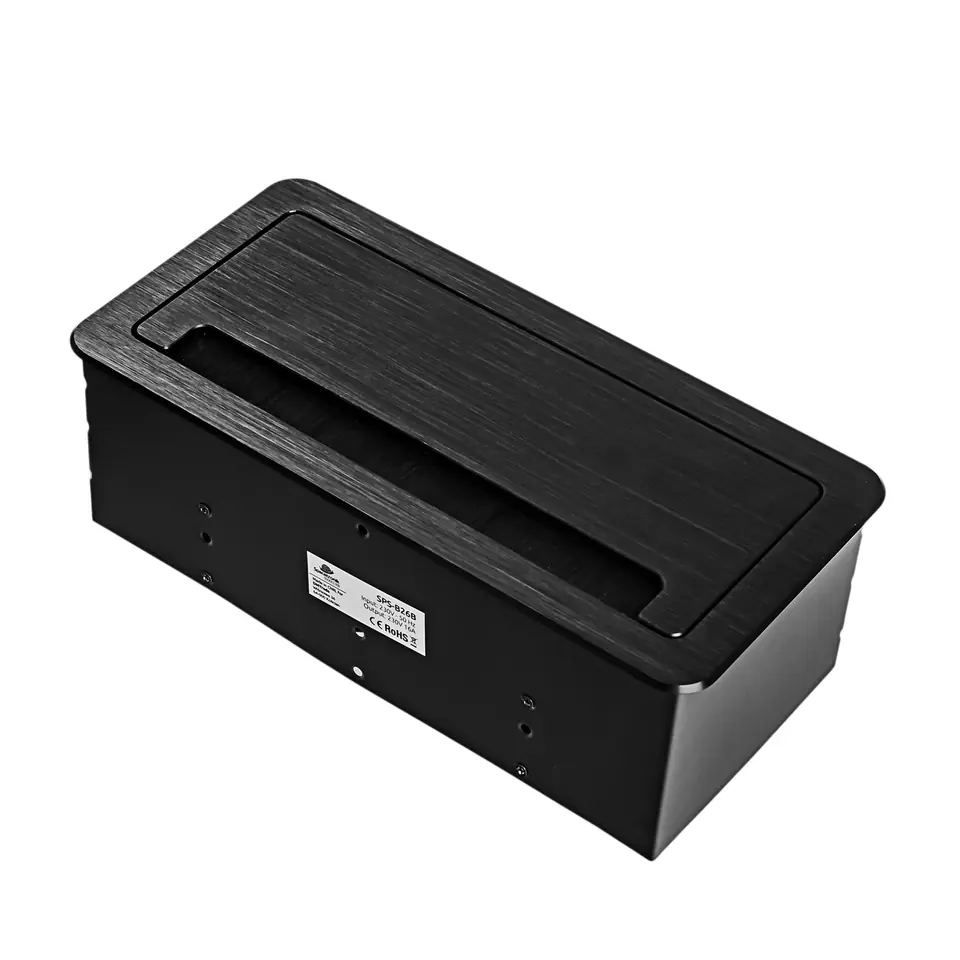

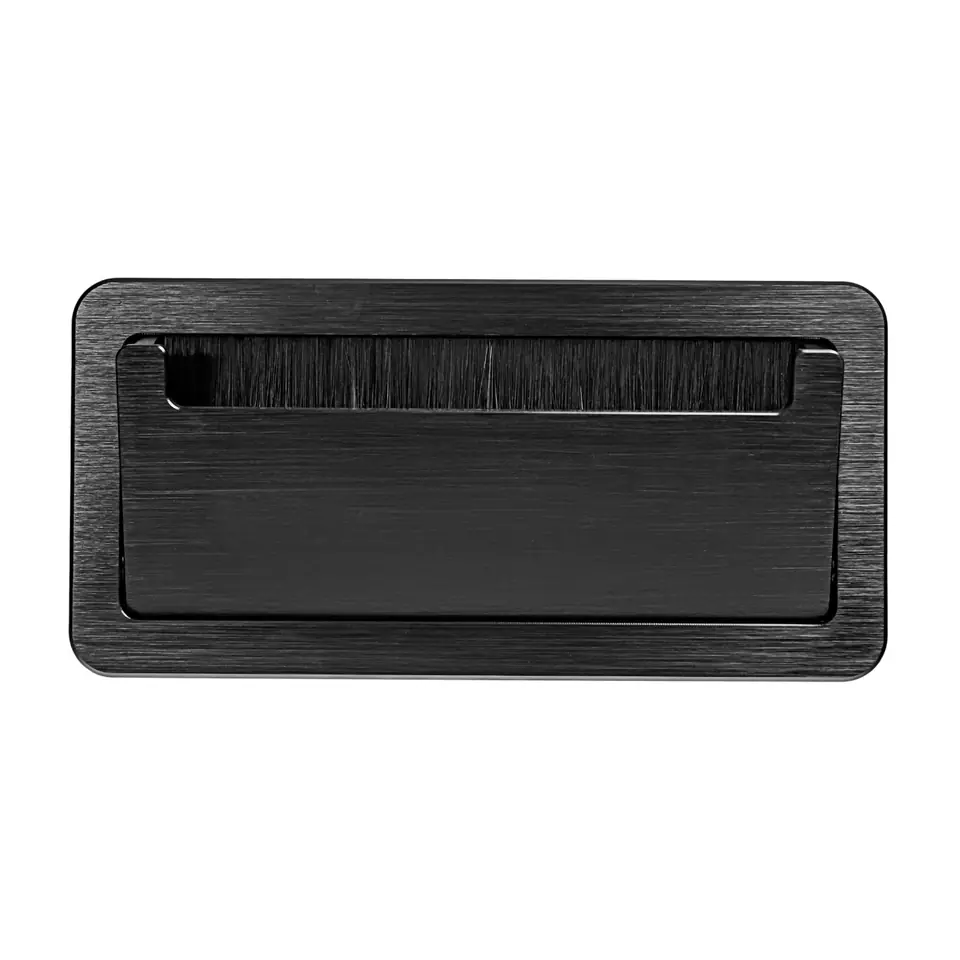

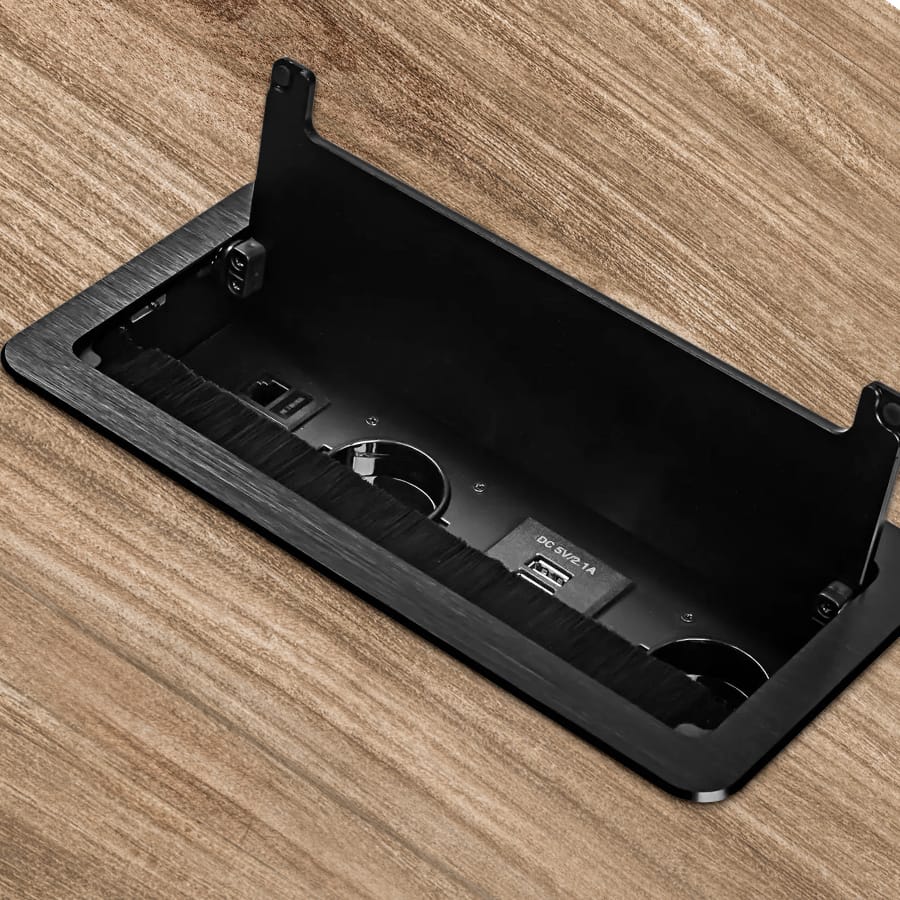

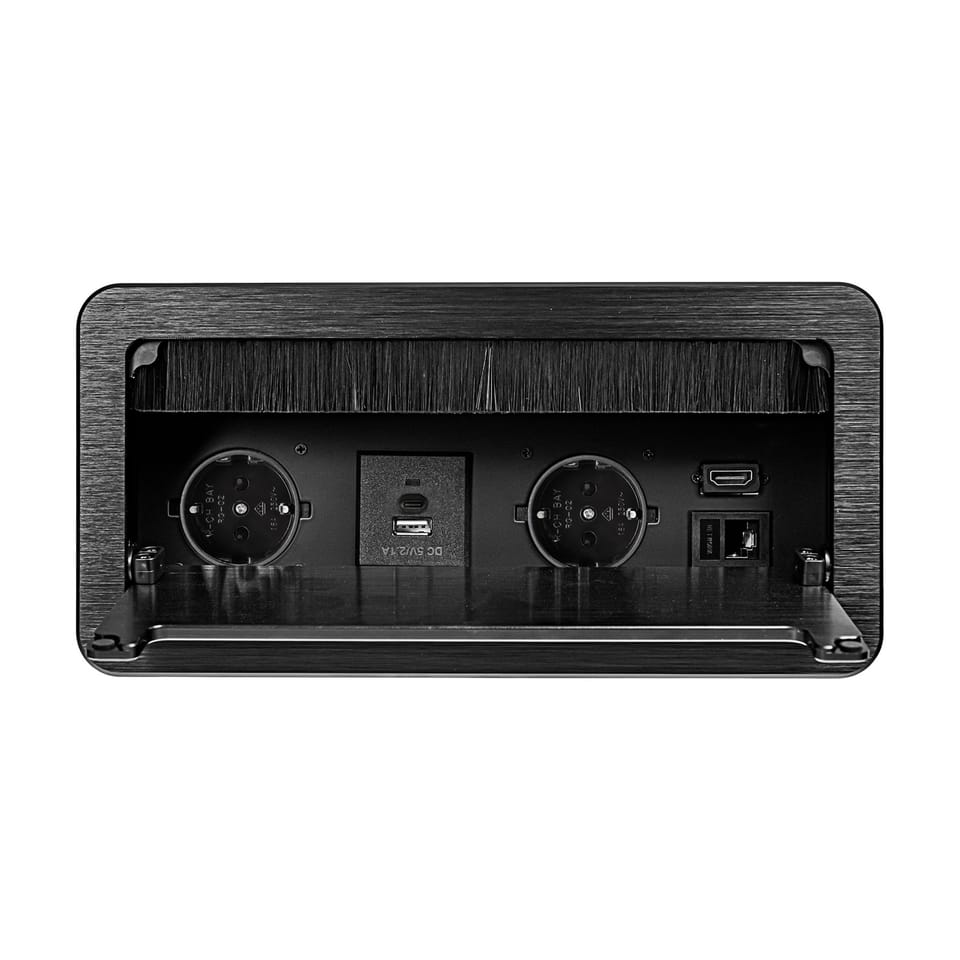

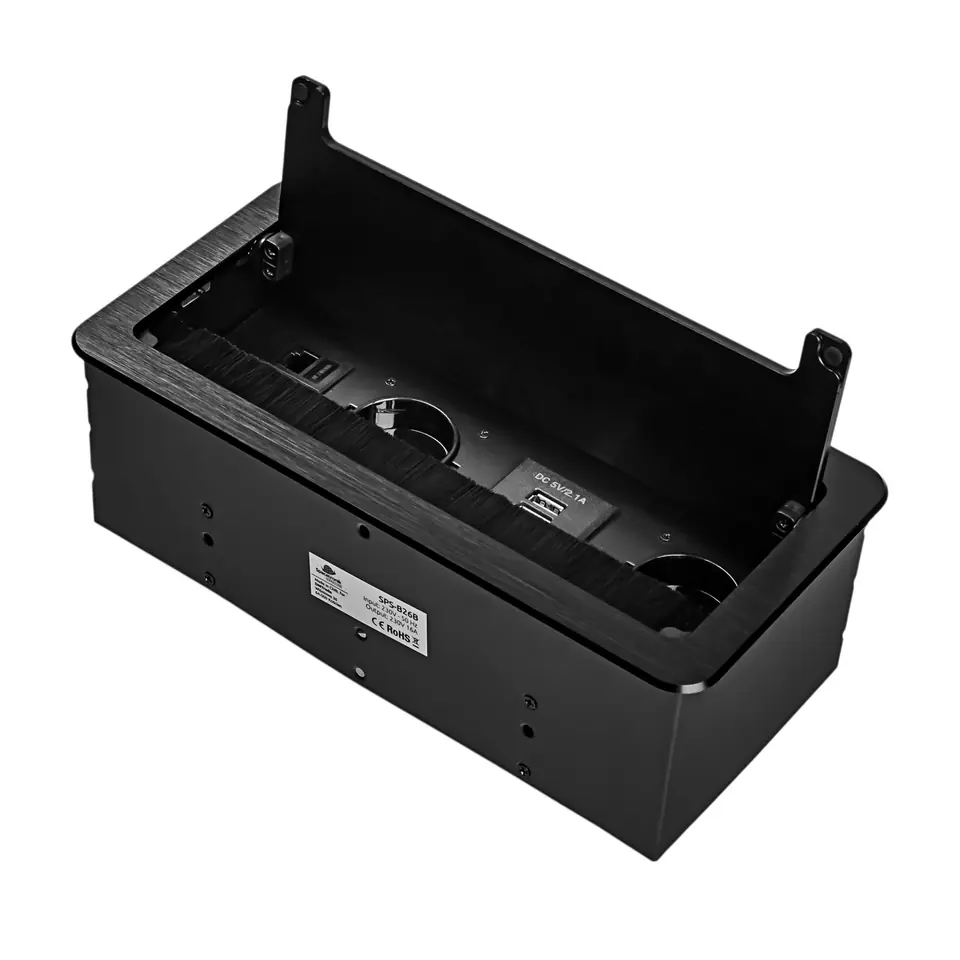

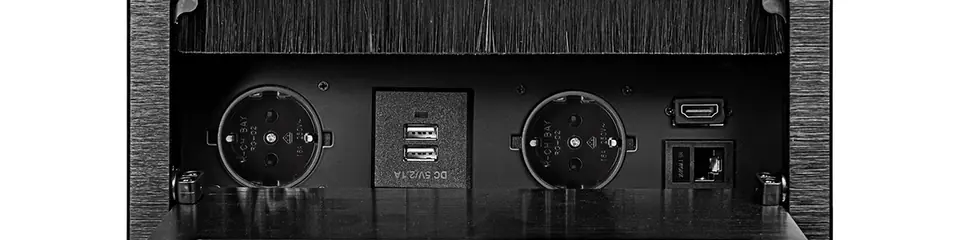

Mediaport Spacetronik ERGOLINE SPS-B26B V2 is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. At the top there is a cover and a dust brush. The socket is made of aluminum and high-quality components. The product is designed for indoor installation in desks, countertops and tables, both in a vertical and horizontal position, providing access to sockets. Mediaport is equipped with 2 110-250 V sockets (Schuko type), HDMI port, RJ-45 category 6 Ethernet socket and a dual USB charger.
The Spacetronik series of mediaports is distinguished by a significant design that will meet the needs of even the most demanding users. Made with attention to every detail, the mediaport will perfectly fit into the workplace, interior of the showroom or conference room.
Installation of the opening table top socket is very easy.
1. Cut a hole of suitable dimensions.
2. Place the mediaport in the hole and screw it.

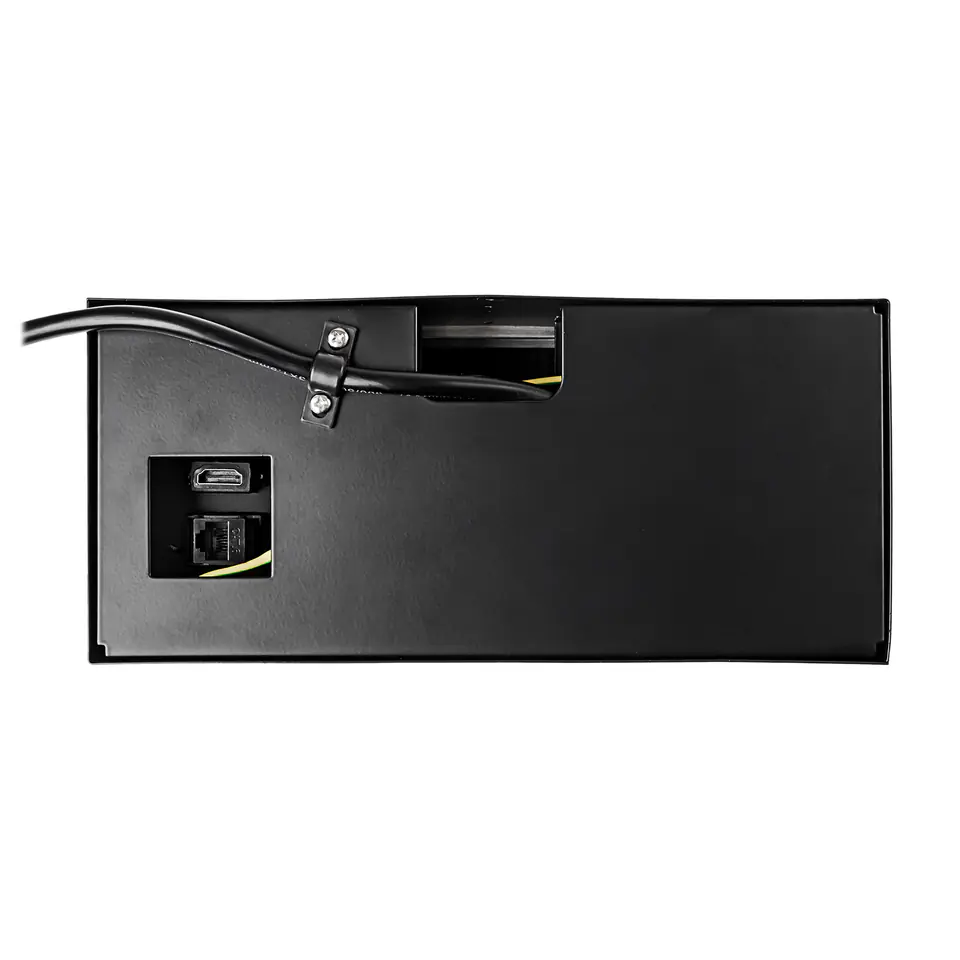

Remark! Mediaport has internal Keystone sockets for connecting your own cables (HDMI and RJ-45).
- Power cable length: 1.5m
- Mains power supply: 230 V 50 Hz
- 2 x Socket German type 110-250 V (16 A)
- 1 x HDMI port (keystone on the back)
- 1 x Ethernet CAT6 RJ-45 port (keystone on the back)
- 1x dual USB charger
- Can dimensions: 25 cm x 9.4 cm x 11.5 cm (width/height/depth)
- External dimensions: 13 cm x 26.5 cm
- Suggested dimensions of the opening in the countertop: 25.3 cm x 11.7 cm
Declaration of Conformity (Polish / English)
