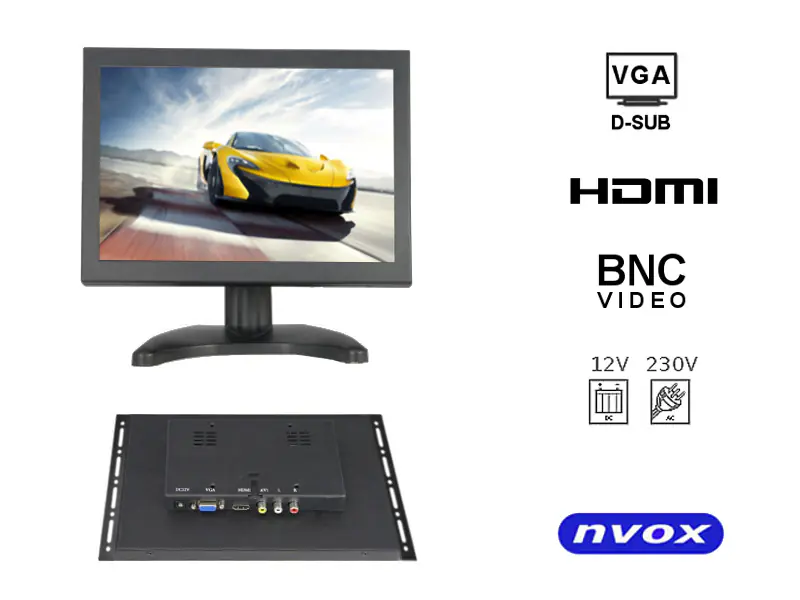

Open frame LED monitor 8" VGA HDMI AV BNC 12V 230V

Open frame LED monitor 8" VGA HDMI AV BNC 12V 230V

- branded Digital LED Hi-Contrast matrix with increased brightness, contrast and sharpness
- increased readability of the screen in sunlight
- Advanced high-permeable color filter
- solid metal housing
- VGA input
- HDMI input
- ideal for use in: interactive kiosk, slot machine, POS, advertising stand, intelligent information point, etc.
- automatic screen blanking function after a specified time
- VESA mount

• 8" LED digital display
• TFT 4:3 matrix (Active Matrix System)
• matrix type: glossy
• 500:1 brightness, 1000:1 contrast ratio
• recommended resolution: 1024x768 px
• supported resolutions: 800x600 px, 1024x768 px, 1152x864 px, 1280x768 px, higher resolutions are interpolated to 1280x768 px
• automatic blanking function: off/15min/30min/45min/60min/75min/90min/105min/120min
• functional simple MENU
• VGA input
• HDMI input
• AV input
• BNC input
• systems: PAL / NTSC
• power consumption 10W
• operating temperature: -10°C - 60°C
• storage temperature: -20°C - 80°C
• power supply: DC 12V / AC 230V
•Black
• weight: ca. 1 kg
• dimensions with mounting plate: width 219mm x height 144mm x thickness 38mm
• dimensions without mounting plate: width 190mm x height 144mm x thickness 38mm
• matrix dimensions: width 164mm x height 122mm

Included:

-monitor
- BNC cable
- 230V power supply
- 2 mounting plates
-Instr. Handling
