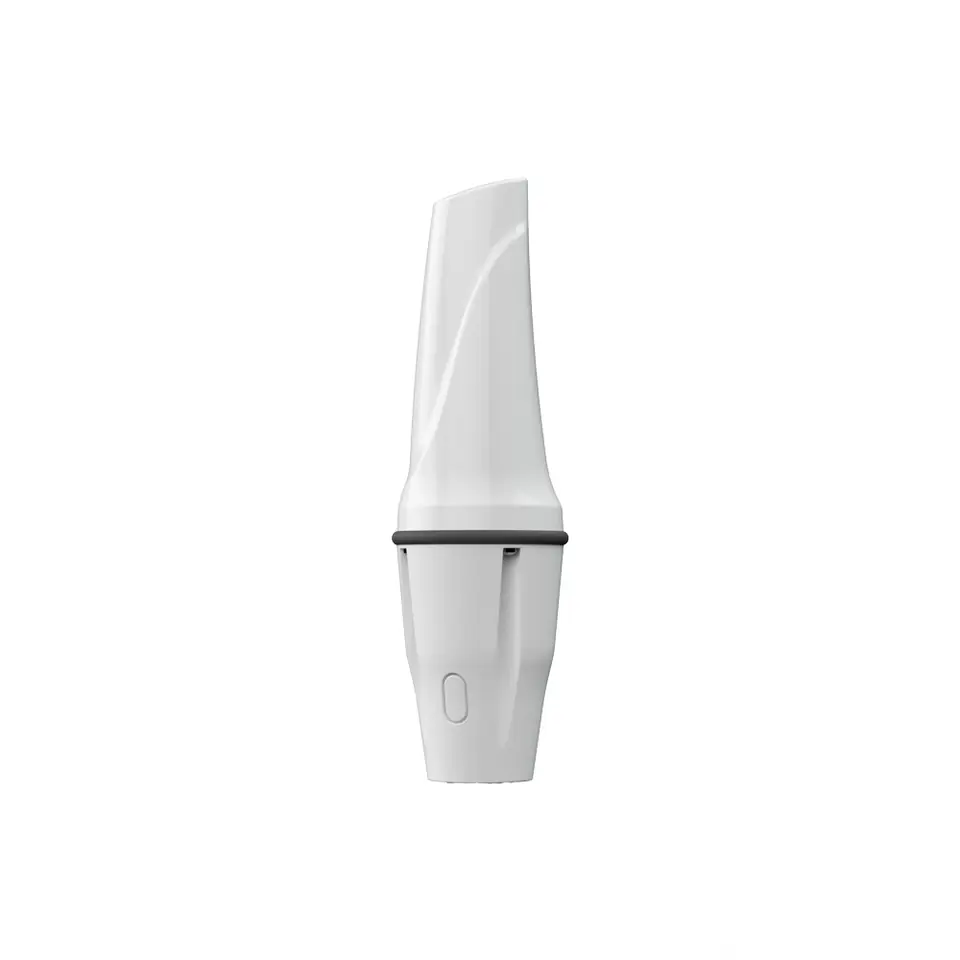

Omnidirectional broadband antenna Poynting OMNI-403

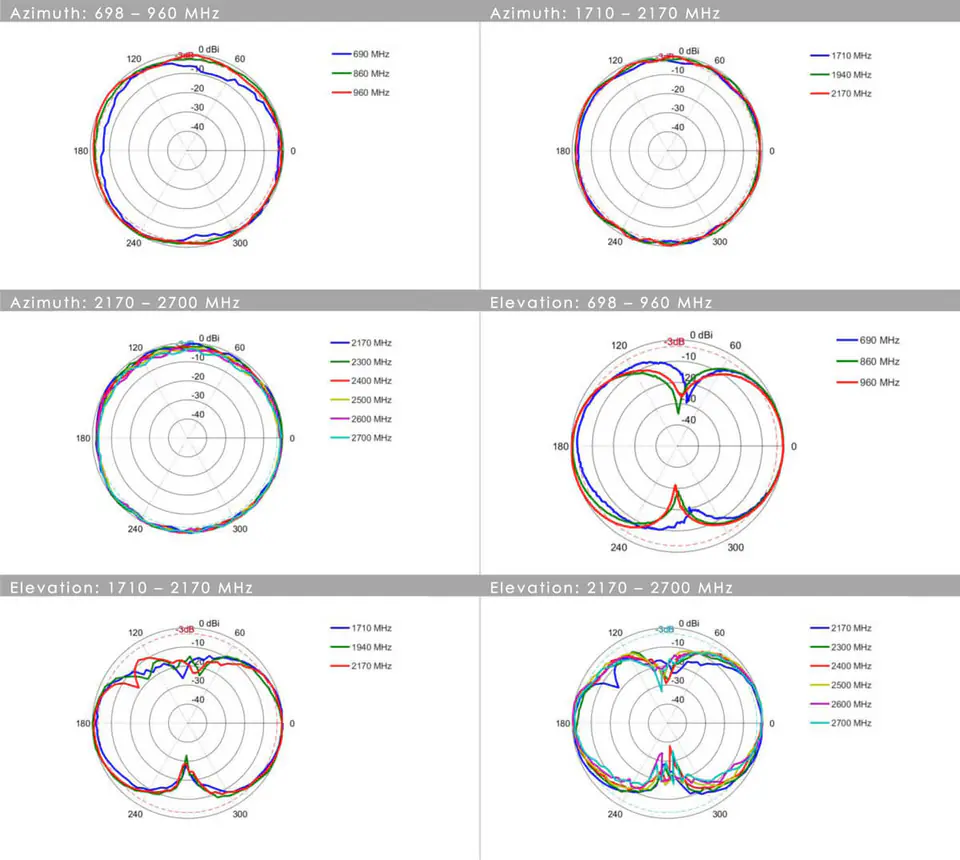

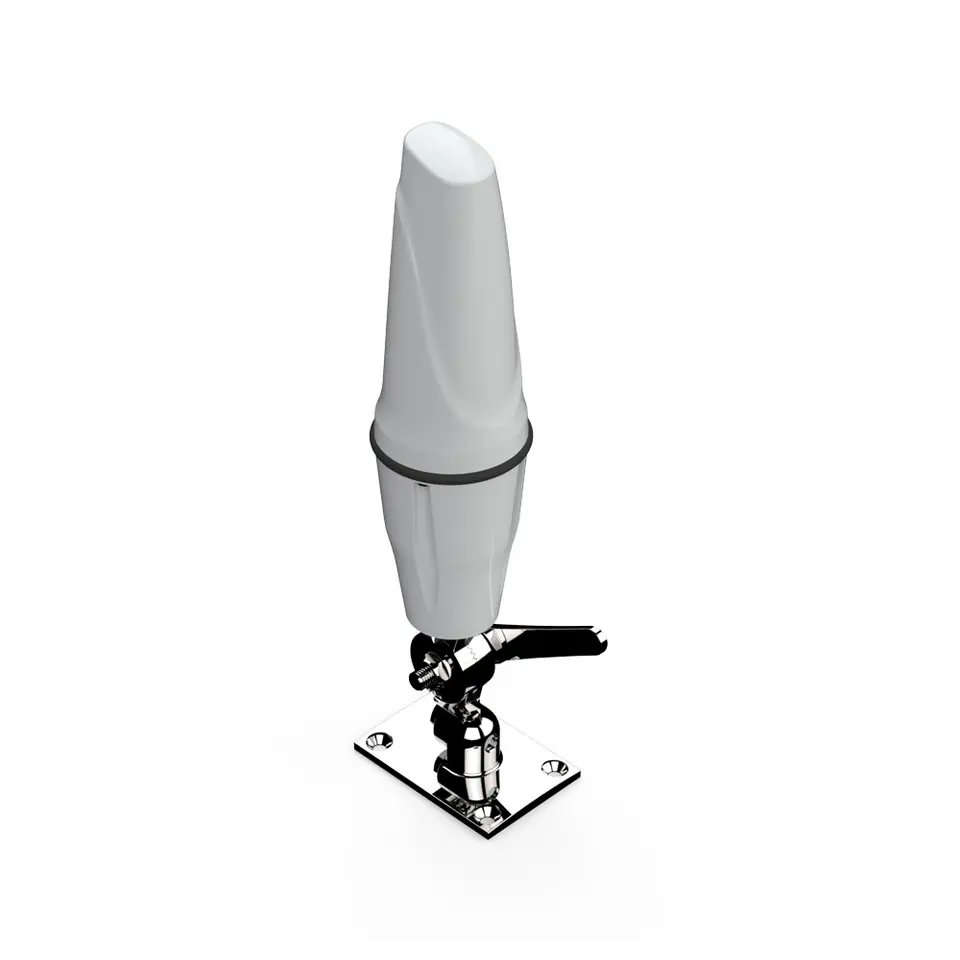

The OMNI-403 is a broadband LTE antenna with a smaller profile cover that is specially designed for adverse sea and coastal conditions. This antenna covers all modern LTE operating frequencies with perfectly balanced gain at all frequencies, improving LTE performance features such as Multi Carrier Aggregation (CA). This antenna is suitable for all 5G networks up to 2700 MHz. The antenna is designed for excellent pattern control over the entire frequency range, making the OMNI-403 a unique omnidirectional antenna due to its size and application. The antenna achieves such parameters thanks to a new design using multiple nozzles and a unique (patented) power supply network. The antenna uses a standard 1-inch (14TPI) sea mount that simplifies installation for most standard marine accessories.
- Low profile marine omnidirectional antenna
- Robust and resistant to all weather
- Easy installation with grommet via standard 1-inch marine adapter
- Handle included
- Protection against UV radiation and salt water
- IP68 protection

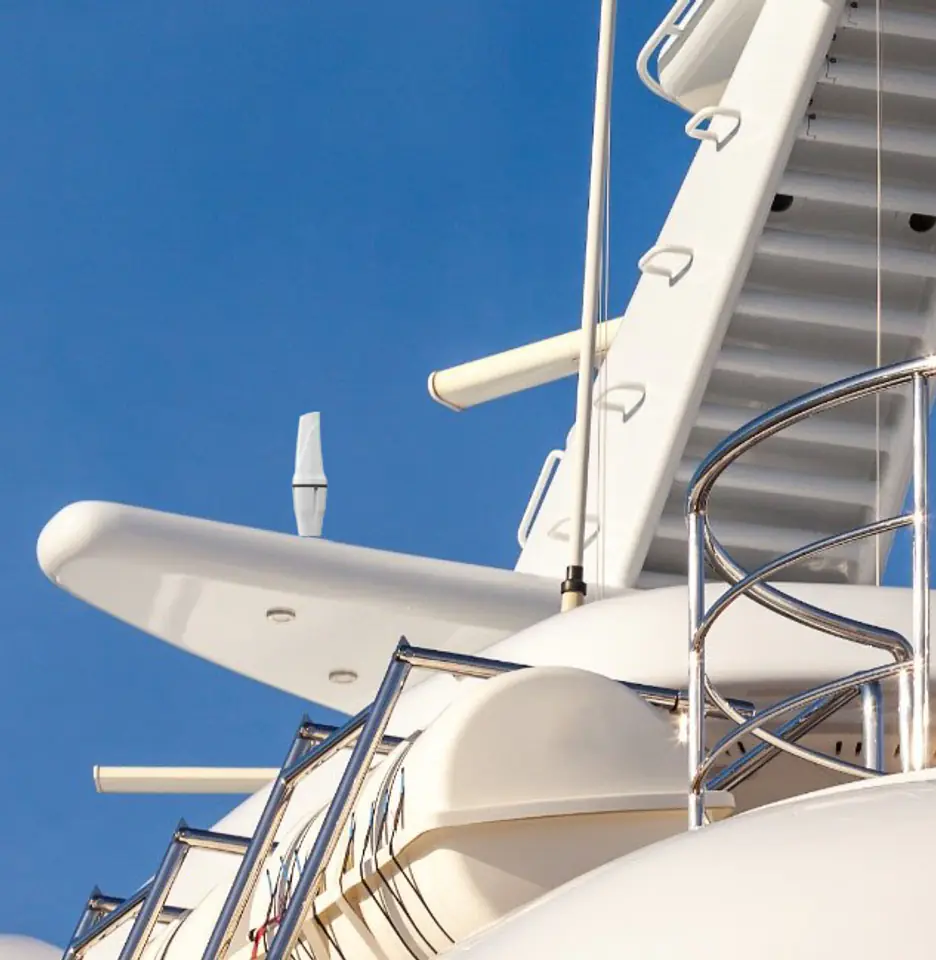

- Designed for marine and coastal applications

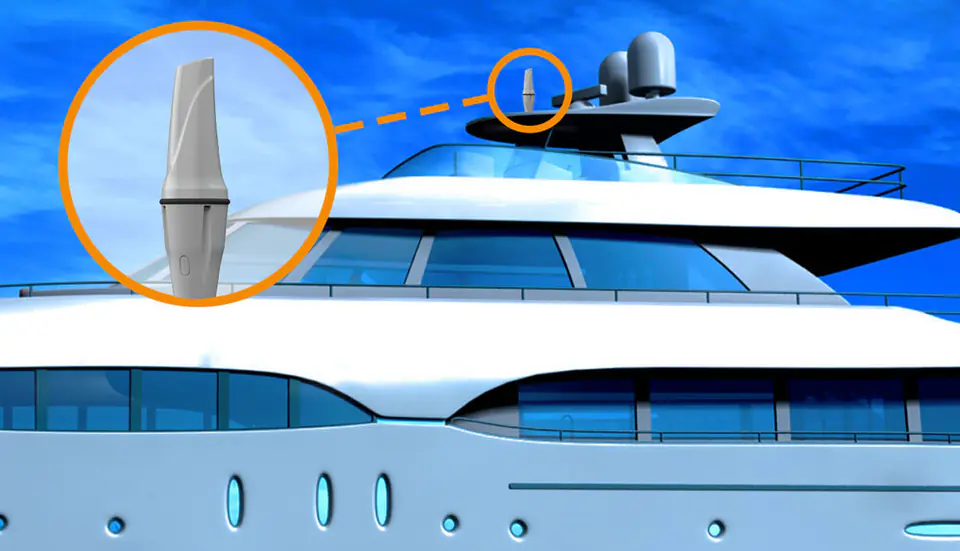

- Marine Applications / Yachts / Boats / Ferries
- IoT and M2M applications
- Stability of data connection
- Areas with poor data signal reception

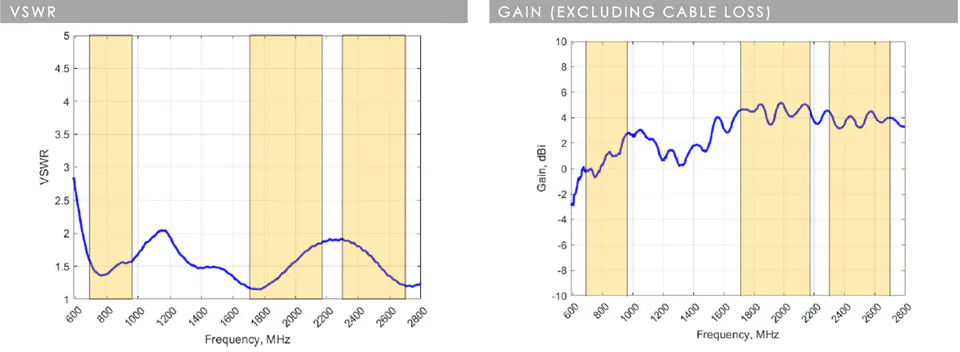

Profit* in dBi
5 dBi is the peak gain in all bands from 698 to 2700 MHz. (Gain at 698-960 MHz: 2.8 dBi; Gain at 1710-2170 MHz: 5 dBi; Gain at 2300-2700 MHz: 4.5 dBi)
* Antenna gain measured as standard with aligned antenna polarity

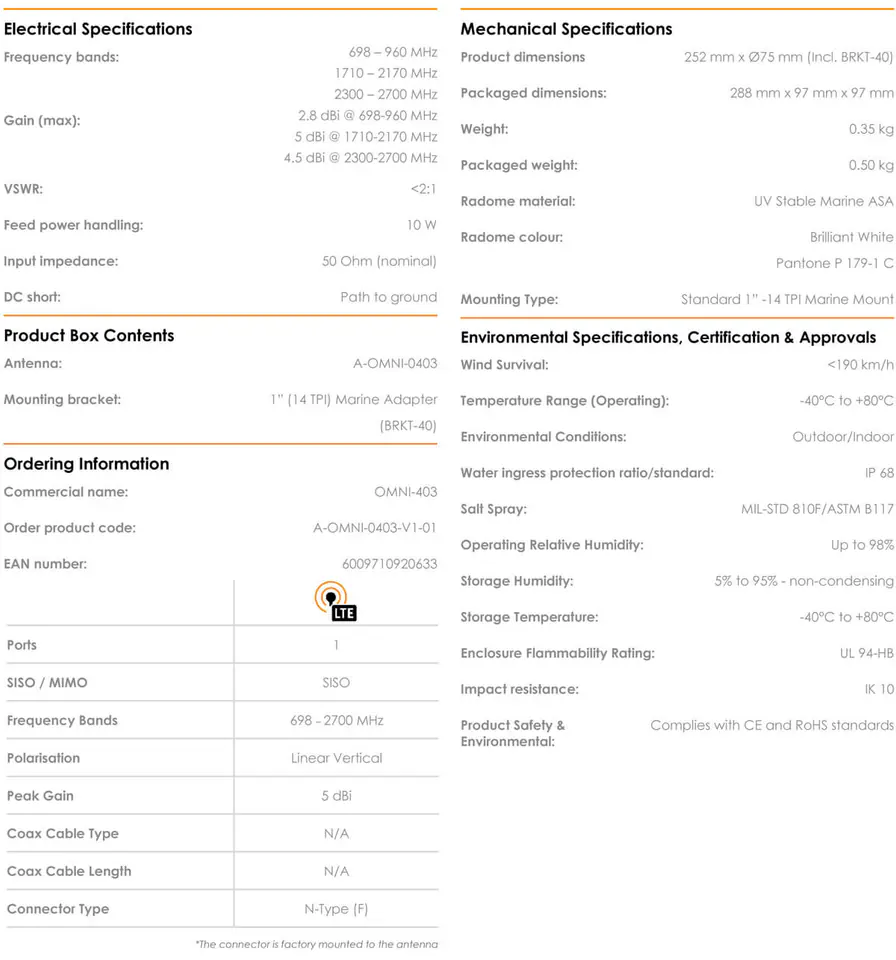

Click here for full technical documentation of the antenna.
